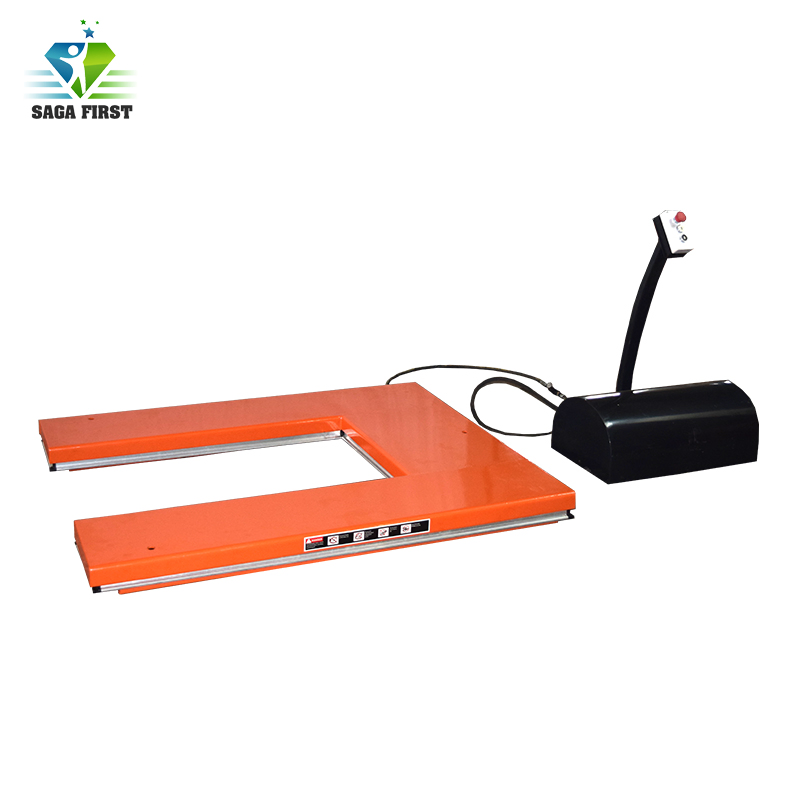

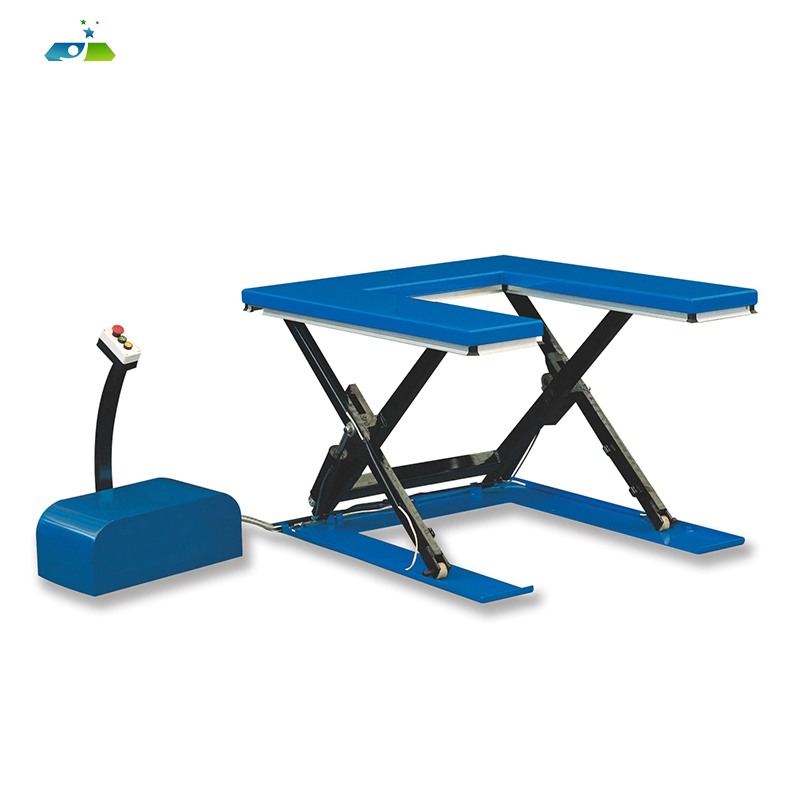

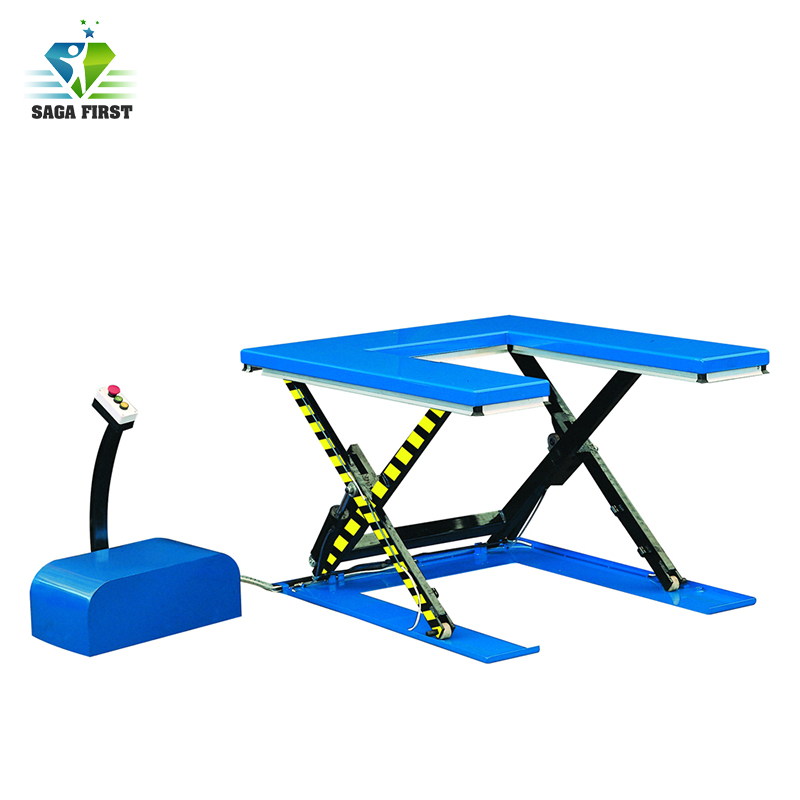

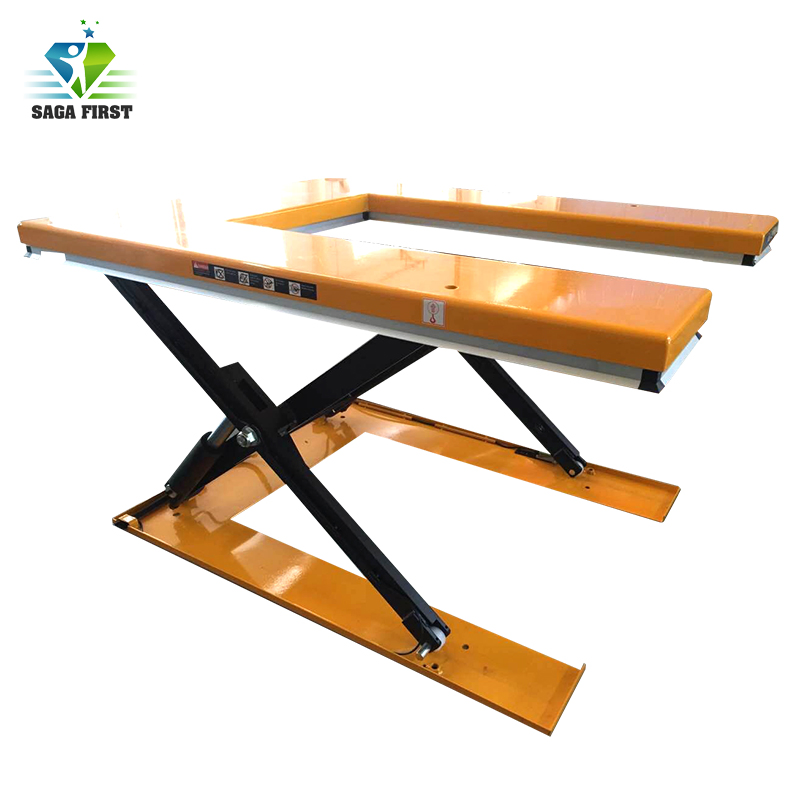

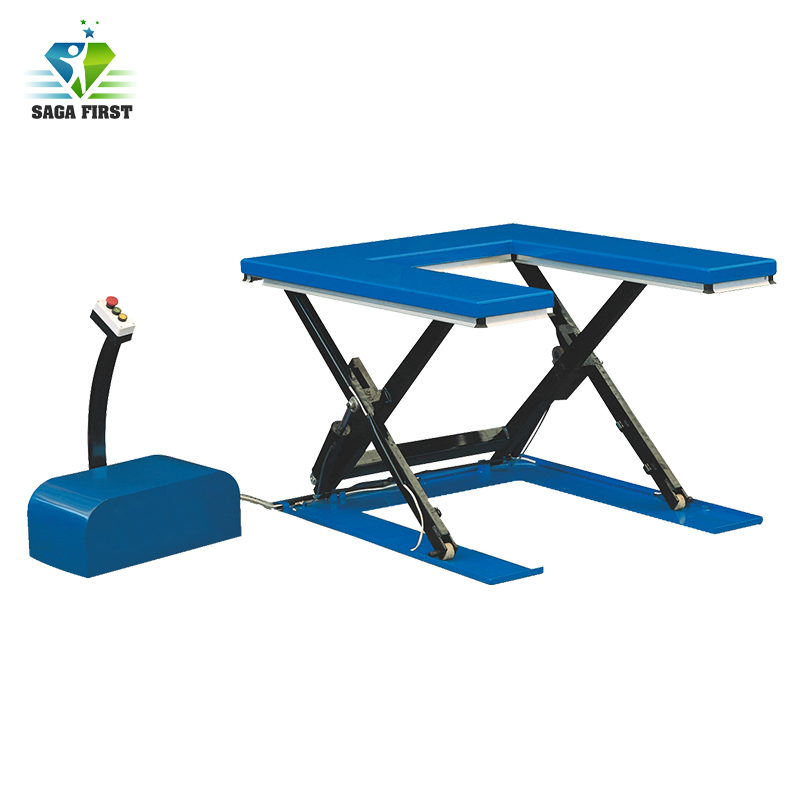

500kg 1000kg U Type Low Profile Electric Lift Table for Pallet
500kg 1000kg U Type Low Profile Electric Lift Table for Pallet
500kg 1000kg U Type Low Profile Electric Lift Table for Pallet
500kg 1000kg U Type Low Profile Electric Lift Table for Pallet
500kg 1000kg U Type Low Profile Electric Lift Table for Pallet
1 / 5
500kg 1000kg U Type Low Profile Electric Lift Table for Pallet
500kg 1000kg U Type Low Profile Electric Lift Table for Pallet
500kg 1000kg U Type Low Profile Electric Lift Table for Pallet
500kg 1000kg U Type Low Profile Electric Lift Table for Pallet
500kg 1000kg U Type Low Profile Electric Lift Table for Pallet

500kg 1000kg U Type Low Profile Electric Lift Table for Pallet

Customization: Available
Application: Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism: Scissor Lift
Send Inquiry

Product Description

Basic Specifications

Model NO.
UL
Carrying Capacity
Weight Level
Moves
Stationary
Driven Type
AC
Feature
Explosion-Proof, Insulating
Certification
CE, ISO 9001
Load Capacity
1000kg to 1500kg
Lifting Height
860mm
Voltage
Custom Local Standard
Quality Warranty
12 Months
Lowering Speed
Adjustable
Origin
China

Introduction

Driven by the electric and hydraulic system. It can be installed in the pit or directly on the ground floor to facilitate cargo handling.

Key Advantages

  • Stable Operation: High-quality pump station ensures very stable lifting and falling.
  • Durable Design: Anti-pinch scissor design; main pin-roll adopts self-lubricating design to prolong life span.
  • Safety Stop: Equipped with aluminum alloy blend-stop under the platform for maximum protection.
  • Adjustable Speed: Pressure relief valve prevents overload; flow control valve makes descent speed adjustable.
  • Burst Protection: Explosion-proof valve stops the platform lowering immediately if a pipe bursts.
  • International Standards: Fully compliant with American ANSI/ASME and European EN1570 standards.

Safety Precautions

  • 🛡️ Explosion-proof valves for hydraulic pipe protection.
  • 🛡️ Spillover valve to adjust pressure during machine operation.
  • 🛡️ Emergency decline valve for manual lowering during power failure.
  • 🛡️ Overload protection locking device.
  • 🛡️ Automatic Safety sensor: Platform stops automatically when encountering barriers.

Technical Parameters

Model Unit UL600 UL1000 UL1500
Load Capacitykg60010001500
Platform size LxWmm1450x9851450x11401600x1180
Min.Platform Heightmm8585105
Max.Platform Heightmm860860860
Lifting times25-3525-3530-40
Power-380V/50Hz380V/50Hz380V/50Hz
Net weightkg207280380

Product Display

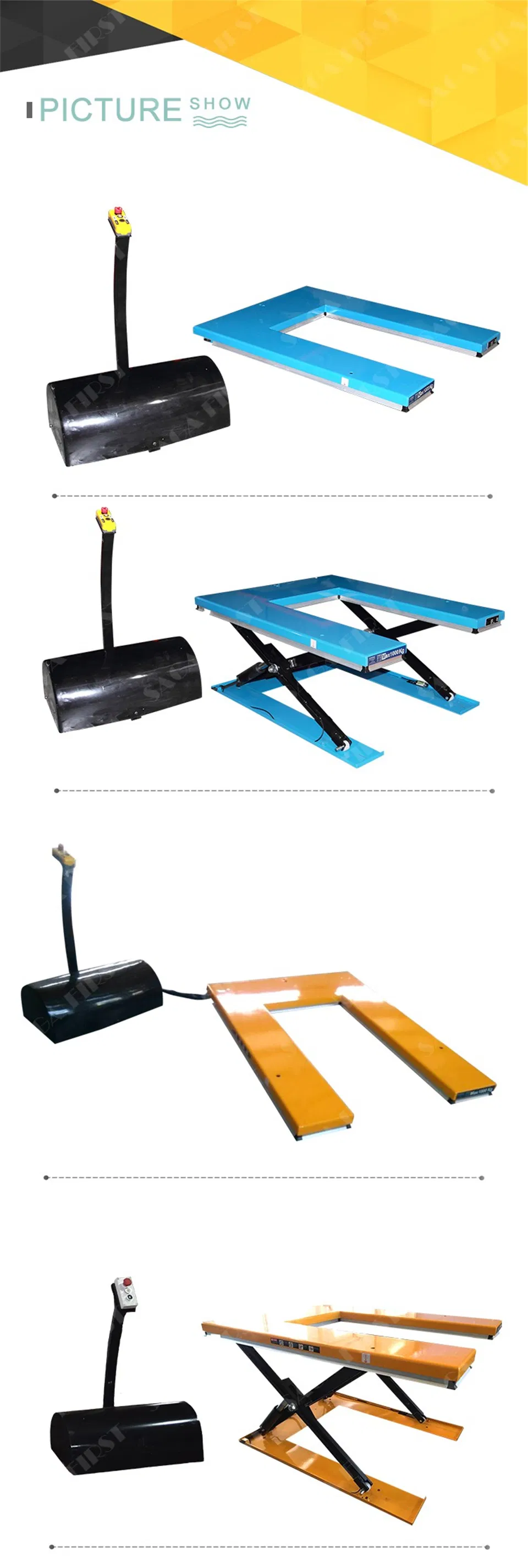

U Type Electric Lift Table 1

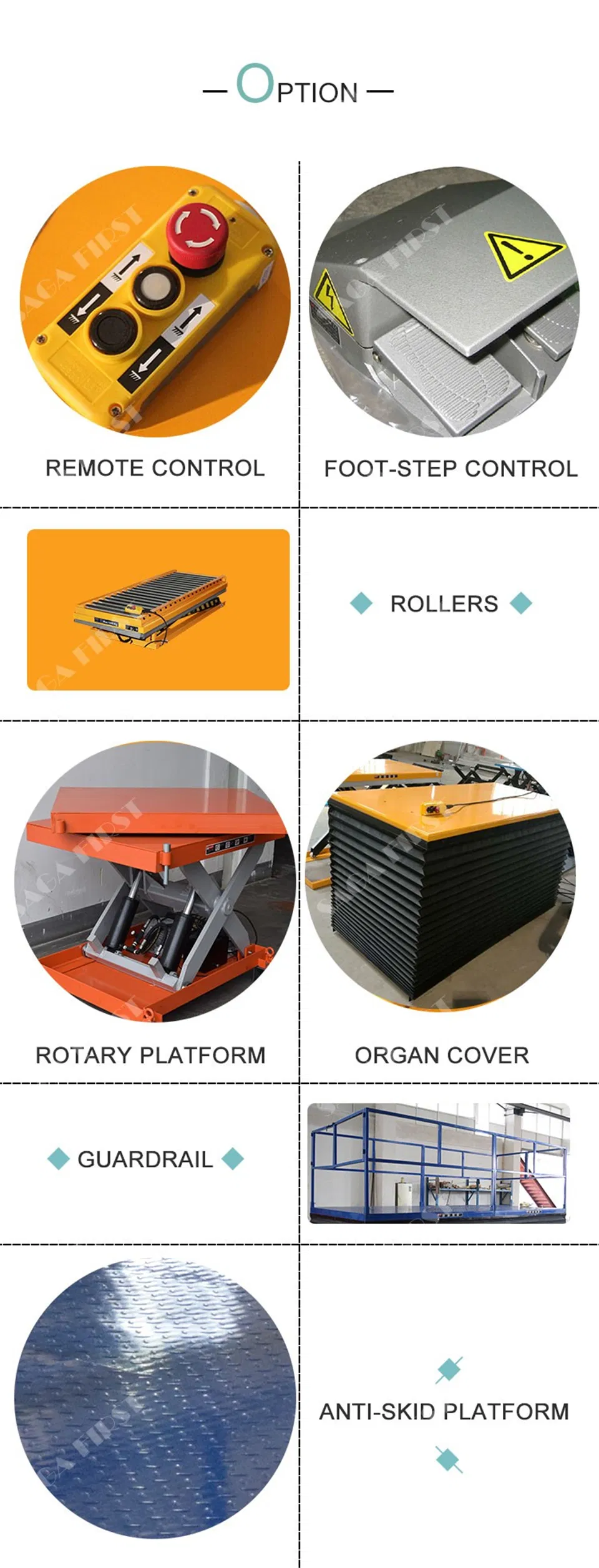

U Type Electric Lift Table 2

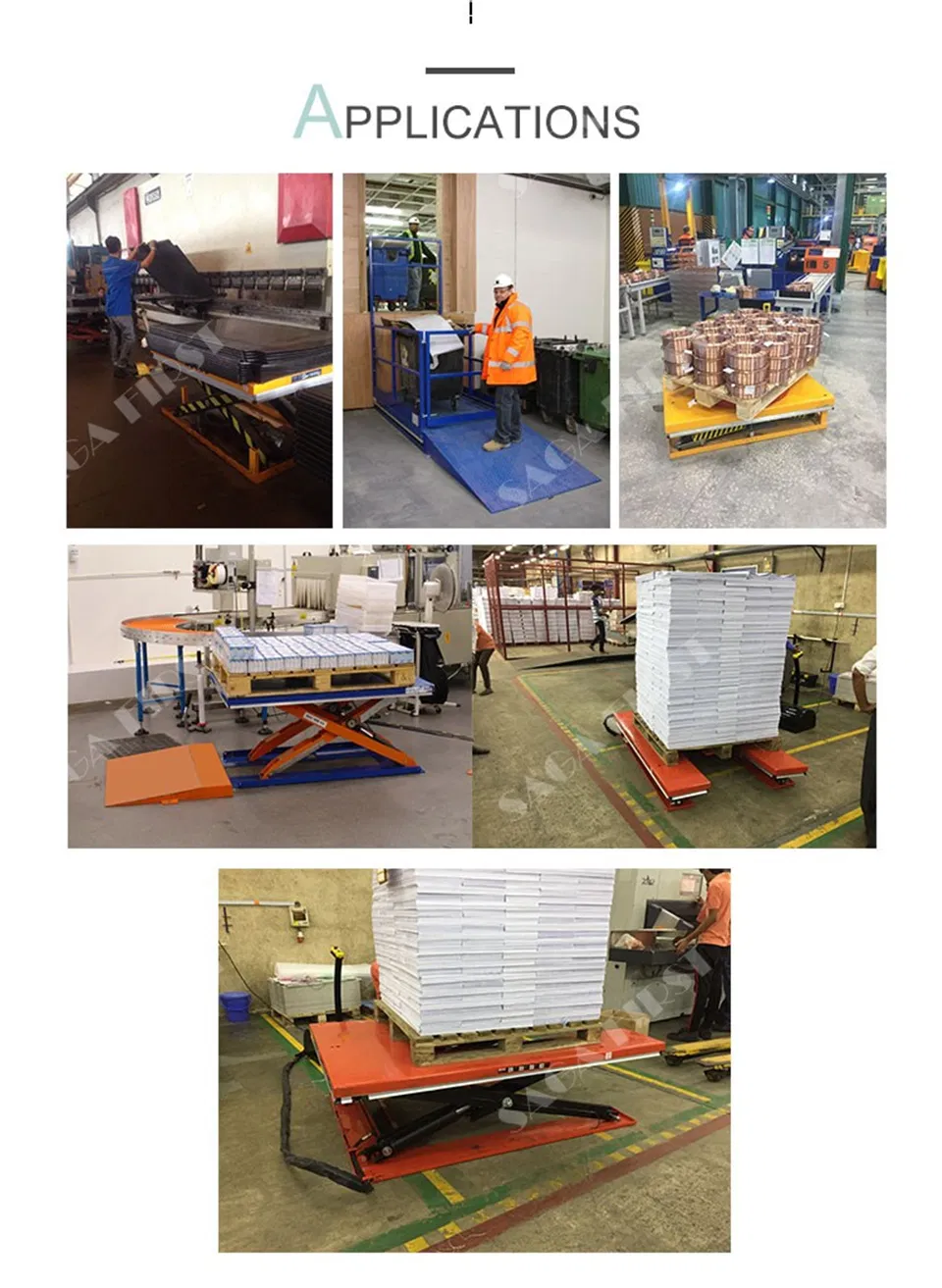

U Type Electric Lift Table 3
Certification Showcase

Our Professional Service

  • Customized design for U-type scissor lift tables based on specific requirements.
  • Model recommendations provided based on your application needs.
  • Shipment arrangement from port to destination.
  • Operational and maintenance videos available for guidance.
  • Express delivery of replacement parts within 7 days if required.

Frequently Asked Questions

How can customers buy parts if they break down?
The lift table uses common hardware parts. You can easily purchase them from local hardware markets or forklift parts shops.
How do I repair the U-type scissor lift table?
The equipment has a very low failure rate. If an issue occurs, we provide repair guidance via video and instruction manuals.
How long is the quality guarantee?
We provide a one-year quality guarantee. During this period, replacement parts are sent free of charge if a breakdown occurs.
Can the lowering speed be adjusted?
Yes, the machine is equipped with a flow control valve that allows you to adjust the descent speed according to your needs.
What happens if there is a power failure while the platform is raised?
There is an emergency decline valve that allows you to manually lower the platform safely during a power outage.
What safety standards does this equipment meet?
Our products meet American ANSI/ASME standards and European EN1570 safety requirements, and are CE, ISO, and ROHS certified.
