| Model NO. | HU1000 |
| Application | Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane |
| Lift Mechanism | Scissor Lift |
| Carrying Capacity | Weight Level |
| Moves | Stationary |
| Driven Type | AC |
| Running Mode | Stationary |
| Feature | Explosion-Proof |
| Certification | CE |
| Capacity | 600kg, 1000kg, 1500kg |
| Min. Height | 85mm |
| Max. Height | 860mm |
| Table Size | 1450*985mm |
| Lift Time | 25-35s |
| Color | Customizable |
| Net Weight | 207-380kg |
| Scissor | Single Scissor Lift Table |
| Type | Stationary Lift Table |
| Transport Package | 1PC/Wooden Case |

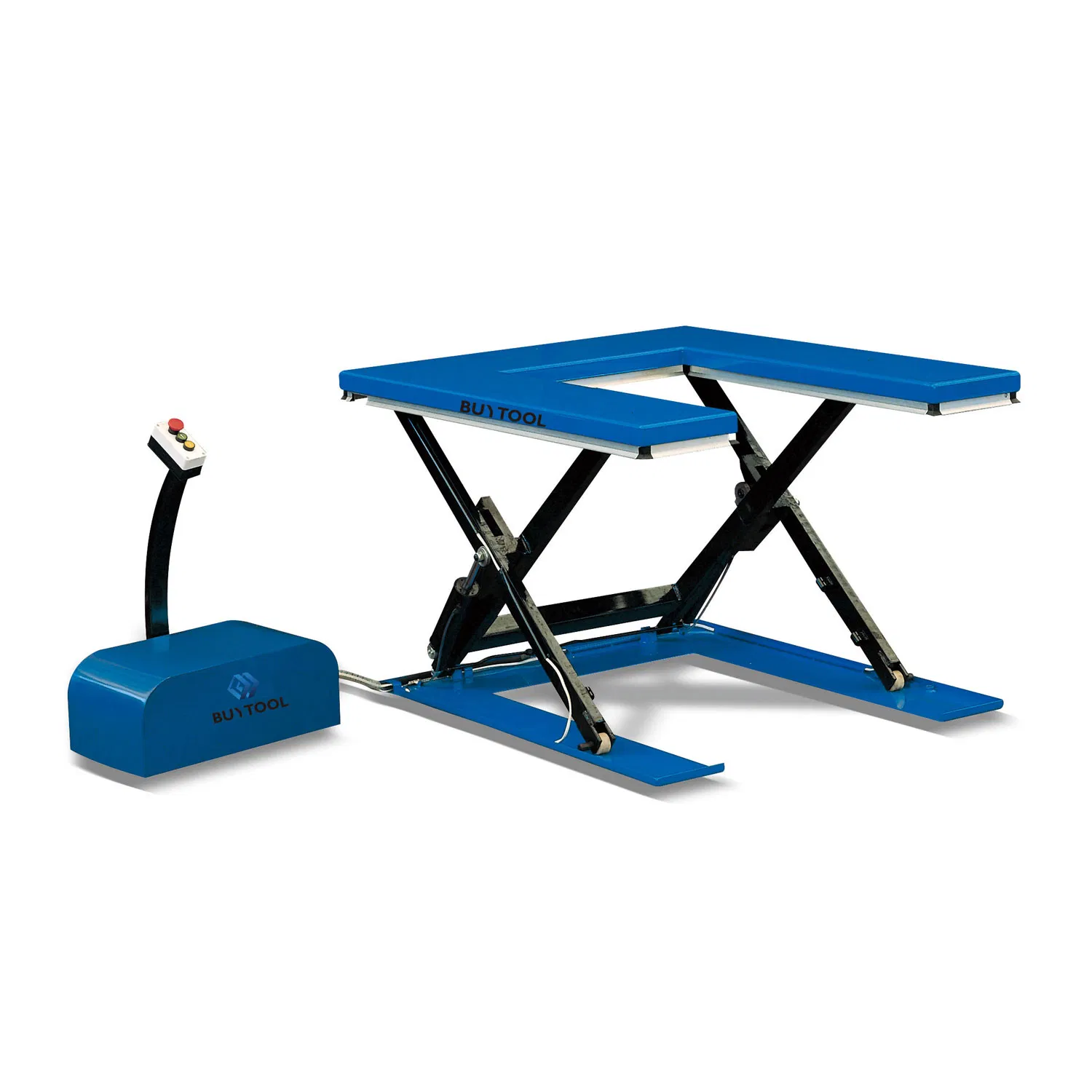

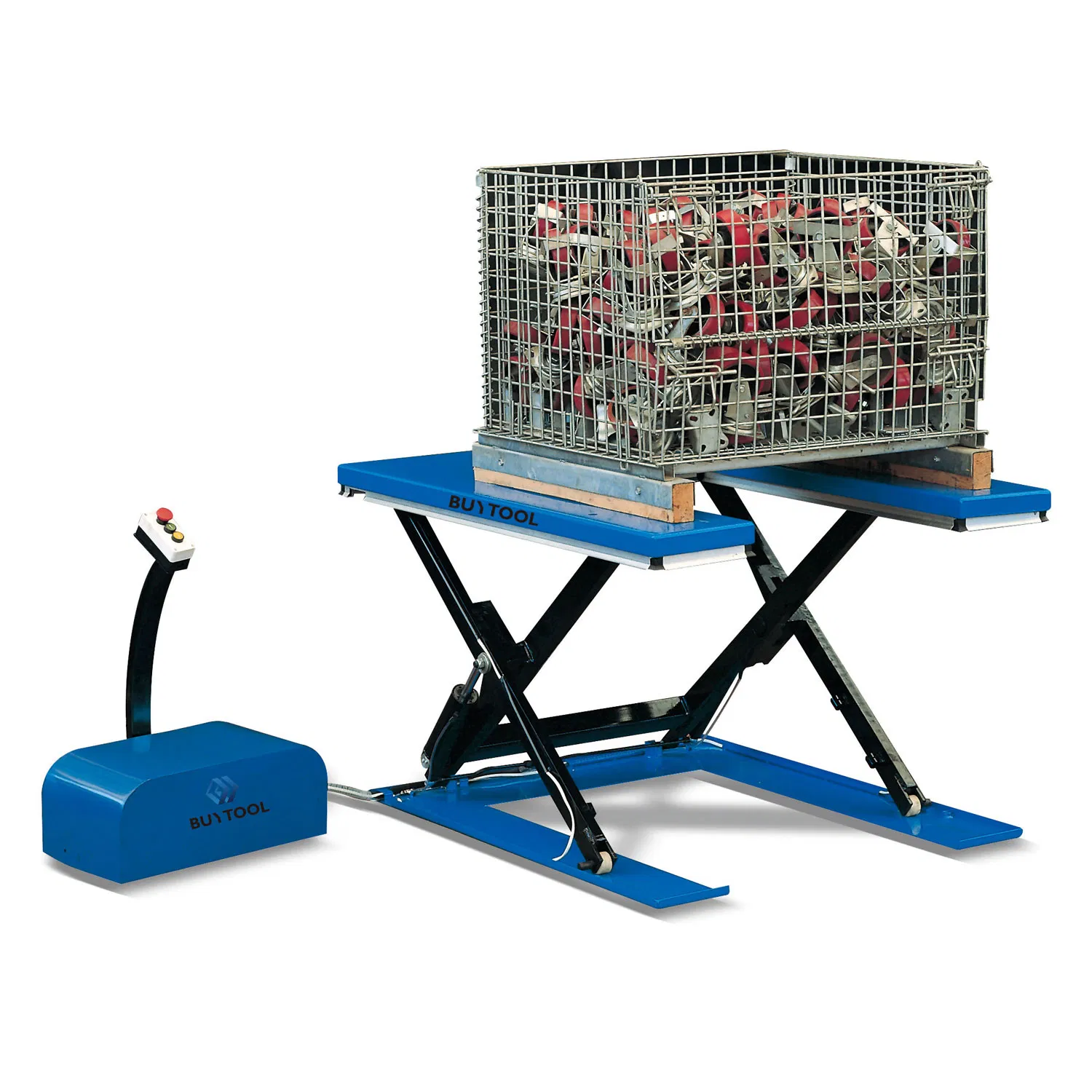

Low Profile U Shape Electric Hydraulic Scissor Lift Table

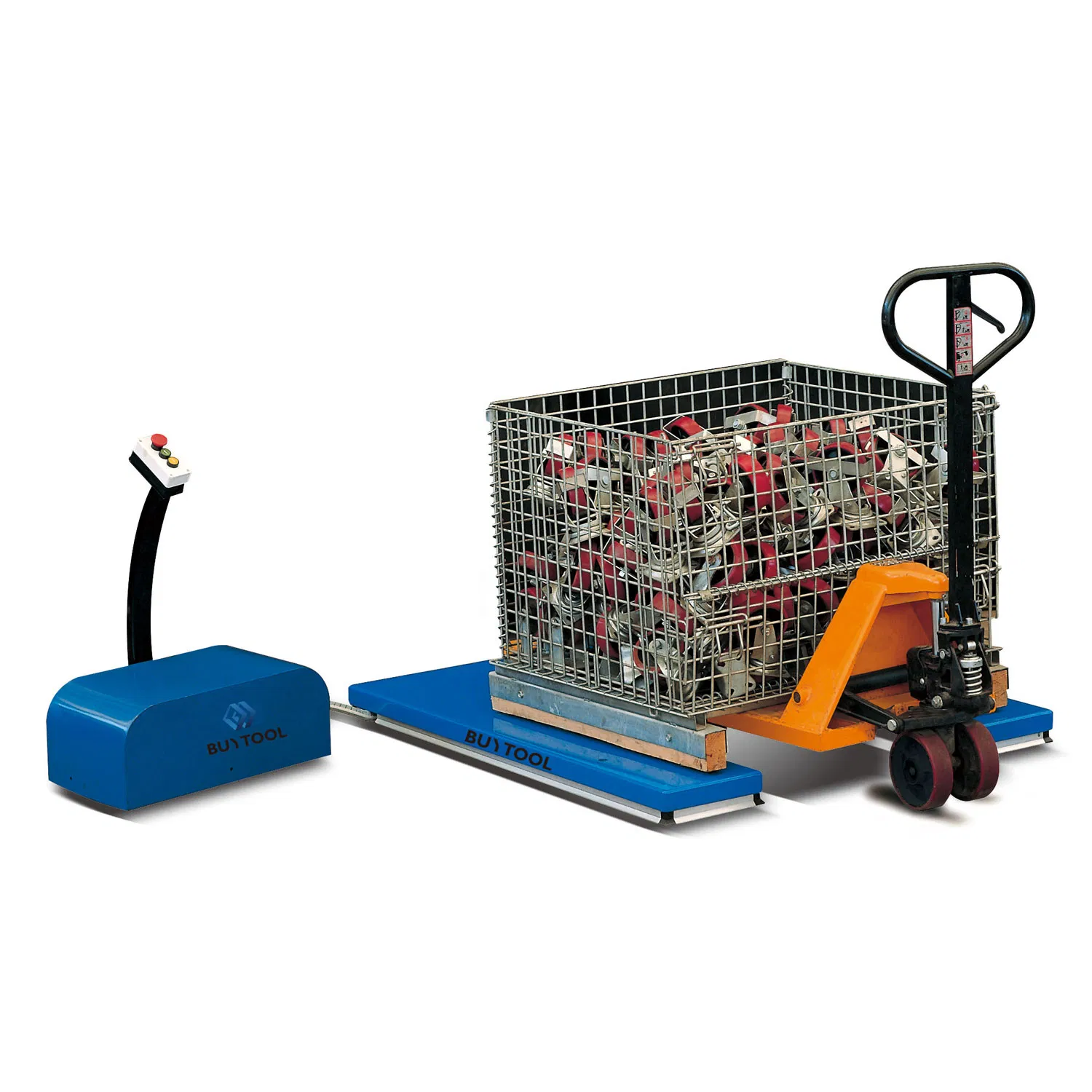

Specially designed for handling pallets without the need for a pit or load ramps. Manufactured to meet all European safety standards, including EN1570: 1990.

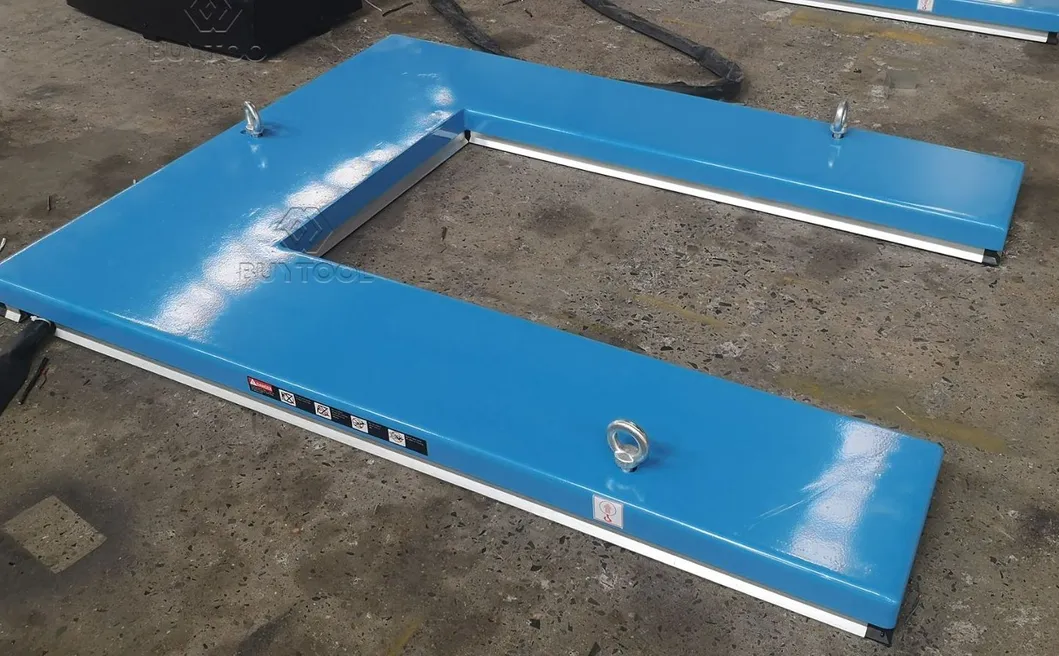

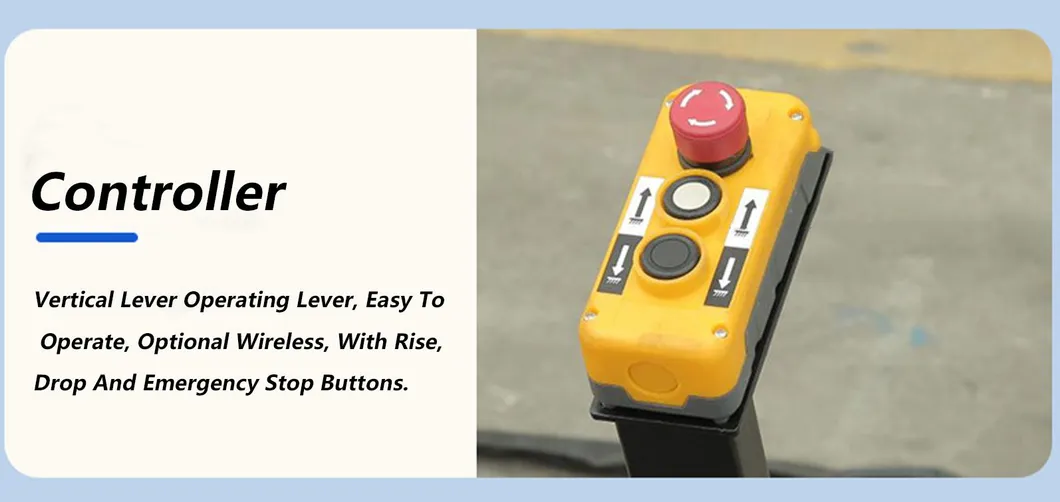

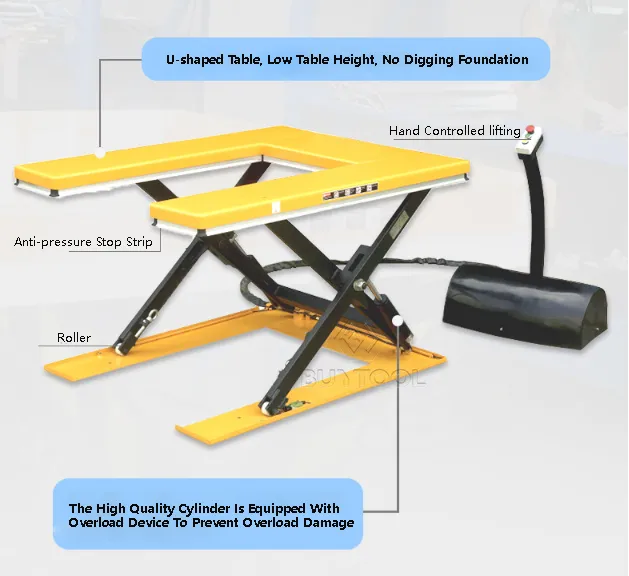

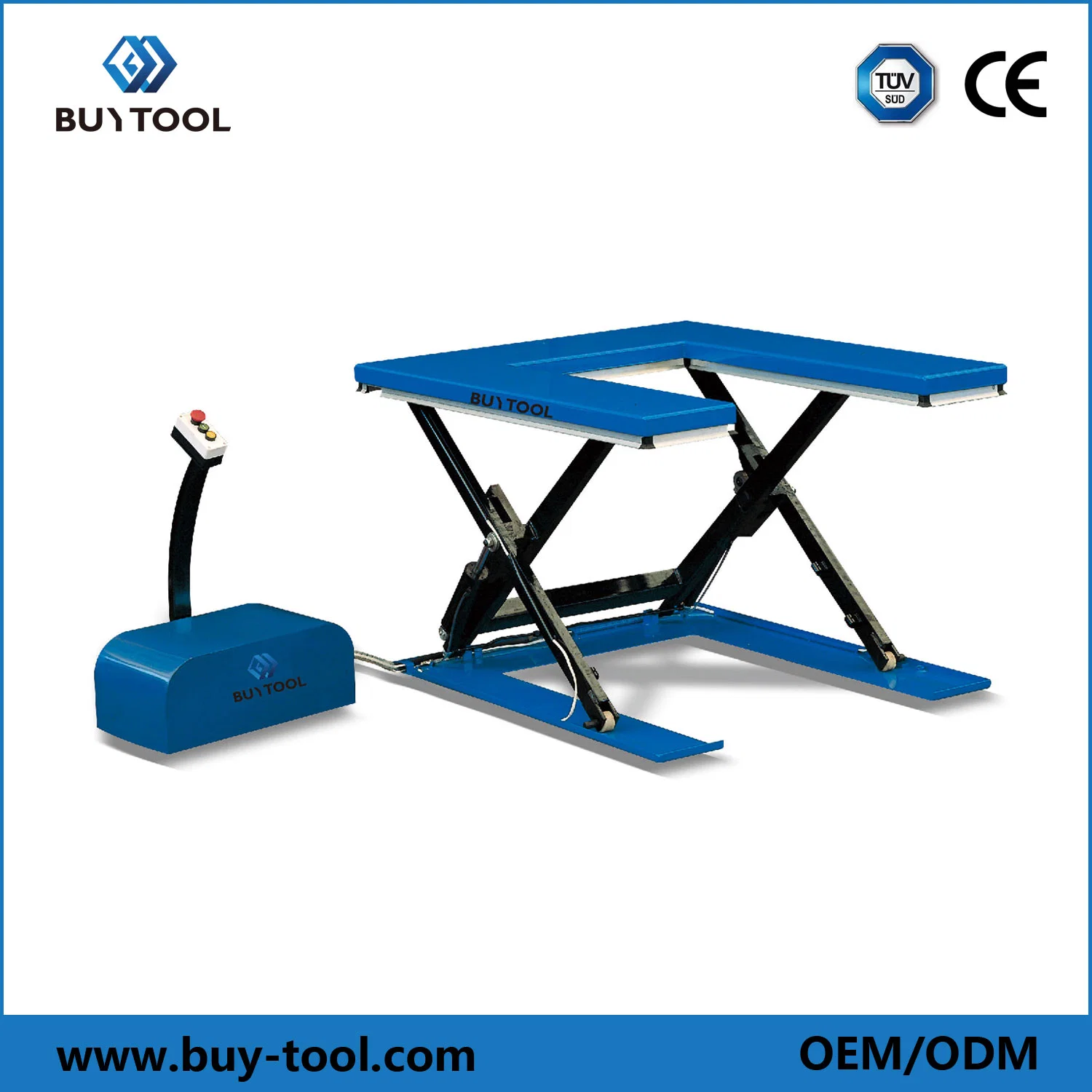

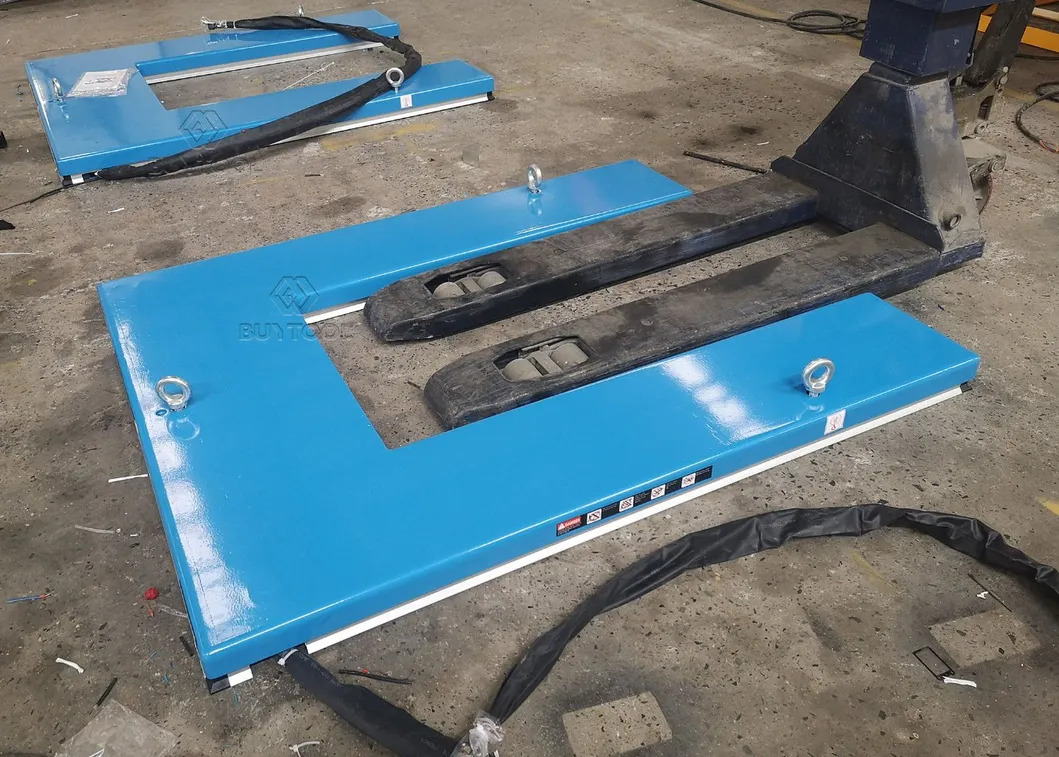

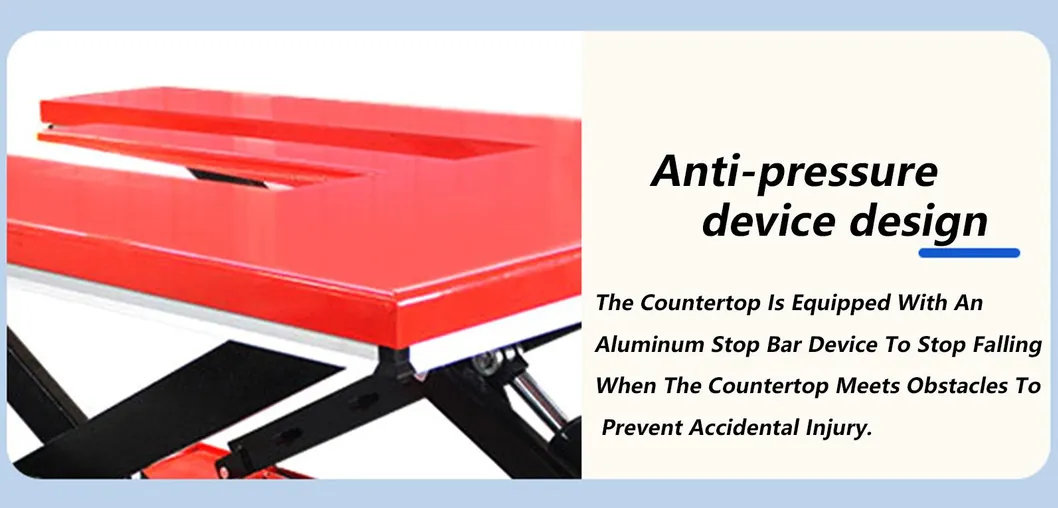

This 'U' Shaped Top Platform is designed for efficient and safe pallet handling. With no need for a pit or load ramps, this lift table offers convenience and ease of use. It meets all European safety standards, ensuring reliable performance. The remote power pack with pedestal and controls is protected to IP54, providing durability and longevity. The upper platform's safety perimeter prevents descent when obstructions are encountered, ensuring operator safety. The 24V control box with UP and DOWN buttons and emergency stop allows for precise and convenient operation.
| Model | HU600 | HU1000 | HU1500 |
|---|---|---|---|
| Capacity (kg) | 600 | 1000 | 1500 |
| Max. height H(mm) | 860 | 860 | 860 |
| Collapsed height h(mm) | 85 | 85 | 105 |
| Platform L×W(mm) | 1450×985 | 1450×1140 | 1600×1180 |
| Lifting Time (second) | 25~35 | 25~35 | 30~40 |
| Power Pack (KW) | 380V/50Hz, 1.1KW | 380V/50Hz, 0.75KW | 380V/50Hz, 1.5KW |
| Net Weight (kg) | 207 | 280 | 380 |

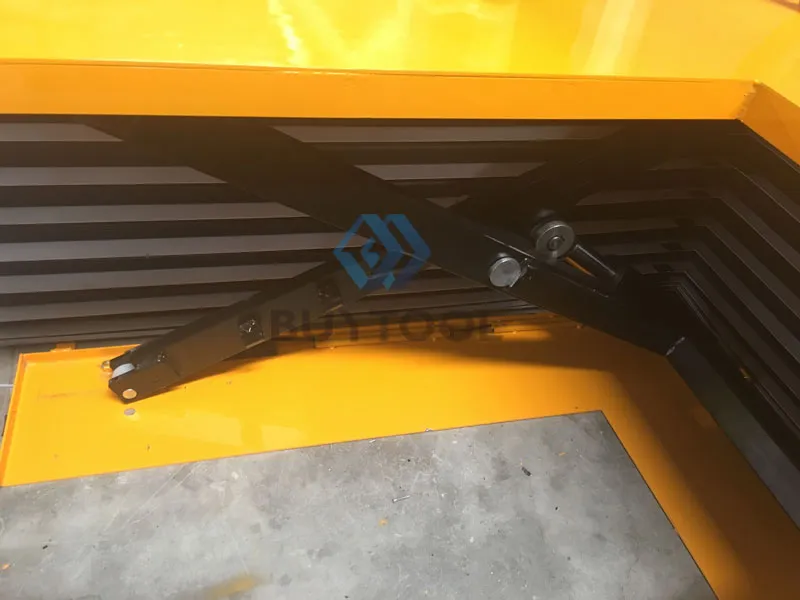

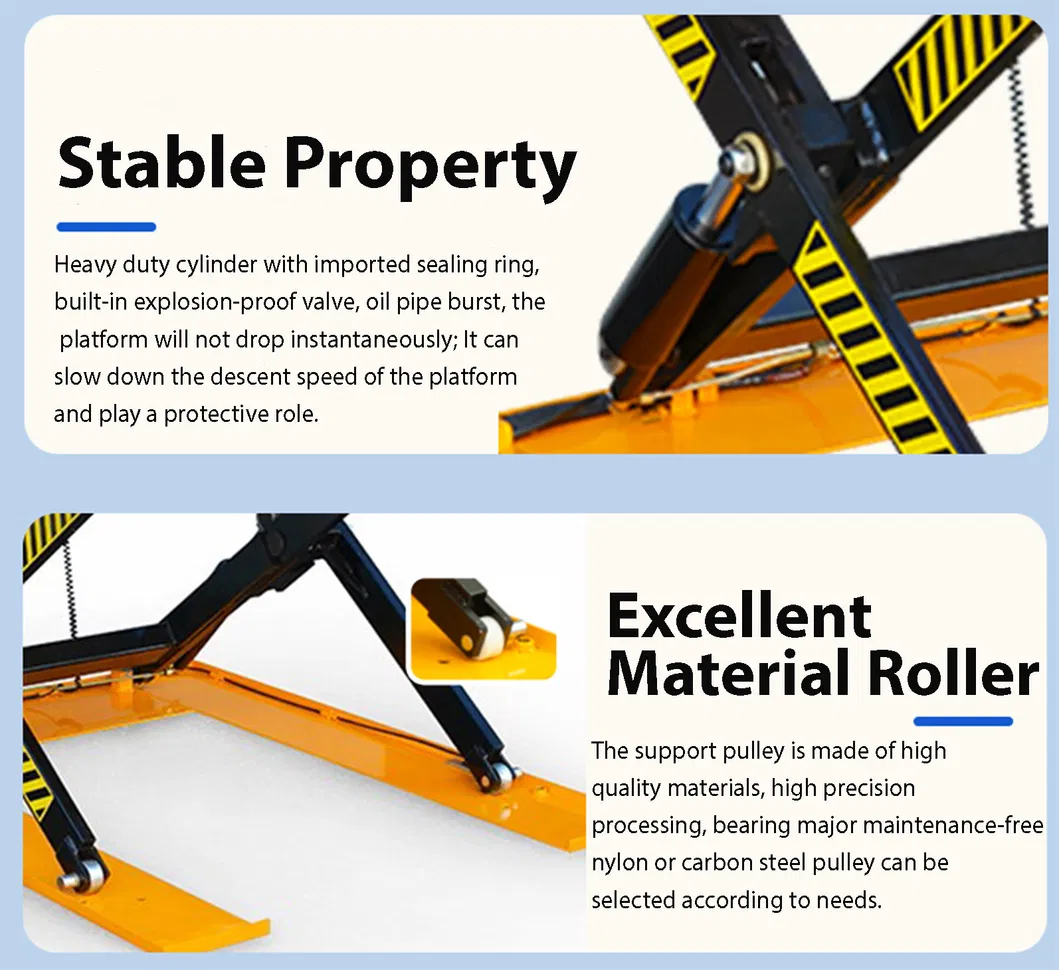

Reinforced Structure: The scissor lift is thickened and widened with a roller in the middle to increase the safety of the load force, ensuring maximum stability during operation.
