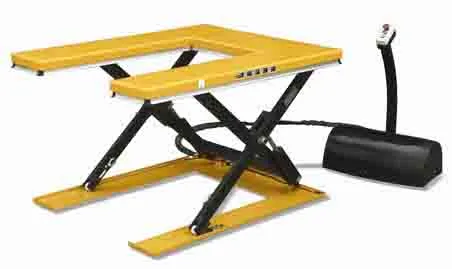

1500kg "U" Low Profile Electric Lift Table Hl-U1500

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

HL-U1500

Driven Type

Running Mode

Stationary

Certification

GS, CE, ISO 9001

Capacity

600 Kg

Min Height

85mm

Max.Height

860mm

Platform Size

1600X1180mm

Power Pack

380V/50Hz,AC1.5kw

Transport Package

Wooden Pallet

Origin

China

HS Code

84279000

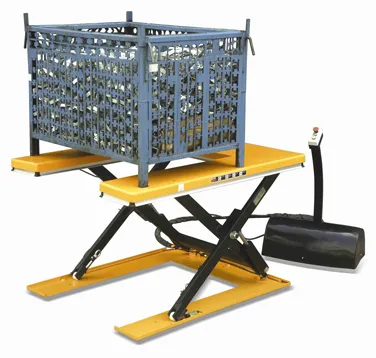

"U" Low Lift Table (HL-U SERIES)

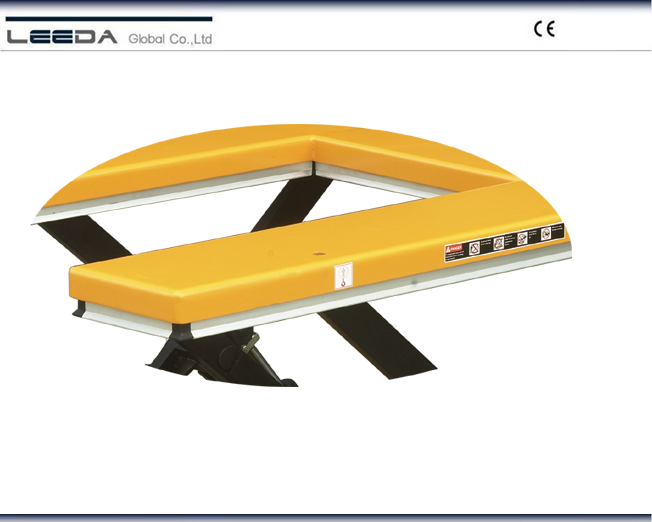

"U" Shaped Top Platform designed specifically for handling pallets without the need for a pit or load ramp.

Manufactured to all European safety standards including EN1570: 1999.

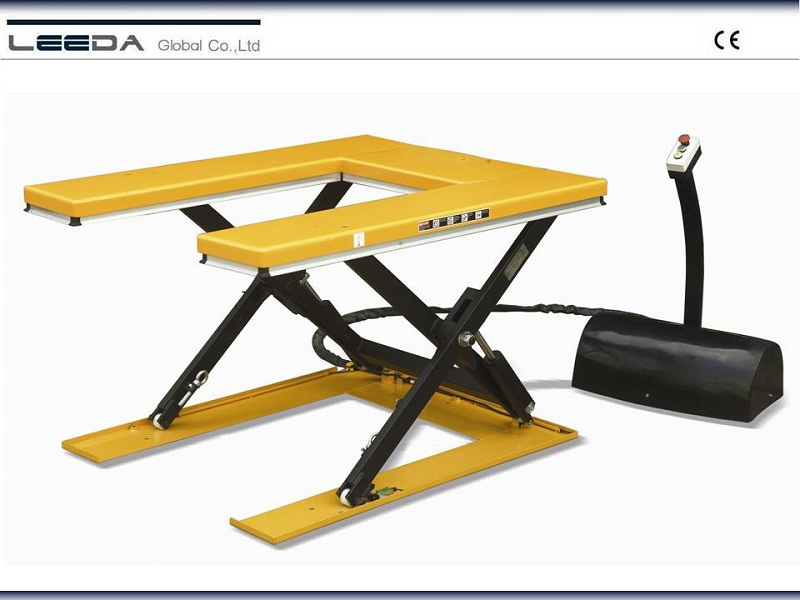

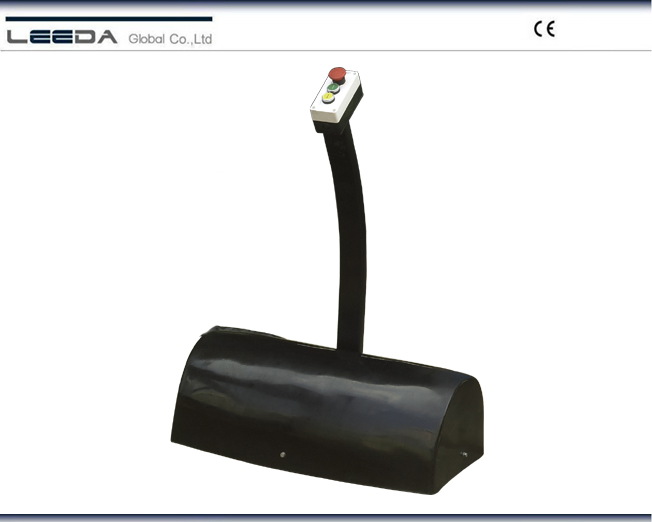

Remote power pack with pedestal and controls, protected to IP54.

Upper platform fitted with a safety perimeter to prevent descent on contact with obstructions.

24V control box with UP and DOWN buttons and emergency stop for operator safety.

External power pack equipped with a relief valve against overloading.

Compensated flow valve included for precise control of lowering speed.

Hose burst safety valve to stop the lift table lowering in case of hose breakage.

Removable lifting eyes to facilitate easy handling and installation.

Oiless bushings on all pivot points for reduced maintenance.

Quick assembly joint for easy oil hose connection.

Model	Unit	HL-U600	HL-U1000	HL-U1500
Capacity	kg	600	1000	1500
Max. Height	mm	860	860	860
Collapsed Height	mm	85	85	105
Platform Size	mm	1450x985	1450x1140	1600x1180
Lift Time	sec	25 - 35	25 - 35	30 - 40
Power Pack	-	380V/50Hz, 1.1kw	380V/50Hz, 0.75kw	380V/50Hz, 1.5kw
Net Weight	kg	207	280	380

Frequently Asked Questions

What are the advantages of the "U" shaped platform?

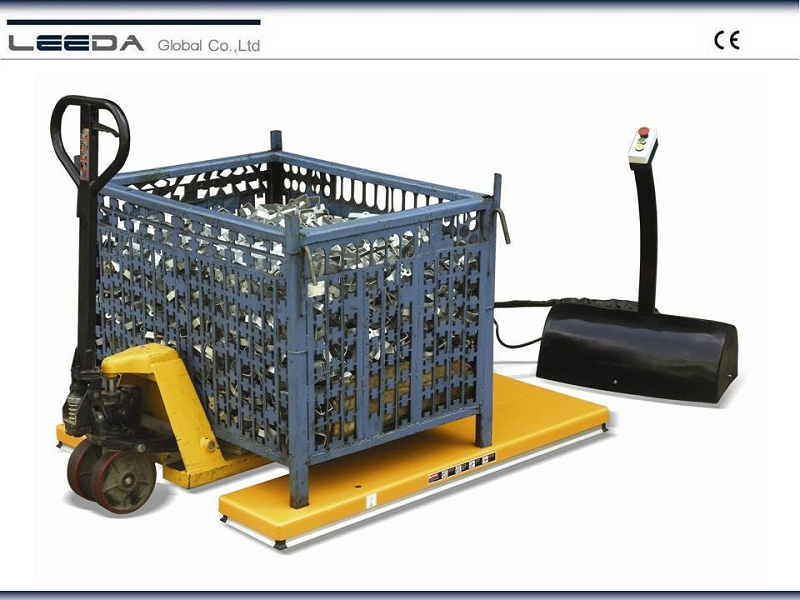

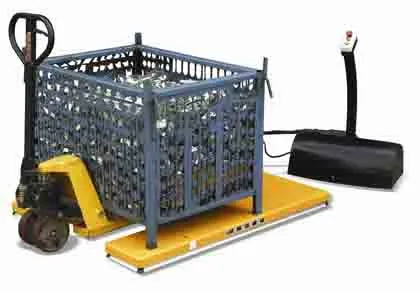

The "U" shape allows pallet trucks to drive directly into the center of the platform to load or unload pallets without needing a floor pit or a separate loading ramp.

Does this lift table comply with international safety standards?

Yes, it is manufactured to meet European safety standards, including EN1570:1999, and carries CE, GS, and ISO 9001 certifications.

What safety features prevent accidents during lowering?

The platform is equipped with a safety perimeter that stops the descent if it encounters any obstruction. Additionally, it features a hose burst safety valve to prevent sudden drops.

What is the power requirement for the HL-U series?

The standard models utilize a 380V/50Hz AC power supply. Power ratings range from 0.75kw to 1.5kw depending on the specific model capacity.

Can the lowering speed be adjusted?

Yes, the external power pack is equipped with a compensated flow valve specifically designed to control and maintain a steady lowering speed.

Is the lift table easy to maintain?

Yes, it features oiless bushings on all pivot points and quick assembly joints for the oil hoses, making it low-maintenance and easy to service.
