U Shape E Shape Low Profile Electric Hydraulic Scissor Lift Table with CE

Customization:	Available
Warranty:	12 Months
Lift Mechanism:	Scissor Lift

Send Inquiry

Product Description

📋 Basic Info

Model NO.ML-010080- D2

Carrying Capacity1000kg

MovesStationary

Driven TypeHydraulic

Running ModeStationary

FeatureExplosion-Proof

CertificationGS, CE, ISO 9001

Transport PackageWooden/Steel Pallet, Wooden Case

Specification1350 x 1050mm

OriginChina

HS Code84289090

Production Capacity1000

🛠️ Product Description

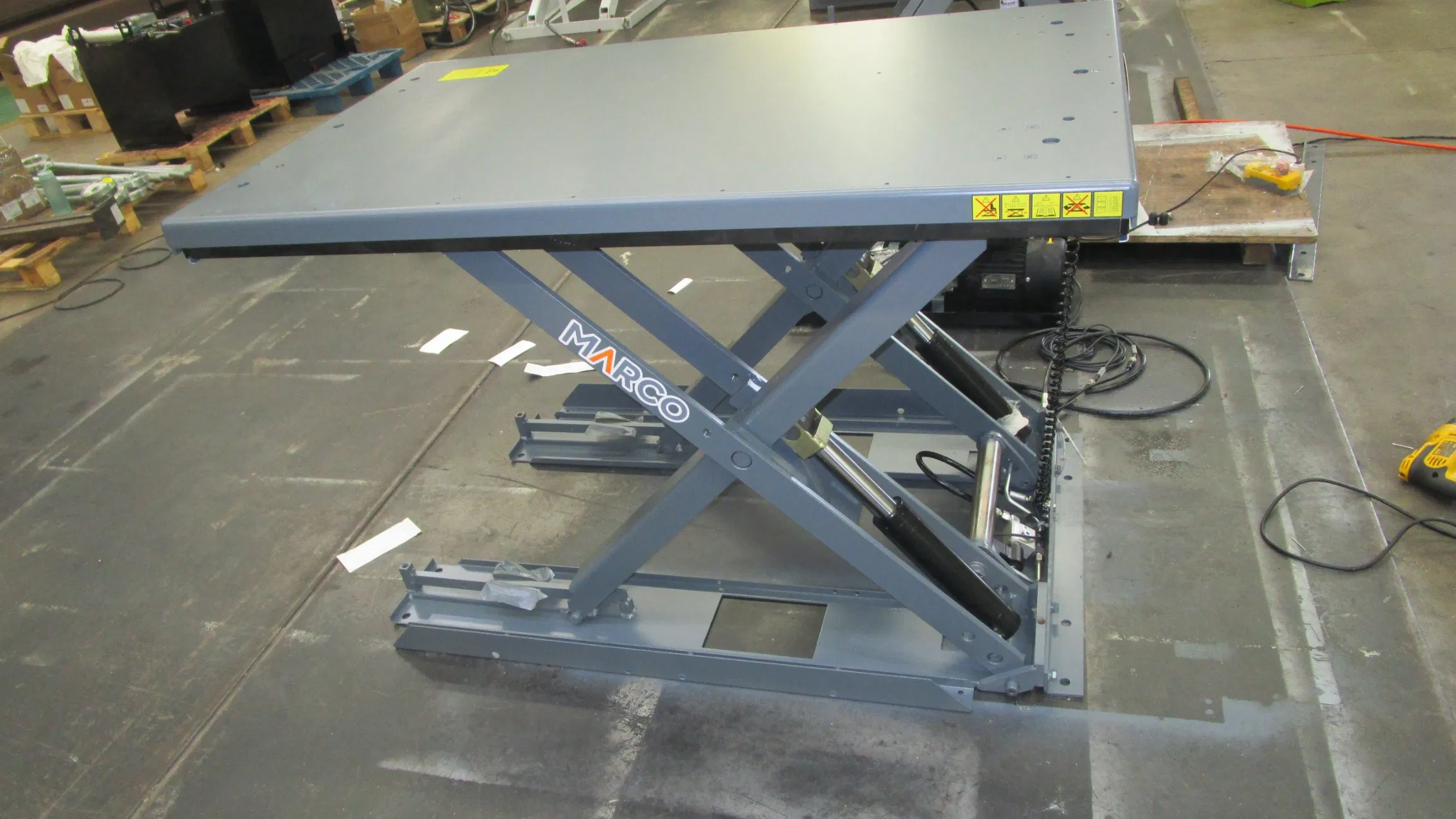

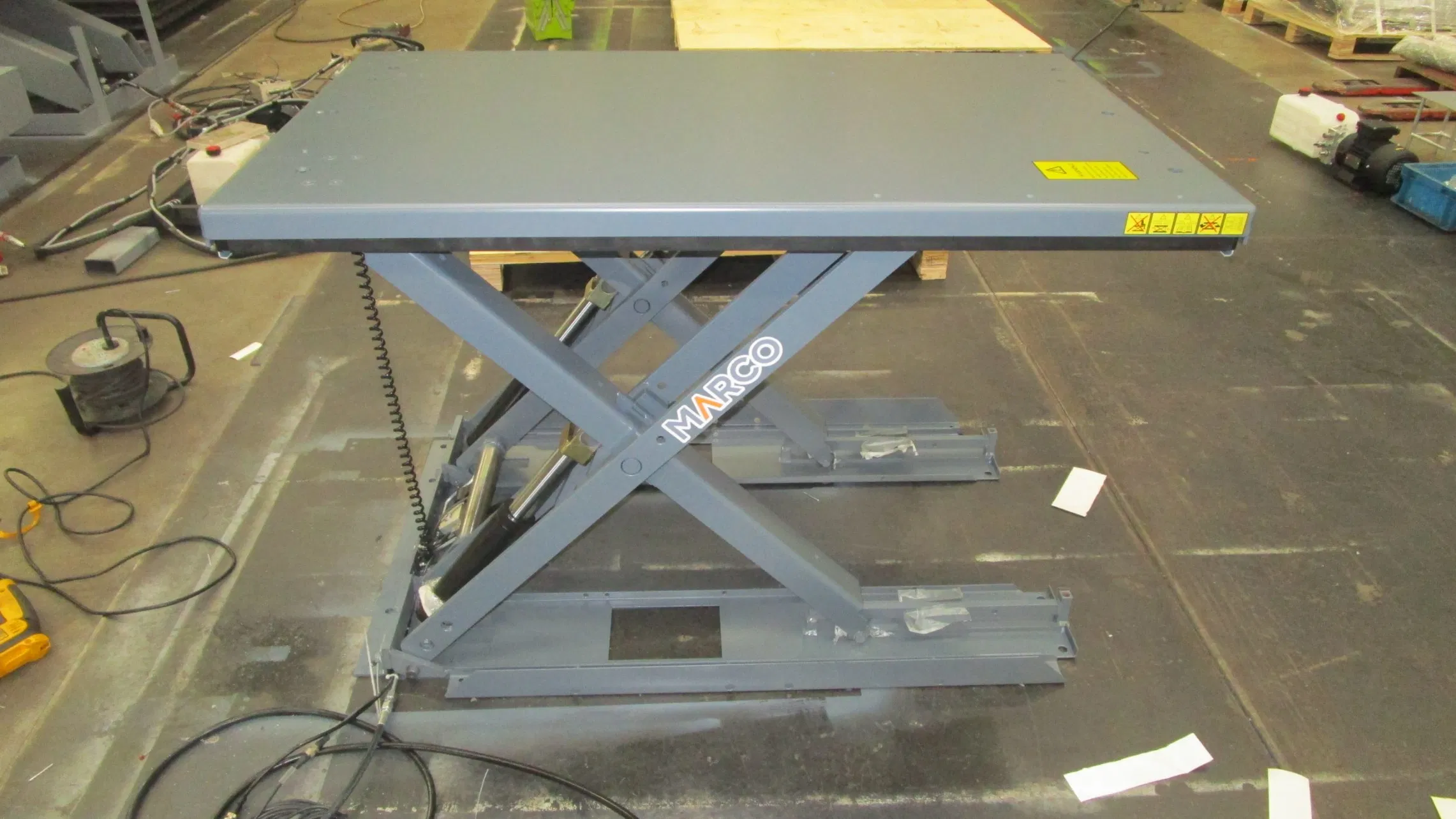

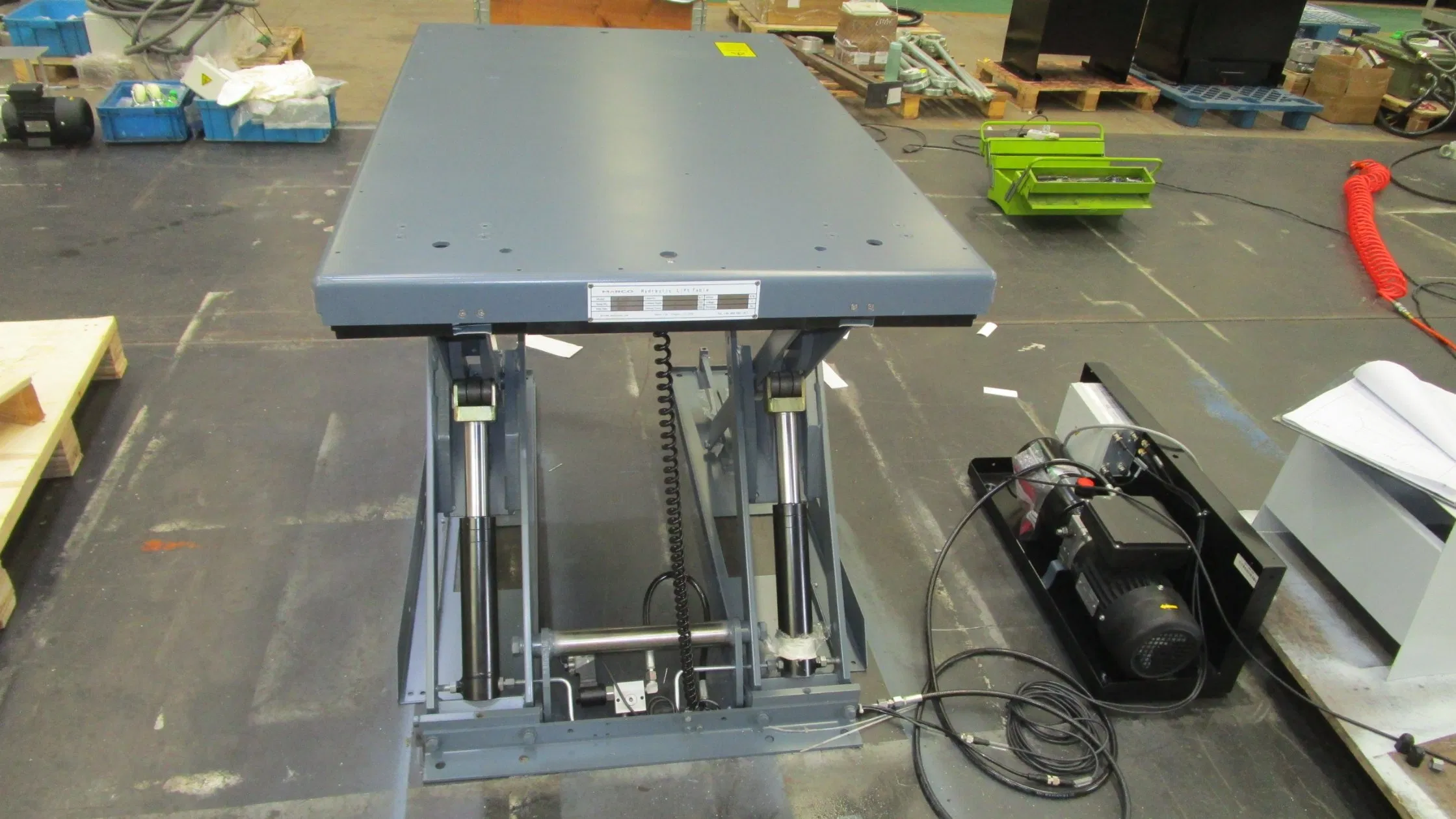

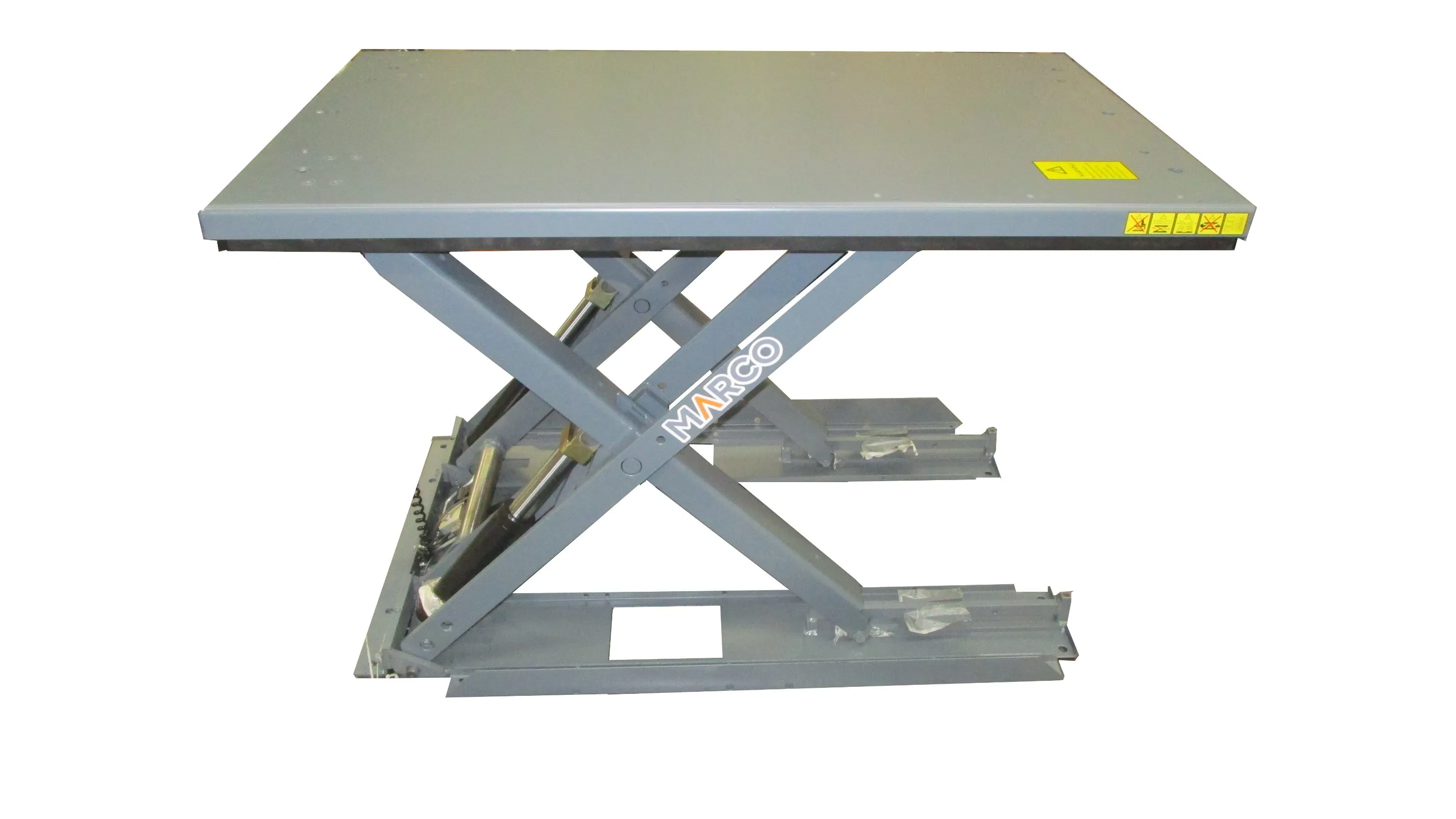

Low-profile lift table adopts flat iron as the structure of scissors arm. The lowest own height is 80mm. It is an economical material processing equipment and can be fixed directly to the ground. Widely used in production line, logistics sorting system and independent standing operating platform outside the production line, to create a human-friendly working environment for workers.
There are three types based on top shape: whole platform, U shape and E shape. The max load capacity is 1000KG.

📊 Product Parameters

Model No.	ML-010080-D2	Capacity	1000kg
Platform size	1350x1050mm	Base Frame	1275x1070mm
Min. Height	80mm	Lifting Height	800mm
Model Type	stationary	Lift Time	22s
Color	Grey/green/ blue/others	Product name	refer to product
Specifications	Customizable	Application	material handling
Power Voltage	380V 50Hz	Control Voltage	24V DC
Delivery Time	1 month	Package	exported case
Origin	Made In China	Production Capacity	100/month
Certificate	ISO9001, CE, ISO3834	Design standard	EN1570-1-2011
