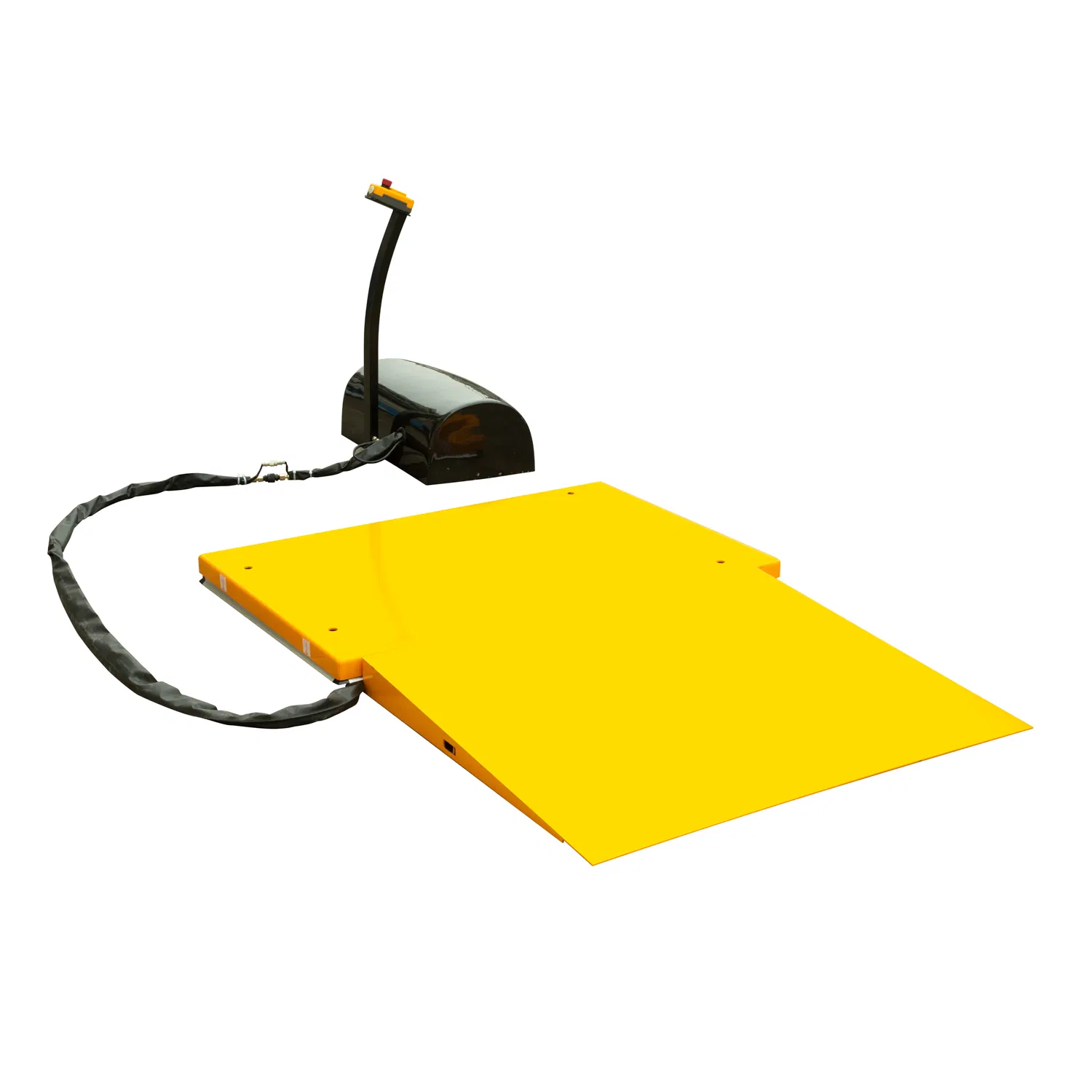

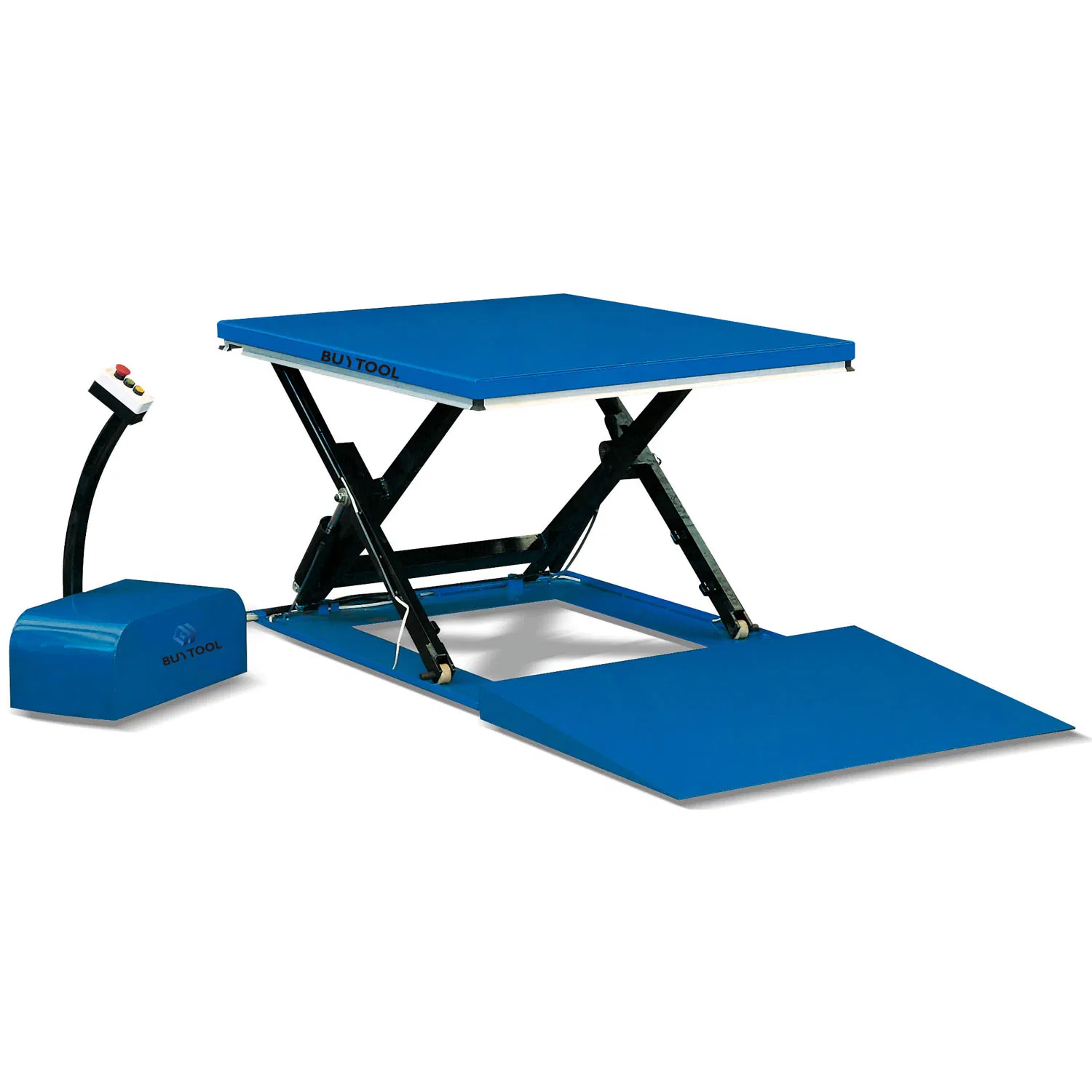

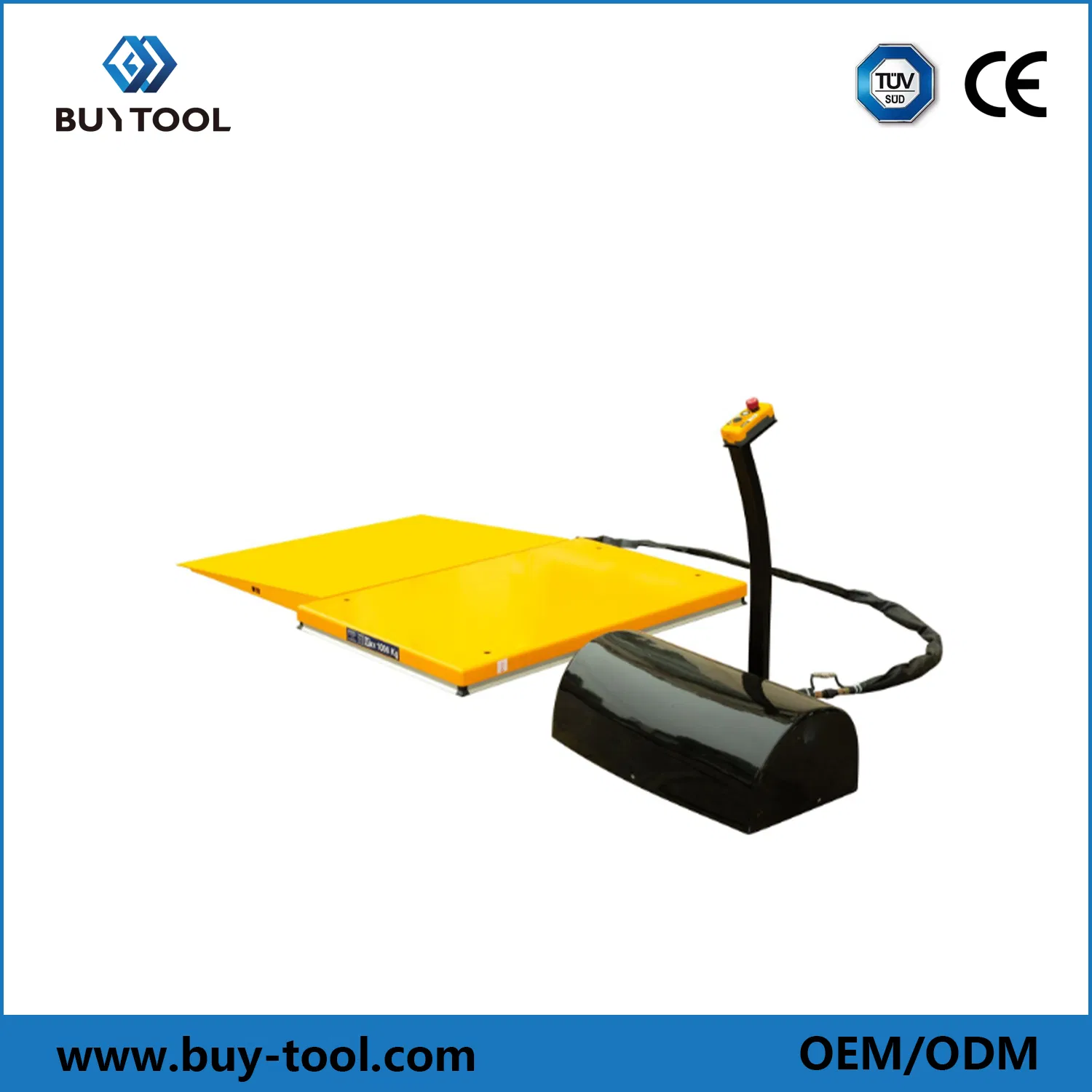

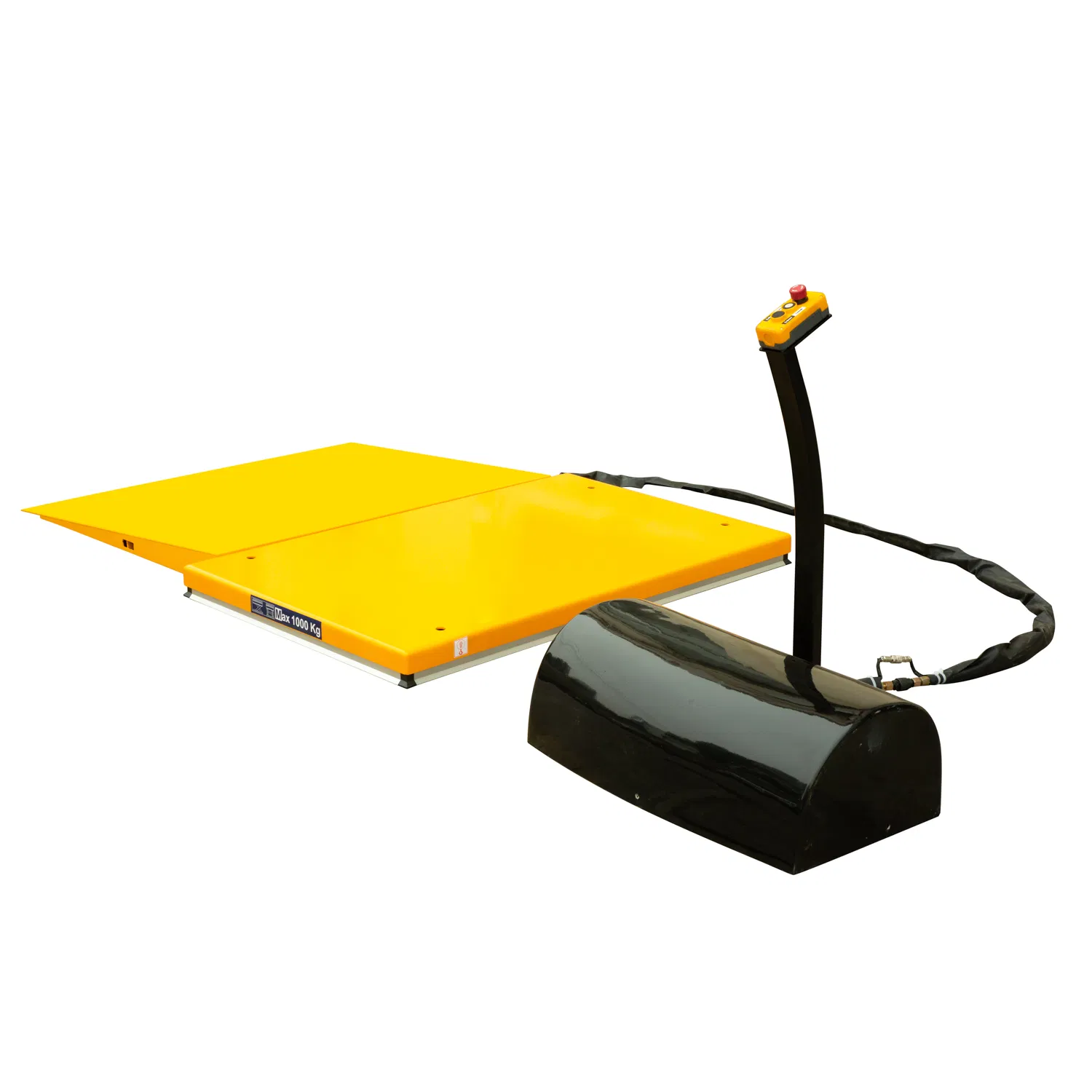

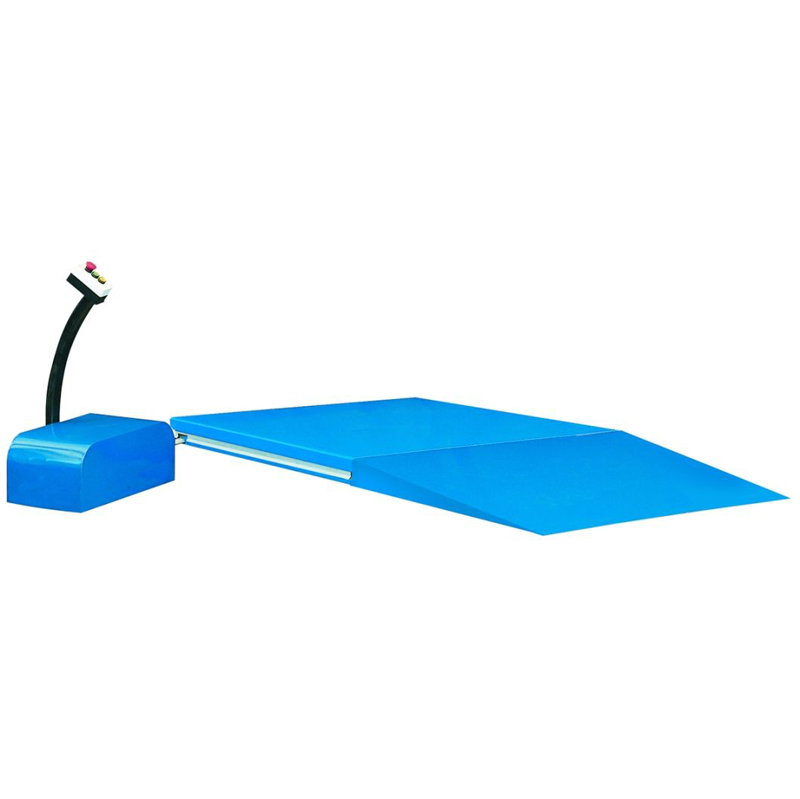

Low Profile Mini Hydraulic Scissor Lift Table 1000kg
Low Profile Mini Hydraulic Scissor Lift Table 1000kg
Low Profile Mini Hydraulic Scissor Lift Table 1000kg
Low Profile Mini Hydraulic Scissor Lift Table 1000kg
Low Profile Mini Hydraulic Scissor Lift Table 1000kg
1 / 5
Low Profile Mini Hydraulic Scissor Lift Table 1000kg
Low Profile Mini Hydraulic Scissor Lift Table 1000kg
Low Profile Mini Hydraulic Scissor Lift Table 1000kg
Low Profile Mini Hydraulic Scissor Lift Table 1000kg
Low Profile Mini Hydraulic Scissor Lift Table 1000kg

Low Profile Mini Hydraulic Scissor Lift Table 1000kg

Customization: Available
After-sales Service: Twenty Hours Online Service
Warranty: One Year
Send Inquiry

Product Description

Product Overview

Model NO. HY1001, HY1005, HY1501, HY2001
Lift Mechanism Scissor Lift
Driven Type AC 380V/50Hz
Capacity 1000kg, 1500kg, 2000kg
Max Height 860-870mm
Certification CE Approved

Product Description

Low Profile Mini Hydraulic Scissor Lift Table

  • Heavy duty design with larger platform for industrial stability.
  • Standard loading ramp included for easy access.
  • Equipped with oilless bushings on all pivot points.
  • Eliminates the need for pit installation due to low closed height.
  • Fully compliant with European safety standards EN1570: 1999.
  • Remote power pack with IP54 protected pedestal and controls.
  • Safety perimeter fitted to upper platform to prevent descent on contact.
  • 24V control box with UP/DOWN buttons and Emergency Stop.
  • Internal hose burst safety valve to prevent sudden lowering.
  • Mechanical safety chocks included for secure maintenance.

Technical Parameters

Model Capacity (kg) Platform Size (mm) Min.Height (mm) Max.Height (mm) Stroke (mm) Lifting Time (s) Power Pack Net Weight (kg)
HY100110001450×11408586077525380V/50HZ, 0.75kw357
HY100510001600×10008586077525380V/50HZ, 0.75kw352
HY150115001600×80010587077530380V/50HZ, 1.5kw362
HY150215001600×100010587077530380V/50HZ, 1.5kw401
HY200120001600×120010587077535380V/50HZ, 2.2kw419

Detailed Photos

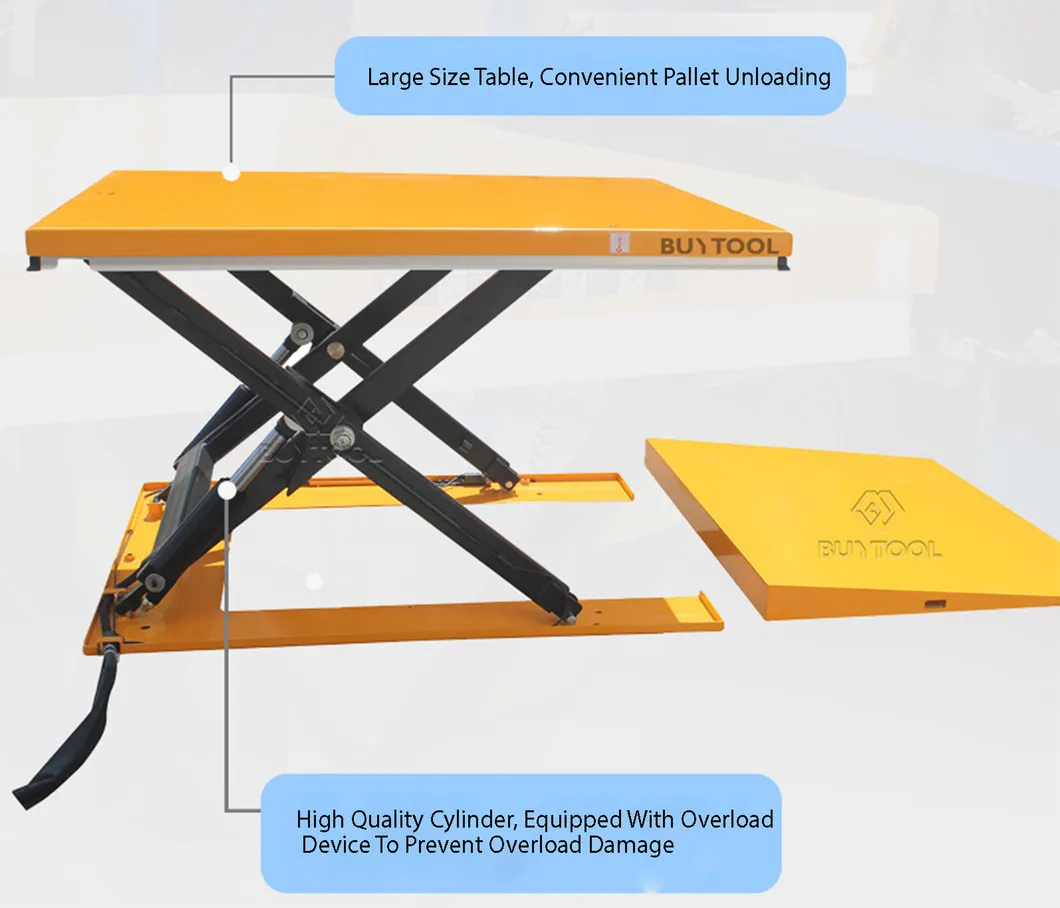

Hydraulic Scissor Lift Table Detail 1

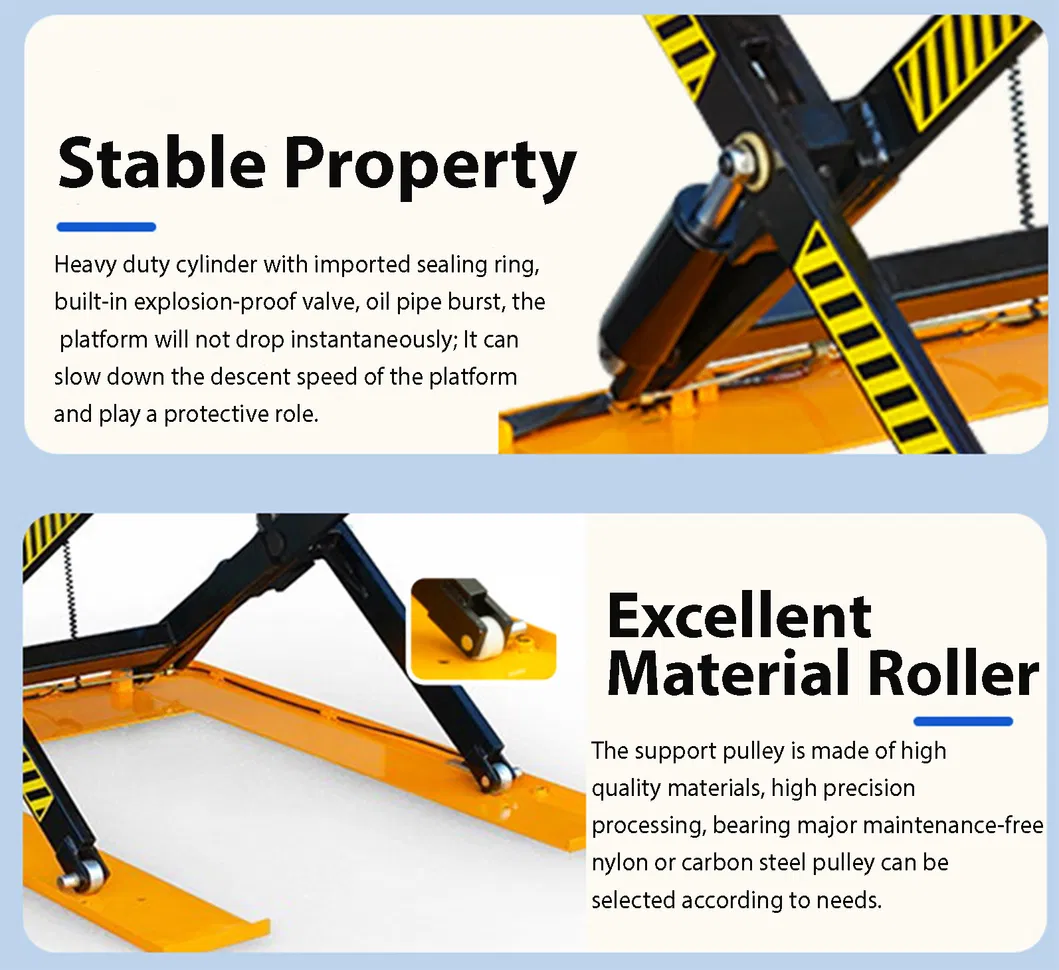

Hydraulic Scissor Lift Table Detail 2

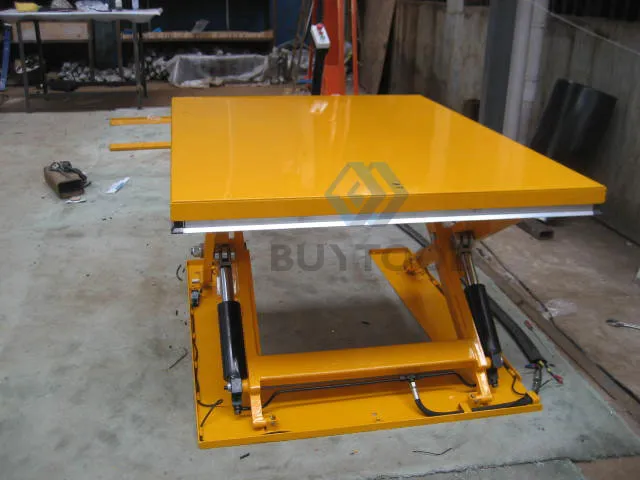

Scissor Lift Component

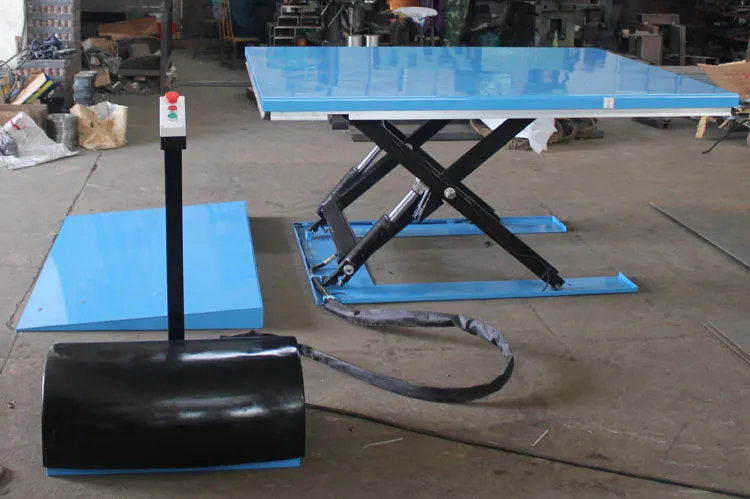

Scissor Lift Structure

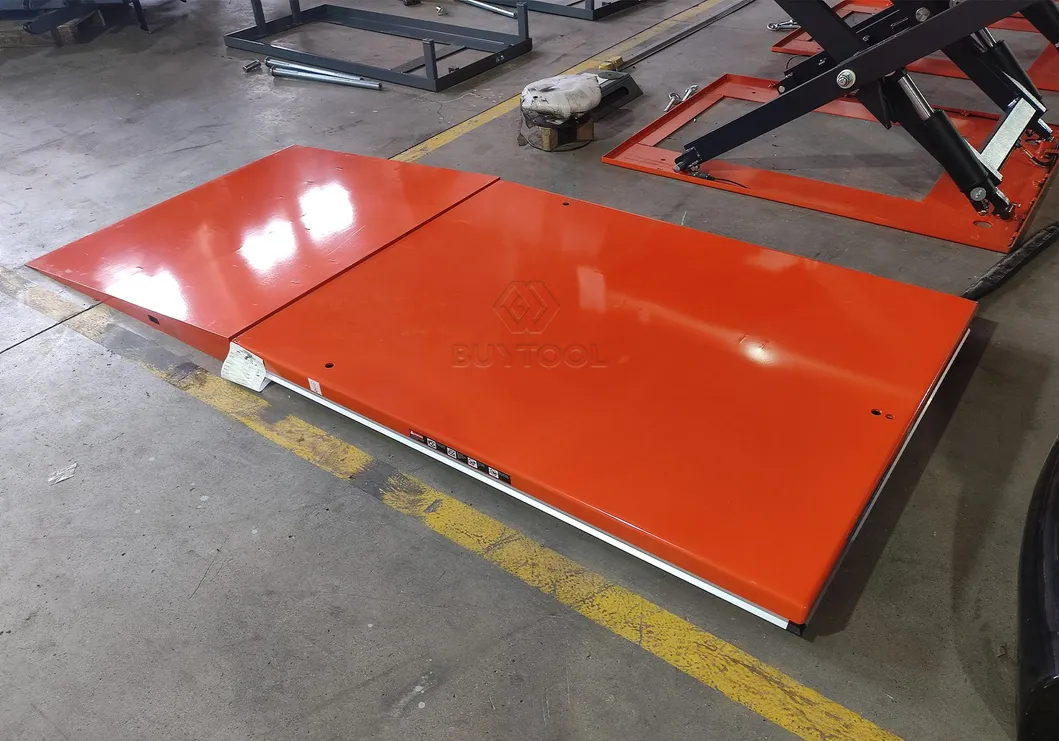

Scissor Lift Control

Range of Application

Ideal for use in Workshops, Shipboard operations, Warehouses, and Building construction where space-saving lifting solutions are required.

Application Range

Packing & Shipping

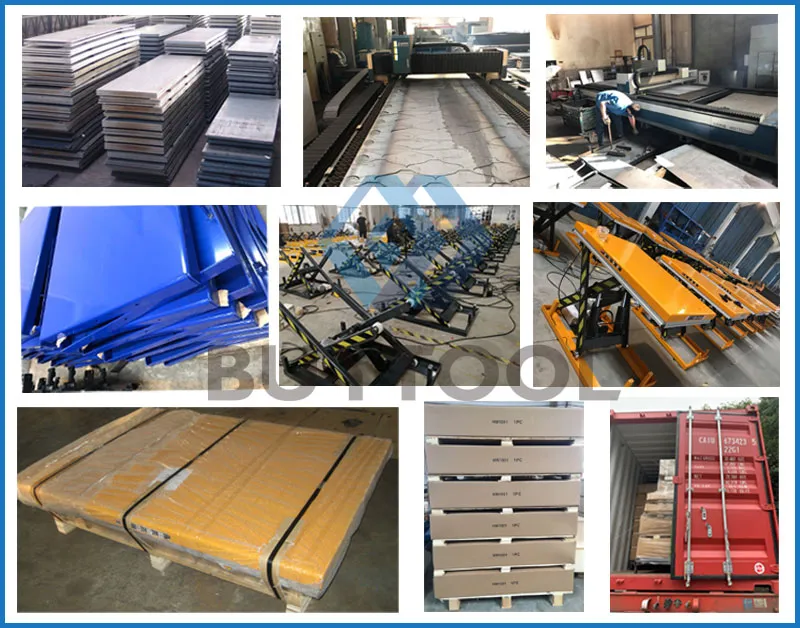

Packaging Detail

Frequently Asked Questions

What about the quality of the products?
Our products are CE approved with a 5-step inspection process: raw material check (ISO9001), strict production monitoring, load limit testing during assembly, 100% final inspection before shipment, and third-party inspection upon request.
How long is the quality guarantee?
All our products carry a standard one-year warranty against manufacturing defects.
What is the standard lead time for orders?
Normally 30 days. Single-item container orders take approximately 20 days, while mixed containers (over 5 items) may take up to 45 days.
Is it possible to customize the table color?
Yes, the product color is fully customizable according to your specific requirements.
What safety features are included?
The lift includes a safety perimeter to stop descent on contact, a hose burst safety valve, mechanical safety chocks for maintenance, and a 24V control box with an emergency stop.
Does this lift table require a pit for installation?
No, these low-profile tables achieve a very low closed height, specifically designed to eliminate the need for pit installation.
