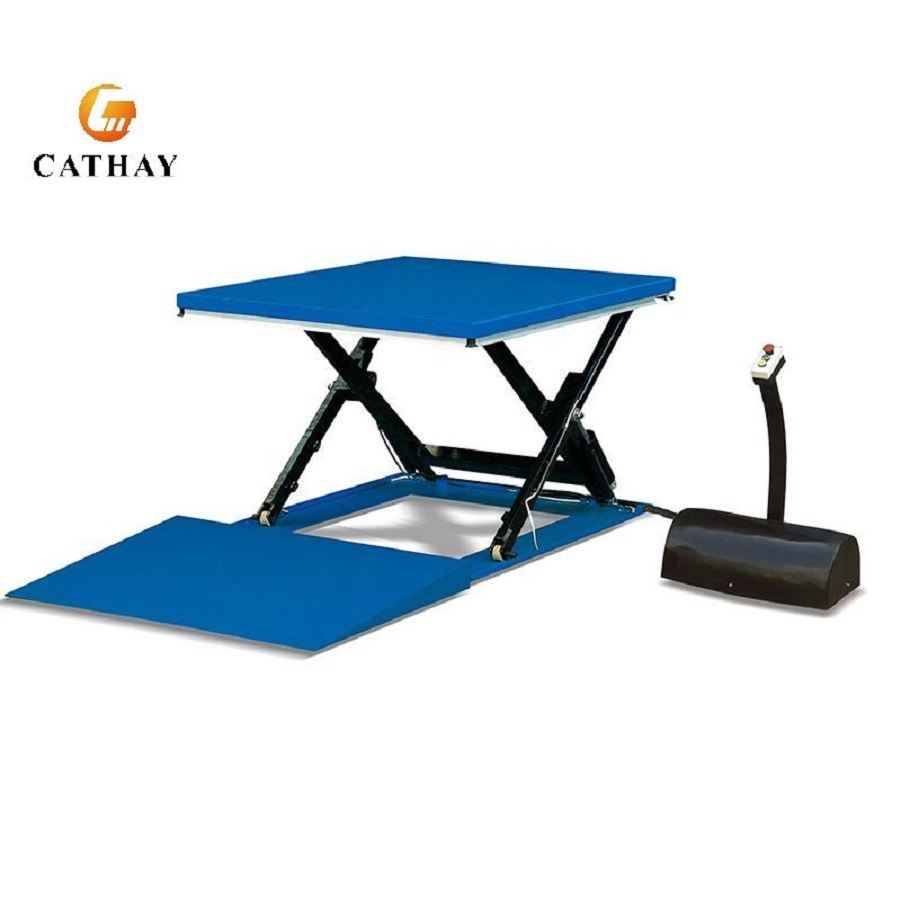

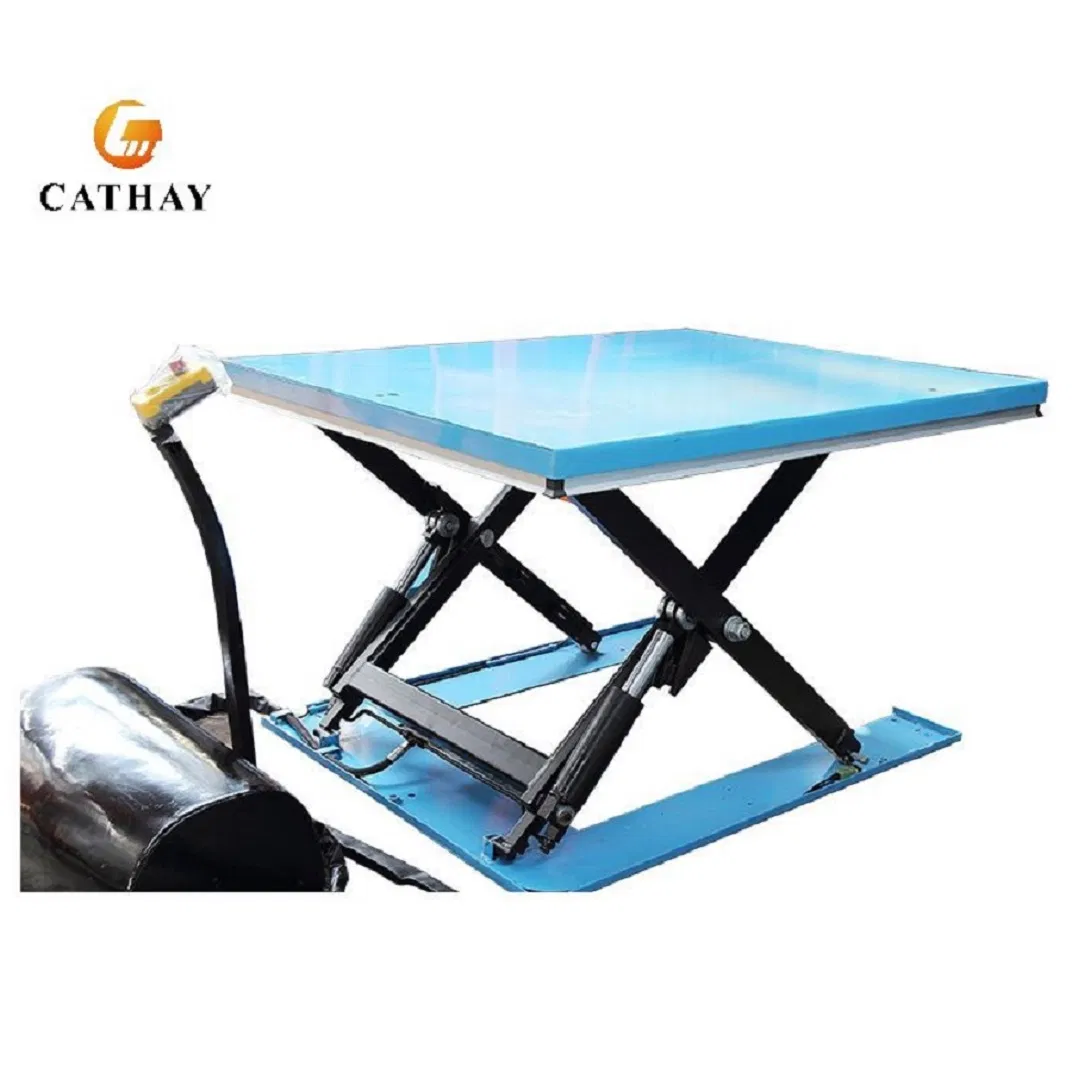

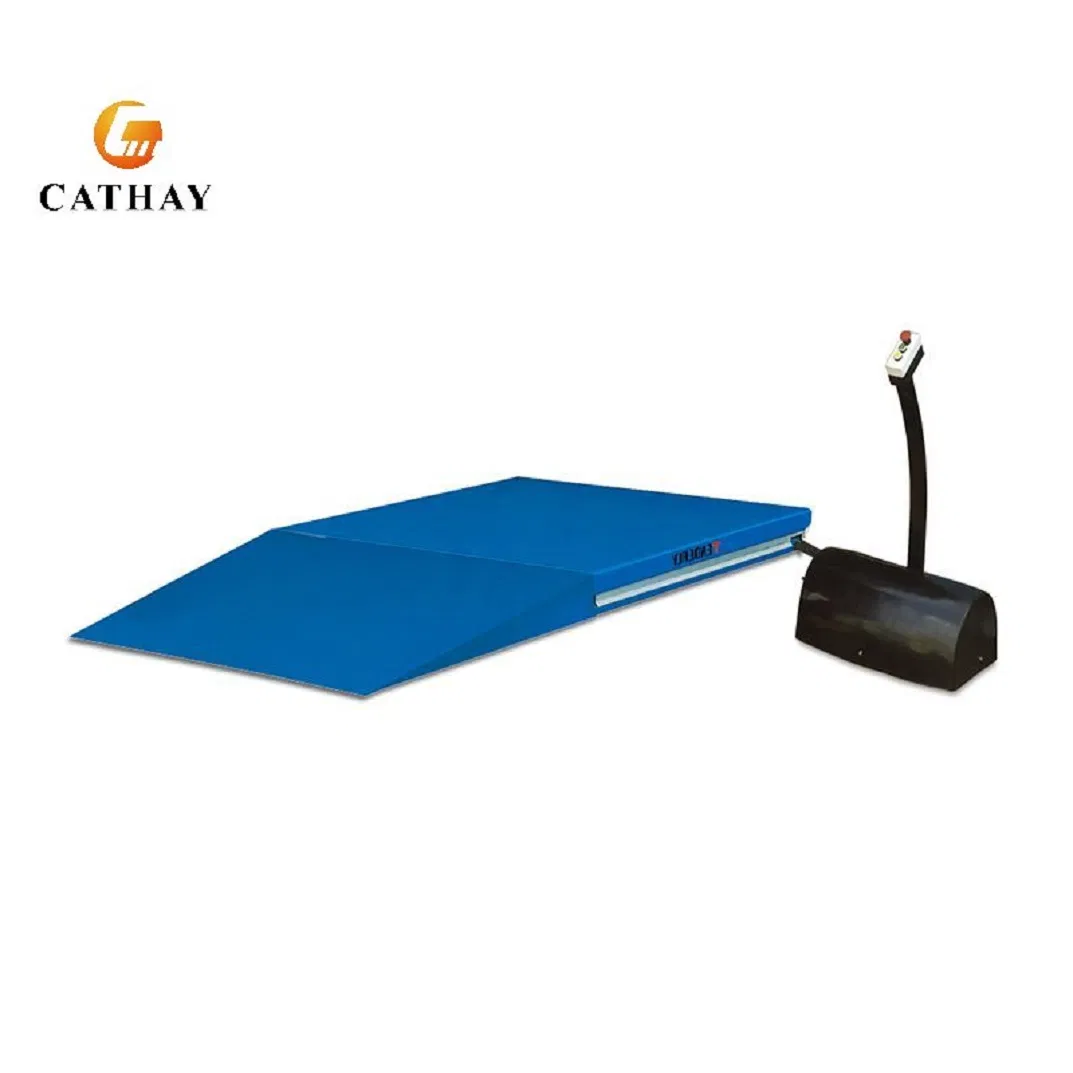

The Low Profile Scissor Lift is designed for efficient material handling, with a load capacity between 1000kg and 2000kg and a remarkably low platform height of just 85mm when fully lowered, allowing for smooth loading and unloading without the need for a pit. It supports full customization, including table dimensions, lifting height, and weight capacity, making it a practical solution for a wide range of industrial applications.
| Model | Capacity (kg) | Platform Size (mm) | Base Size (mm) | Self Height (mm) | Max Height (mm) | Lifting Time (s) | Net Weight (kg) |
|---|---|---|---|---|---|---|---|
| HL1001 | 1000 | 1450x1140 | 1325x1074 | 85 | 860 | 25 | 357 |
| HL1003 | 1000 | 1450x800 | 1325x734 | 85 | 860 | 25 | 326 |
| HL1501 | 1500 | 1600x800 | 1325x734 | 105 | 870 | 30 | 302 |
| HL1503 | 1500 | 1600x1200 | 1325x734 | 105 | 870 | 30 | 415 |
| HL2001 | 2000 | 1600x1200 | 1427x1114 | 105 | 870 | 35 | 419 |
| HL2002 | 2000 | 1600x1000 | 1427x734 | 105 | 870 | 35 | 405 |
*Note: Standard models can be customized to meet specific requirements.
These lift tables are ideal for narrow areas, such as elevators, indoor facilities, and under eaves. With capacities up to 5000kg, they facilitate efficient material storage and handling across warehouses, supermarkets, and decoration projects.
