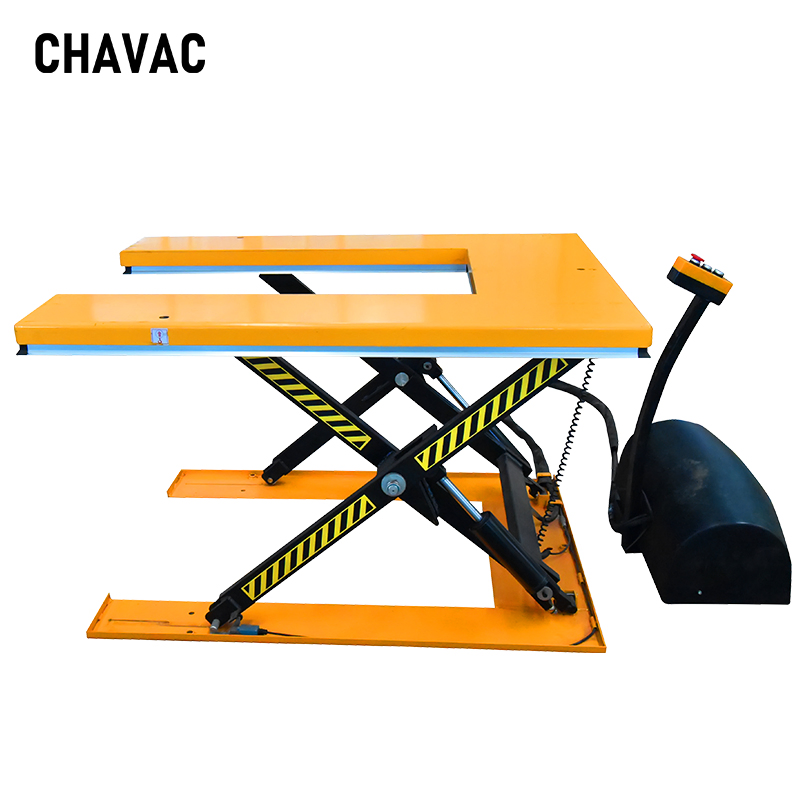

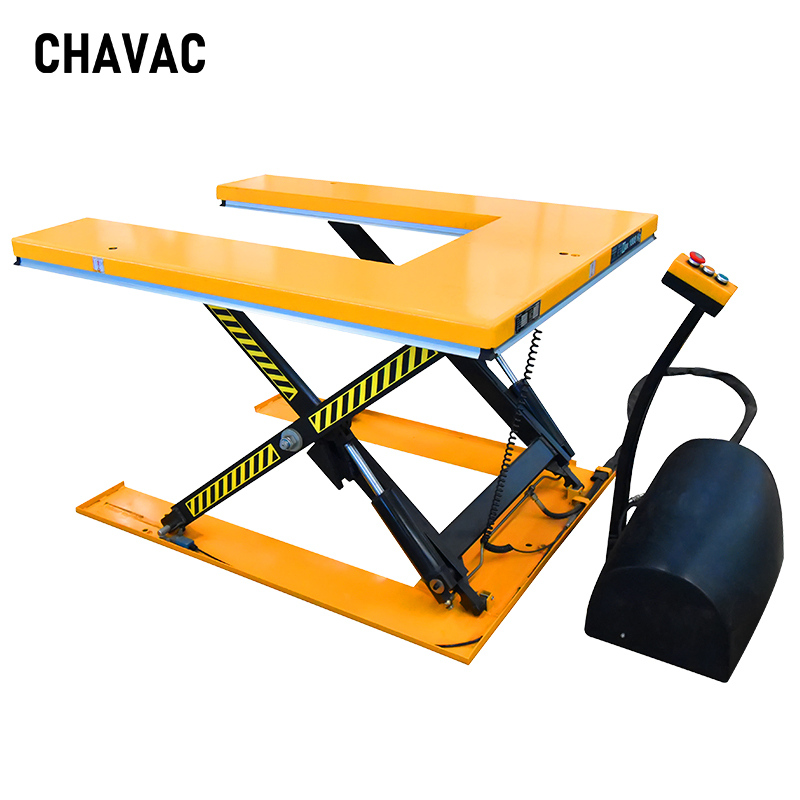

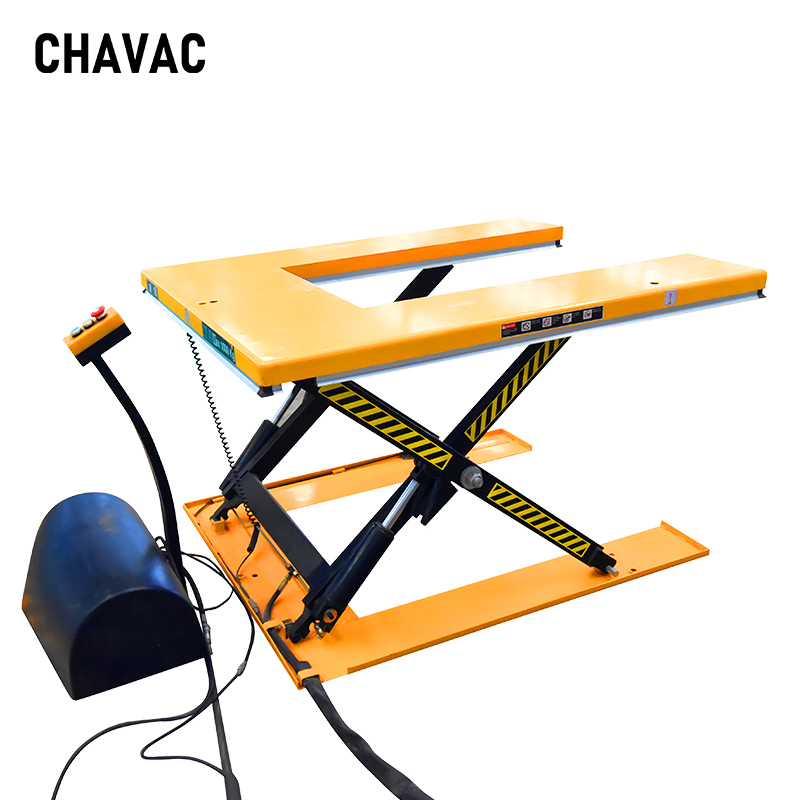

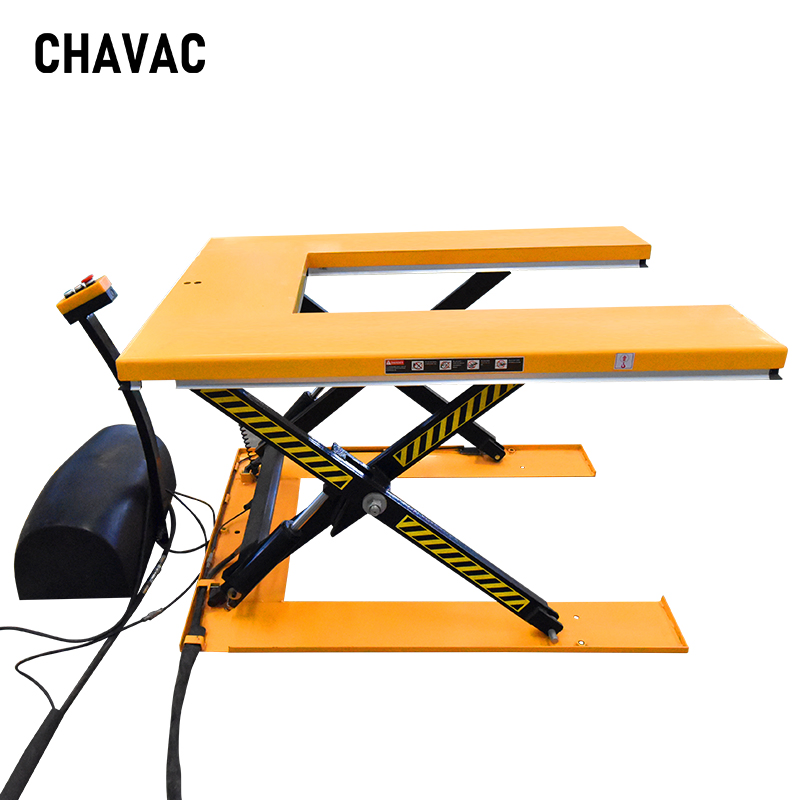

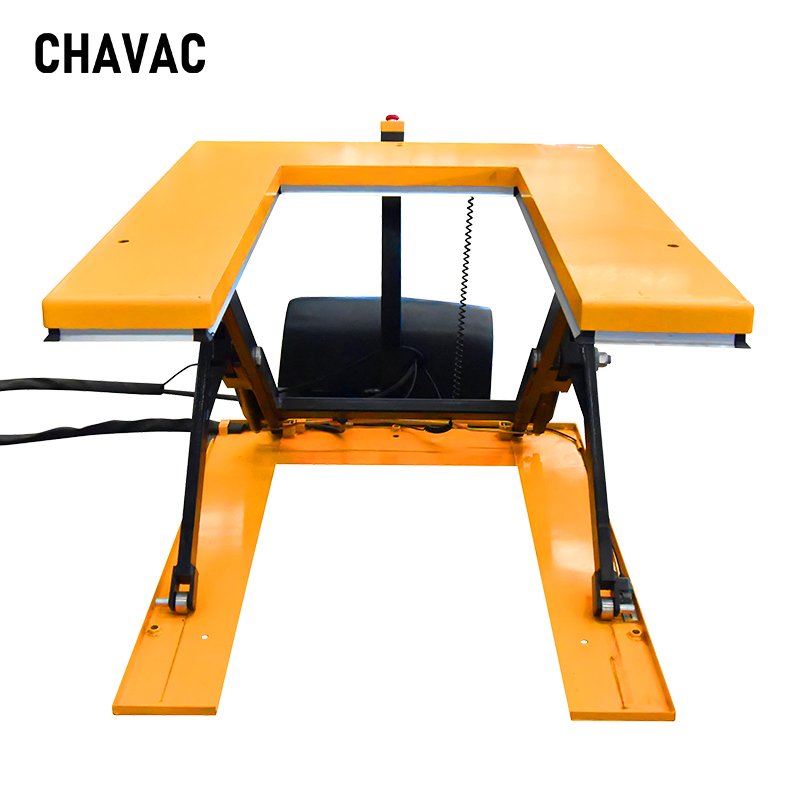

600kg Low Profile U-Shape Stationary Electric Lift Table
600kg Low Profile U-Shape Stationary Electric Lift Table
600kg Low Profile U-Shape Stationary Electric Lift Table
600kg Low Profile U-Shape Stationary Electric Lift Table
600kg Low Profile U-Shape Stationary Electric Lift Table
1 / 5
600kg Low Profile U-Shape Stationary Electric Lift Table
600kg Low Profile U-Shape Stationary Electric Lift Table
600kg Low Profile U-Shape Stationary Electric Lift Table
600kg Low Profile U-Shape Stationary Electric Lift Table
600kg Low Profile U-Shape Stationary Electric Lift Table

600kg Low Profile U-Shape Stationary Electric Lift Table

Customization: Available
After-sales Service: 24 Hours
Warranty: 2 Years
Send Inquiry

Product Description

Low Profile U-Shape Lift Table
📋 Basic Information
Model NO.
UL
Application
Workshop, Shipboard, Warehouse, Building Crane
Lift Mechanism
Scissor Lift
Moves
Stationary
Driven Type
AC
Load Capacity
600kg to 1500kg
Lifting Height
860mm
Voltage
Local Standard
Installation
On Ground or in Pit
Certification
GS, CE, RoHS, ISO 9001
Quality Warranty
12 Months
Production Capacity
20,000 PCS/Year
🔍 Product Overview

U Shape Low Profile Hydraulic Scissor Lift tables are high-quality electronic hydraulic scissor lifts with loading capacities from 600KG to 1500KG and lifting heights up to 860mm. Customized platform sizes and lifting heights are available. It is specifically designed to lift 2-way entry pallets directly from a pallet truck without needing a loading ramp.

📊 Specifications
Model Load Capacity (kg) Self Height (mm) Max Height (mm) Platform Size (mm) Base Size (mm) Motor (kw) Net Weight (kg)
UL600 600 85 860 1450*985 1335*947 1.1 207
UL1000 1000 85 860 1450*1140 1335*947 1.1 280
UL1500 1500 105 860 1600*1180 1335*947 2.2 380

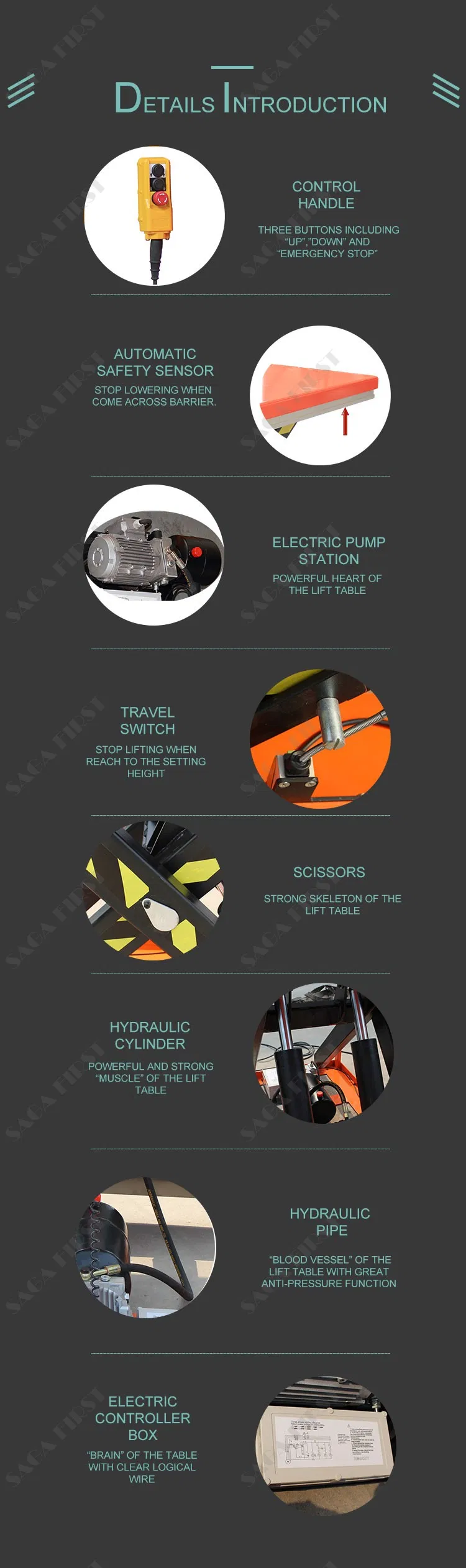

⚙️ Component Details
Component Details
✔
Control Handle: Includes "up", "down", and "emergency stop" buttons.
✔
Automatic Safety Sensor: Stops lowering immediately when encountering barriers.
✔
Electric Pump Station: High-performance power unit for reliable operation.
✔
Travel Switch: Automatically stops lifting at the preset maximum height.
✔
Hydraulic Cylinder: Heavy-duty cylinders providing powerful lifting force.
✔
Electric Control Box: Logical wiring system for safe electronic management.

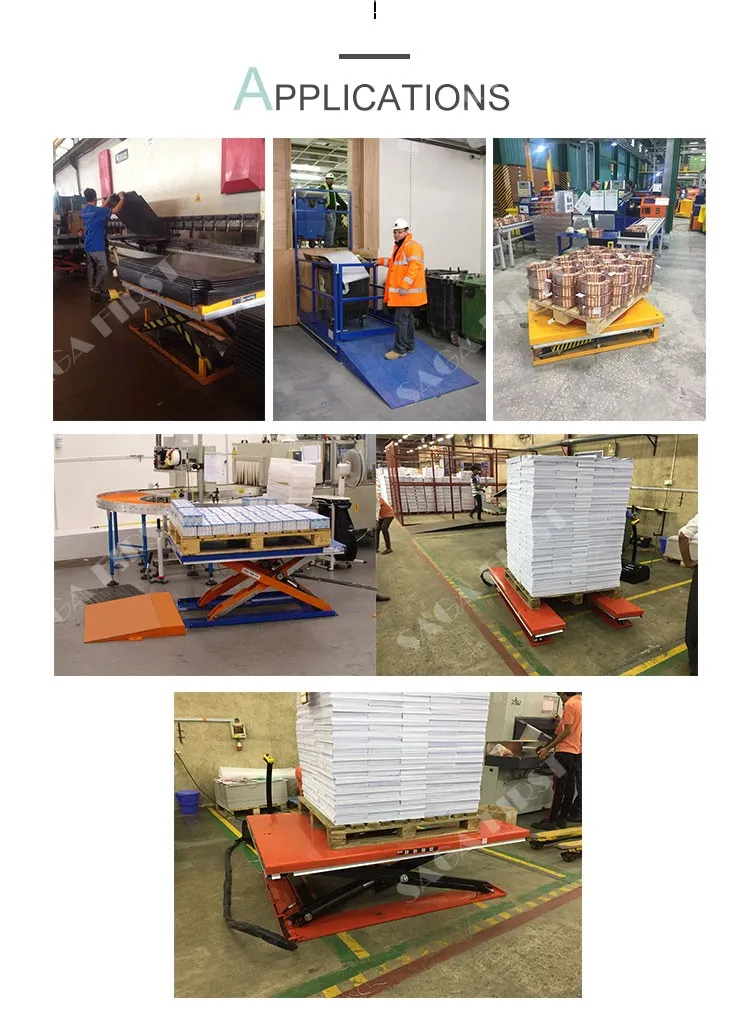

🏗️ Applications & Packaging

The unit is typically installed on the ground to convey goods between different working levels via electric and hydraulic systems.

Application 1 Application 2 Packaging
⭐ Key Advantages
🔹
Multi-control points and hierarchical control can be realized.
🔹
Precise stopping at pre-concerted locations.
🔹
Sensitive overload protection and anti-falling locking devices.
🔹
High-quality AC power packs manufactured to European standards.
🔹
Heavy-duty cylinders with check valves to prevent lowering during hose bursts.
🛡️ Safety Precautions
Safety 1 Safety 2 Safety 3
⚠️
Explosion-proof valves: Protects hydraulic pipes against rupture.
⚠️
Spillover valve: Prevents high pressure and allows for pressure adjustment.
⚠️
Emergency decline valve: Allows manual lowering during power failure.
Structure Operation
❓ Frequently Asked Questions
How can customers purchase replacement parts?
The lift table utilizes standard hardware parts. You can easily find replacements at local hardware stores or forklift parts shops.
What is the process for repairing the lift table?
The equipment has a very low failure rate. If an issue occurs, we provide repair guidance through detailed instructions and videos.
How long is the quality guarantee?
We provide a one-year quality guarantee. If any parts fail within the first year, we will provide replacements free of charge.
Can the platform size be customized?
Yes, we accept customized requirements for both platform size and lifting height to meet your specific application needs.
What safety features prevent the platform from falling?
The table is equipped with anti-dropping devices, explosion-proof valves for hydraulic pipes, and an automatic safety sensor that stops lowering if a barrier is detected.
How is the lift table installed?
The low-profile design allows for installation directly on the ground or in a shallow pit, depending on your warehouse workflow requirements.
