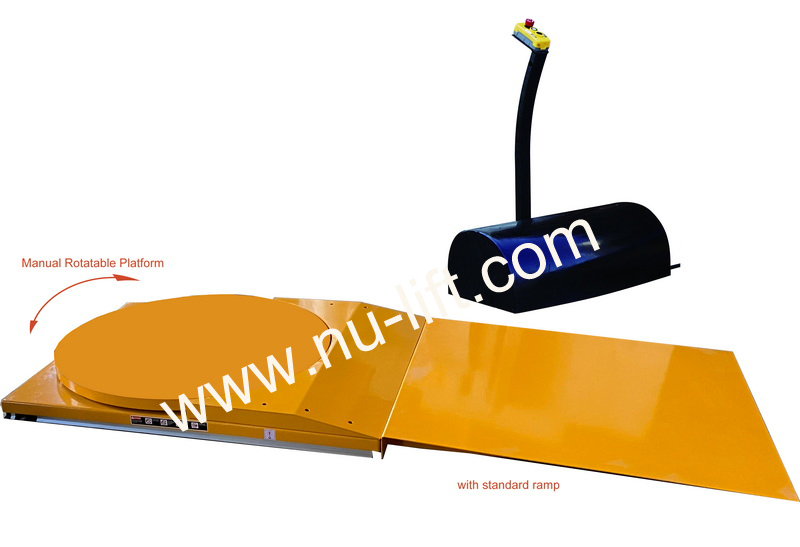

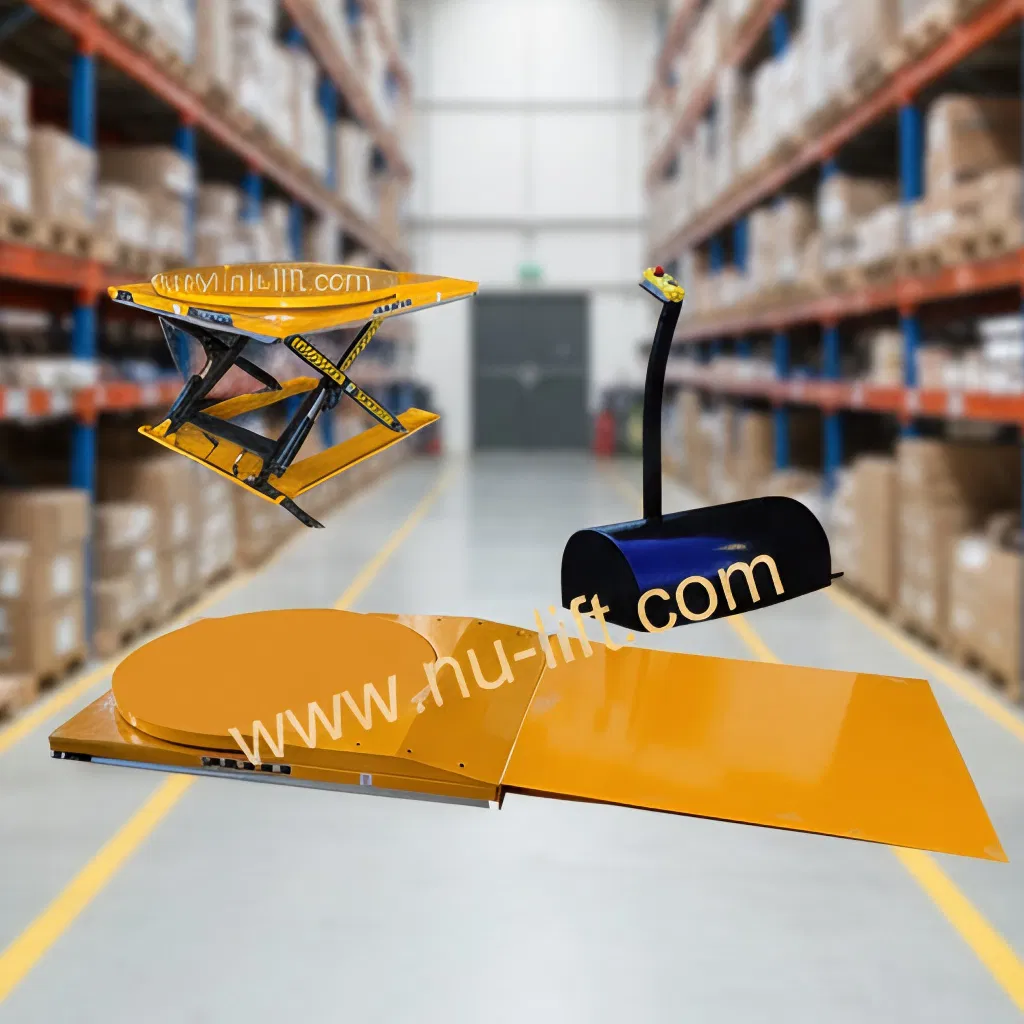

Low Profile Rotating Lift Tables-Hy. R Series
Low Profile Rotating Lift Tables-Hy. R Series
Low Profile Rotating Lift Tables-Hy. R Series
1 / 3
Low Profile Rotating Lift Tables-Hy. R Series
Low Profile Rotating Lift Tables-Hy. R Series
Low Profile Rotating Lift Tables-Hy. R Series

Low Profile Rotating Lift Tables-Hy. R Series

Customization: Available
After-sales Service: Yes
Warranty: 1 Year
Send Inquiry

Product Description

Technical Specifications

Model NO.
HY1000R, HY1500R, HY2000R
Lift Mechanism
Scissor Lift
Application
Workshop, Shipboard, Warehouse, Building Crane
Driven Type
AC Power
Material
High-Strength Steel
Certification
GS, CE
Lifting Height
900mm
Min. Height
105mm
Operation Type
Electric
Capacity
1000kg - 2000kg

Product Highlights

  • Low profile lift table featuring a fully rotatable platform for versatile industrial applications.
  • Multiple capacity options available: 1 Ton, 1.5 Ton, and 2 Ton models.
  • Standard round table size with 1200mm diameter for optimal workspace management.
  • Designed with a low lowered height of 170mm for easy loading.
  • Includes a standard loading ramp for seamless material transition.
  • Equipped with oiless bushings at all pivot points for reduced maintenance.

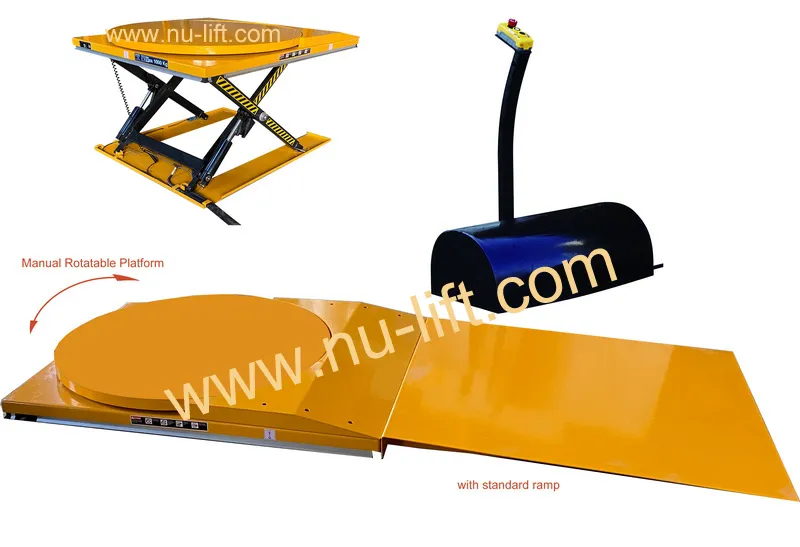

Low Profile Rotating Lift Table Main View

Model Comparison

Model Capacity (kg) Square Platform (mm) Round Platform (mm) Min. Height (mm) Max. Height (mm) Stroke (mm) Lifting Time (s) Power Pack
HY1000R 1000 1600 × 1200 Dia.1200 170 900 730 25 380V/50HZ, AC 0.75kw
HY1500R 1500 1600 × 1200 Dia.1200 170 900 730 30 380V/50HZ, AC 1.5kw
HY2000R 2000 1600 × 1200 Dia.1200 170 900 730 35 380V/50HZ, AC 2.2kw

Product Details Gallery

Rotating Table Detail 1
Rotating Table Detail 2
Rotating Table Detail 3
Rotating Table Detail 4
Rotating Table Detail 5
Rotating Table Detail 6

Frequently Asked Questions

What is the rotation feature used for?
The rotatable platform allows operators to rotate the load for easier access during assembly, packing, or sorting tasks without moving around the table.
What are the weight capacities available?
The HY-R series comes in three capacity levels: 1000kg (1 Ton), 1500kg (1.5 Ton), and 2000kg (2 Ton).
Is the loading ramp included?
Yes, the loading ramp is provided as standard equipment to facilitate easy loading and unloading of goods.
What power supply is required?
These units typically require a 380V/50HZ AC power supply, with motor outputs ranging from 0.75kw to 2.2kw depending on the model.
How durable is the pivot system?
The lift tables utilize oiless bushings on all pivot points, ensuring high durability and significantly reducing the need for regular lubrication maintenance.
Does this equipment meet safety standards?
Yes, all models in this series are GS and CE certified, meeting international safety and quality standards for industrial lifting equipment.
