Technical Specification Overview
Carrying Capacity
Weight Level
Feature
Explosion-Proof, Insulating, Spillover Valve
Certification
GS, CE, ISO 9001, SGS
Load Capacity
100kg to 2000kg or Customized
Quality Warranty
2 Year, Free Parts
Hydraulic Cylinder
2 Units

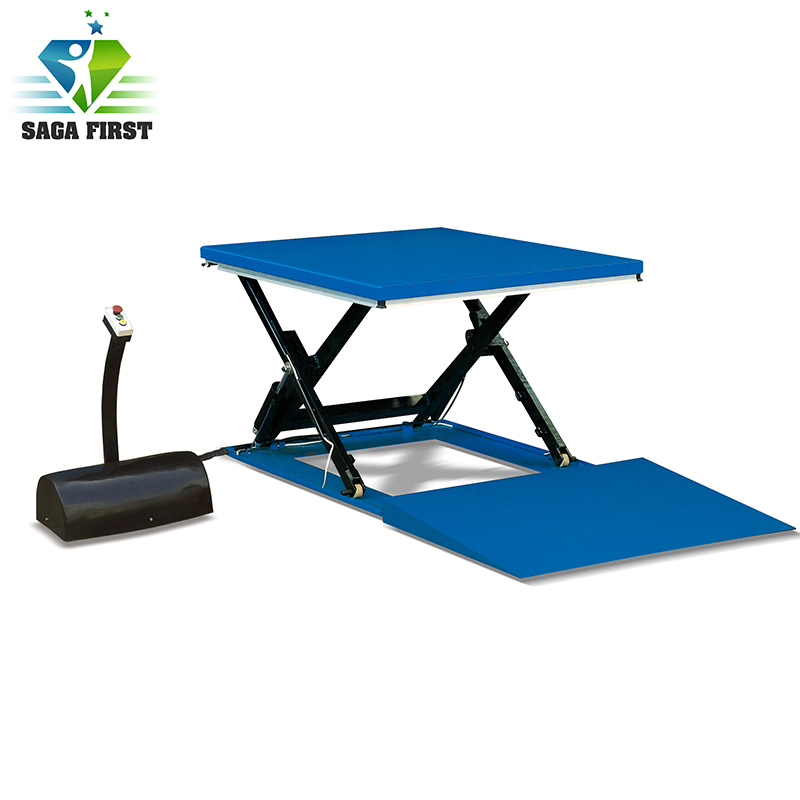

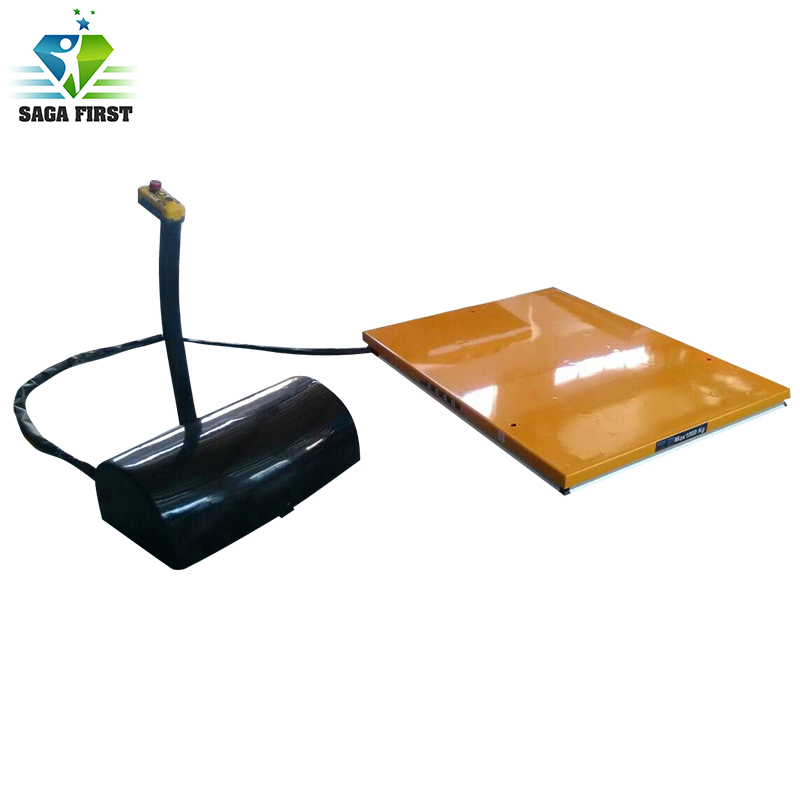

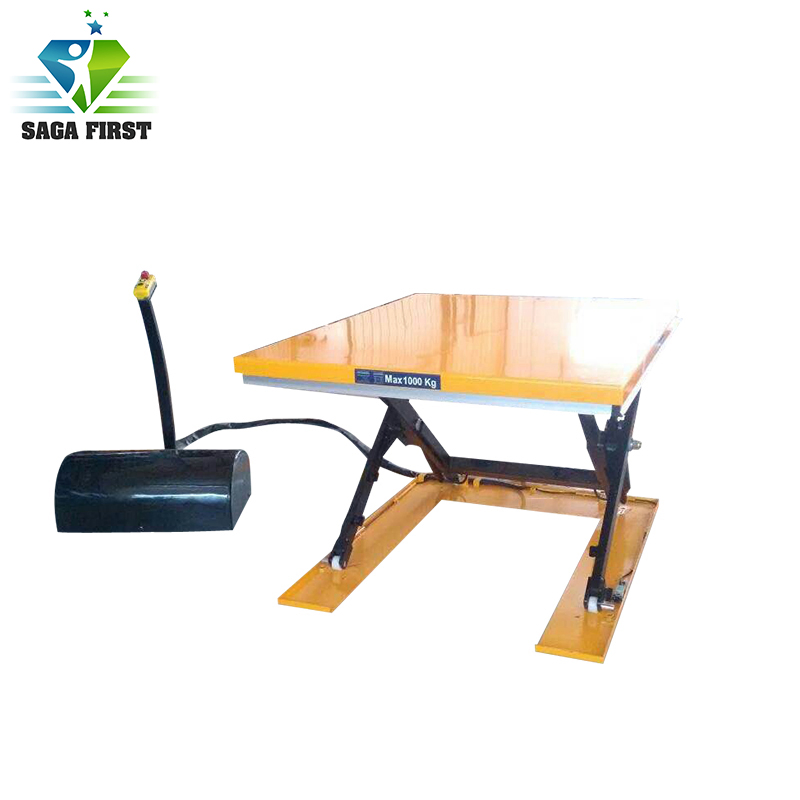

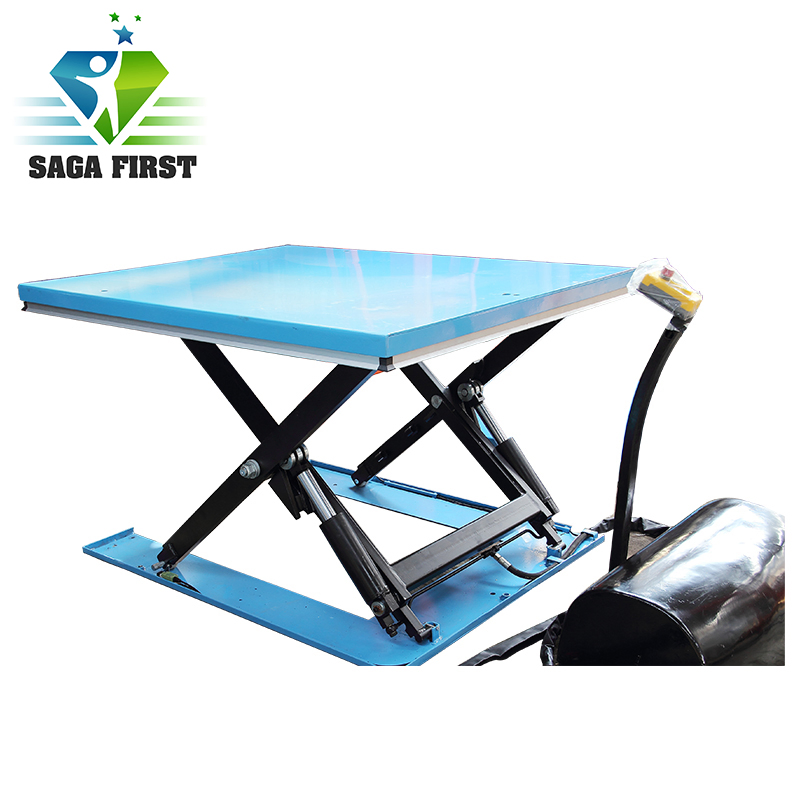

Low Profile Stationary Pallet Scissor Lift Platform
High-quality electronic hydraulic scissor lifts with loading capacities from 1000~2000KG and a minimum self height of 85mm, specifically designed for efficient loading and unloading operations. Compact structure allows for modular installation in confined spaces, integrated with an advanced electric propulsion system.

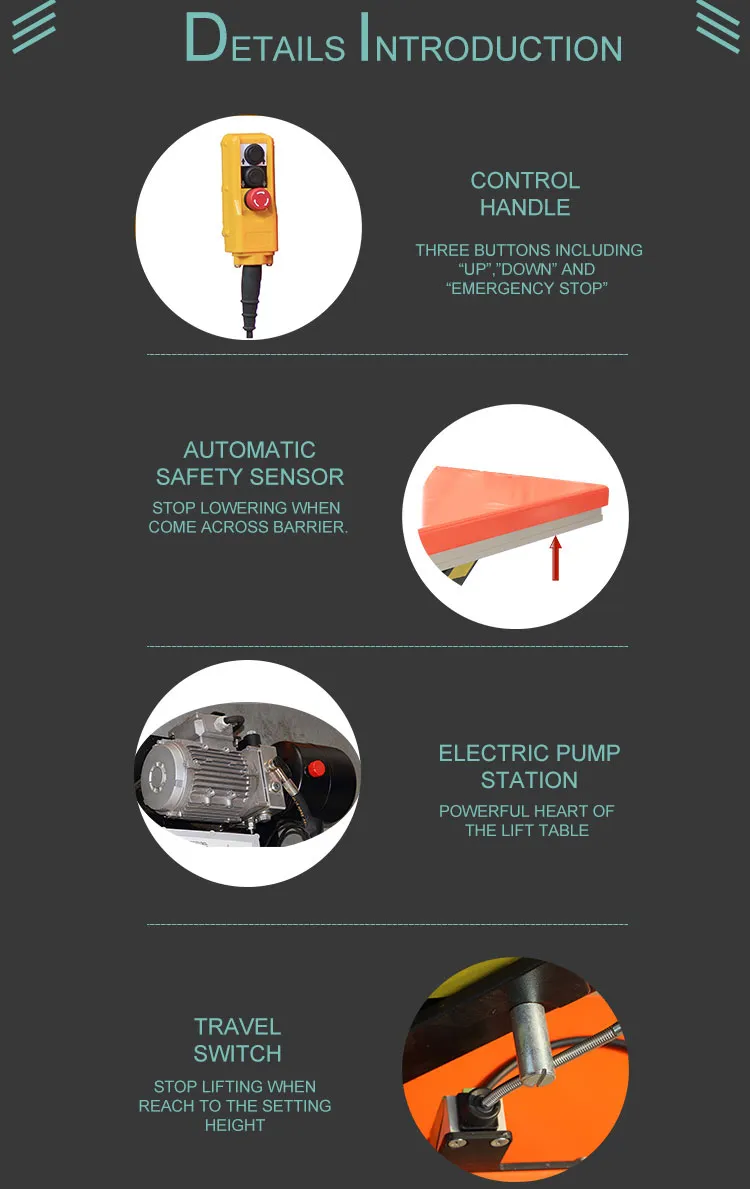

!Safety Precautions
- Explosion-proof valves for hydraulic pipe protection
- Spillover valve to prevent high pressure
- Emergency decline valve for power failure situations
- Overload protection locking device
- Pressure relief valve for operation safety
Model Parameters
| Model |
Capacity (kg) |
Platform Size (mm) |
Base Size (mm) |
Self Height (mm) |
Max Height (mm) |
Lifting Time (s) |
Net Weight (kg) |
| HL1001 | 1000 | 1450x1140 | 1325x1074 | 85 | 860 | 25 | 357 |
| HL1002 | 1000 | 1600x1140 | 1325x1074 | 85 | 860 | 25 | 364 |
| HL1003 | 1000 | 1450x800 | 1325x734 | 85 | 860 | 25 | 326 |
| HL1004 | 1000 | 1600x800 | 1325x734 | 85 | 860 | 25 | 332 |
| HL1005 | 1000 | 1600x1000 | 1325x734 | 85 | 860 | 25 | 352 |
| HL1501 | 1500 | 1600x800 | 1325x734 | 105 | 870 | 30 | 302 |
| HL1502 | 1500 | 1600x1000 | 1325x734 | 105 | 870 | 30 | 401 |
| HL2001 | 2000 | 1600x1200 | 1427x1114 | 105 | 870 | 35 | 419 |
Features & Advantages

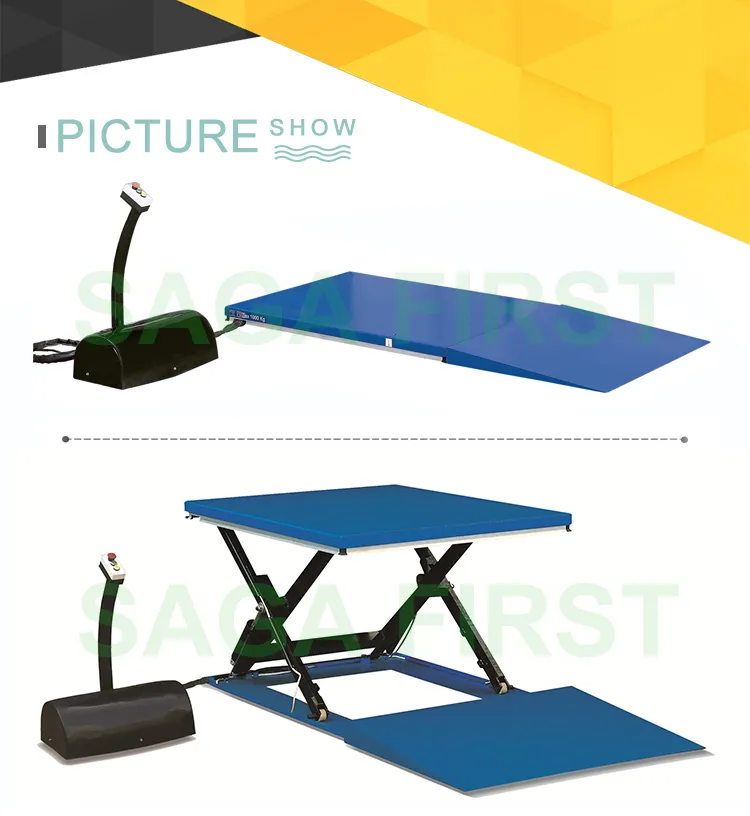

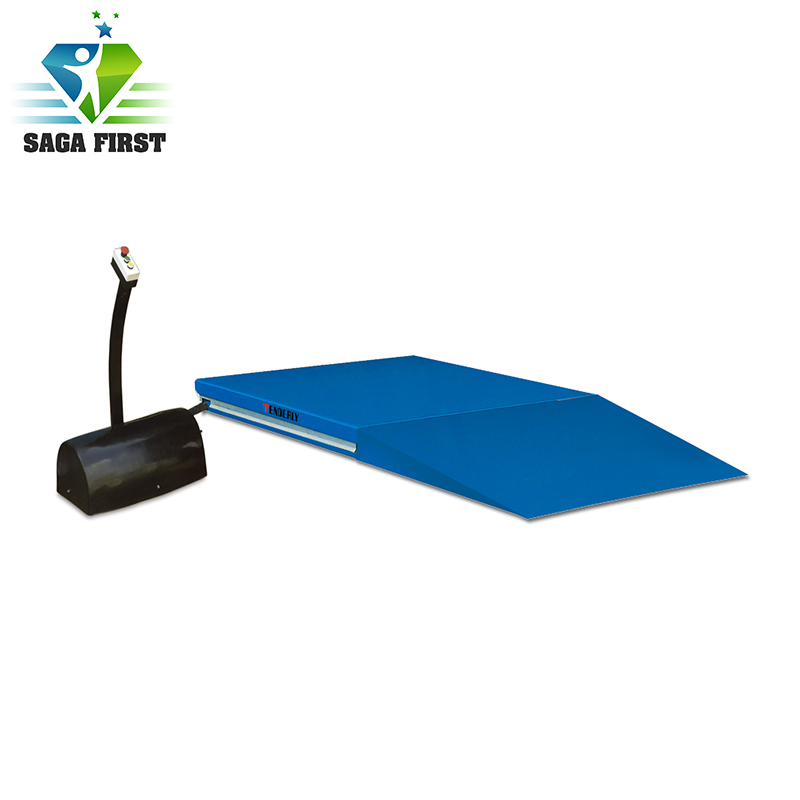

- Standard ramp makes it easier to load and unload without a pit.
- High quality pump station ensures stable lifting and falling.
- Anti-pinch scissor design and self-lubricating pin-rolls prolong lifespan.
- Equipped with aluminum alloy blend-stop safety guard under the platform.
- Flow control valve makes descent speed fully adjustable.
- Compliant with American ANSI/ASME and European EN1570 standards.
Professional Service

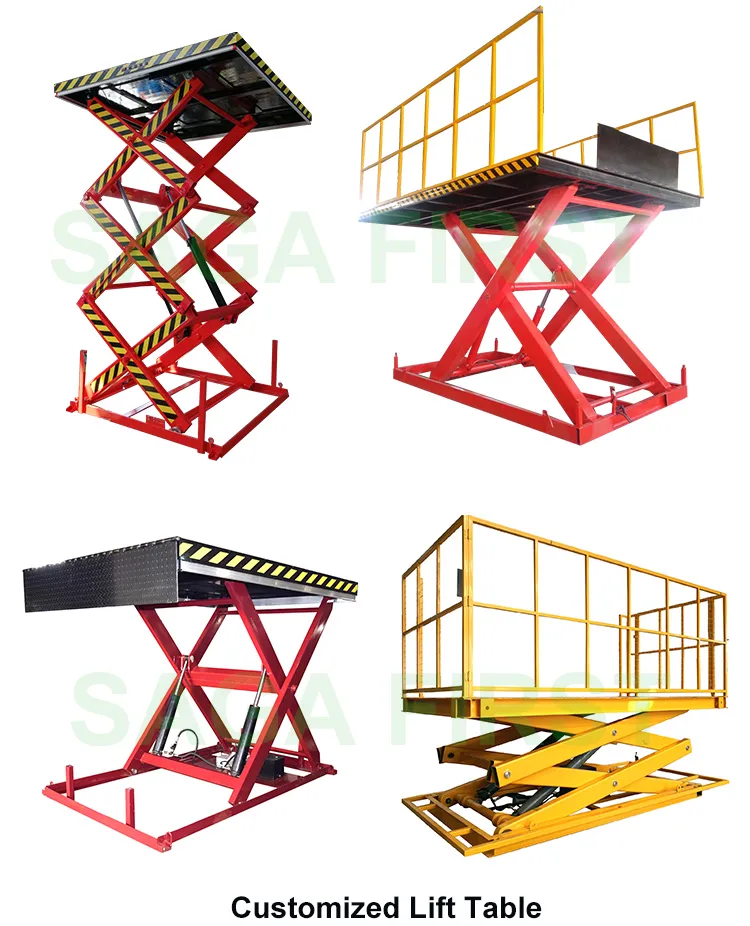

Customized design for stationary scissor lifts based on specific requirements.
Global shipment arrangement from port to destination.
Operation and maintenance video guidance provided.
Spare parts delivery within 7 days via express if required.
Frequently Asked Questions
Q How can customers buy replacement parts?
The equipment adopts common hardware parts. You can purchase them at local hardware markets or forklift parts shops easily.
Q How is the equipment repaired if it breaks down?
The failure rate is extremely low. If issues occur, we provide video guidance and detailed repair instructions to assist your technicians.
Q What is the duration of the quality warranty?
We provide a 24-month (two year) quality guarantee, during which we offer free parts for replacement.
Q What are the standard payment terms?
For orders under USD 4,999, 100% TT in advance; for orders over USD 5,000, 30% deposit with balance before shipment.
Q Do you offer OEM and ODM services?
Yes, we support customization for lifting capacity, platform size, color, logo, and manual specifications.
Q What is the typical delivery timeframe?
Standard production and delivery time is 15 to 20 days after receiving the down payment.
