🚀 Product Description

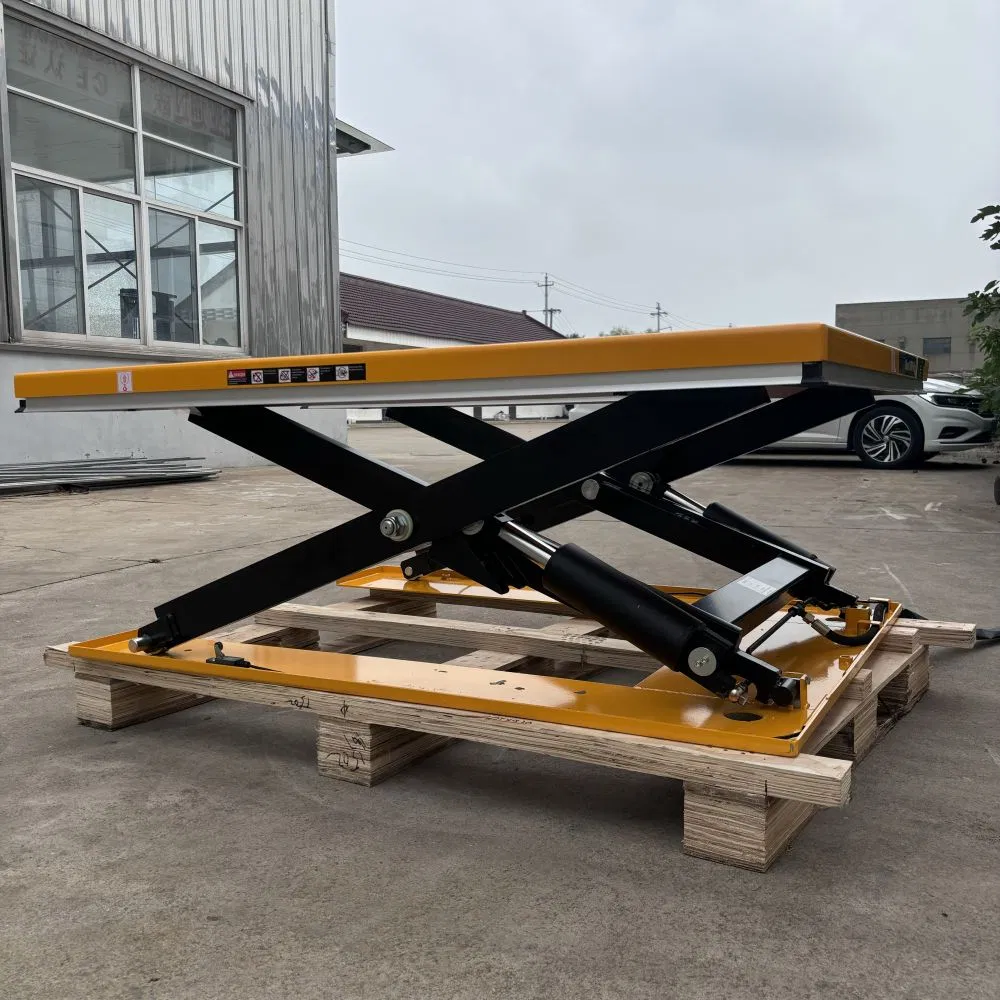

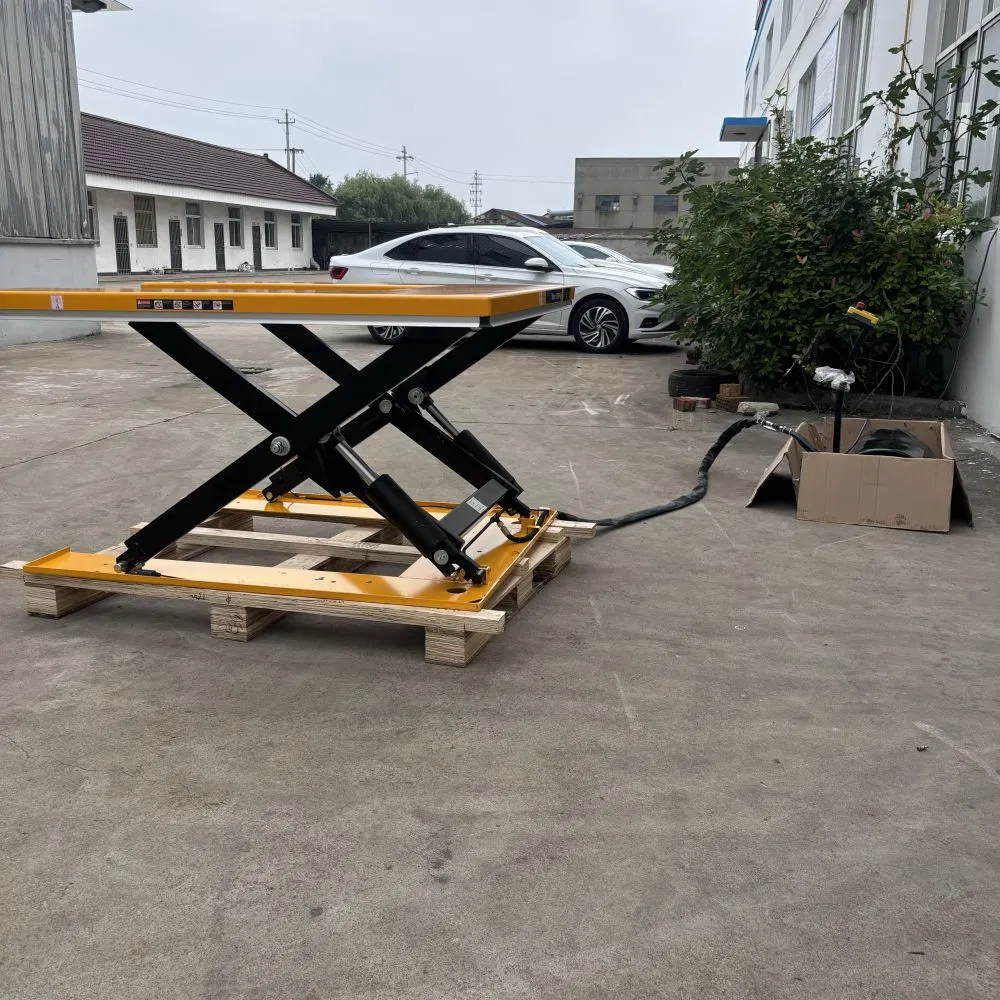

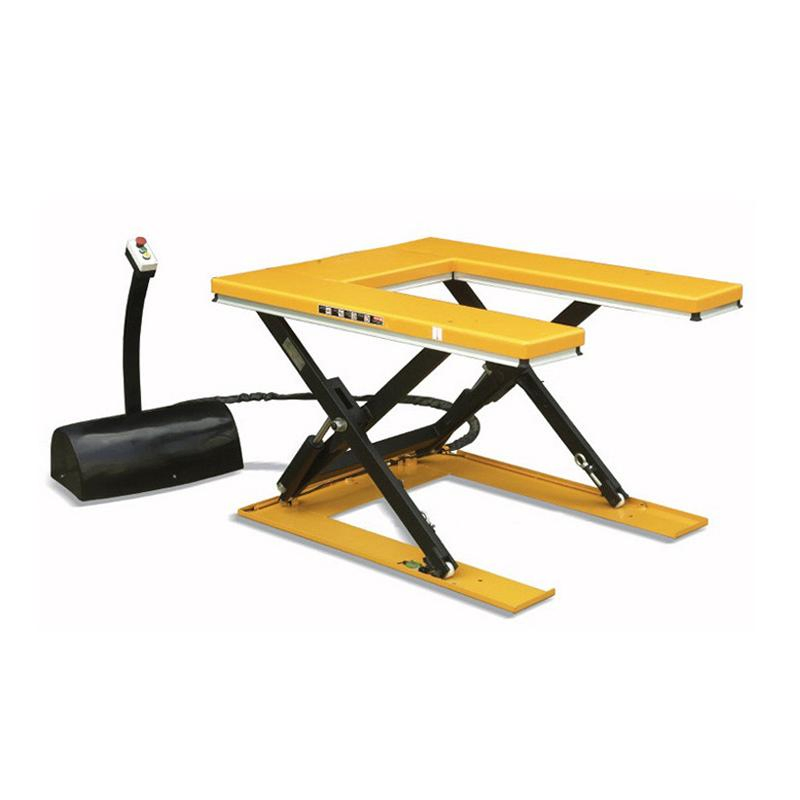

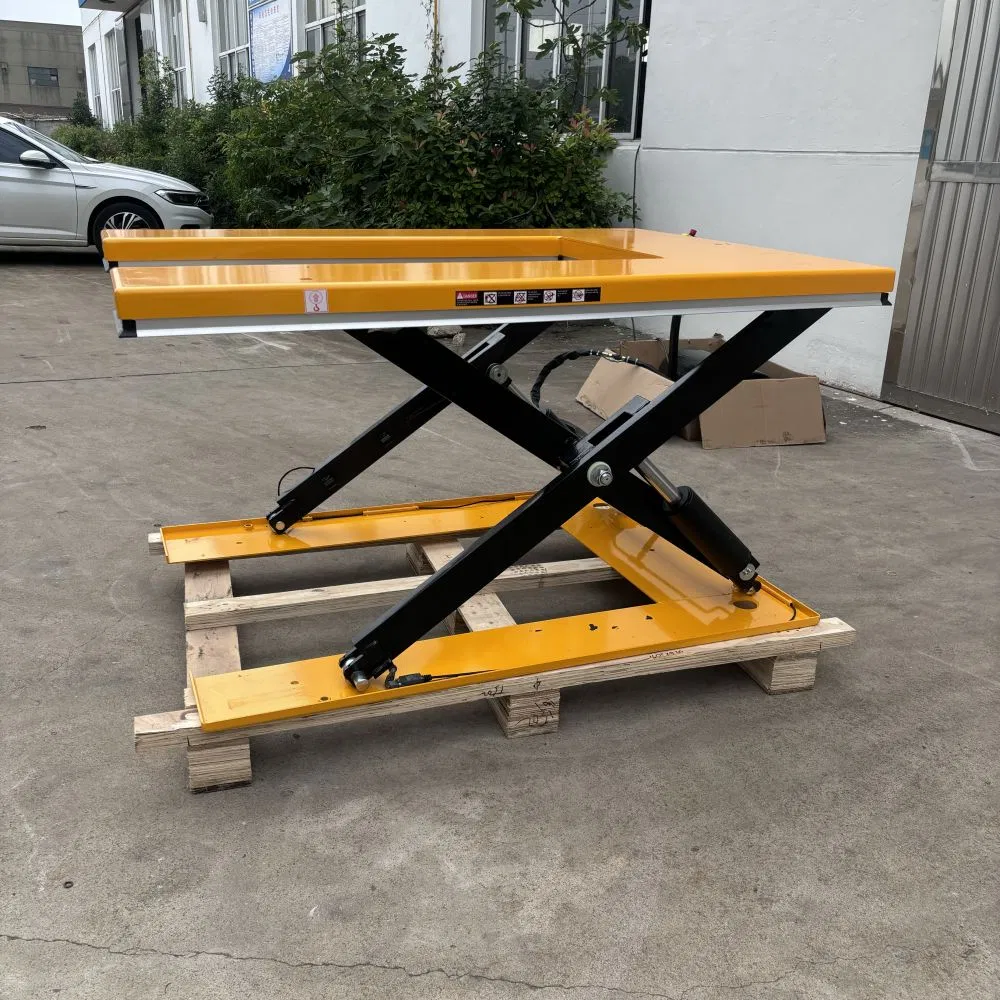

The low profile electric lift tables with the unique, steel constructed, "U" design provides an open center that enables a pallet truck to place a load on the platform. Remove bending and stretching when filling and unpacking pallets with our low profile scissor lift tables. Easy loading via pallet truck for single operator use.
Ideally suited for lifting Euro pallets to a comfortable working height - perfect for pallet filling or as a multi-height scissor lift platform to position loads conveniently. The pallet lift platform is designed to reduce operator bending and stretching when filling or unloading Euro pallets.
| Model |
Unit |
ULT600 |
ULT1000 |
ULT1500 |
ULT2000 |
| Rated load | Kg | 600 | 1000 | 1500 | 2000 |
| Table size | mm | 1450×985 | 1450×1140 | 1600×1180 | 1600×1180 |
| Min table height | mm | 85 | 85 | 105 | 105 |
| Max table height | mm | 860 | 860 | 860 | 860 |
| Lifting time | S | 25-35 | 25-35 | 30-40 | 30-40 |
| Pump station | V/Kw | 380/0.75 | 380/0.75 | 380/1.5 | 380/2.2 |
| Net weight | Kg | 208 | 280 | 380 | 415 |
💡 Related Products
Frequently Asked Questions

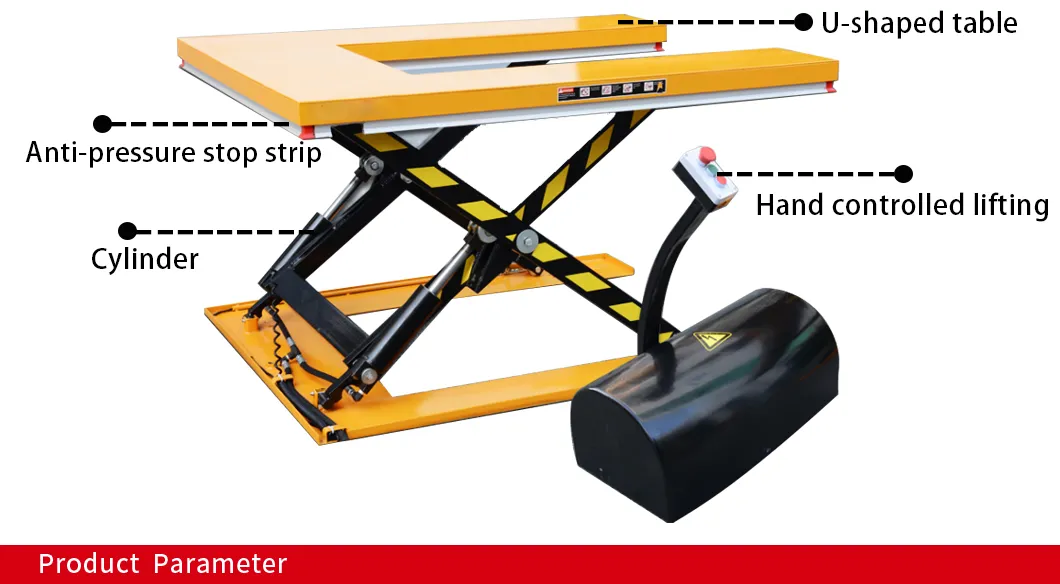

❓ What is the advantage of the U-Shape design?
The unique U-shaped design provides an open center, allowing a pallet truck to drive directly into the platform to place or remove loads without the need for a ramp.
❓ What load capacities are available for this lift table?
We offer four standard capacities: 600kg, 1000kg, 1500kg, and 2000kg to suit various industrial needs.
❓ Is this lift table suitable for Euro Pallets?
Yes, it is specifically designed to handle Euro pallets efficiently, making it ideal for production and manufacturing facilities.
❓ What are the safety features of this product?
The lift table includes features such as explosion-proof components and insulating properties, and it is certified with GS, CE, and RoHS standards.
❓ Can the color of the lift table be customized?
Yes, the color is fully customizable to match your company's branding or specific workplace requirements.

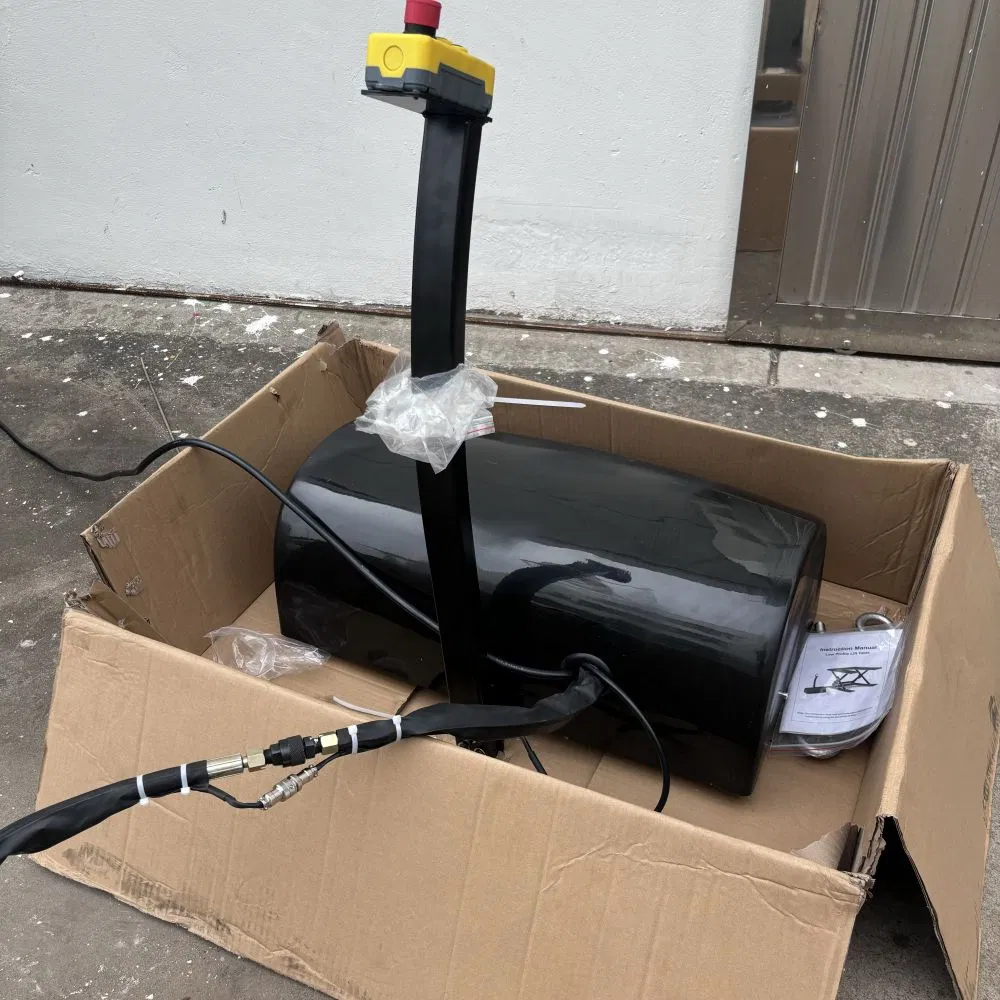

❓ What is the power requirement for the hydraulic pump?
The standard hydraulic pump stations operate on a 380V power supply, with motor power ranging from 0.75Kw to 2.2Kw depending on the model.
