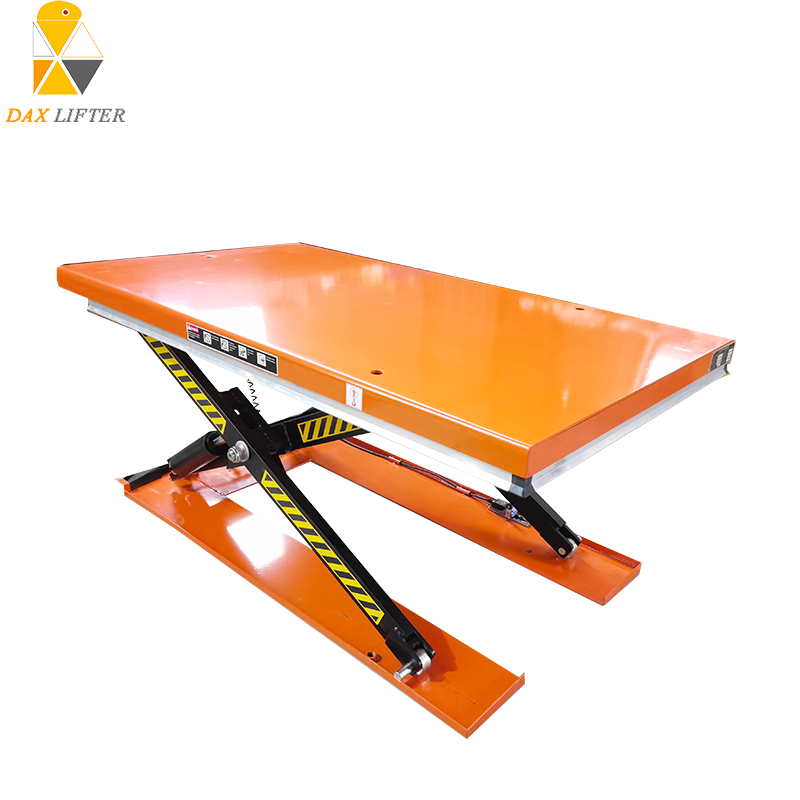

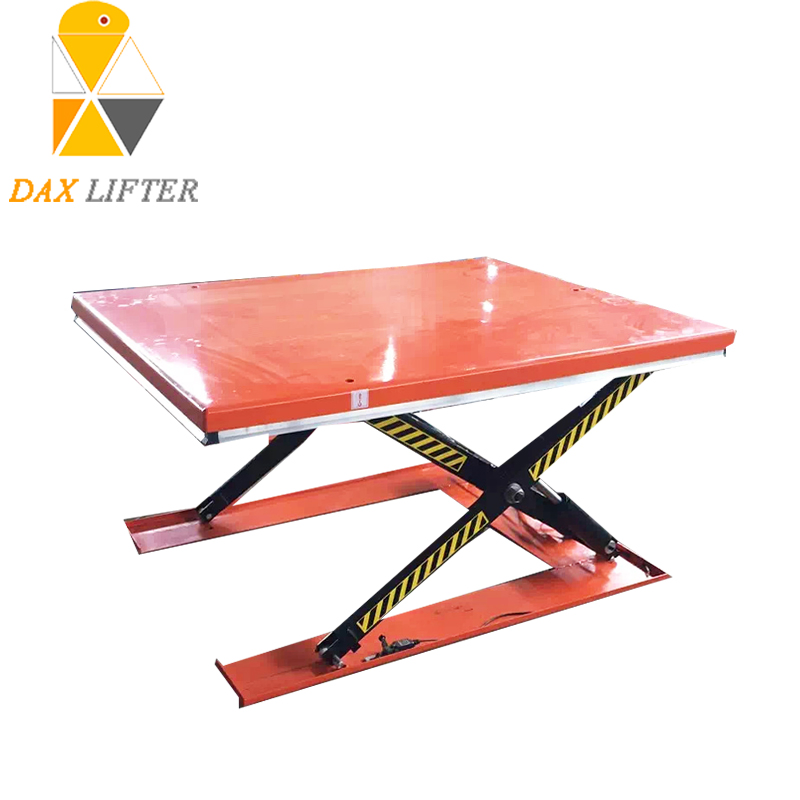

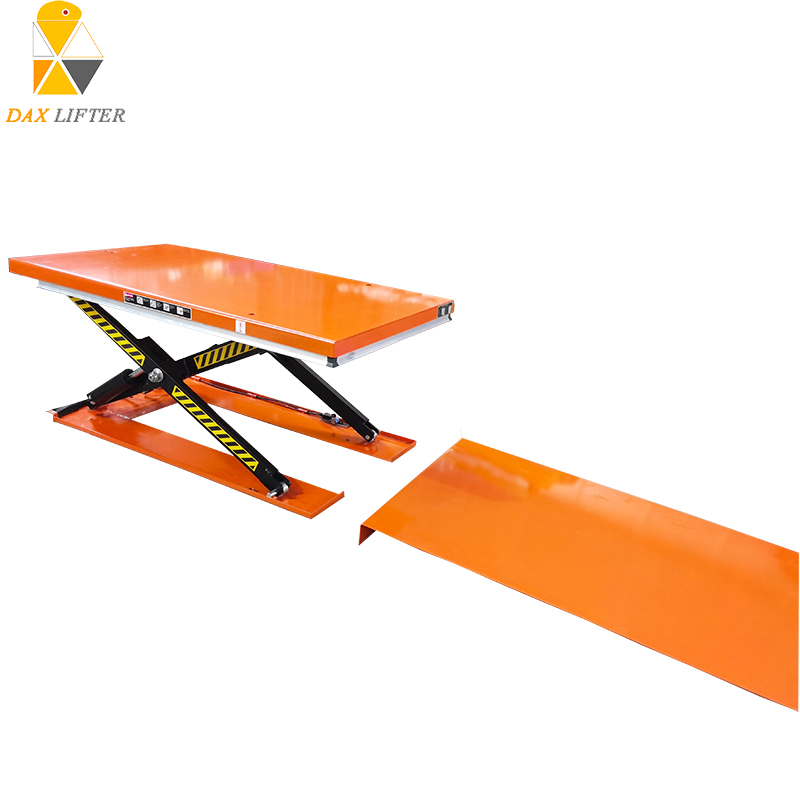

The DXCD-series low profile scissor lift is widely used in warehouses, workshops and other places with its economical price, ultra-low self-height and durability. Equipped with an independent pump station with excellent performance, it provides sufficient power to ensure smoother lifting of goods.

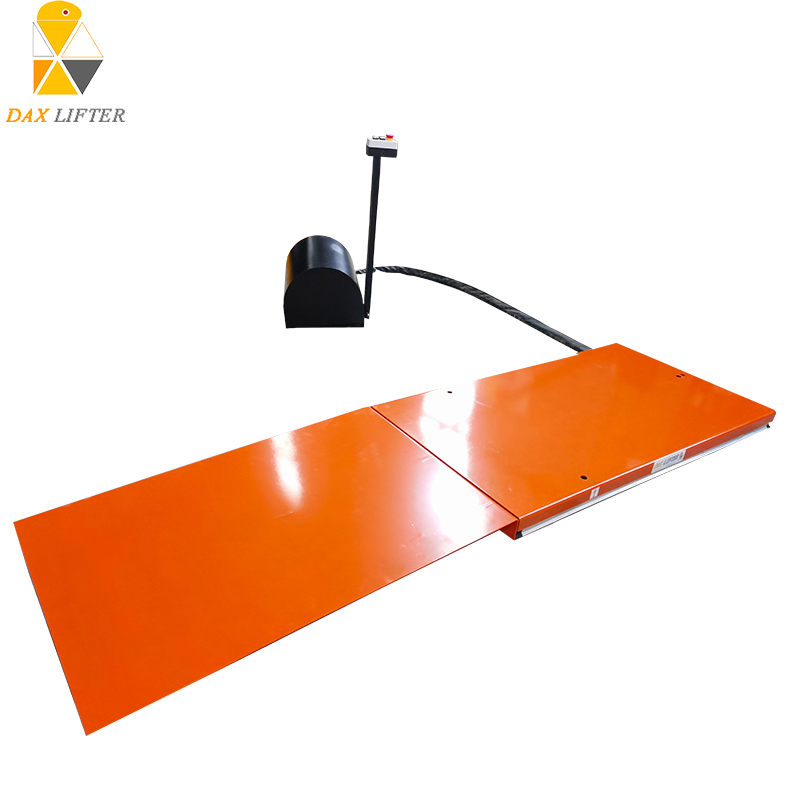

Low Profile Scissor Lift Table features a minimal 85mm self-height. This equipment is widely used to help operators hoist wooden or plastic pallets, goods, and materials. The lowest platform height makes cargo loading more convenient, allowing for easy placement of cargo. Lifting capacity can reach up to 2000kg.
| Model | Load Capacity | Platform Size | Max Platform Height | Min Platform Height | Weight |
|---|---|---|---|---|---|
| DXCD 1001 | 1000kg | 1450*1140mm | 860mm | 85mm | 357kg |
| DXCD 1002 | 1000kg | 1600*1140mm | 860mm | 85mm | 364kg |
| DXCD 1003 | 1000kg | 1450*800mm | 860mm | 85mm | 326kg |
| DXCD 1004 | 1000kg | 1600*800mm | 860mm | 85mm | 332kg |
| DXCD 1005 | 1000kg | 1600*1000mm | 860mm | 85mm | 352kg |
| DXCD 1501 | 1500kg | 1600*800mm | 870mm | 105mm | 302kg |
| DXCD 1502 | 1500kg | 1600*1000mm | 870mm | 105mm | 401kg |
| DXCD 1503 | 1500kg | 1600*1200mm | 870mm | 105mm | 415kg |
| DXCD 2001 | 2000kg | 1600*1200mm | 870mm | 105mm | 419kg |
| DXCD 2002 | 2000kg | 1600*1000mm | 870mm | 105mm | 405kg |
Since the equipment platform has reached an ultra-low enclosed height, no pit installation is required, saving construction costs.

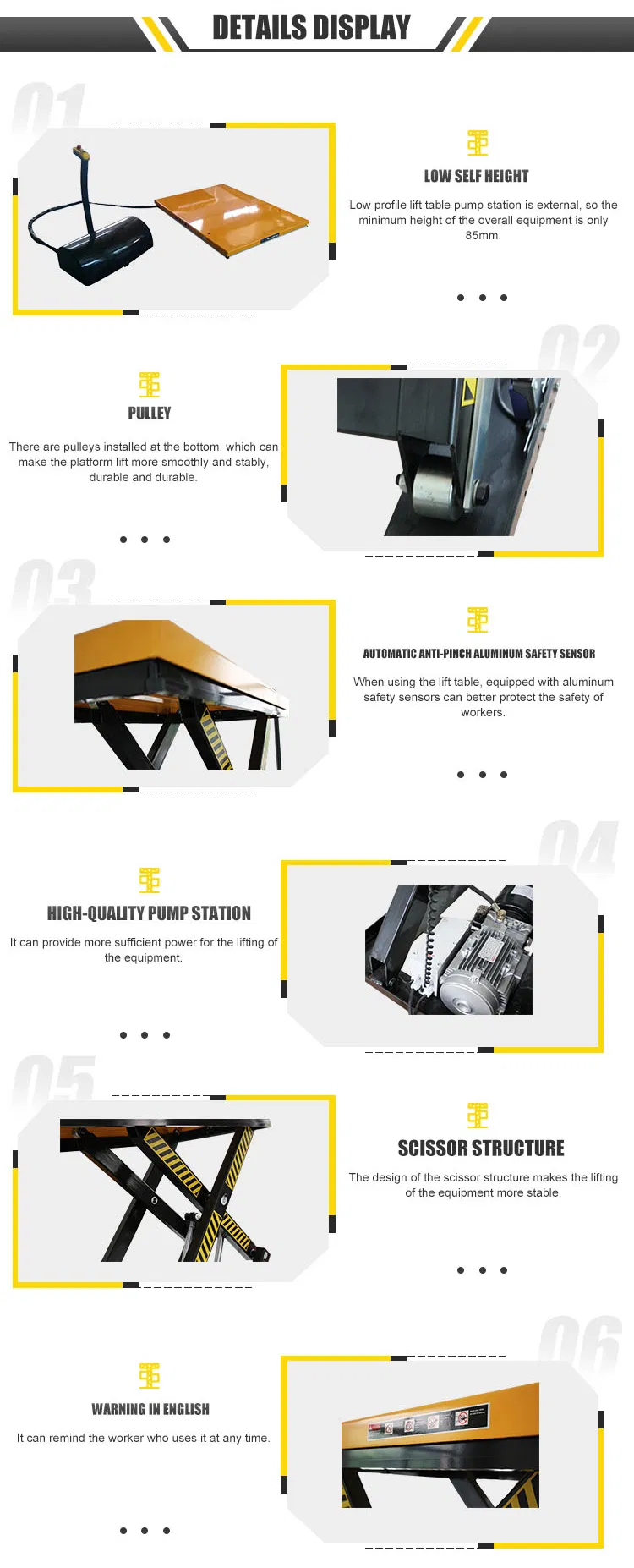

Equipped with an Aluminum Safety Sensor under the platform to prevent pinching or injury during the lowering process.
The lift features a small footprint with a large load-bearing capacity, making it easy to move and integrate into existing workflows.
We offer OEM/ODM services to customize platform sizes and working methods according to specific customer requirements.
Surface treatment includes shot blasting and baking paint to ensure a long service life and resistance to wear.
The DXCD series features an ultra-low profile with a minimum self-height of only 85mm, making it ideal for pallet handling without a pit.
No, due to its ultra-low closed height, it can be placed directly on the floor without the need for expensive pit construction.
Every unit is equipped with an Aluminum Safety Sensor bar under the platform edge which stops the descent immediately if it encounters an obstacle.
Yes, we provide OEM and ODM services. While we have standard sizes, we can customize the dimensions and specifications based on your requirements.
The DXCD series offers various models with load capacities ranging from 1000kg up to 2000kg.
The surface undergoes professional shot blasting and is finished with high-quality baking paint to ensure durability and corrosion resistance.
