Product Description

Basic Information
Model NO.
HL-Y1004
Moves
Stationary
Driven Type
AC
Running Mode
Stationary
Certification
GS, CE, ISO 9001
Capacity
1000kg
Platform Size
1600X800mm
Min Height
85mm
Max. Height
860mm
Power Pack
380V/50Hz, AC0.75kw
Lifting Time
25s
Transport Package
Wooden Pallet
Specification
CE
Origin
China
HS Code
84279000
Product Description

Low Profile Lift Table (HL-Y SERIES)

  • Heavy duty design with a larger platform.

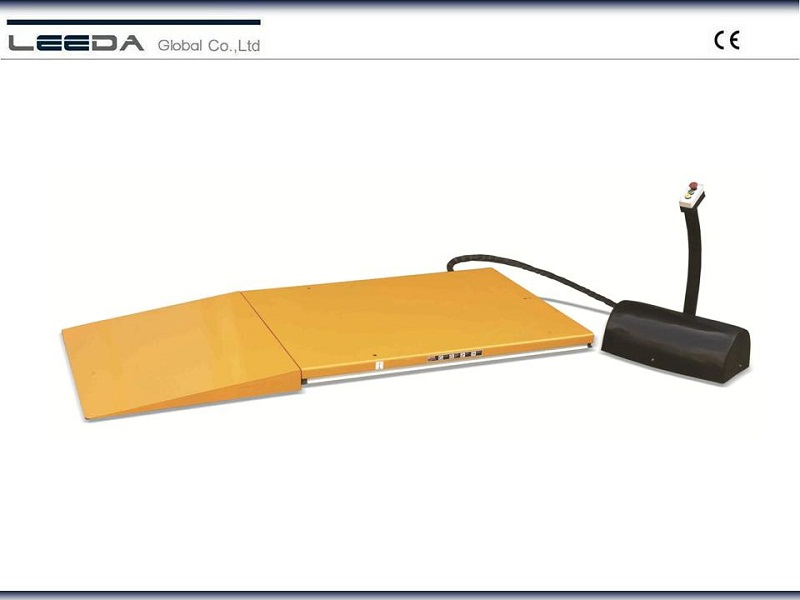

  • These tables achieve a low closed height, eliminating the need for a pit installation.
  • Manufactured to all European safety standards including EN1570: 1999.

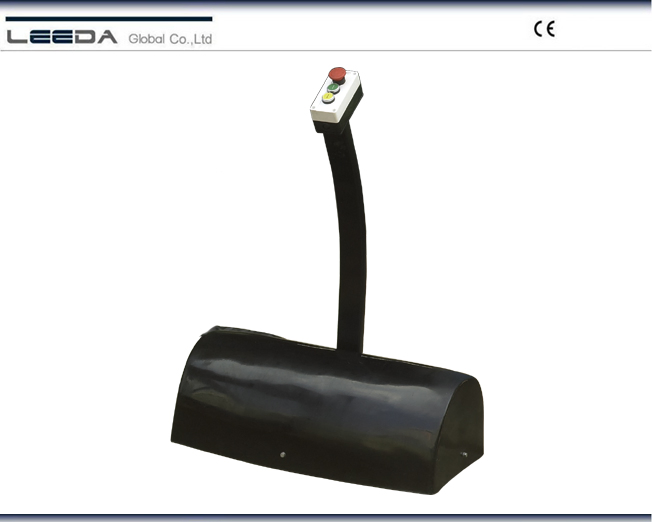

  • Remote power pack with pedestal and controls, protected to IP54.

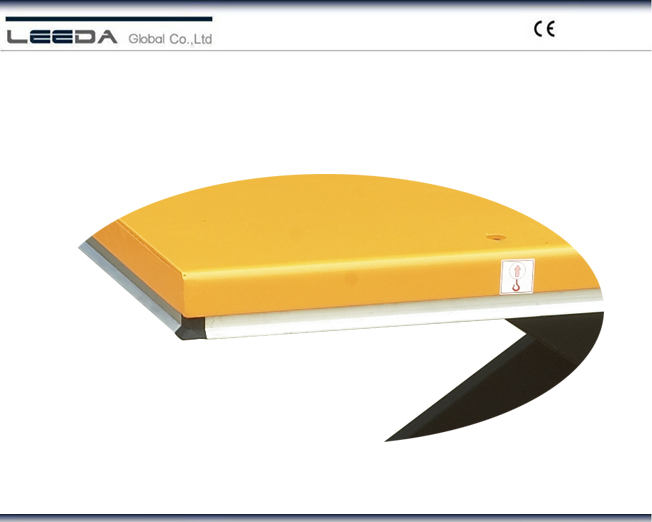

  • Upper platform fitted with a safety perimeter to prevent descent on contact with obstructions.
  • 24V control box with UP and DOWN buttons and emergency stop.
  • External power pack equipped with a relief valve against overloading and a compensated flow valve for controlling lowering speed. Power supply: AC 380V/50Hz/3phase.
  • Hose burst safety valve to stop the lift table lowering in case of hose breakage.
  • Removable lifting eyes to facilitate handling and installation of the Lift table.
  • Oiless bushings on pivot points for reduced maintenance.

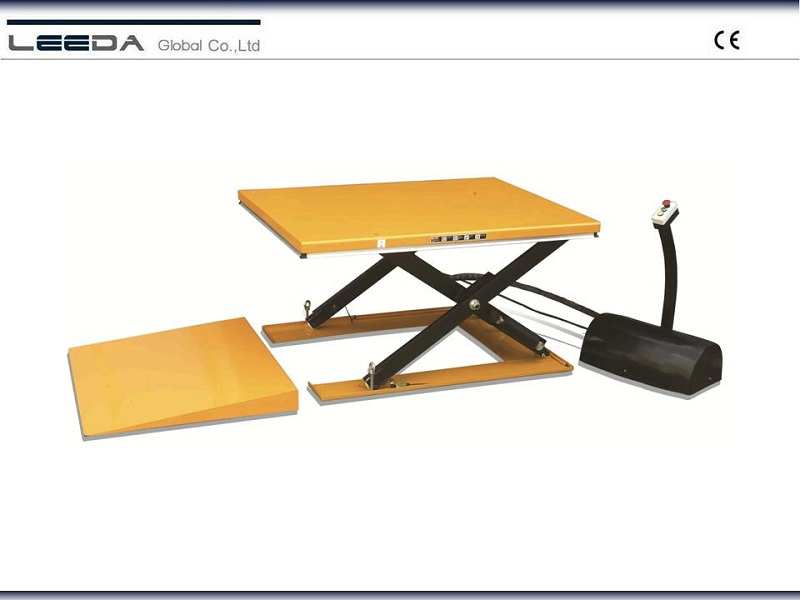

  • Loading ramp is included as standard equipment.

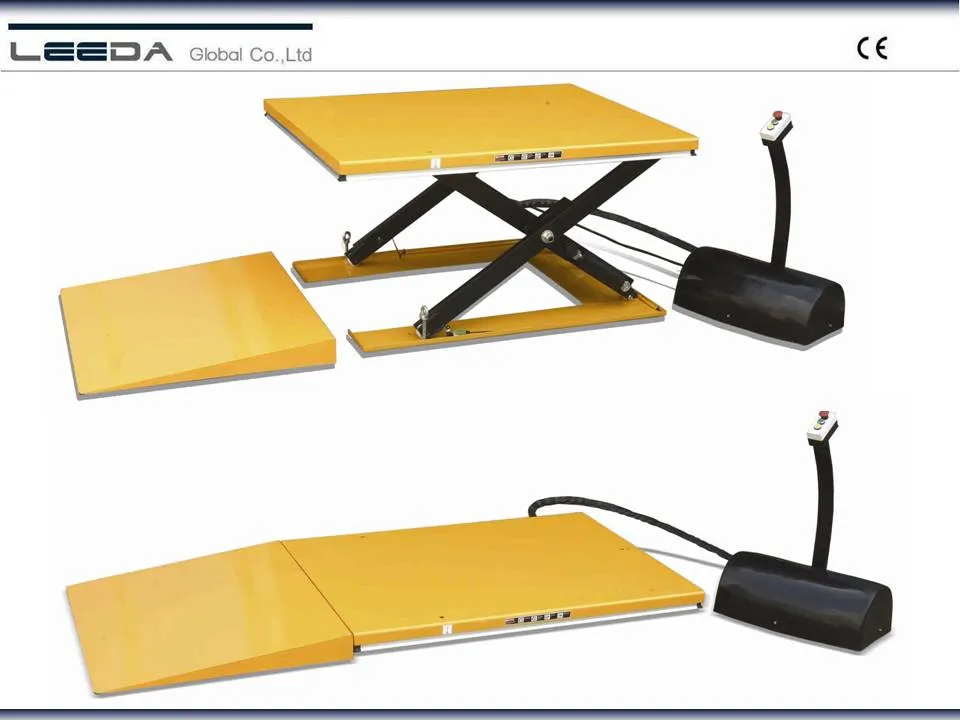

Low Profile Electric Lift Table

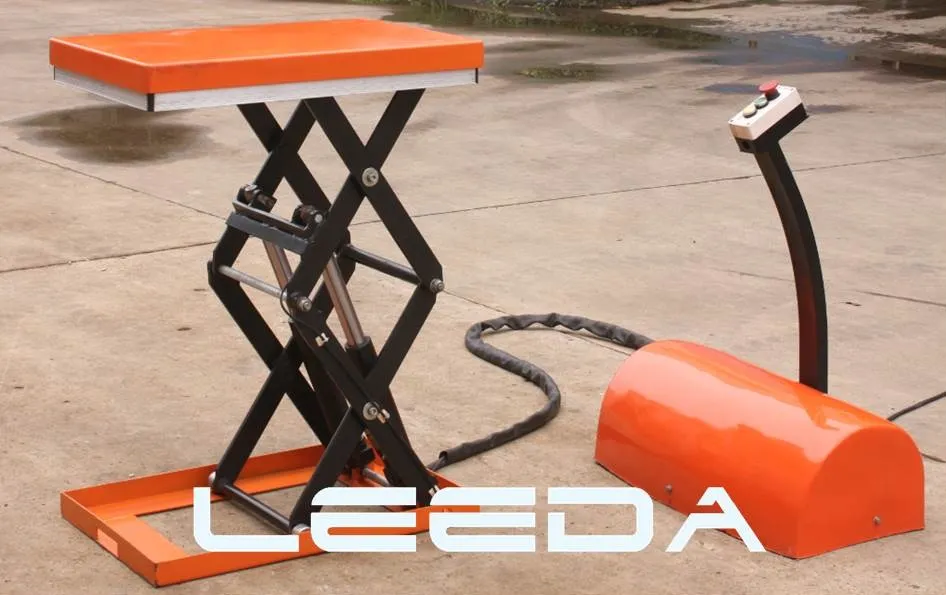

Lift Table Details
Lift Table Dimensions

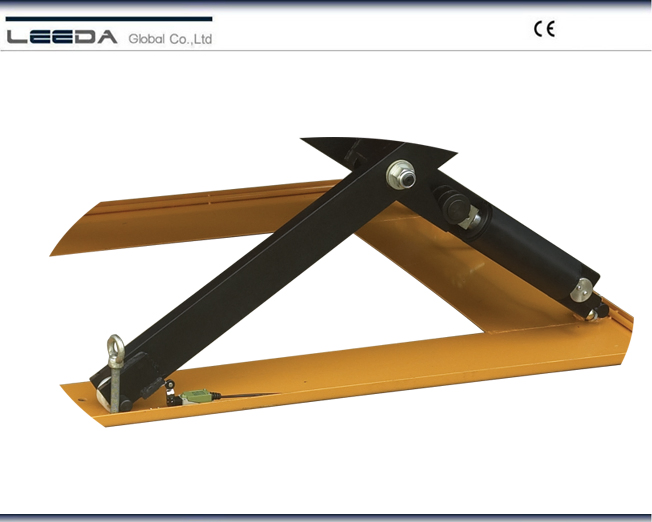

Electric Lift Mechanism

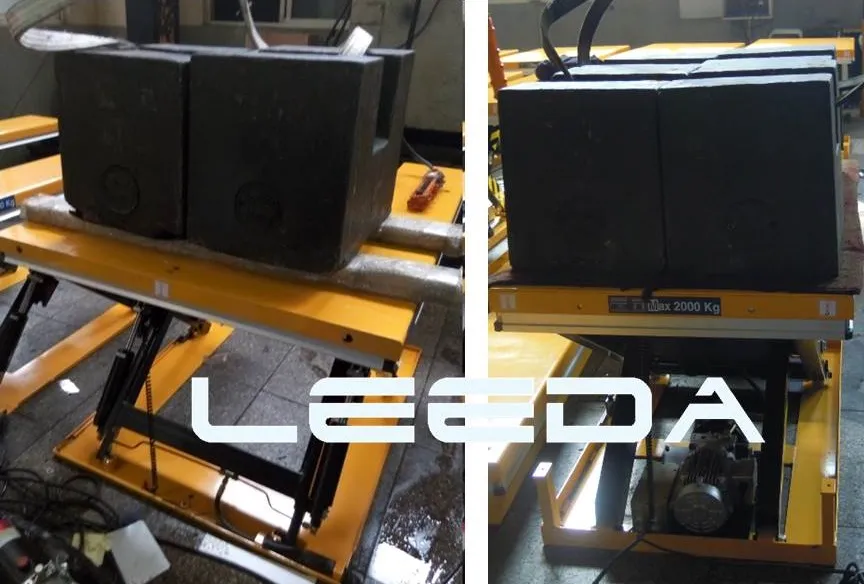

Low Profile Design

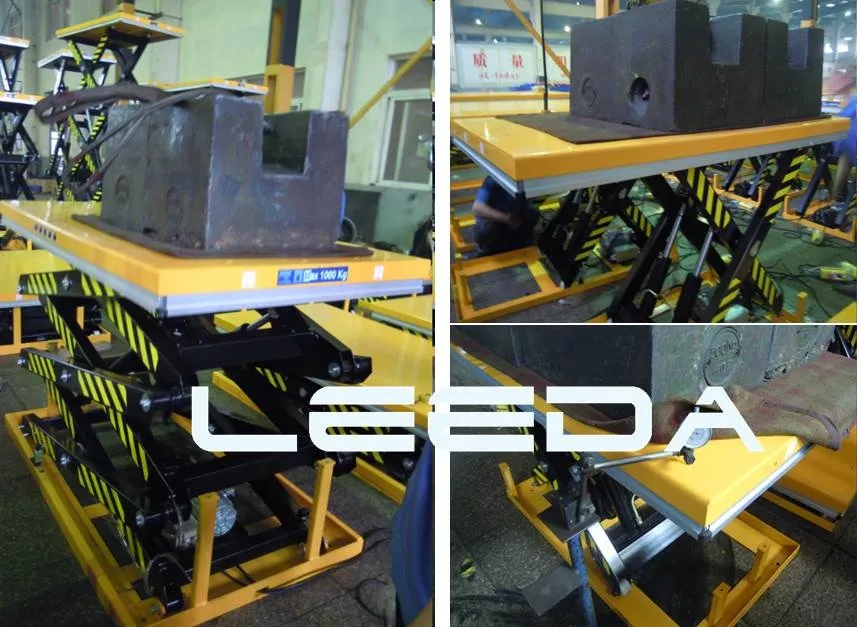

Loading Ramp Equipment
Technical Specifications
Model Capacity (kg) Platform Size LXW (mm) Min. Height (mm) Max. Height (mm) Stroke (mm) Lifting Time (s) Power Pack Net Weight (kg)
HL-Y100110001450×11408586077525380V/50HZ, AC 0.75kw357
HL-Y100210001600×11408586077525364
HL-Y100310001450×8008586077525326
HL-Y100410001600×8008586077525332
HL-Y100510001600×10008586077525352
HL-Y150115001600×80010587077530380V/50HZ, AC 1.5kw367
HL-Y150215001600×100010587077530401
HL-Y150315001600×120010587077530415
HL-Y200120001600×120010587077535380V/50HZ, AC 2.2kw419
HL-Y200220001600×100010587077535405
Frequently Asked Questions
What is the advantage of a low profile lift table?
The primary advantage is the extremely low closed height, which eliminates the need for floor pit installation, making it easier to relocate and install in existing facilities.
What safety standards do these lift tables meet?
All HL-Y series lift tables are manufactured to meet European safety standards, specifically EN1570: 1999.
Is the loading ramp included with the table?
Yes, a loading ramp is provided as standard equipment to facilitate the easy movement of goods onto the platform.
How is the lowering speed controlled?
The external power pack is equipped with a compensated flow valve that allows for precise control of the lowering speed, ensuring safe operation.
What happens if a hydraulic hose breaks?
The system includes a hose burst safety valve that immediately stops the lift table from lowering in the event of a hose breakage.
What are the power requirements for the HL-Y series?
The standard power supply required is AC 380V/50Hz/3phase, suitable for industrial applications.
