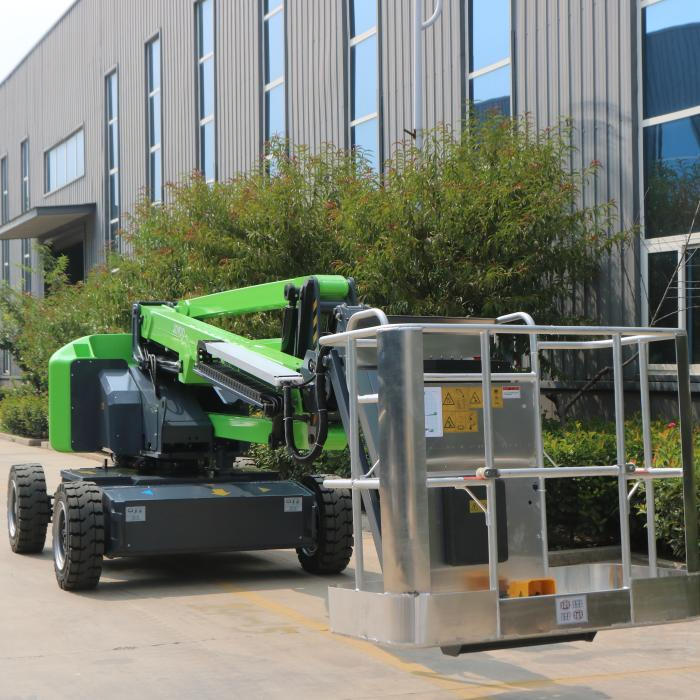

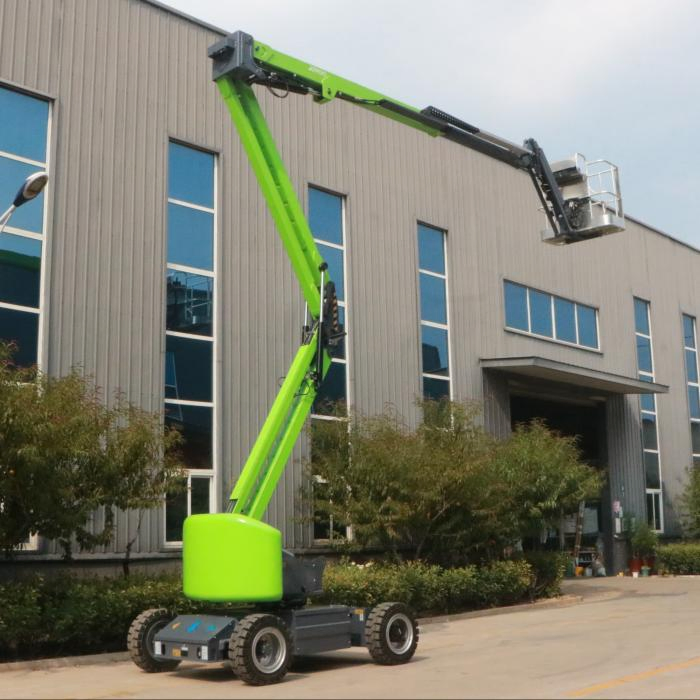

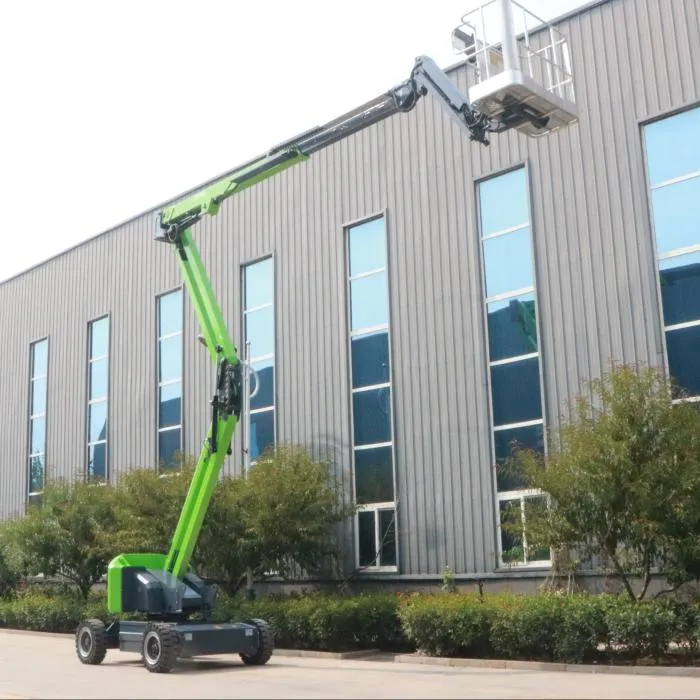

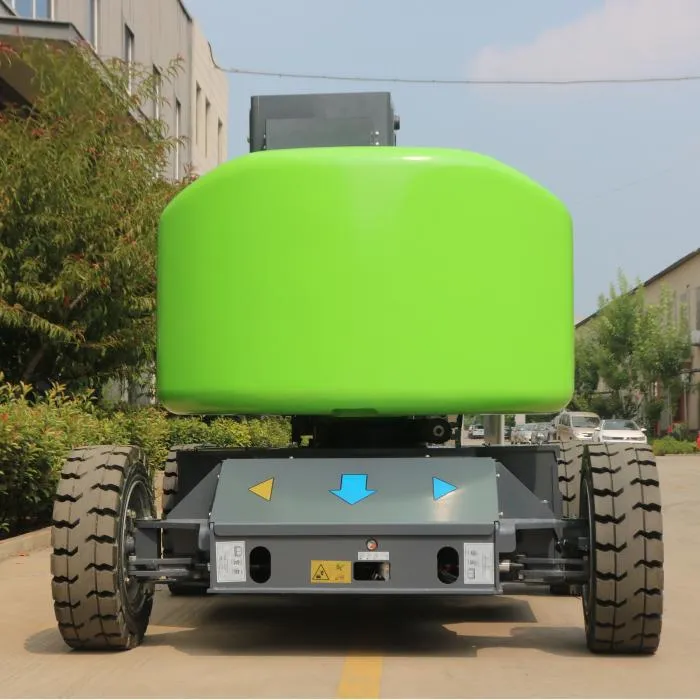

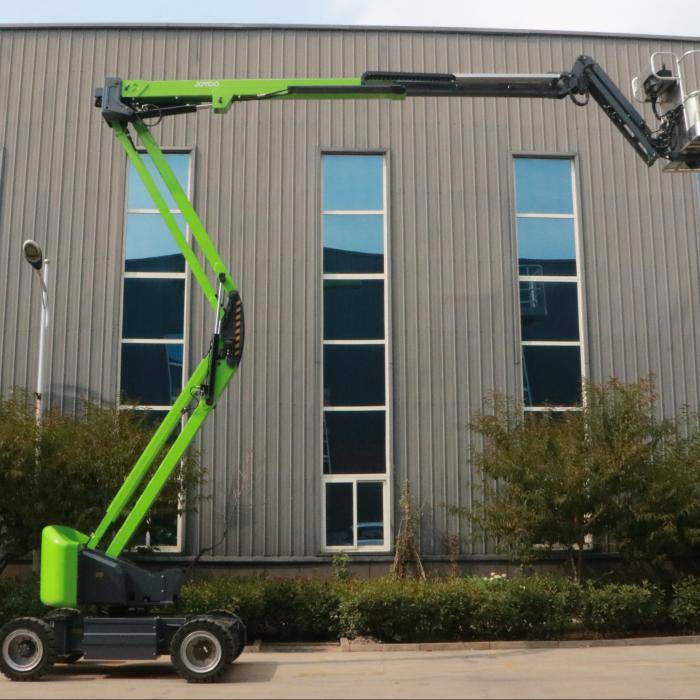

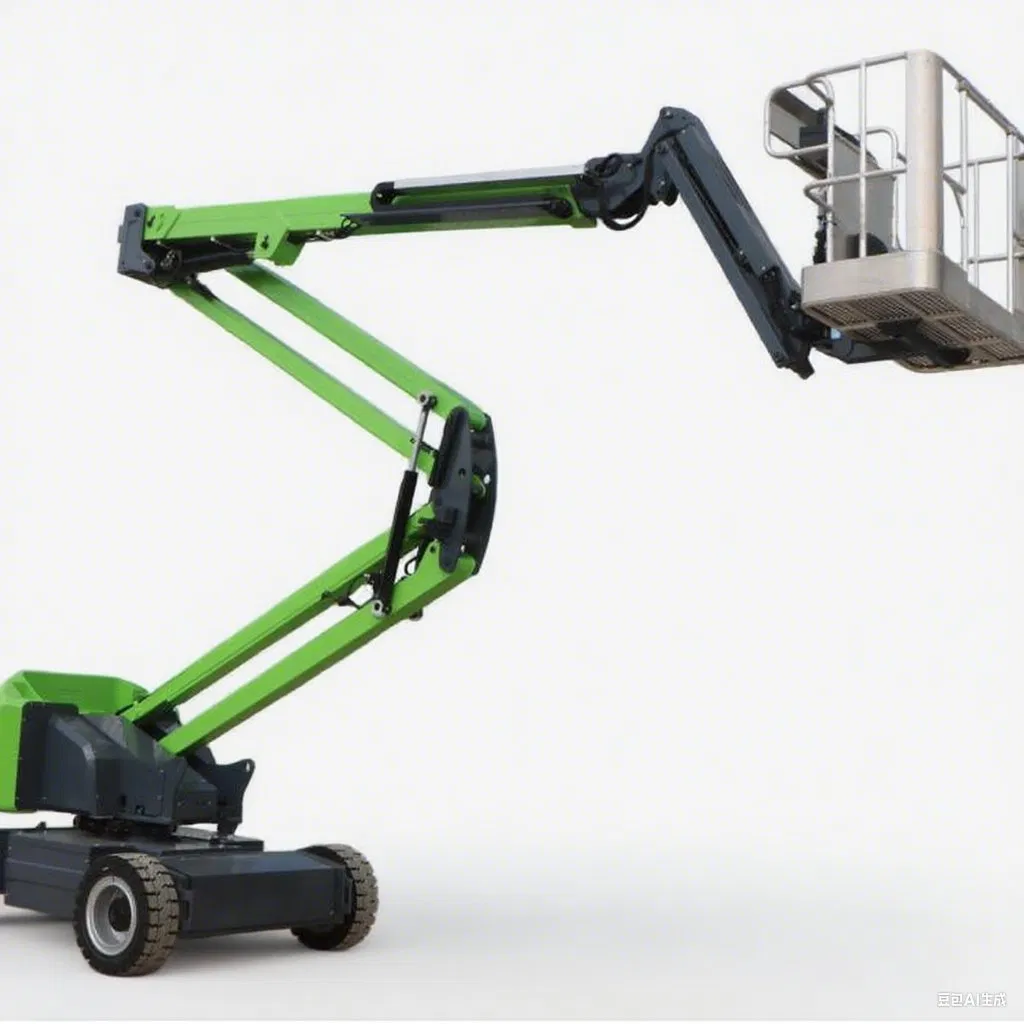

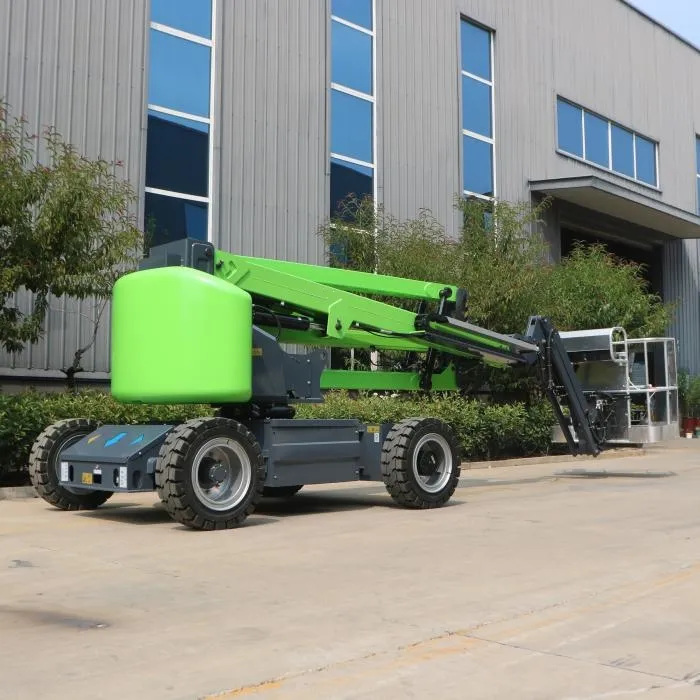

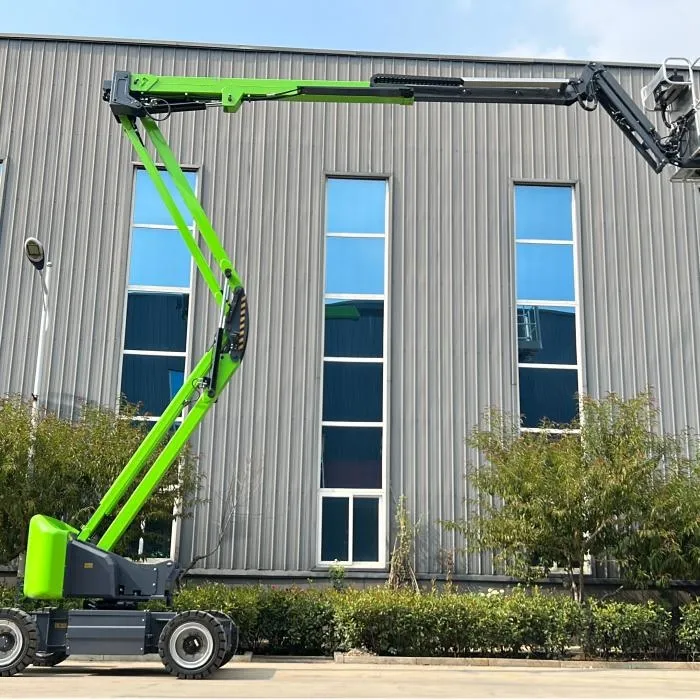

Articulated boom lift is an upgrade from towable boom lifts, making movement significantly more convenient. The operator can maintain complete control from the platform, making it ideal for outdoor construction and specialized industrial applications.
The current platform height ranges from 10m to 18m with battery power. Diesel power models are available for 14m to 20m requirements. With a load capacity of 230kg, this model is available in both 2WD and 4WD configurations. The larger work envelope on an articulating lift provides superior access to hard-to-reach places.
| Specification Item | Details |
|---|---|
| Max. Working Height | 17.7m |
| Max. Platform Height | 15.7m |
| Max. Up and Over Clearance | 7.3m |
| Max. Working Radius | 8.9m |
| Platform Width / Length | 0.76m / 1.4m |
| Height - Stowed | 2.0m |
| Length - Stowed | 7.2m |
| Width | 1.90m |
| Wheelbase | 2.0m |
| Max Lift Capacity | 230kg |
| Platform Occupancy | 2 Persons |
| Turntable Rotation | 355° |
| Drive Speed - Stowed | 5.0km/h |
| Gradeability - Stowed | 30% |
| Battery | 48V/320Ah |
| Drive Motor / Pump Power | 3.3kw / 4kw |
