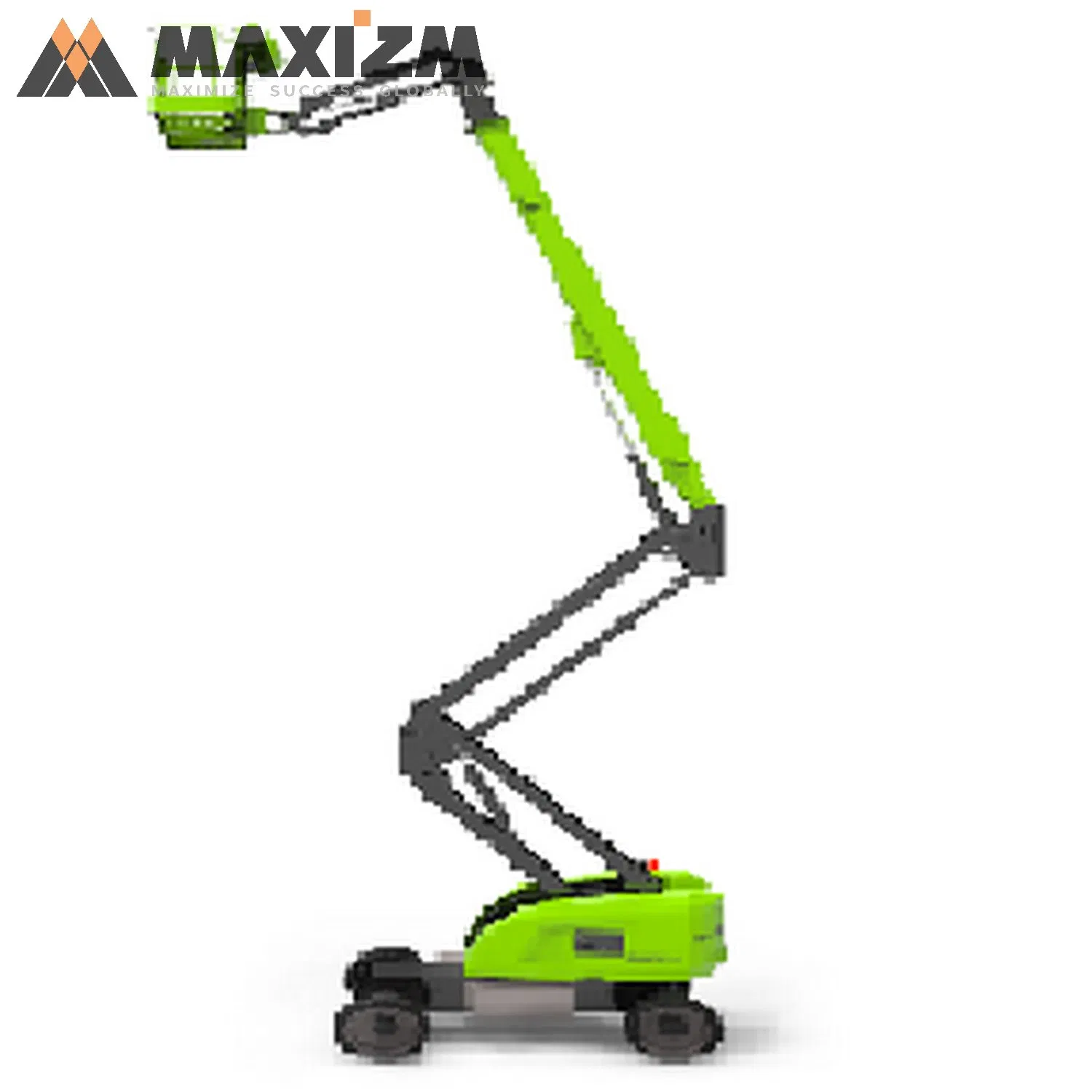

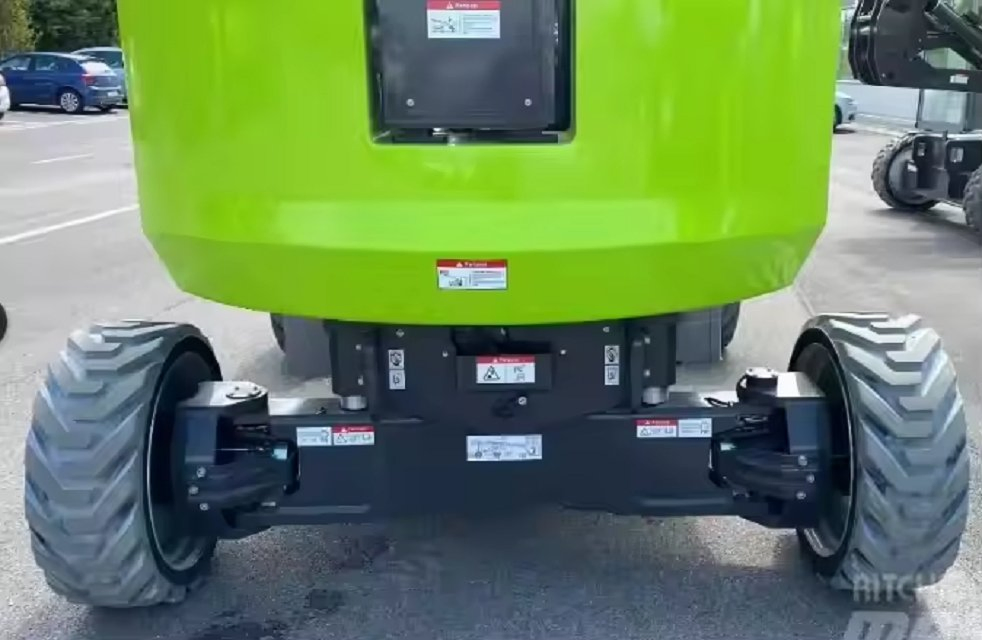

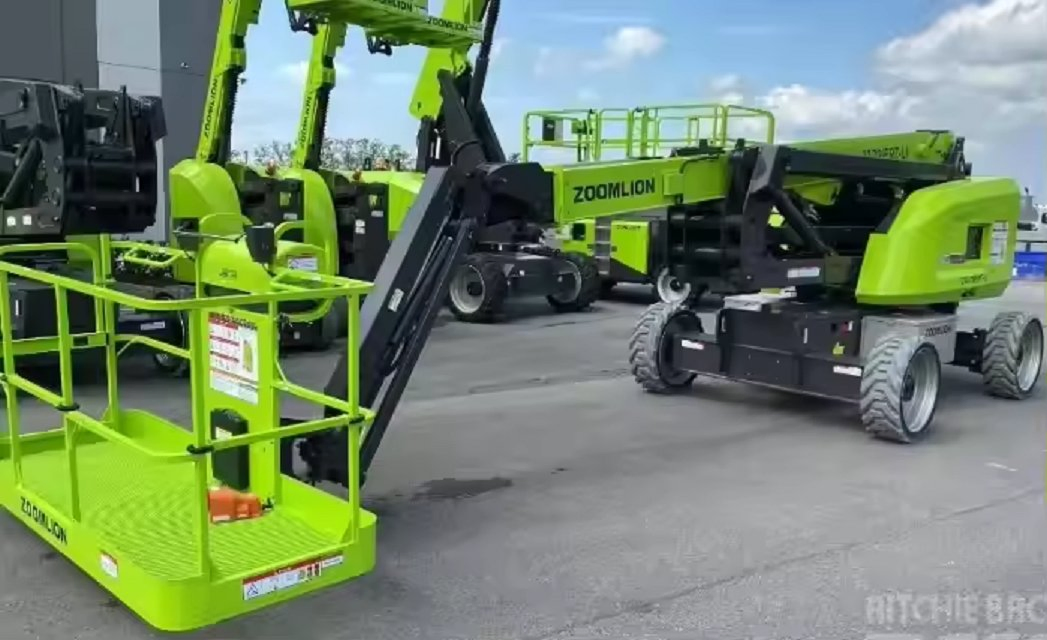

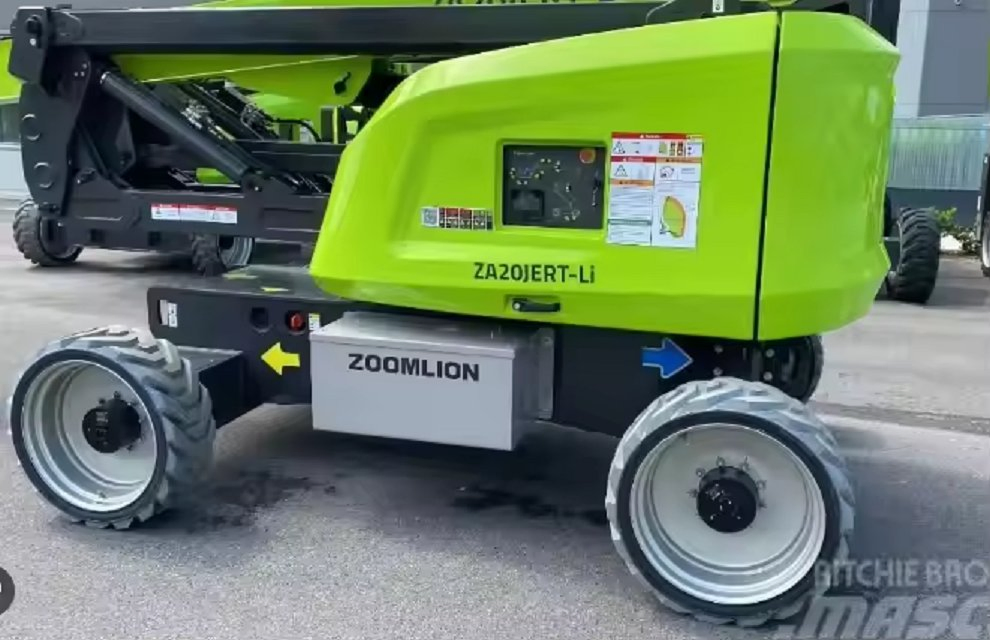

12.1m Self Propelled Electric Articulating Boom Lifts Za20jert-Li Aerial Work Platform
12.1m Self Propelled Electric Articulating Boom Lifts Za20jert-Li Aerial Work Platform
12.1m Self Propelled Electric Articulating Boom Lifts Za20jert-Li Aerial Work Platform
12.1m Self Propelled Electric Articulating Boom Lifts Za20jert-Li Aerial Work Platform
12.1m Self Propelled Electric Articulating Boom Lifts Za20jert-Li Aerial Work Platform
1 / 5
12.1m Self Propelled Electric Articulating Boom Lifts Za20jert-Li Aerial Work Platform
12.1m Self Propelled Electric Articulating Boom Lifts Za20jert-Li Aerial Work Platform
12.1m Self Propelled Electric Articulating Boom Lifts Za20jert-Li Aerial Work Platform
12.1m Self Propelled Electric Articulating Boom Lifts Za20jert-Li Aerial Work Platform
12.1m Self Propelled Electric Articulating Boom Lifts Za20jert-Li Aerial Work Platform

12.1m Self Propelled Electric Articulating Boom Lifts Za20jert-Li Aerial Work Platform

Customization: Available
After-sales Service: Provided
Warranty: Provided
Send Inquiry

Product Description

Basic Information
Model NO.
ZA20JERT-Li
Lift Mechanism
Articulated Lift
Work Height
21.38m
Platform Height
19.38m
Horizontal Outreach
12.1m
Driven Type
AC
Carrying Capacity
Middle-Level (250kg/360kg)
Certification
GS, CE, RoHS, ISO 9001
Ground Clearance
0.4m
Product Gallery
Articulating Boom Lift 1

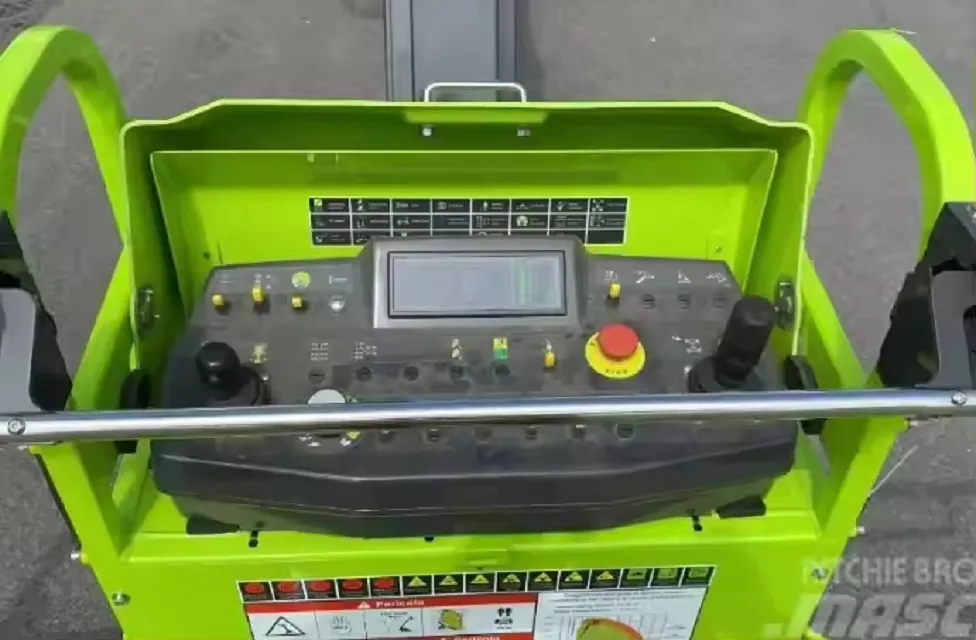

Articulating Boom Lift 2

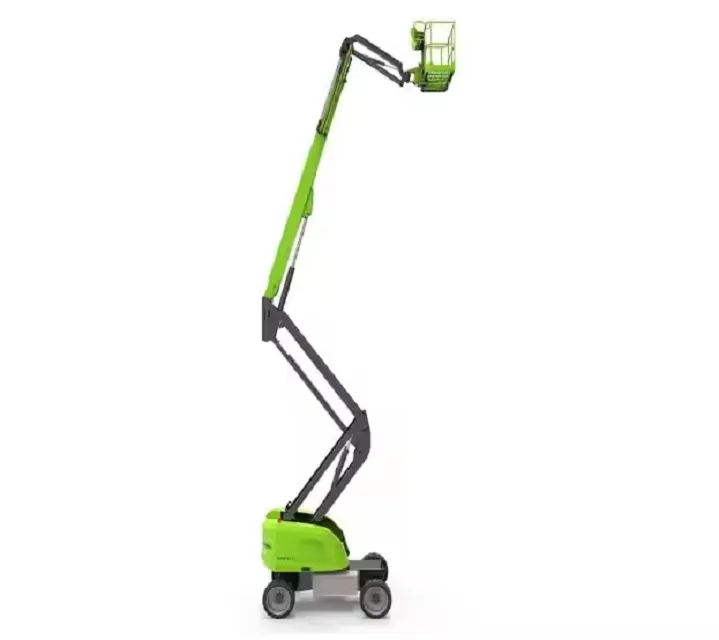

Articulating Boom Lift 3
Articulating Boom Lift 4
Articulating Boom Lift 5

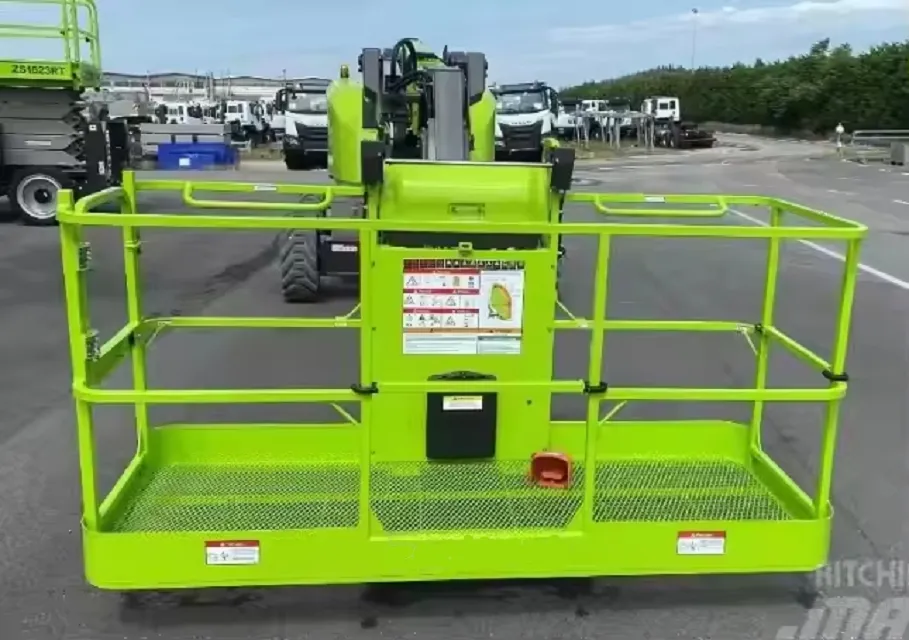

Articulating Boom Lift 6
Product Description & Key Features
🚀
High Performance: Provide greater work height of 21.38m and lift capacity of 250kg/360kg compared to standard competitors.
⚡
Fast Lift System: Directly lowers the boom from the highest position to the ground without folding, significantly improving work efficiency.
🔋
Lithium Battery Power: Large-capacity lithium battery with 2500+ charge cycles. Maintenance-free throughout the life cycle with long-lasting performance.
⚙️
Advanced Drive: Traveling AC drive system and on-board motion AC drive system provide strong power, stable control, and maintenance-free motors.
🛡️
Security & Reliability: Includes an independent auxiliary power system for more secure applications and a large reduction ratio reducer for stronger gradeability.
Detailed Parameters
Work Height21.38m
Platform Height19.38m
Horizontal Outreach12.1m
Up and Over Height8.25m
Stowed Length (A)8.8m
Stowed Width (B)2.46m
Stowed Height (C)2.52m
Platform Length (D)2.44m
Platform Width (E)0.91m
Wheelbase (F)2.52m
Ground Clearance (G)0.4m
Frequently Asked Questions
What is the maximum working height of the ZA20JERT-Li?
The ZA20JERT-Li offers a maximum working height of 21.38 meters, making it suitable for high-altitude maintenance and construction.
What are the advantages of the lithium battery system?
The large-capacity lithium battery provides up to 2500 charge cycles, is completely maintenance-free, and ensures a long-lasting battery life for intensive daily use.
Can this lift operate on sloped ground?
Yes, it features a large reduction ratio reducer which provides stronger gradeability, allowing it to navigate inclined surfaces effectively.
How does the "Fast Lift" system benefit the operator?
The system allows the boom to be lowered directly from its highest position to the ground without needing to fold the boom, which saves time and increases work efficiency on-site.
What is the carrying capacity of the platform?
The platform is designed for middle-level carrying capacity, supporting between 250kg and 360kg depending on the configuration.
Is the AC drive system maintenance-heavy?
No, the AC drive system is designed to be maintenance-free while providing strong power and stable control during traveling and motion.
