Application
Workshop, Shipboard, Warehouse, Building Crane
Lift Mechanism
Articulated Lift
Feature
Explosion-Proof, Insulating
Lead Time
10 days (1 - 1 Pieces)

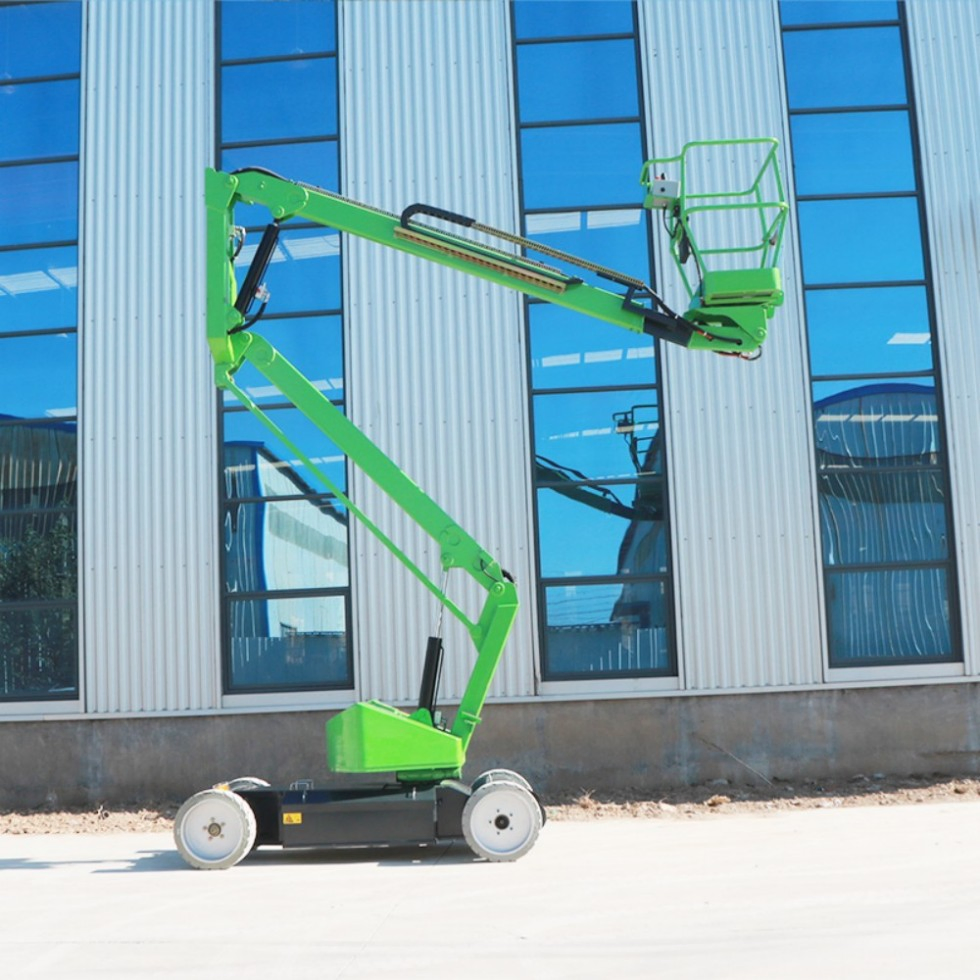

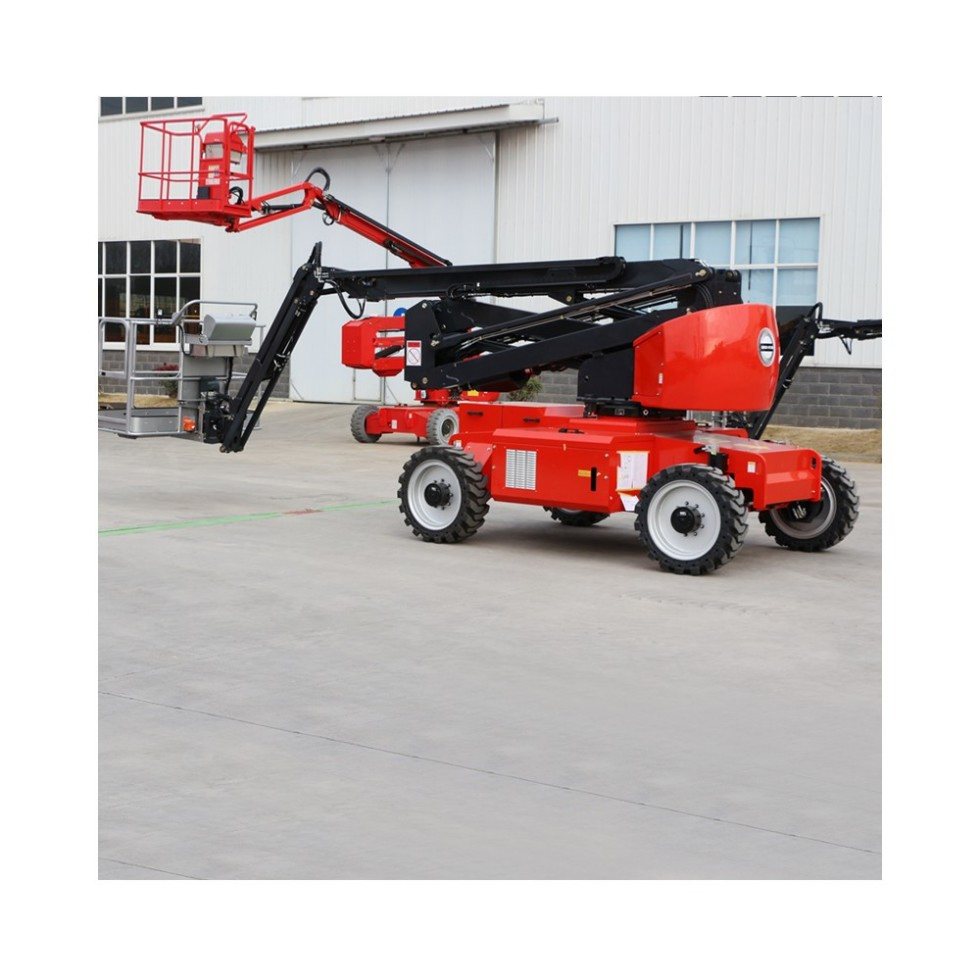

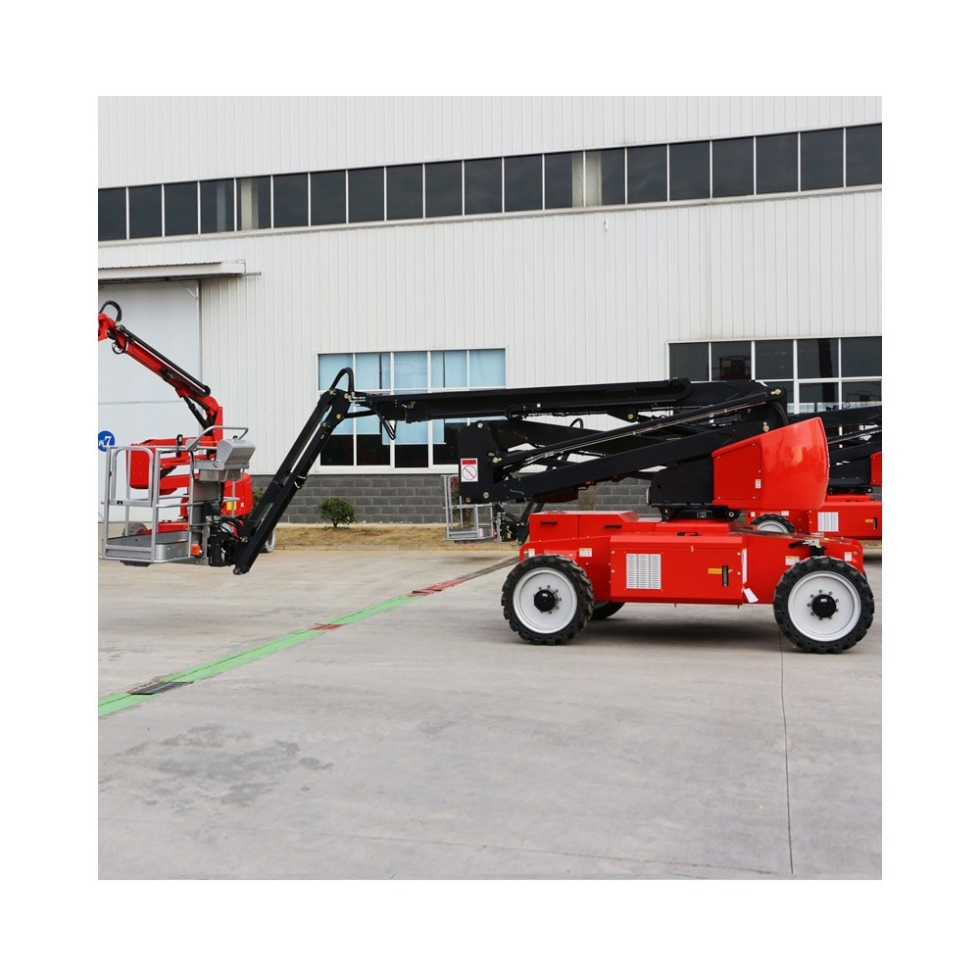

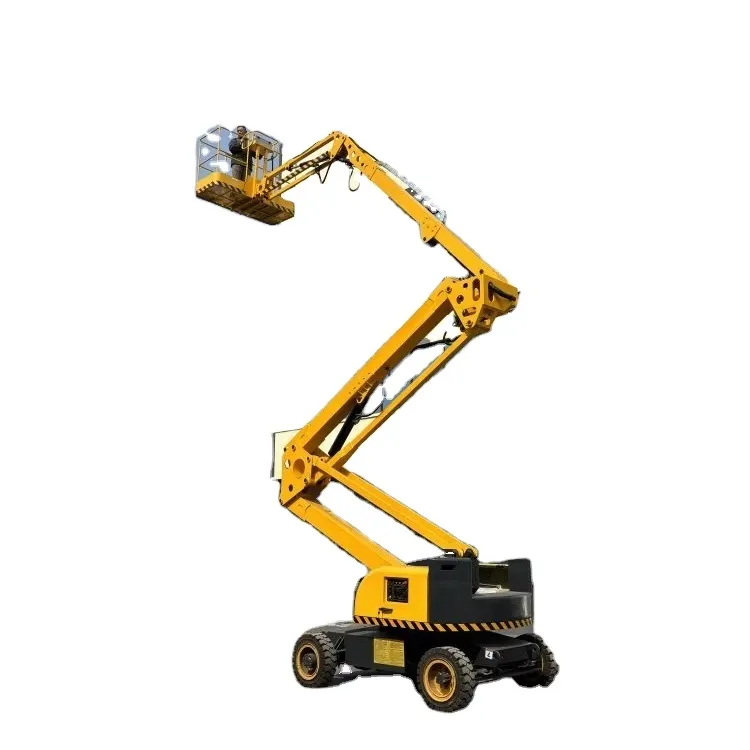

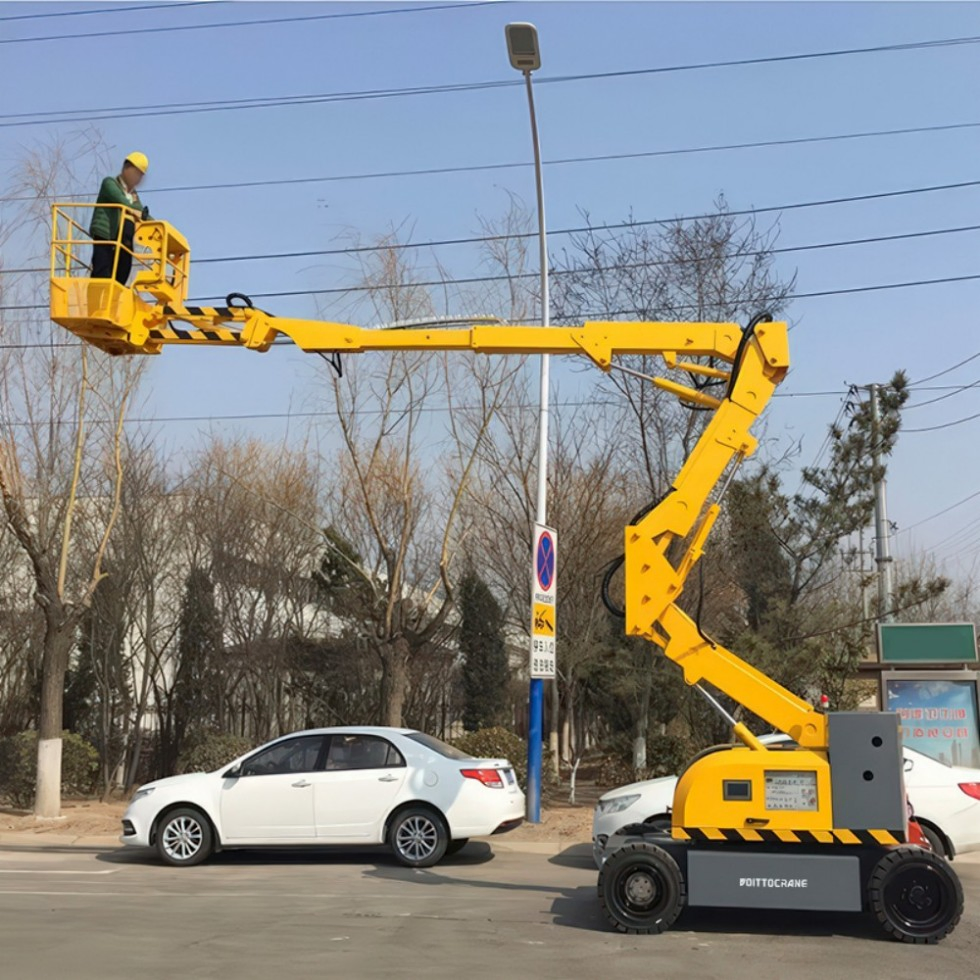

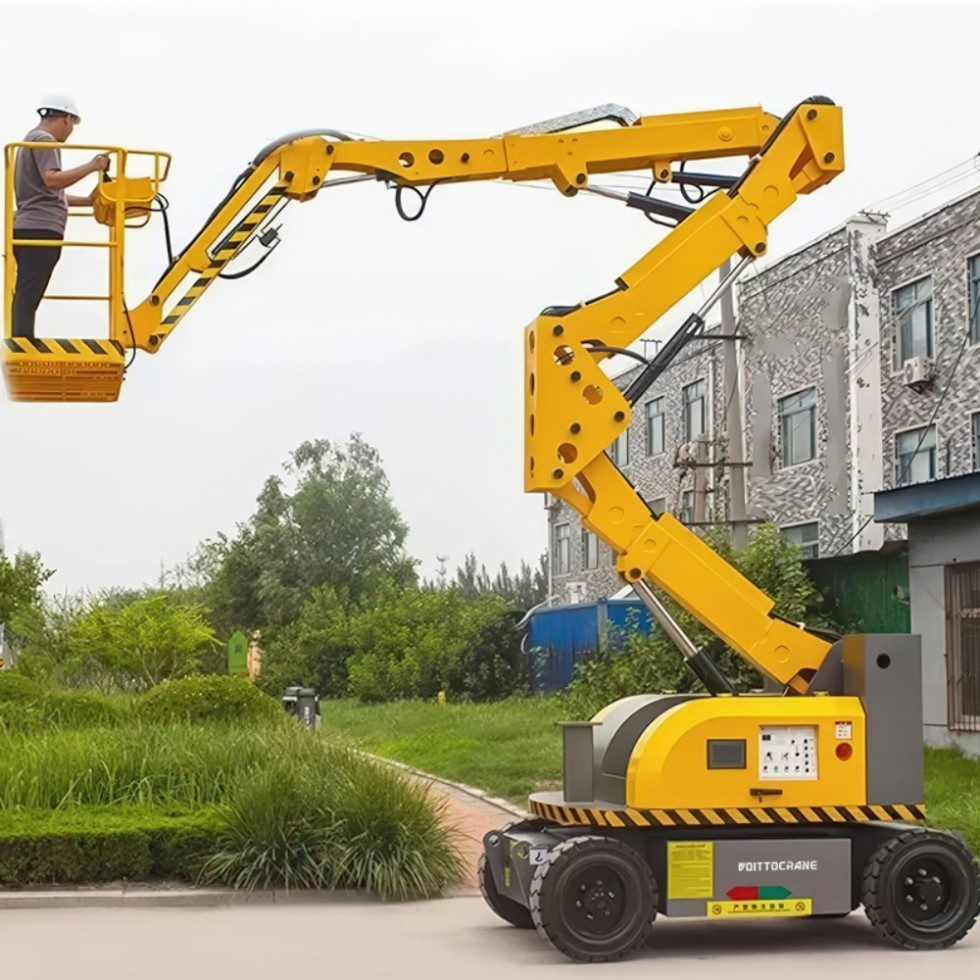

Self-propelled articulating boom lifts are designed to lift heavy loads of 230kg to working heights of up to 22m, and provided with a large platform that can accommodate up to three workers with tools. The extended outreach and 360-degree turntable rotation offer excellent flexibility for difficult job site applications. The self-propelled boom lift can perform various lifting tasks in limited spaces and is able to accommodate various rough terrains.
T
Technical Specifications
| Model |
Height |
Max Load |
Platform Size |
Dimensions |
Working Radius |
Weight |
| MF08 | 8M | 200KG | 1.53*0.78m | 5.55*1.65*2.22m | 5.5m | 5440kg |
| MF10 | 10M | 200KG | 1.53*0.78m | 5.8*1.65*2.22m | 5.9m | 5550kg |
| MF12 | 12M | 200KG | 1.53*0.78m | 6.4*1.78*2.3m | 6.8m | 6100kg |
| MF14 | 14M | 200KG | 1.53*0.78m | 7.03*1.78*2.3m | 7.9m | 6500kg |
| MF16 | 16M | 230KG | 1.88*0.78m | 7.4*2.0*2.25m | 8.9m | 7780kg |
| MF18 | 18M | 230KG | 1.88*0.78m | 8.7*2.2*2.5m | 10.6m | 9850kg |
| MF20 | 20M | 230KG | 1.88*0.78m | 9.2*2.2*2.5m | 11.6m | 10350kg |
?
Frequently Asked Questions
What information should I provide for an inquiry?
Please provide details such as lift capacity, span, lift height, crane traveling distance, and power source for a more accurate quote.
What is your minimum order quantity (MOQ)?
Our minimum order quantity is 1 set.
How is the product packaged for shipping?
The main body is packaged with plywood boxes or plastic woven fabrics. Spare parts are securely placed inside plywood boxes.
What is the typical delivery cycle time?
Delivery usually occurs within 10, 25, or 40 days after receiving the advance payment, depending on detailed requirements and actual production schedules.
Do you provide lifting accessories?
Yes, we provide various accessories including hooks, grab buckets, magnets, pulley blocks, locks, wire ropes, and fiber ropes.
Do you offer custom OEM/ODM services?
Yes, our factory fully supports professional OEM and ODM services to meet your specific requirements.
