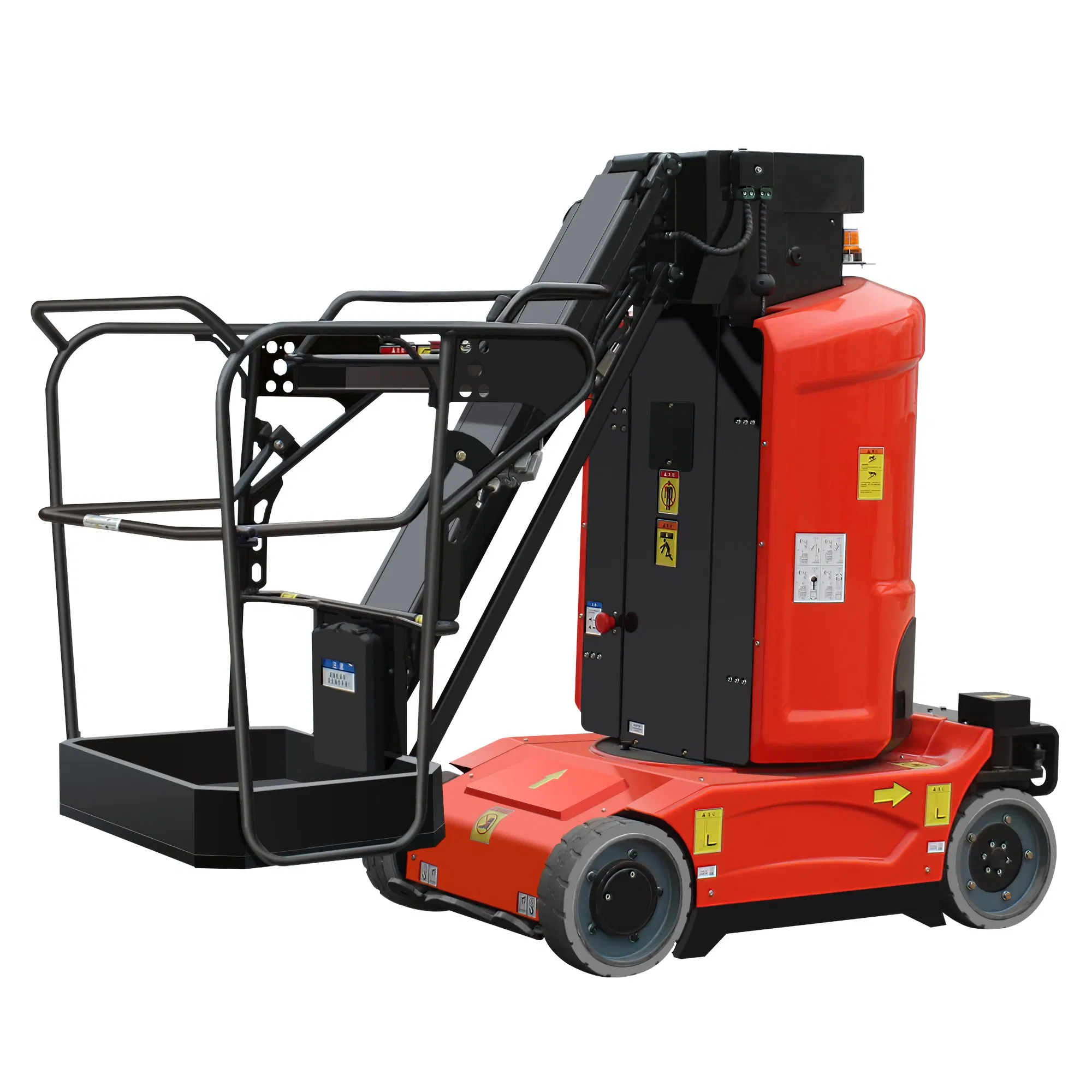

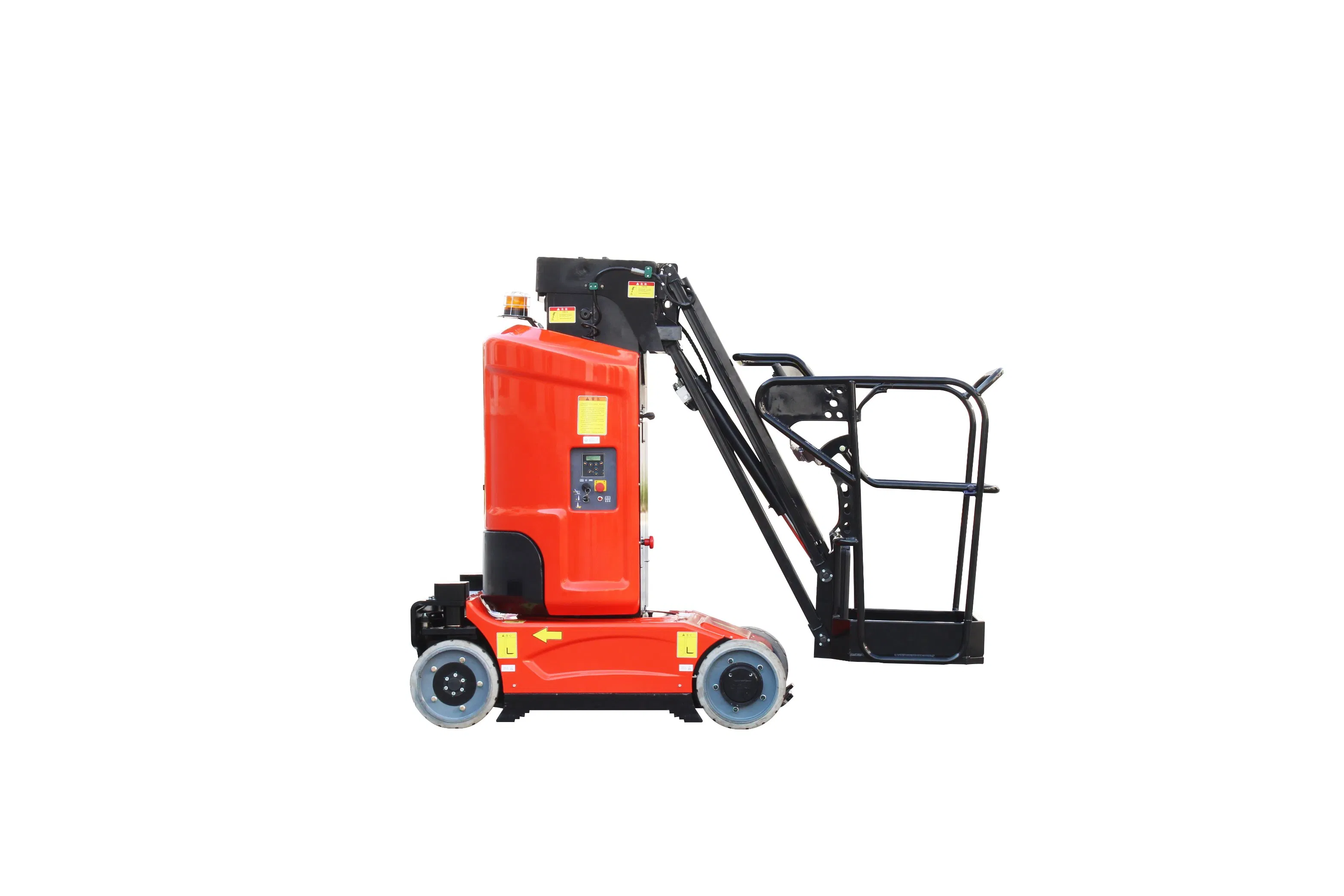

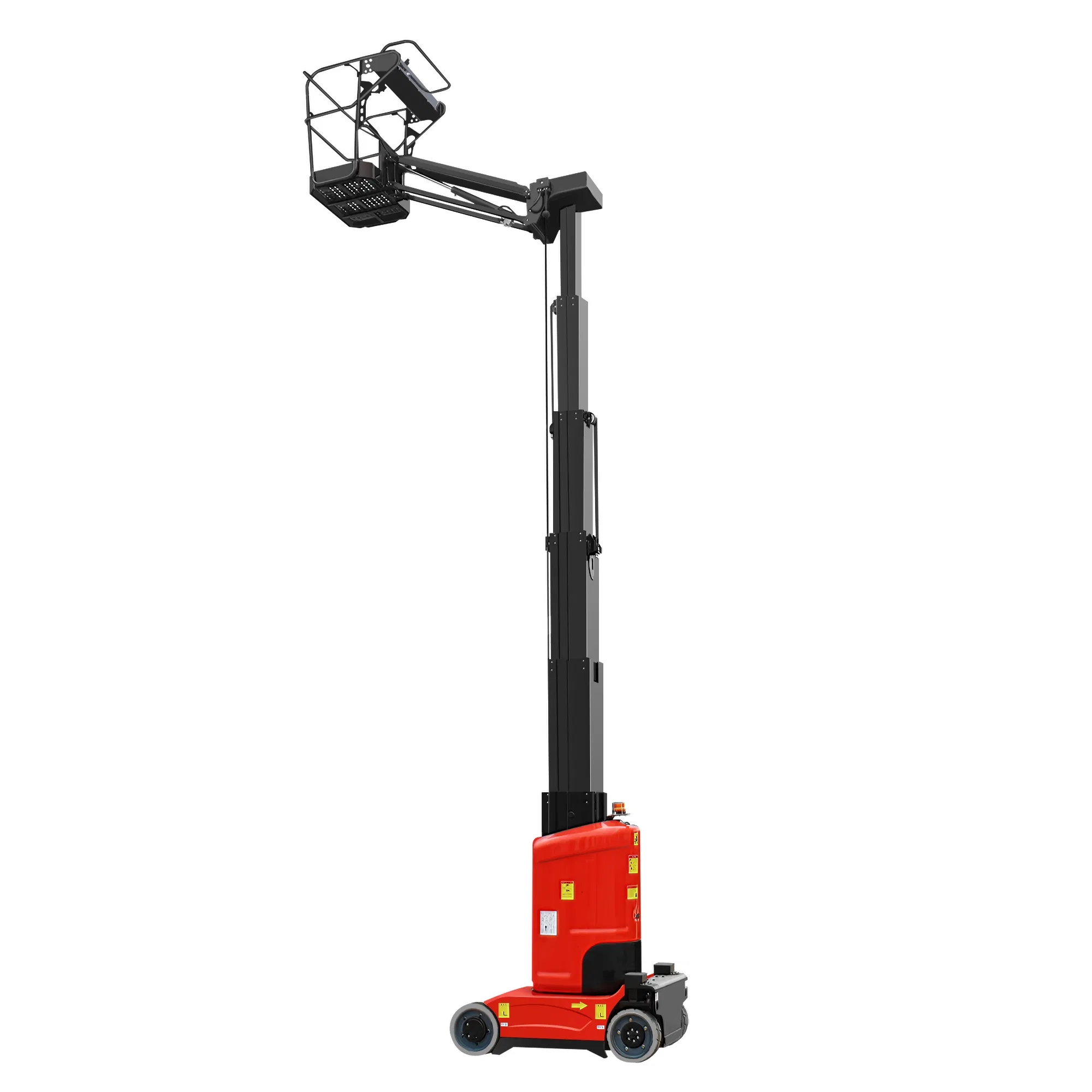

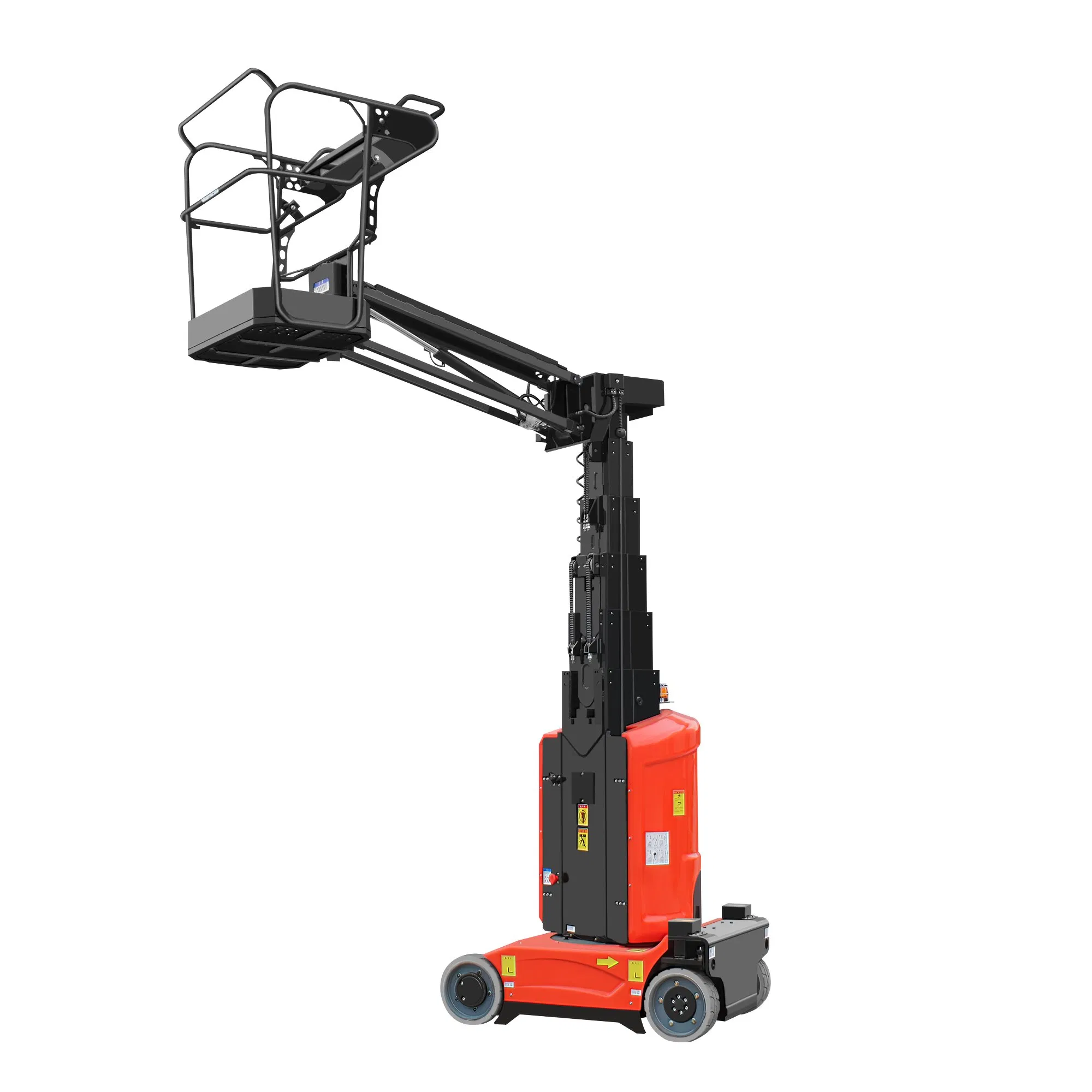

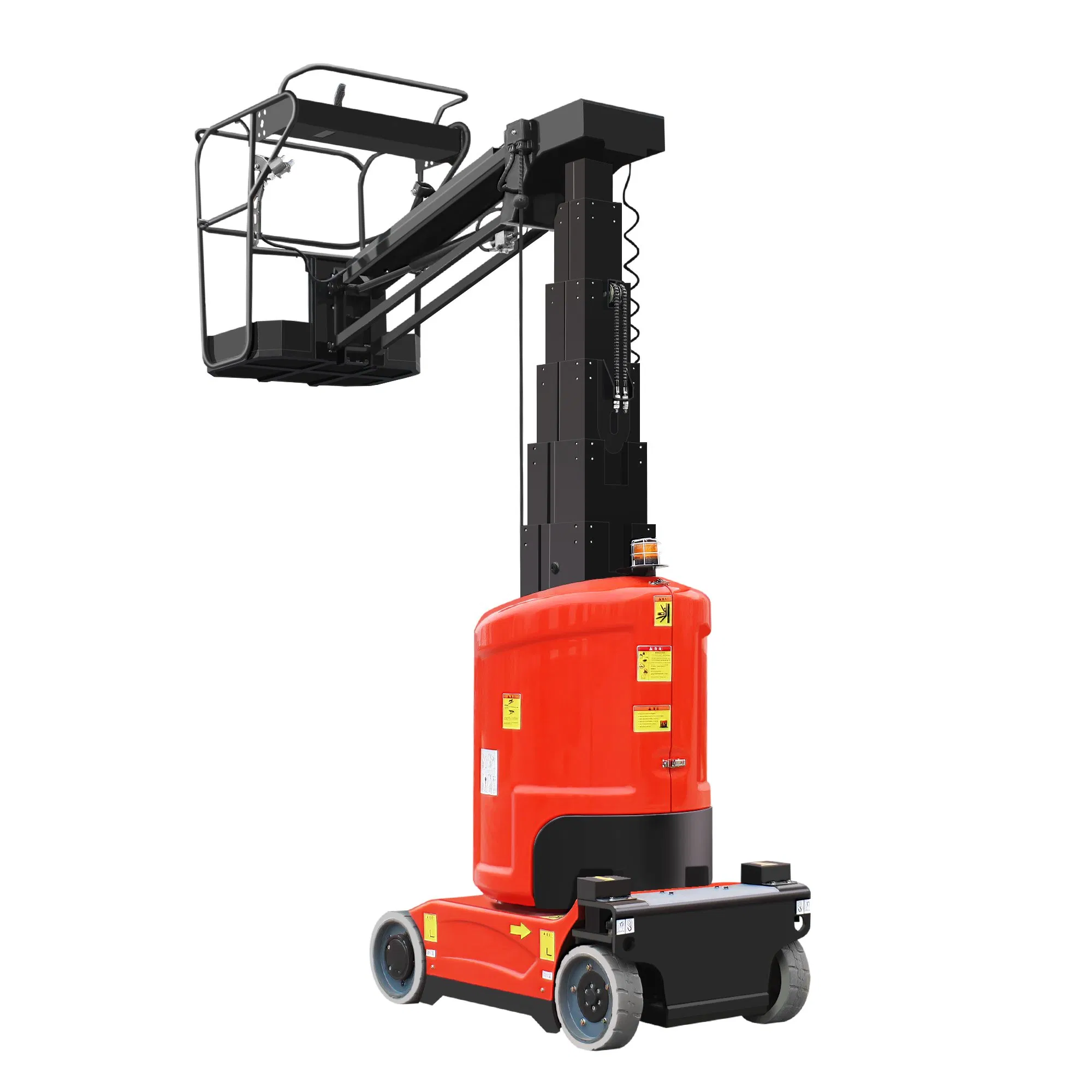

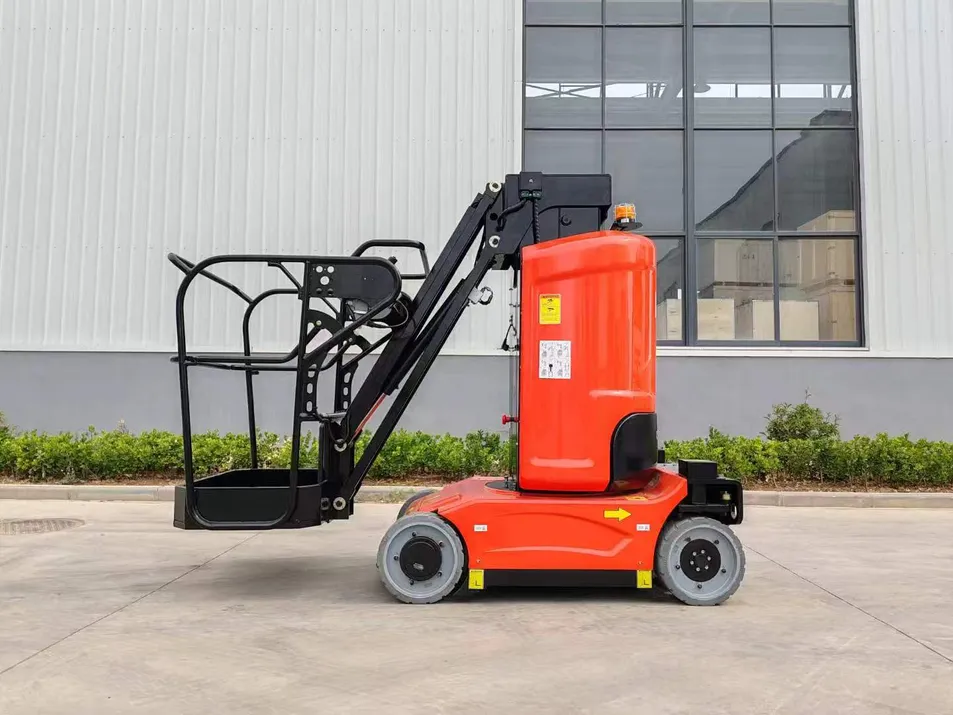

Vertical Mast Boom Lift
This vertical mast boom lift makes quick work of elevated maintenance, painting, lighting, and repair work. This aerial work platform has excellent maneuverability and can be easily operated and driven on the platform, which has a lift height of up to 9.2 meters. In addition, our vertical boom lifts are designed for used in narrow spaces, such as narrow doorways and freight elevators.
Applications
Key Advantages:
*(Custom configurations available upon request.)*
| Max. Working Height | 11.2m | Occupants | 2 |
| Max. Platform Height | 9.2m | Turning Radius (in/out) | 0.23/1.65m |
| Max. Horizontal Reach | 3m | Turret Rotation | 345° |
| Up and Over Height | 7.89m | Jib Movement | 130° |
| Guardrail Height | 1.1m | Travel Speed (Stowed) | 4.5km/h |
| Overall Length | 2.53m | Travel Speed (Raised) | 0.5km/h |
| Overall Width | 1.0m | Up/Down Speed | 42/38s |
| Overall Height (stowed) | 1.99m | Max. Working Slope | X-2.5°, Y-2.5° |
| Platform Dimension | 0.62*0.87m | Tyres | 381*127mm |
| Ground Clearance (Stowed) | 70mm | Driving Motor | 24V/0.9kW |
| Ground Clearance (Raised) | 19mm | Lifting Motor | 24V/3kW |
| Wheelbase | 1.22m | Battery | 24V/240Ah |
| Loading Capacity | 200kg | Charger | 24V/30A |
| Weight | 2950kg |

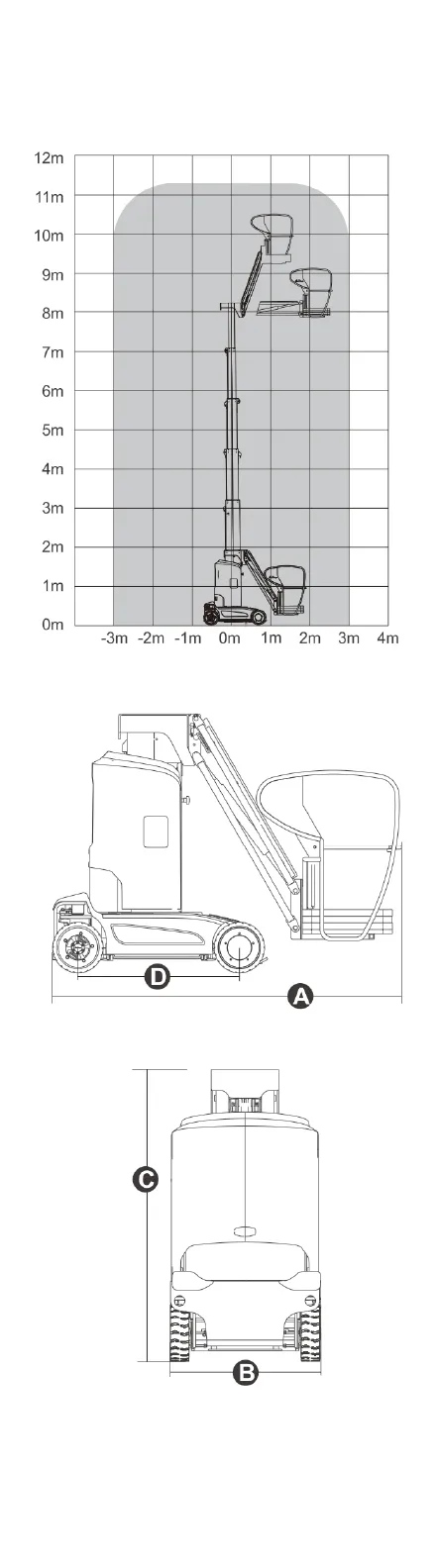

Detailed CAD drawings and dimensional diagrams are available upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements.
Standard Warranty: 12 months or 2,000 operating hours (whichever comes first).
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
