Manual Alloy Material Aluminum Lift

Customization:	Available
Lift Mechanism:	Articulated Lift
Carrying Capacity:	Weight Level

Basic Specifications

Model NO.

SLA-5

Driven Type

Manual Operated

Feature

Explosion-Proof

Certification

CE, ISO 9001

Load Capacity

454 Kg

Weight

98 Kg

Stowed Size

1.99* 0.74* 0.8 M

Material

Aluminum Profile

Origin

China

HS Code

8428909090

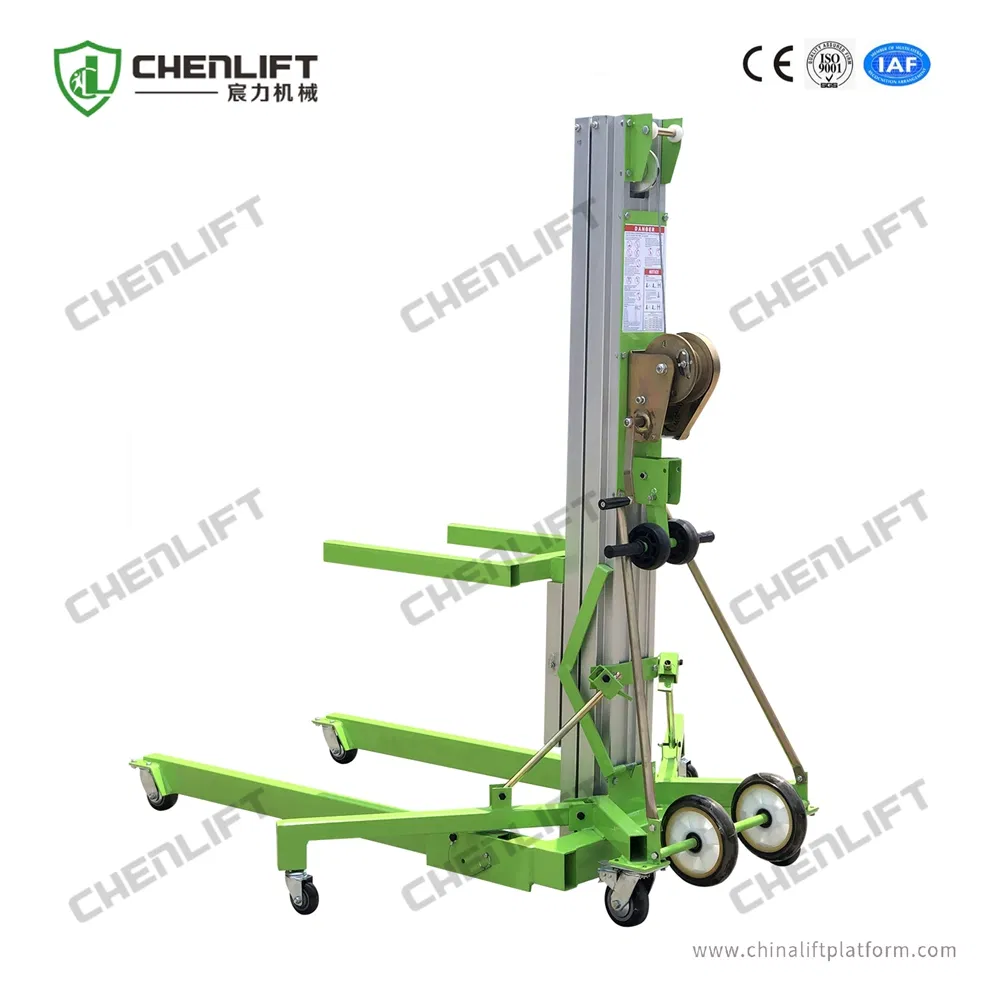

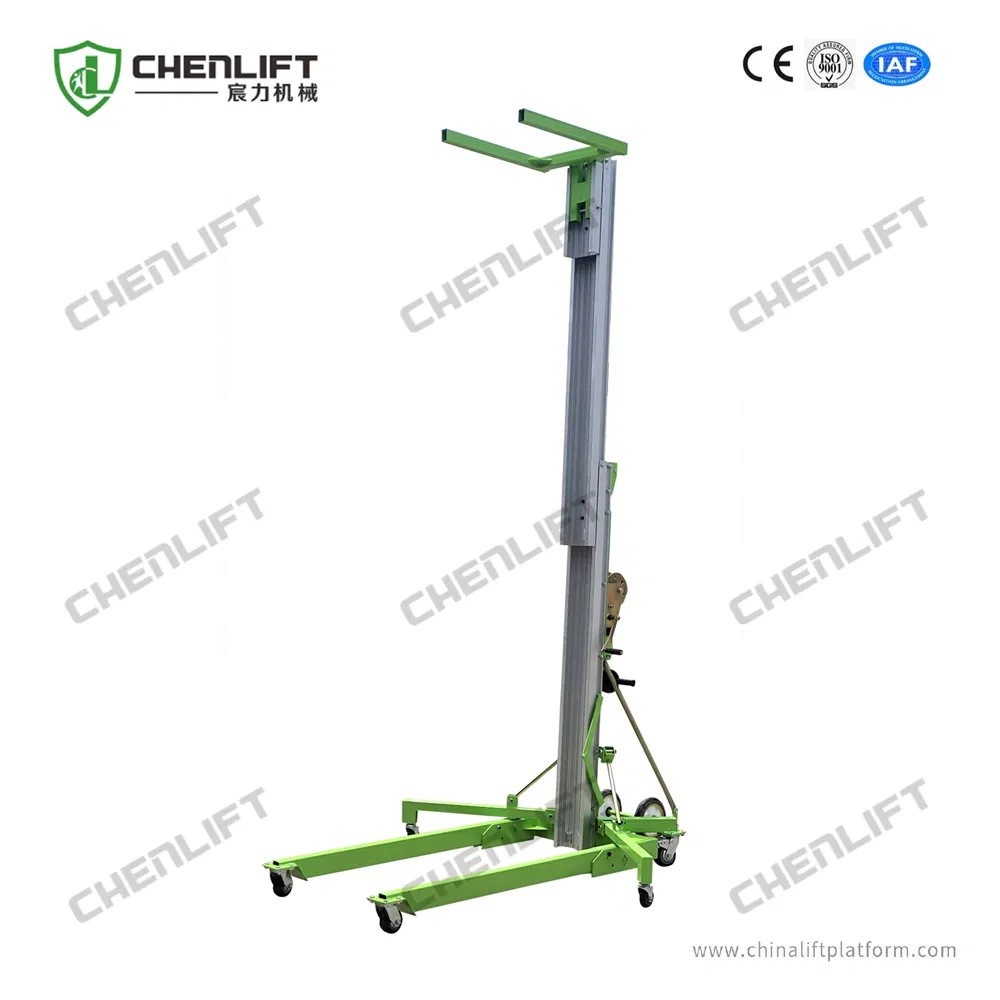

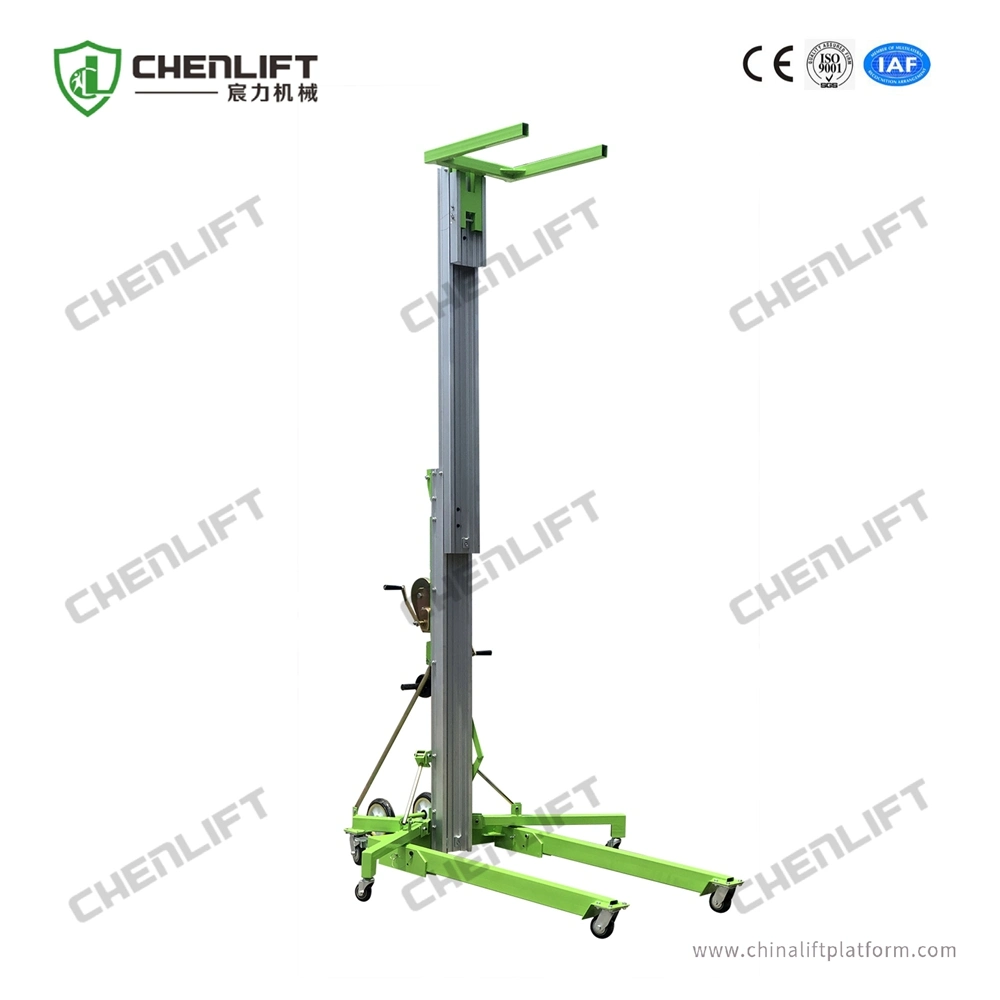

Manual Alloy Material Aluminum Lift

This material lift is a non-powered, manually operated machine designed with a compact and lightweight structure. Its slender profile allows it to easily pass through standard doorways, making it an ideal choice for indoor and outdoor tasks.

✔

Wide Application: Widely used in construction, industry, storage, exhibitions, stage construction, advertising, and central air conditioning installation.

✔

Easy Operation: Designed to be operated by a single person for efficient lifting and moving of goods.

✔

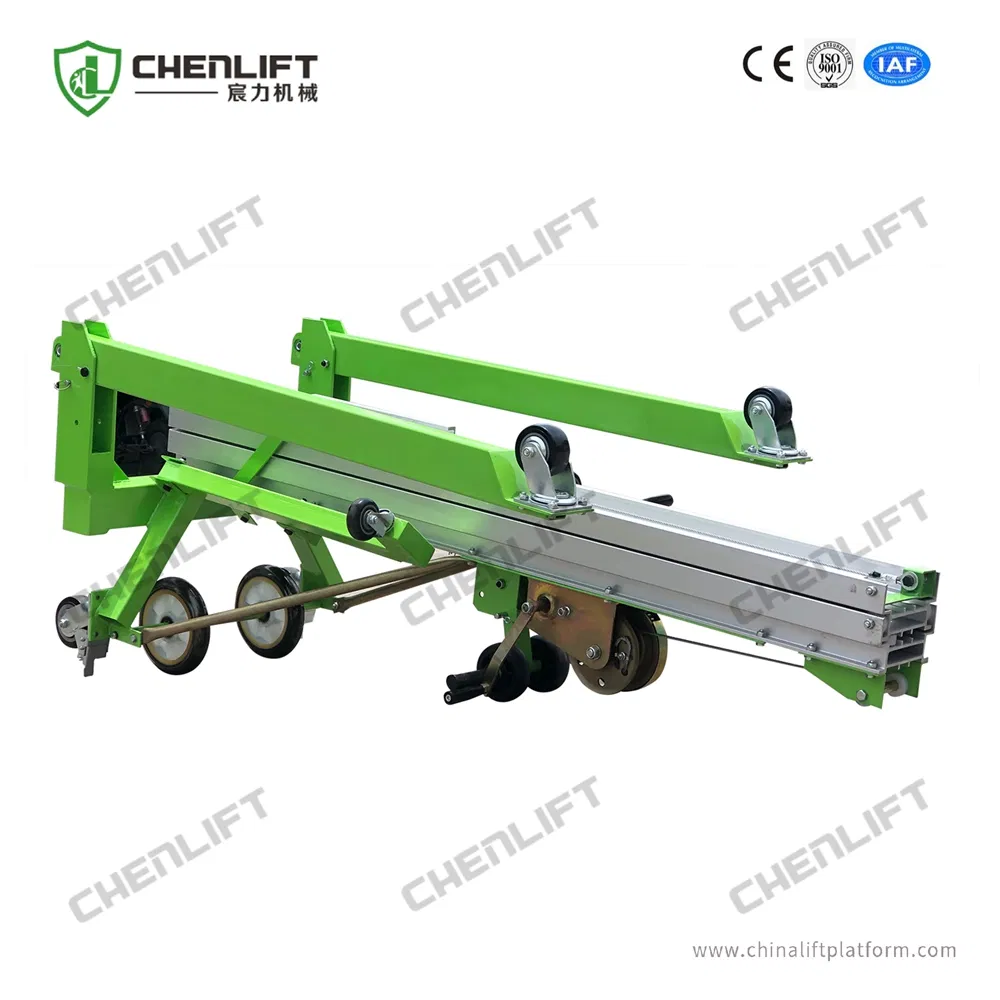

Compact Storage: With a stowed height of less than 2m, it is highly portable, and the rear rollers simplify transportation.

Technical Specifications

Model	SLA-5	SLA-10	SLA-15	SLA-20	SLA-25
Standard forks-down	1.49 m	2.97 m	4.46 m	5.94 m	7.42 m
Standard forks-up	2 m	3.49 m	4.98 m	6.46 m	7.94 m
Stowed Size (HLW)	1.990.740.8m	1.990.740.8m	1.990.740.8m	1.990.740.8m	1.990.790.8m
Working Length	1.51 m	1.51 m	1.88 m	2.08 m	2.08 m
Max Load Capacity	454 kg	454 kg	363 kg	363 kg	295 kg
Machine Weight	98 kg	118 kg	151 kg	184 kg	204 kg

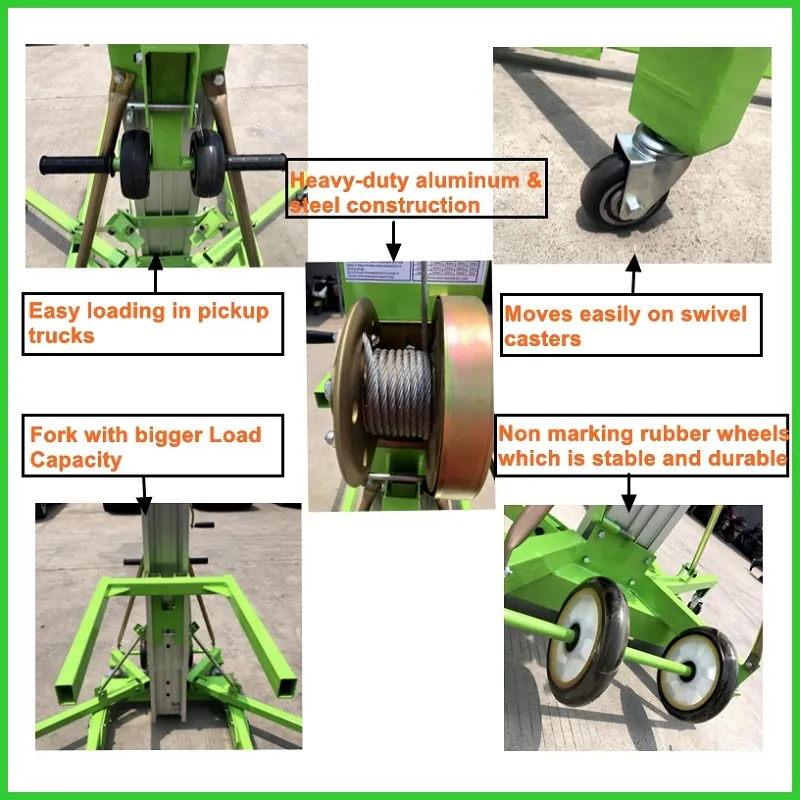

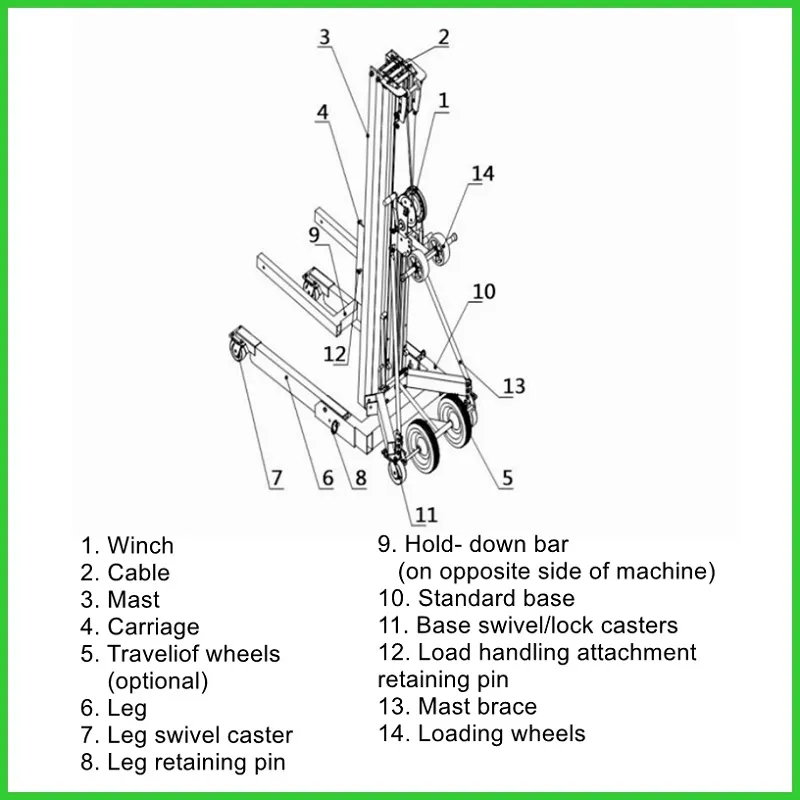

Product Display & Details

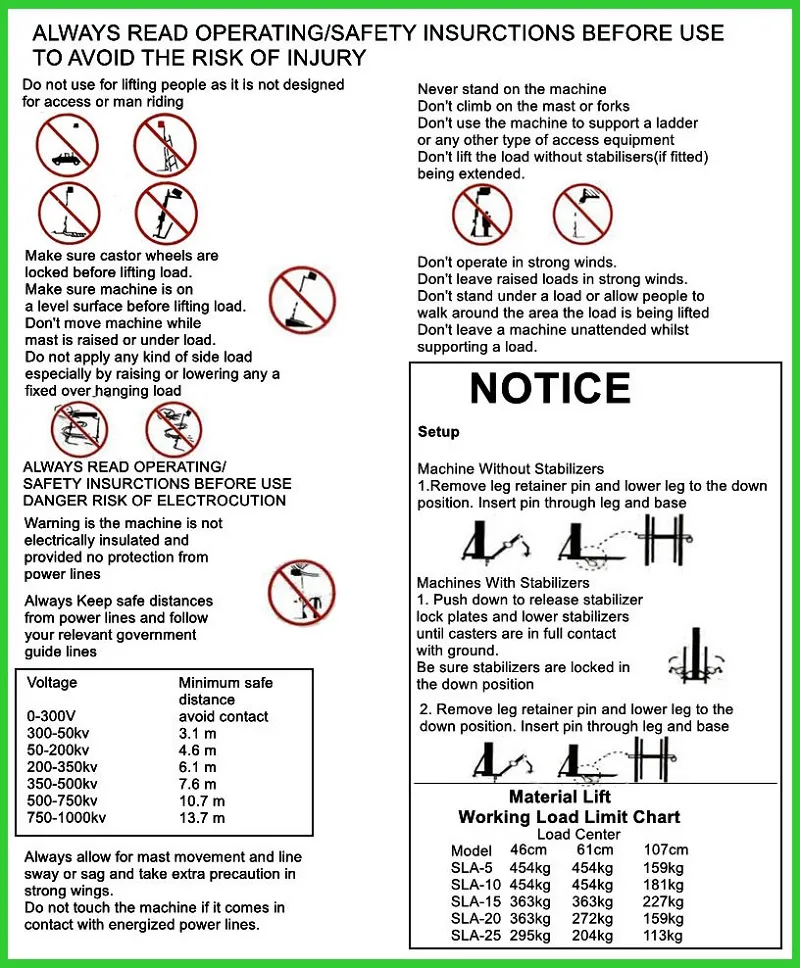

Operation Overview

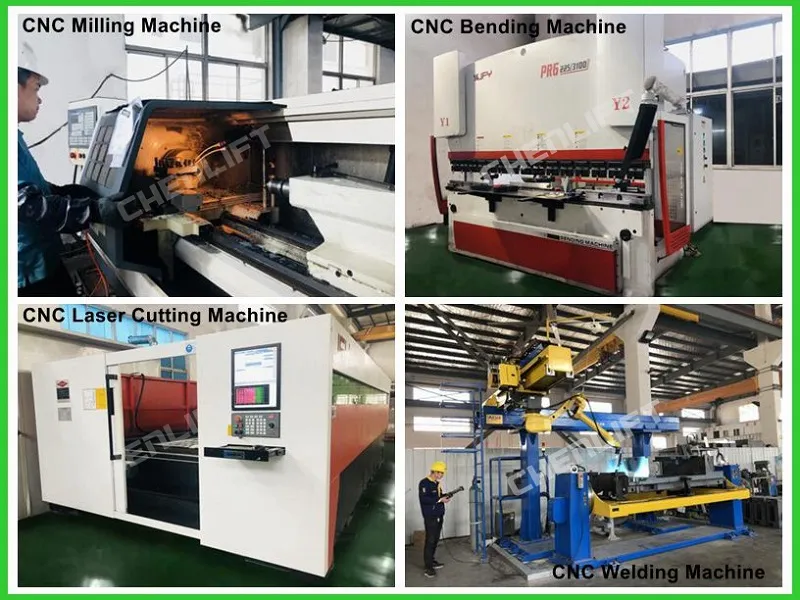

Manufacturing & Certificates

Professional Services

1. Custom Design: We can customize machines based on your specific requirements.

2. Model Recommendation: Professional advice to help you select the right model at a competitive price.

3. Logistics Support: Shipment arrangement from our port to your destination port.

4. Technical Support: Operation videos and documentation provided upon request.

5. Fast Parts Delivery: Spare parts can be dispatched via express within 7 days when needed.

Frequently Asked Questions

What is the maximum load capacity of the SLA-5?

The SLA-5 model has a maximum load capacity of 454 kg (approx. 1000 lbs) at an 18-inch load center.

Does this lift require electricity or batteries?

No, this is a manually operated alloy material lift. It requires no power source, making it safe for various environments, including explosion-proof areas.

Can the material lift fit through a standard door?

Yes. The stowed height is less than 2 meters (1.99m) and the width is only 0.8m, allowing it to pass through standard doorways easily.

What materials is the lift made of?

The lift is constructed using high-quality aluminum profiles, ensuring it is both lightweight for transport and durable for heavy lifting.

How many people are needed to operate the machine?

The machine is designed for efficiency and can be easily operated, moved, and set up by a single person.

What is the maximum lifting height available?

The series ranges from the SLA-5 (2m forks-up) to the SLA-25, which can reach a maximum height of 7.94 meters with forks in the up position.
