Product Description

Basic Specifications

Model NO.
DCL
Application
Workshop, Shipboard, Warehouse, Building, Factory
Lift Mechanism
Hydraulic Guide Rail
Driven Type
AC
Feature
Explosion-Proof, Insulating, Spillover Valve
Load Capacity
500kg - 3000kg (Customizable)
Lifting Height
Up to 15m (Customizable)
Structure
Vertical
Warranty
18 Months
Certification
CE, RoHS, ISO 9001, SGS
Lead Time
15 Days
Origin
China

European Standard Hydraulic Vertical Goods Lift

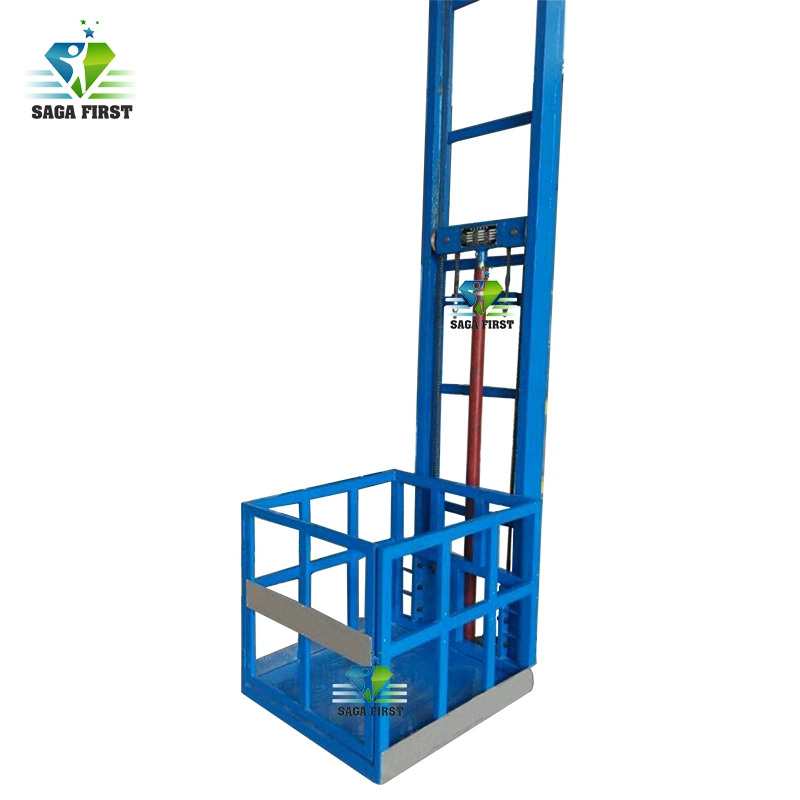

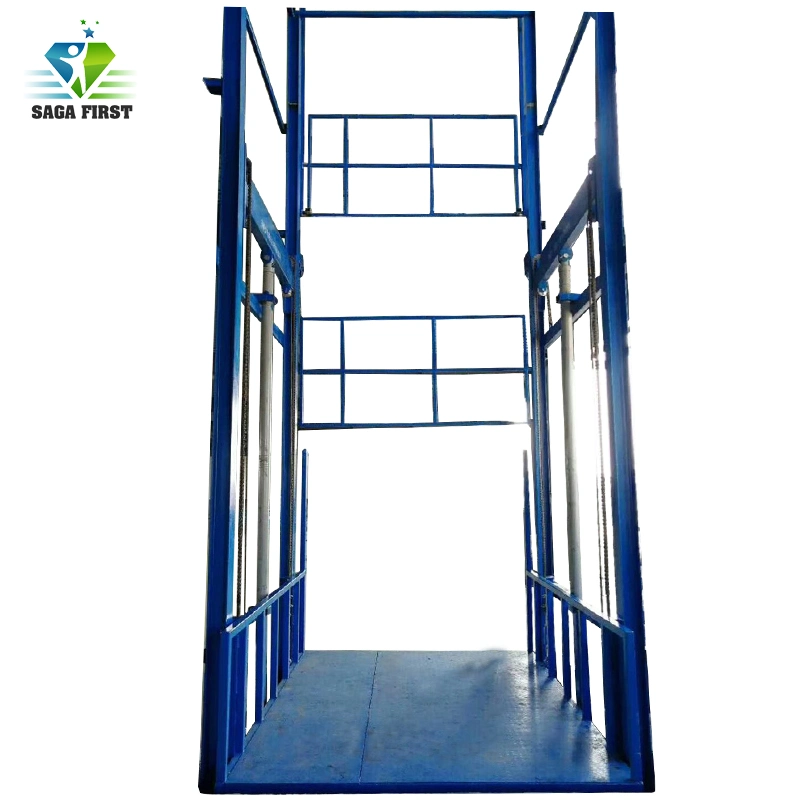

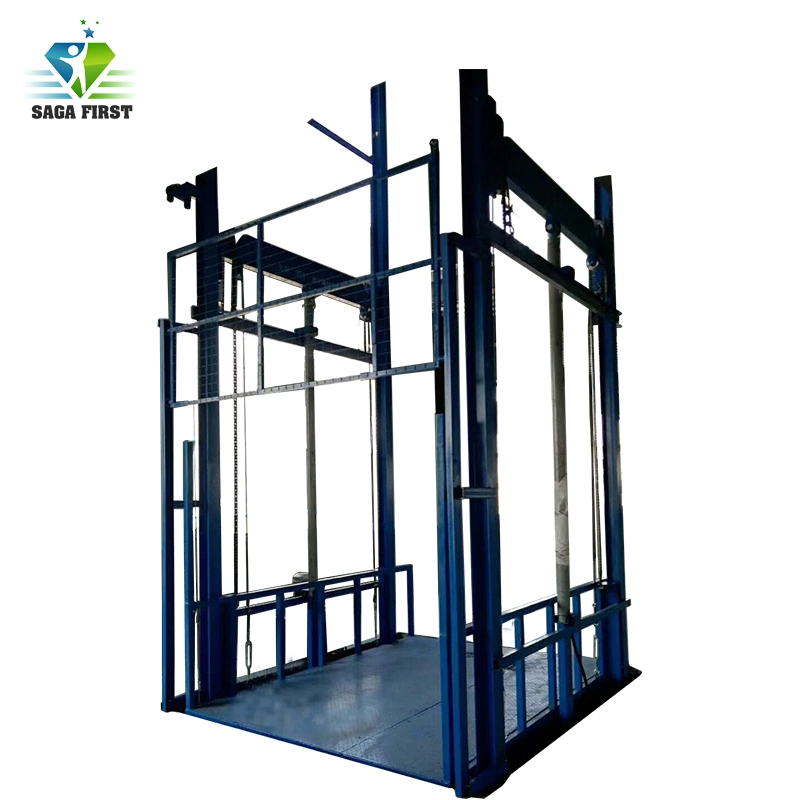

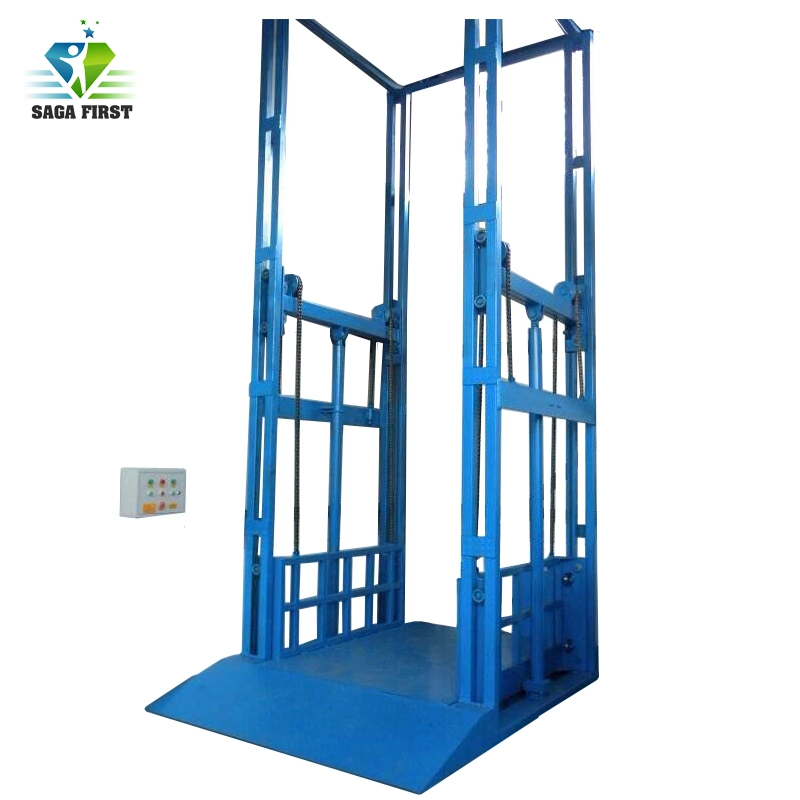

Introduction: Two Guide Rails Cargo Lift belongs to material handling hydraulic equipment. It is used to transport cargo between the first floor to higher floors. It is widely used in warehouses, homes, and factories. Known for its simple structure, convenient operation, and easy installation.

! Customers only need to fix the two guide rails to the ground and wall by expansion bolts. Main parts include the electric motor, hydraulic pump station, and hydraulic cylinder. It is very easy to maintain with an extremely low failure rate, saving significant maintenance costs.

Load capacity ranges from 200kg to 2000kg, and lifting height from 2m to 15m. We customize platform size, load capacity, and max platform height according to specific requirements.

Product Availability & Safety

Key Features:

  • Equipped with two/four guide rails for stability.
  • Emergent stop button for emergency power cutoff.
  • Low pit requirement: 15 to 30cm.
  • Imported controlling systems (Schneider, Siemens, etc.) optional.
  • Multilayer control panels and interlocks available.

Safety Systems:

  • Spillover Valve: Prevents high pressure during upward movement.
  • Manual Emergency Valve: Allows descent to the nearest floor during power failure.
  • Pipe Explosion Valve: Stops descent if hydraulic pipe fractures.
  • Temperature Protection: Stops operation if hydraulic oil exceeds standard temperature.

Technical Specifications

Specification Vertical Travel (mm) Lowered Height (mm) Capacity (kg) Platform Size (L*W mm) Power (Kw)
VCL0.3-4.5 (2 layers)45001503001000×8001.5
VCL 0.5-4.5 (2 layers)45001505001500×10001.5
VCL 1.0-4.5 (2 layers)450015010001500×15002.2
VCL 2.0-4.5 (2 layers)450015020002000×10002.2
VCL 3.0-4.5 (2 layers)450016030002000×12003.0
VCL 1.0-10.5 (4 layers)1050015010001800×14002.2
VCL 3.0-4.5 (Car Lift)450016030005000×30004.0

Product Visuals

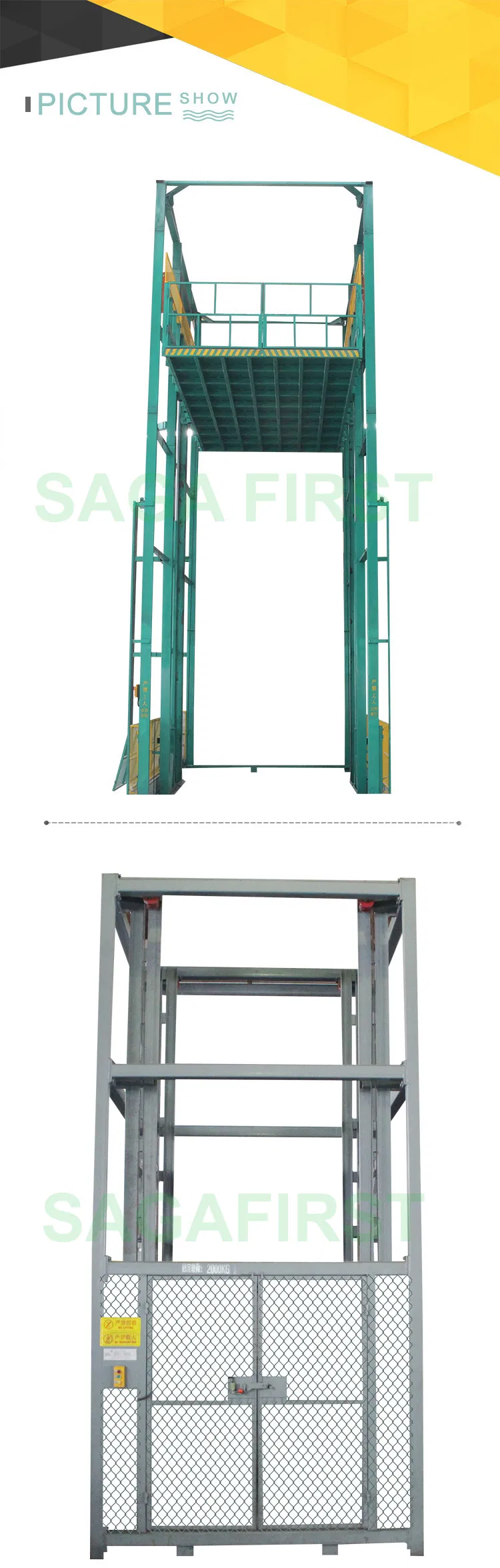

Vertical Goods Lift Details

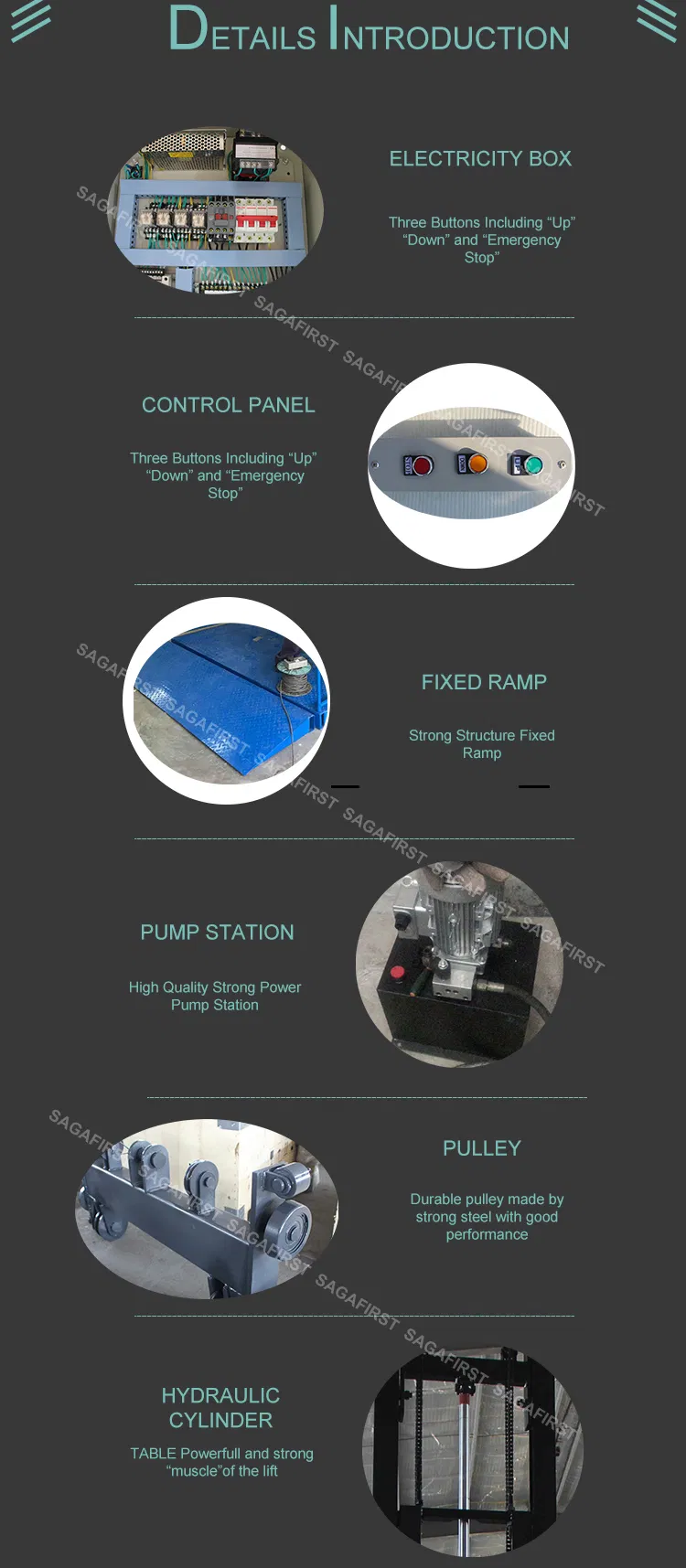

Hydraulic Cargo Lift Structure
Lift Installation View
Control System
Certifications and Testing

Service & Support

  • Customized design of vertical cargo lifts as per specific requirements.
  • Model recommendations based on your application environment.
  • Shipment arrangement from port to your destination.
  • Installation and maintenance videos provided for easy setup.
  • Spare parts available via express delivery within 7 days.

Frequently Asked Questions

1. How can I buy replacement parts if they break down?
The vertical cargo lift adopts common hardware parts. You can easily purchase them at your local hardware market or contact us for express shipping.
2. How do I repair the vertical cargo lift?
The equipment has an extremely low failure rate. If an issue occurs, we provide repair instructions and video guides to help you fix it easily.
3. What is the standard quality guarantee period?
We offer a one-year to 18-month quality guarantee. If any parts fail within this period due to manufacturing issues, we provide replacements free of charge.
4. Can the platform size and lifting height be customized?
Yes, all models are flexible. We manufacture the load capacity, platform height, and platform size entirely according to your requirements.
5. Is a pit required for installation?
A shallow pit of 15cm to 30cm is usually required to ensure the platform is flush with the ground, but we can adjust designs based on site conditions.
6. What certifications does the equipment have?
Our cargo lifts are fully certified with CE, RoHS, SGS, and ISO standards, ensuring compliance with international safety and quality regulations.
