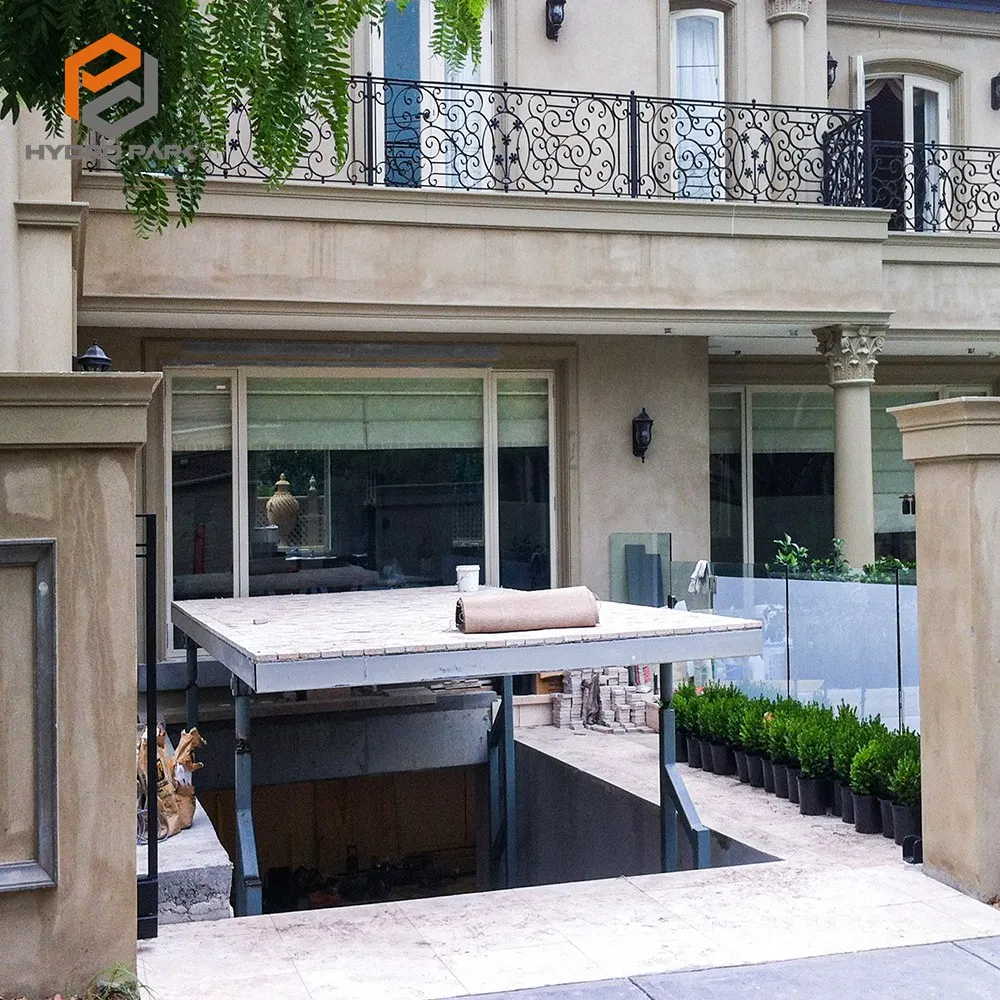

Customizable Heavy Duty Goods Lift Table Car Parking Elevator Hydraulic Scissor Lift

Customization: Available
After-sales Service: 12 Months
Warranty: 1 Year

Product Description

Basic Specifications
Model NO.
SVRC-2
Type
Hydraulic Cylinders
Lifting Capacity
2,000-10,000 Kg
Driving Type
Hydraulic
Certification
CE, ISO
Design
Scissor
Material
Steel
Operation
Automatic
Vehicle Compatibility
Sedans, SUVs
Lifting Height
2000-15000mm
Power Pack
7.5kw Hydraulic Pump
Finishing
Powder Coating
HS Code
84289020
Production Capacity
1000 Units/Month
Product Overview

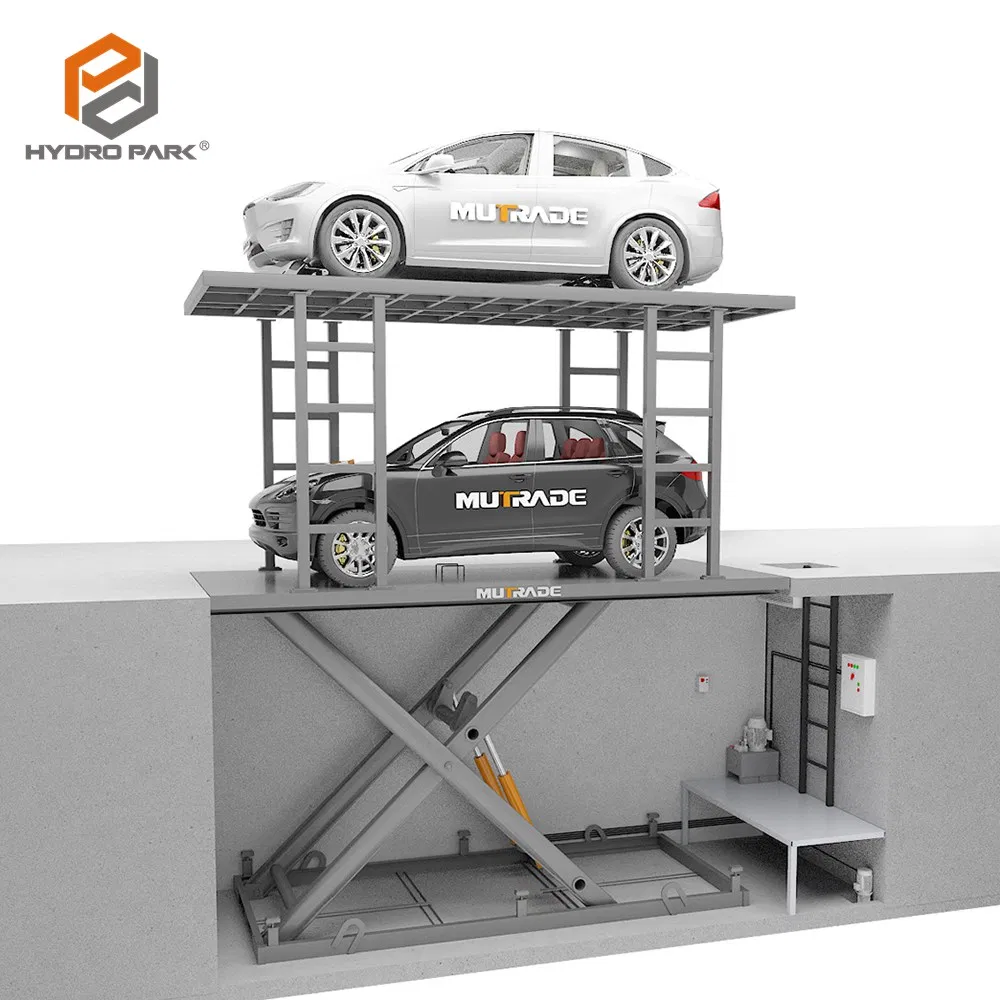

Scissor Car Lift Solutions

Obviously a costive concrete ramp with large footprint doesn't meet the modern demands gradually. And a scissor type car elevator could be one of the perfect alternatives featured by small covering area, higher safety, low maintenance, and flexible arrangements. For parking lots or car dealerships where it is impossible to organize an entrance ramp, or when the ramp could lead to risks in the event of snows or bad weather, S-VRC is a lifesaver in solving various tasks of inter-floor movements with loads up to 10 tons. It also comes in handy in warehouse complexes or production facilities for goods loading and unloading.

Technical Data Comparison
Feature S-VRC S-VRC-2
Lifting capacity2,000-10,000kg3,000kg per platform
Lifting height2,000-13,000mmCustomizable
Platform width2000mm-6000mm2000mm-6000mm
Platform length2000mm-5000mm2000mm-3000mm
Platform materialDiamond steel sheet (standard) / 4mm Aluminum steel sheet
Drive modeHydraulic cylinder
OperationButton switch (standard) / remote controller (optional)
Power pack5.5 kw - 7.5 kw hydraulic power pump
Lifting speed4m/min
Safety devicesMechanical anti-falling lock
FinishingPowder coating with Akzo Nobel powder
Technical Drawing
Frequently Asked Questions
1. What are the main advantages of a scissor car lift?
Scissor car lifts offer a smaller footprint compared to concrete ramps, higher safety standards, lower maintenance requirements, and flexible arrangements for various building structures.
2. What is the maximum lifting capacity available?
The S-VRC series can handle heavy-duty loads ranging from 2,000kg up to 10,000kg, making it suitable for sedans, SUVs, and even goods transport.

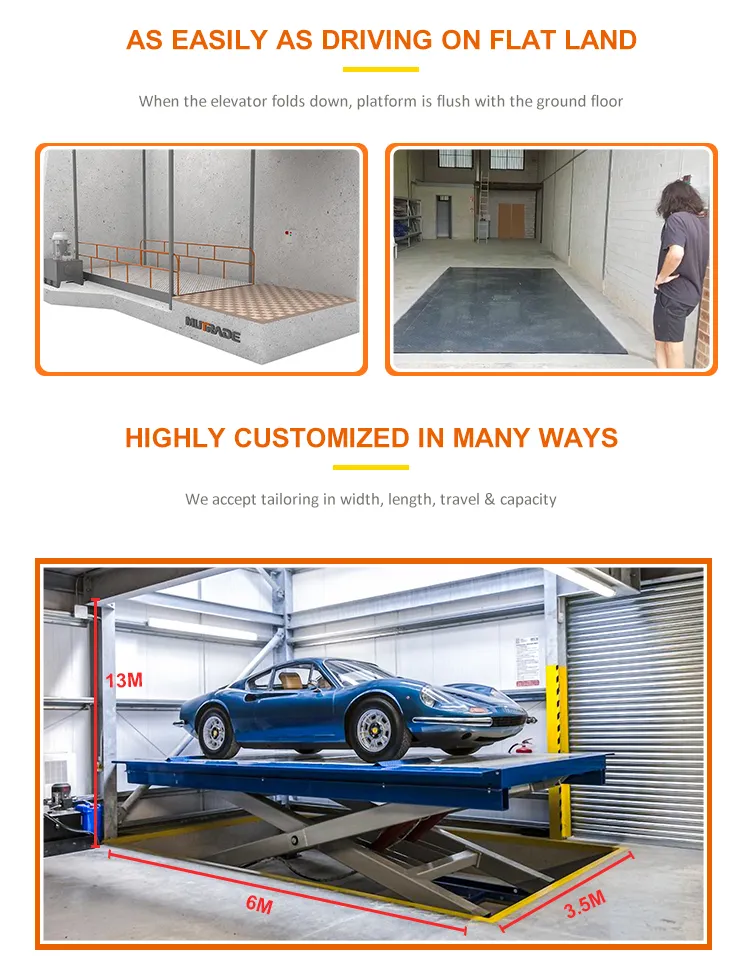

3. Can the platform size be customized?
Yes, platform widths range from 1,000mm to 6,000mm and lengths are also customizable to fit specific vehicle dimensions or facility requirements.

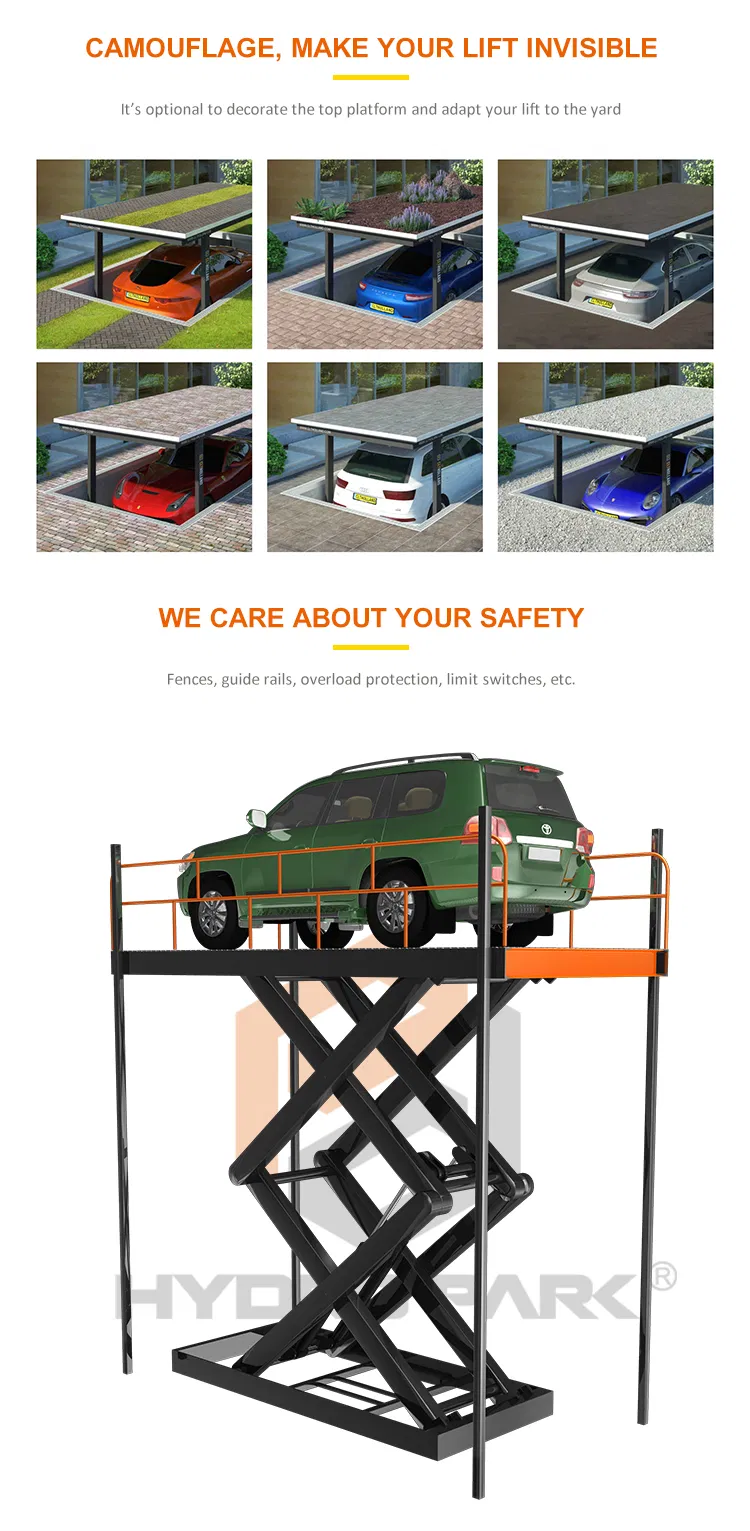

4. What safety features are integrated into the system?
Safety is ensured through hydraulic cylinder driving and mechanical anti-falling locks to prevent accidental descent.
5. Is this lift suitable for outdoor installation?
Yes, with its durable powder coating finish and robust steel construction, it can be installed in both indoor and outdoor environments.
6. What is the typical lifting speed?
The standard rising and descending speed is approximately 4 meters per minute, providing an efficient movement between floors.
