CE Approve Hydraulic Lift 10000kg Vvvf Goods Elevator Freight Elevator Cargo Lift
CE Approve Hydraulic Lift 10000kg Vvvf Goods Elevator Freight Elevator Cargo Lift
CE Approve Hydraulic Lift 10000kg Vvvf Goods Elevator Freight Elevator Cargo Lift
CE Approve Hydraulic Lift 10000kg Vvvf Goods Elevator Freight Elevator Cargo Lift
CE Approve Hydraulic Lift 10000kg Vvvf Goods Elevator Freight Elevator Cargo Lift
1 / 5
CE Approve Hydraulic Lift 10000kg Vvvf Goods Elevator Freight Elevator Cargo Lift
CE Approve Hydraulic Lift 10000kg Vvvf Goods Elevator Freight Elevator Cargo Lift
CE Approve Hydraulic Lift 10000kg Vvvf Goods Elevator Freight Elevator Cargo Lift
CE Approve Hydraulic Lift 10000kg Vvvf Goods Elevator Freight Elevator Cargo Lift
CE Approve Hydraulic Lift 10000kg Vvvf Goods Elevator Freight Elevator Cargo Lift

CE Approve Hydraulic Lift 10000kg Vvvf Goods Elevator Freight Elevator Cargo Lift

Customization: Available
After-sales Service: 7*24
Warranty: 1 Year
Send Inquiry

Product Description

Basic Specifications
Model NO.
TF3000, TF3000, F5000
Type
Wellhole
Load Capacity
5000kg-20000kg
Speed
0.25m/S-1.5m/S
Drive Mode
AC
Open & Close Type
Automatic
Lift Mechanism
Hydraulic/ Traction
Guide Rail
T Guide
Elevator Door
Center Opening Door
Certification
ISO/ CE/ Eac
Drive Control
VVVF
Origin
China
Product Overview

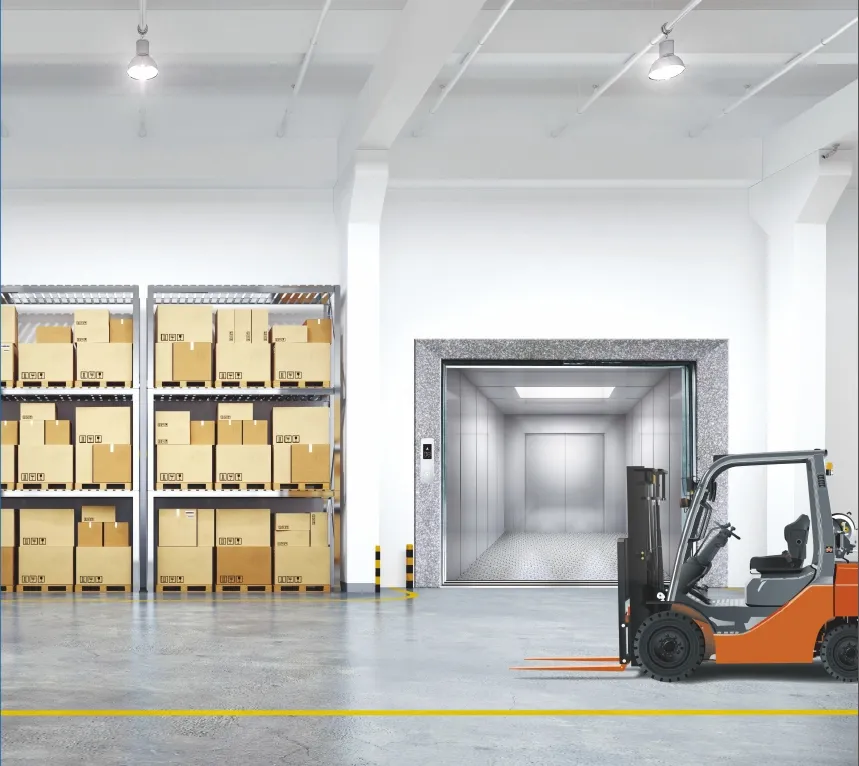

Freight Elevator
The freight elevator uses advanced microcomputer control technology and technology integration to greatly improve the performance and quality of the freight elevator and greatly reduce the occurrence rate of failures; because it uses variable frequency electric drive technology, the elevator structure is simpler, maintenance is more convenient. The optimized designed car of the cargo elevator is spacious and bright, economical and practical, making cargo transportation convenient and fast, safe and reliable, with balanced operation, large load capacity and other excellent qualities. It can meet the needs of customers in different uses and environments such as factories, warehouses, shopping malls, libraries, etc.
Components & Design

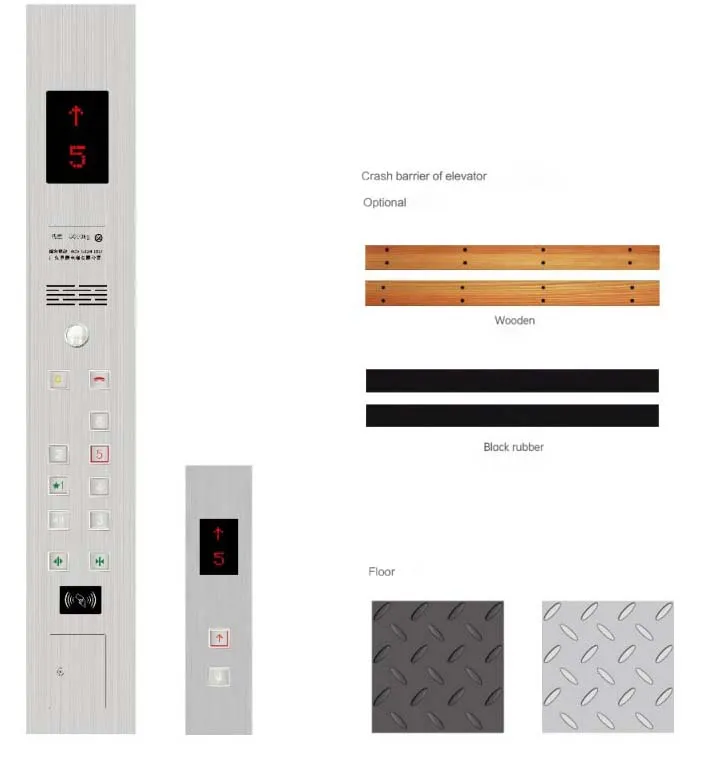

COP/ LOP
COP LOP

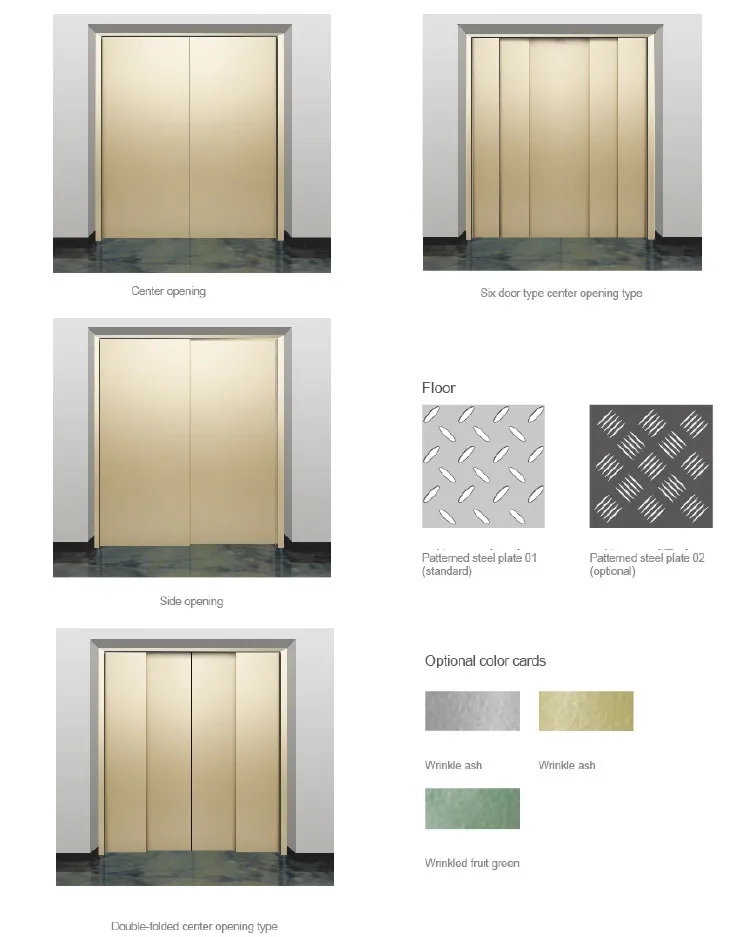

Landing Door
Landing Door
Technical Advantages
⚙️

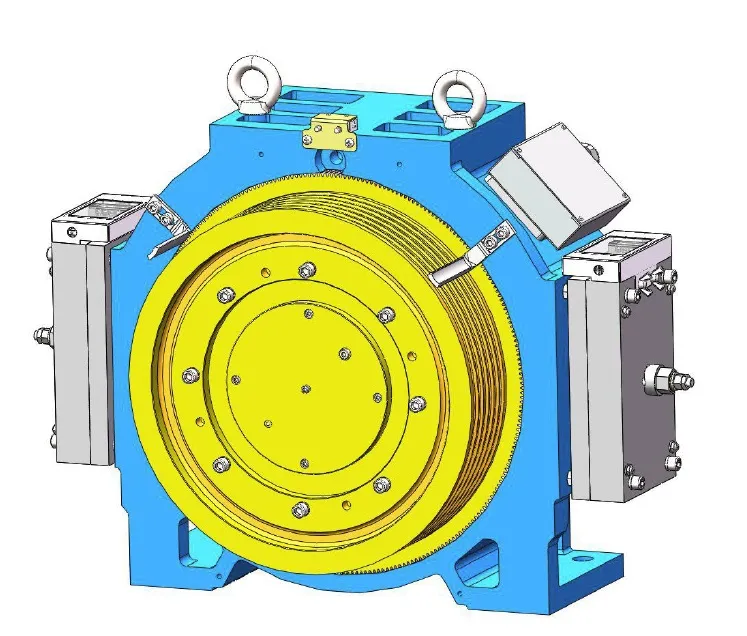

Traction System

The traction host of the TF1000 series freight elevator is designed according to vertical logistics requirements and can fully meet various load requirements. Vector closed-loop control technology can fully meet the dynamic adjustment requirements, and the elevator runs smoothly and accurately.

Traction System
⚡
Energy Saving and Comfort

The use of VVVF speed regulation technology saves nearly 40% energy than traditional AC two-speed technology. This technology provides constant torque characteristics, improving leveling accuracy and reducing operating noise regardless of the load.

🏗️

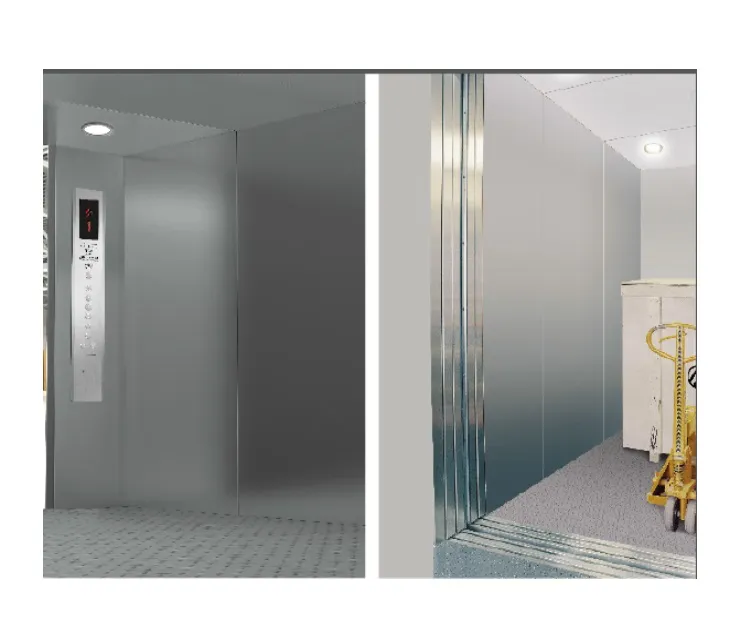

Sturdy Structure & Large Door Spacing

Multi-folding hall car doors achieve maximum opening width for large goods. The stronger car bottom reliably bears heavy loads, while accurate weighing devices prevent overloading.

Sturdy Structure
Application Environment
Factories, museums, exhibition halls, auto shops, warehouses, parking garages.
Technical Parameters
Model Capacity (kg) Speed (m/s) Car Size (CW*CD*CH) Door Opening (OP*OPH) Shaft Size (HW*HD) OH (mm) PT (mm) Power (kw)
F3000 1000 0.5-1.0 1400*1600*2200 1200*2100 2300*2200 4500 1500 7.5-11
2000 0.5-2.0 1900*2100*2200 1600*2100 2900*2700 4500-4800 1500-1800 11-18.5
3000 0.5-2.0 2200*2500*2200 1700*2100 3300*3200 4500-4800 1500-1800 15-22
4000 0.5-2.0 2500*2800*2200 2000*2100 4000*3500 4500-4800 1500-1800 18-35
TF3000 2000 0.5-1.0 1900*2100*2200 1600*2100 2900*2700 4500 1500 11-18.5
3000 0.5-1.0 2200*2500*2200 1700*2100 3300*3200 4500 1600 15-22
5000 0.5-1.0 2800*3100*2200 2400*2100 4200*3800 4500 1800 18-35
F5000 8000 0.25-0.5 2800*4500*2200 2600*2100 4400*5200 4800 1800 30-45
10000 0.25-0.5 3000*5300*2200 2700*2100 4600*6000 4800 1800 30-45
Frequently Asked Questions
1. What is the maximum load capacity of these freight elevators?
The system supports a wide range of capacities, from standard 1000kg units up to heavy-duty models capable of handling 10,000kg to 30,000kg.
2. How does VVVF technology benefit the elevator's operation?
VVVF (Variable Voltage Variable Frequency) speed regulation reduces power consumption by nearly 40%, ensures smoother starts and stops, and improves leveling accuracy regardless of the load weight.
3. Can the car size and door opening be customized?
Yes, customization is supported to meet specific logistics requirements, including various car dimensions and multi-folding door designs for maximum opening width.
4. What safety certifications do these elevators hold?
Our freight elevators are compliant with international standards and hold ISO, CE, and Eac certifications, ensuring safety and reliability in industrial environments.
5. What are the typical applications for this cargo lift?
They are ideal for factories, warehouses, shopping malls, museums, auto shops, and parking garages where vertical transport of heavy goods is required.
6. What drive mechanisms are available?
Depending on the model and building requirements, we offer both Hydraulic and Electrical Traction drive mechanisms to optimize performance and space.
