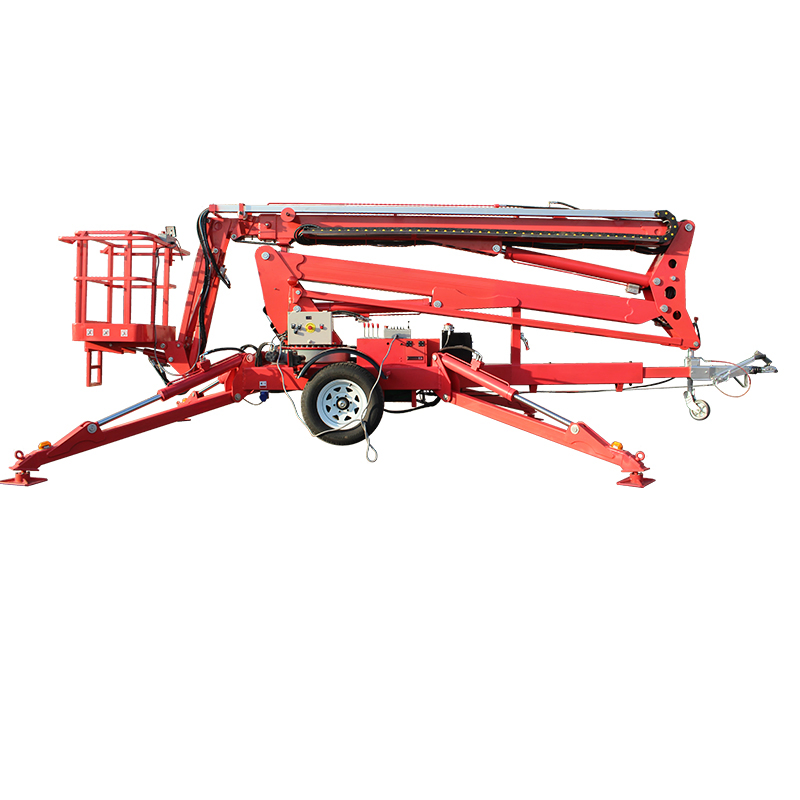

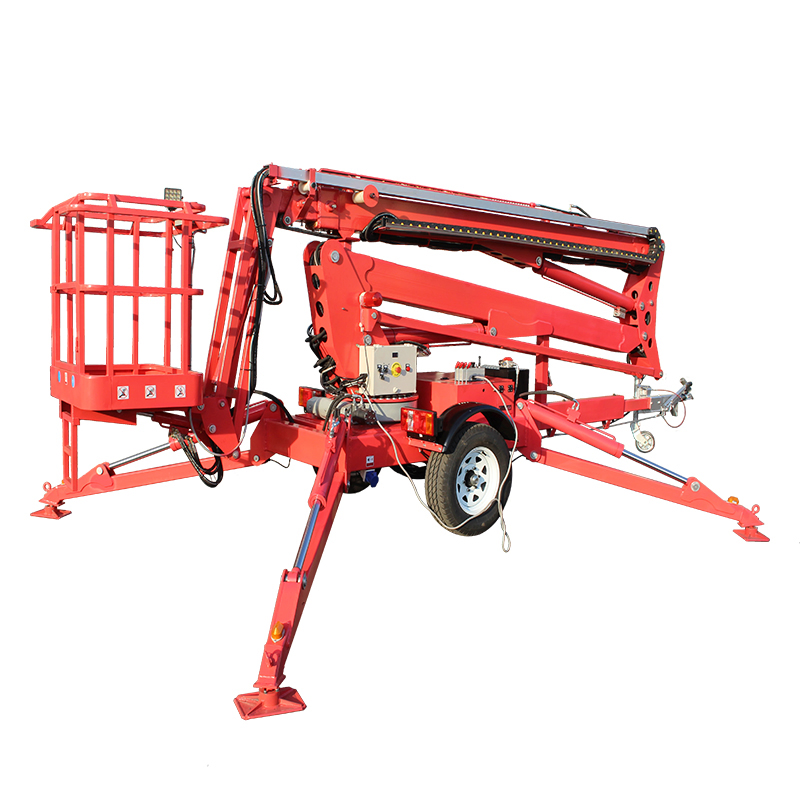

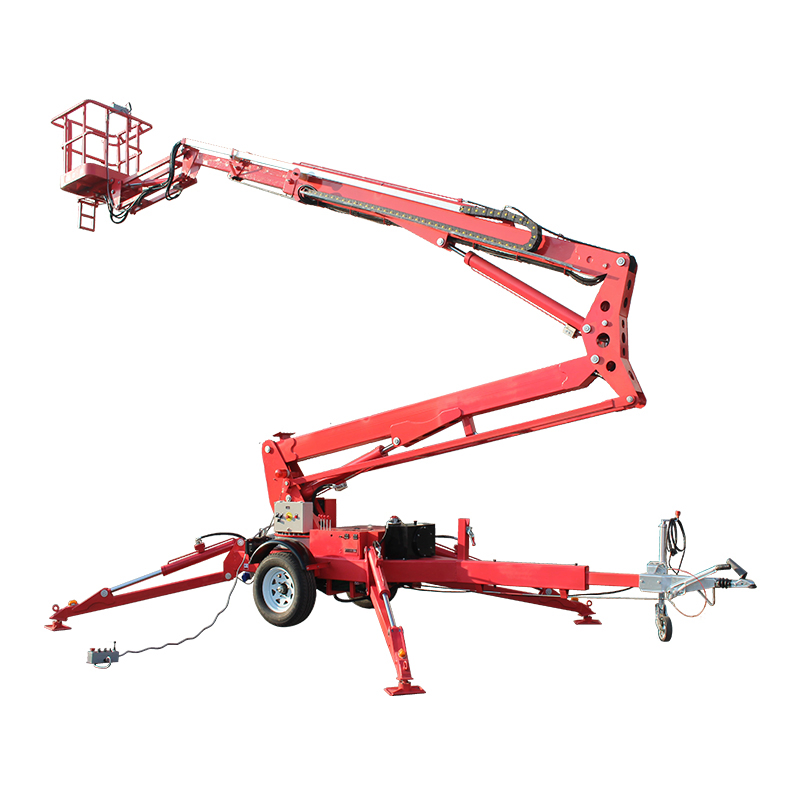

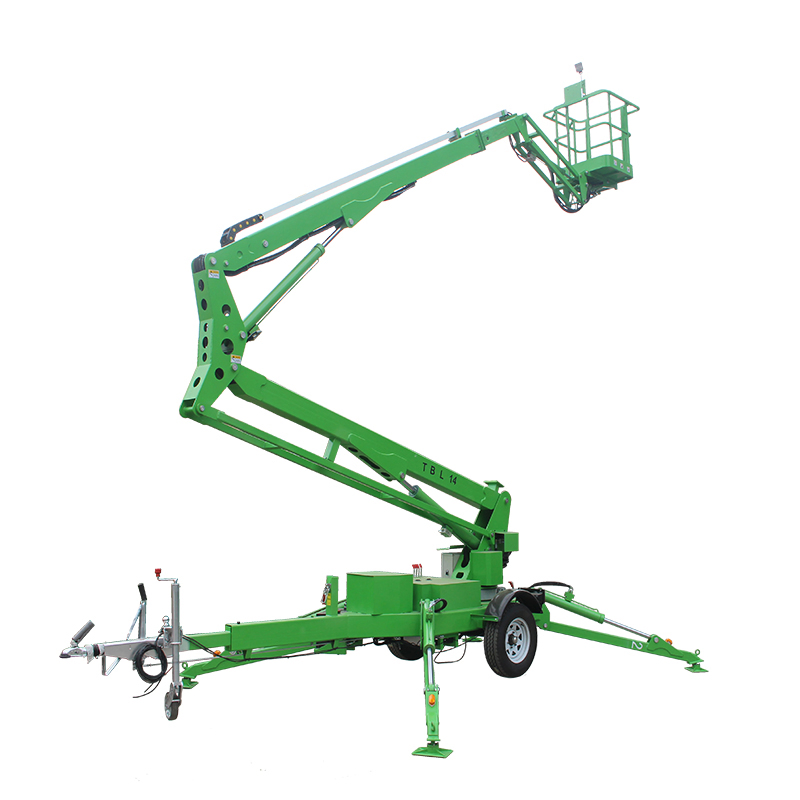

10~24m Electric Hydarulic Aerial Towable Boom Lift
10~24m Electric Hydarulic Aerial Towable Boom Lift
10~24m Electric Hydarulic Aerial Towable Boom Lift
10~24m Electric Hydarulic Aerial Towable Boom Lift
10~24m Electric Hydarulic Aerial Towable Boom Lift
1 / 5
10~24m Electric Hydarulic Aerial Towable Boom Lift
10~24m Electric Hydarulic Aerial Towable Boom Lift
10~24m Electric Hydarulic Aerial Towable Boom Lift
10~24m Electric Hydarulic Aerial Towable Boom Lift
10~24m Electric Hydarulic Aerial Towable Boom Lift

10~24m Electric Hydarulic Aerial Towable Boom Lift

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
TBL
Application
Workshop, Shipboard, Warehouse, Building Crane
Lift Mechanism
Articulated Lift
Carrying Capacity
Middle-Level
Moves
Moving
Driven Type
AC
Feature
Explosion-Proof, Insulating
Certification
GS, CE, RoHS, ISO 9001
Voltage
Local Voltage Compatible
Horizontal Reach
5m to 10.5m
Load Capacity
200kg
Power Source
AC, DC, Diesel, Gas or Combined
Towable Boom Lift Features
Towable Boom Lift Main
  • High-Quality Braking: Uses Germany ALKO brand brakes.
  • Premium Pump Stations: Switzerland Bucher DC pump, Japan Honda Gasoline pump, or China Famous YSD diesel pump options.

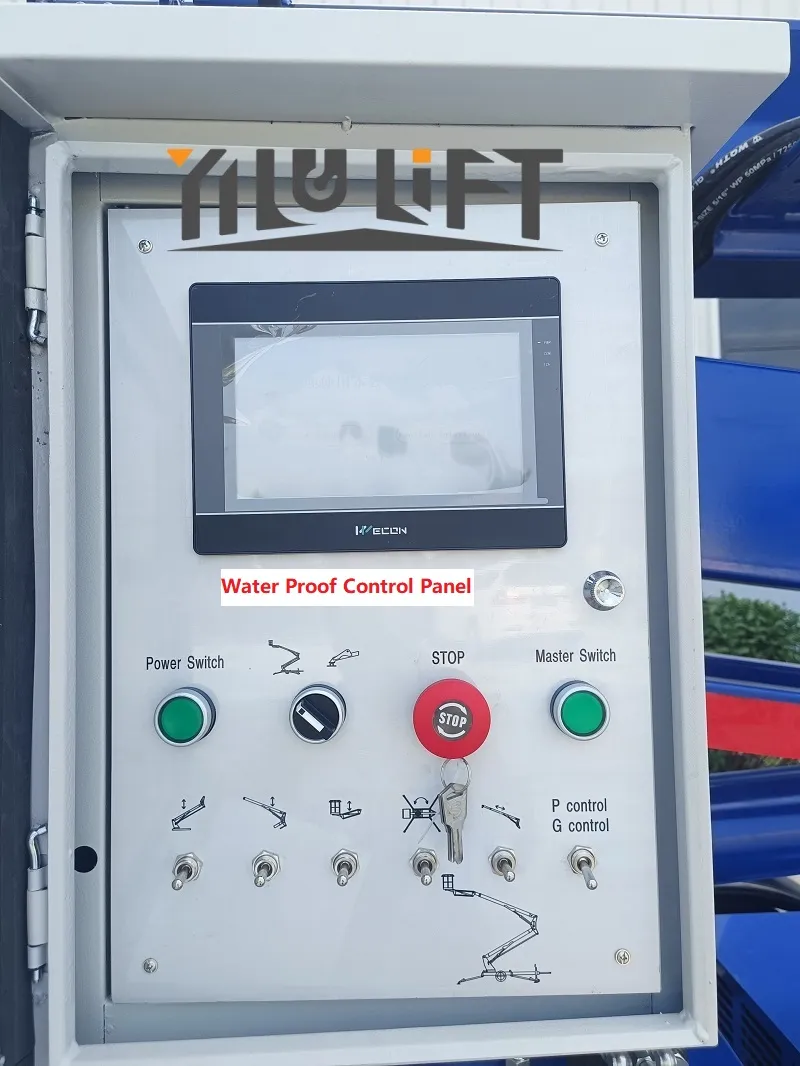

  • Outdoor Ready: Waterproof and dust-proof electrical box and control panel.
  • Efficient Operation: Self-levelling sole for safety and stability.
  • Safe Design: Two-way cylinders with balance valve and emergency decline switch to prevent platform drops.
  • Shock Absorption: Torsion Shaft for smooth road transport.
  • 360° Rotation: Stable rotary motor for full range access.
  • Flexible Power: Multiple power options including AC, DC, Hybrid, Diesel, and Gas.
Technical Parameters
Model TBL-10A TBL-12A TBL-14A+T TBL-16A+T TBL-18A+T TBL-20A+T
Lifting height10M12M14M16M18M20M
Working height12M14M16M18M20M22M
Load capacity200KG
Working radius5.5M6.5M8.5M10.5M11M11M
Overall Size (L*W*H)5.2*1.7*2.1M6.2*1.7*2.1M5.6*1.7*2.1M5.7*1.7*2.2M6.5*1.8*2.3M5.8*1.9*2.3M
Wind ResistanceNot More Than Level 5
Product Details & Gallery

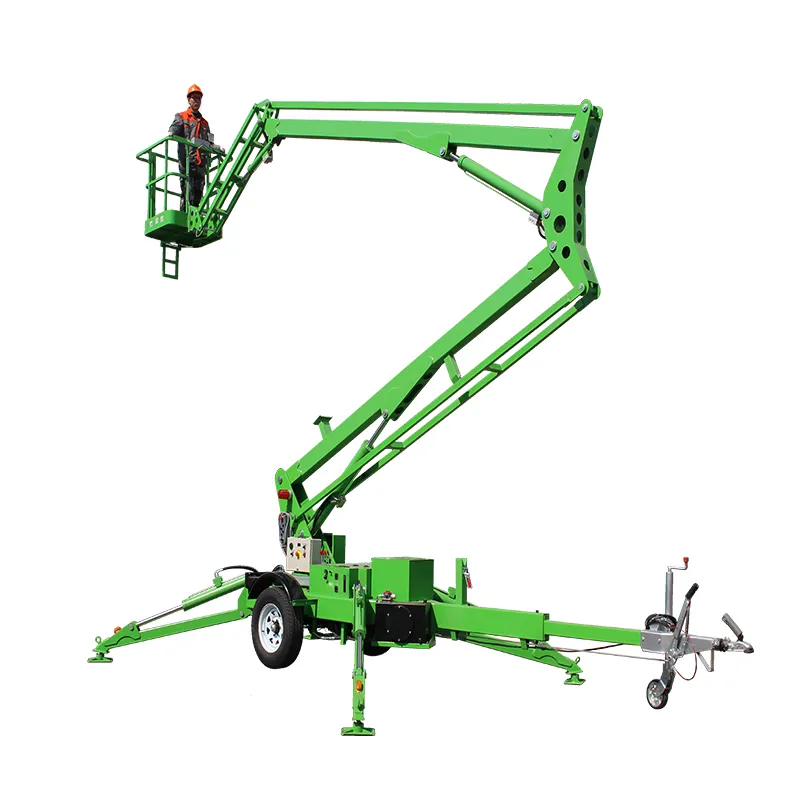

Detail 1

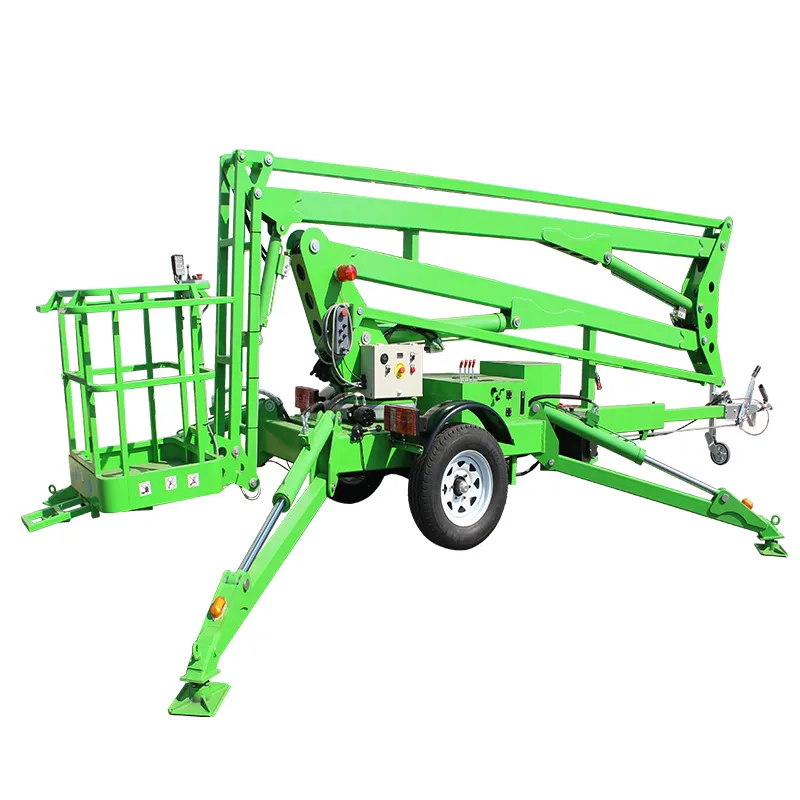

Detail 2
Operation 1

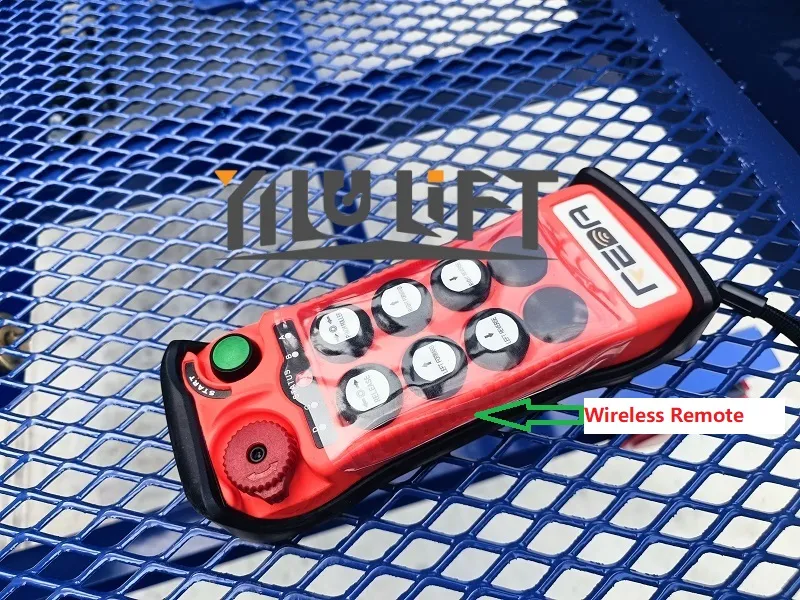

Operation 2

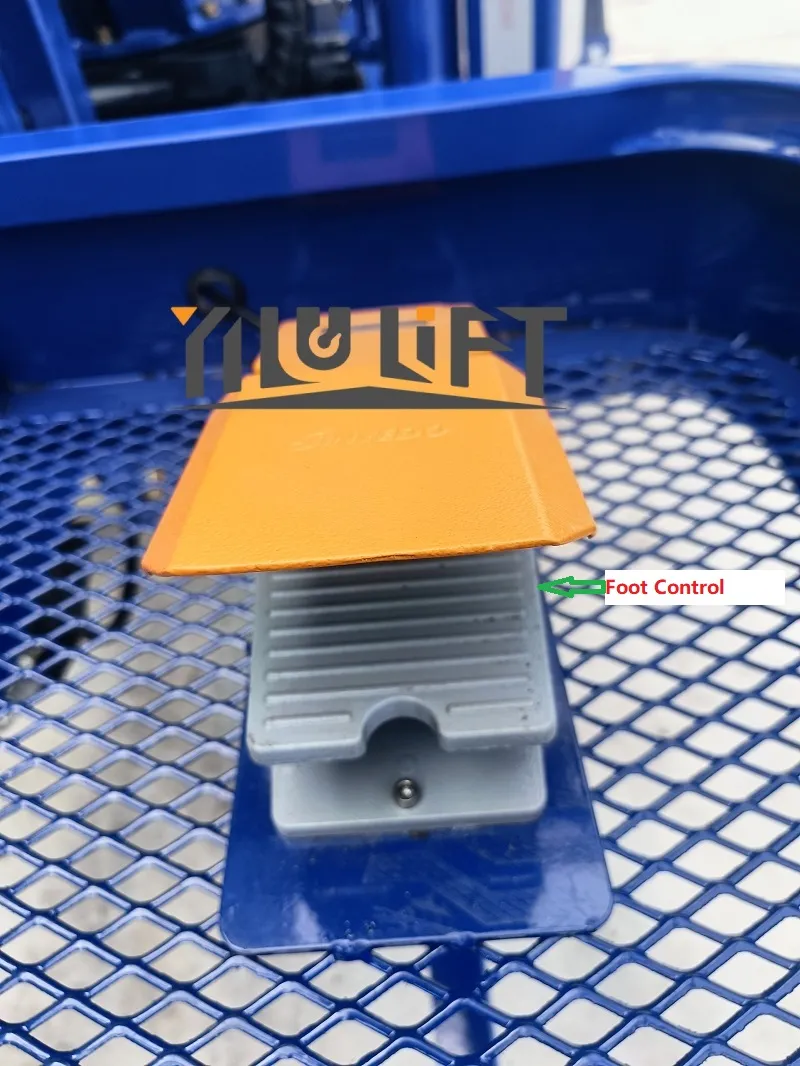

Operation 3

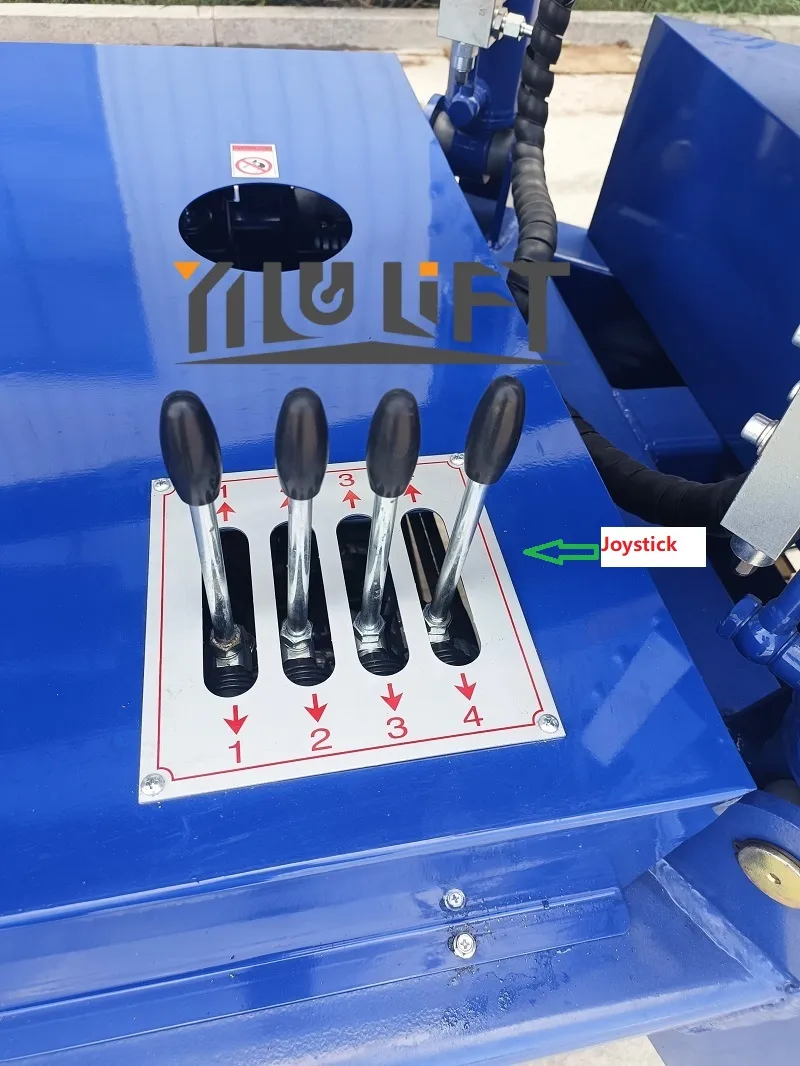

Component View
Safety Precautions
  • Anti-burst valve: Prevents accidents in case of hydraulic hose rupture.
  • Spillover valve: Automatically releases pressure to maintain system integrity.
  • Emergency decline valve: Manual descent capability during power failure.
  • Anti-dropping device: Redundant safety to prevent platform falls.

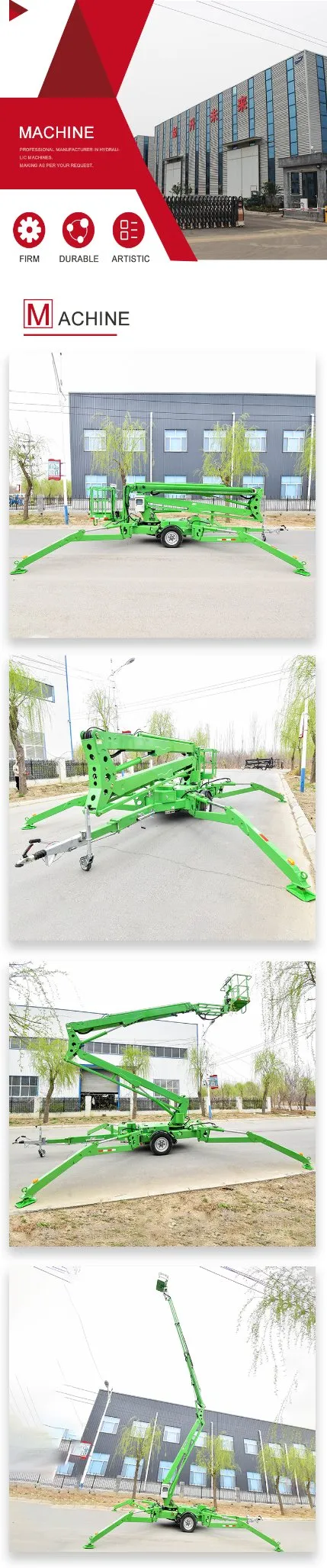

Safety Components Diagram
Frequently Asked Questions
How to place an order?
Please provide your detailed requirements including material, dimensions, and weight. We will provide specific parameters and quotations promptly.
What are the pricing terms?
Pricing depends on equipment specifications and shipment terms such as FOB, CIF, or DDP.
What payment methods are accepted?
We accept Wire Transfer (T/T), Letter of Credit (L/C), and Trade Guarantee.
What is the expected delivery time?
Standard products typically ship within 7 days. For customized or urgent orders, delivery time is determined based on specific requirements.
What is the warranty policy?
We offer a 1-year warranty along with lifelong technical support via email or video consultation.
What modes of transportation are available?
Customers can choose between sea, air, or rail transportation based on their location and urgency.
