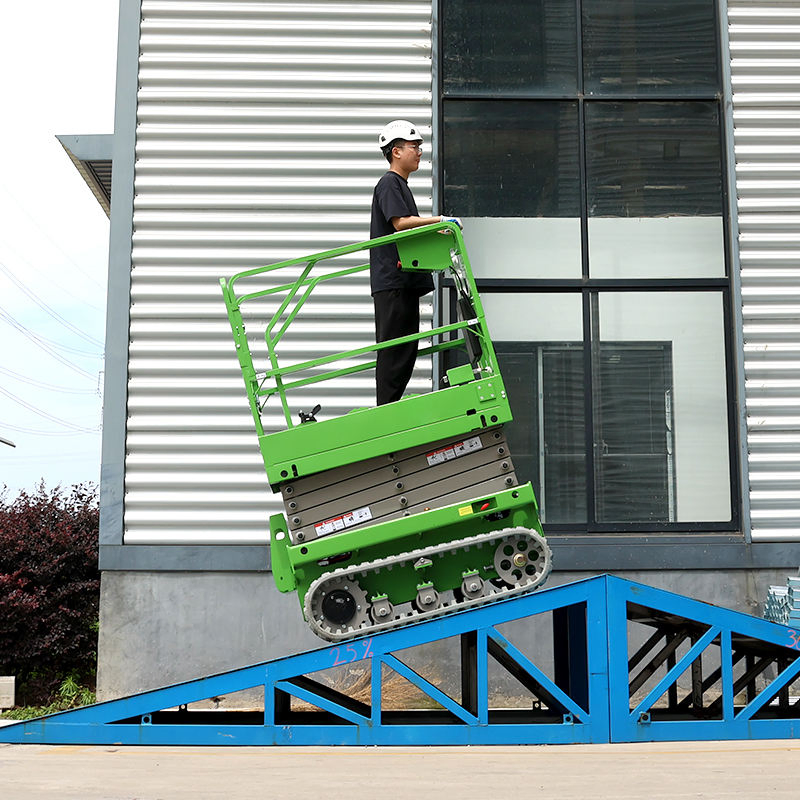

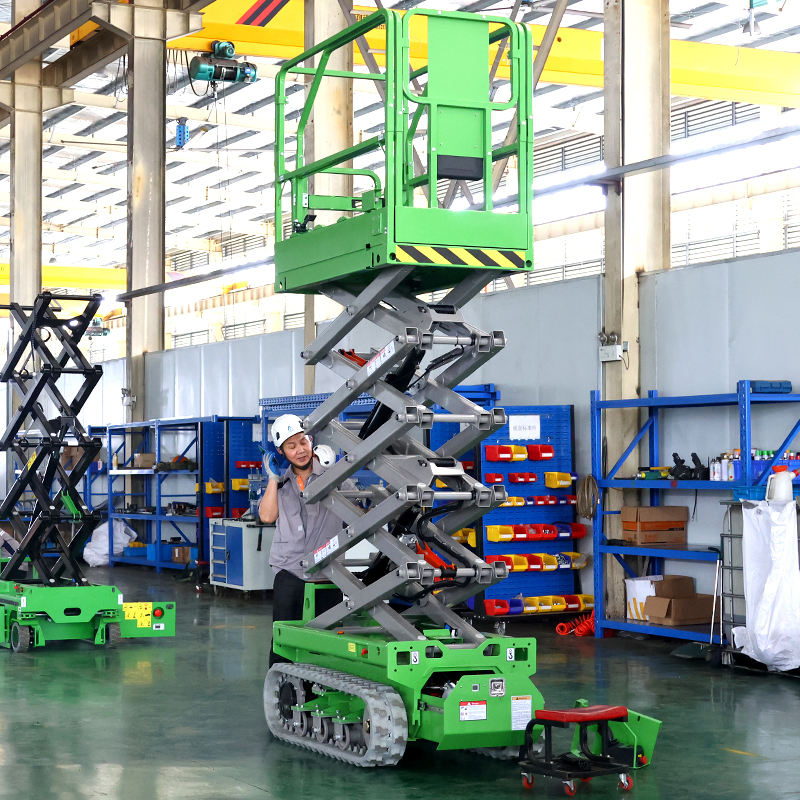

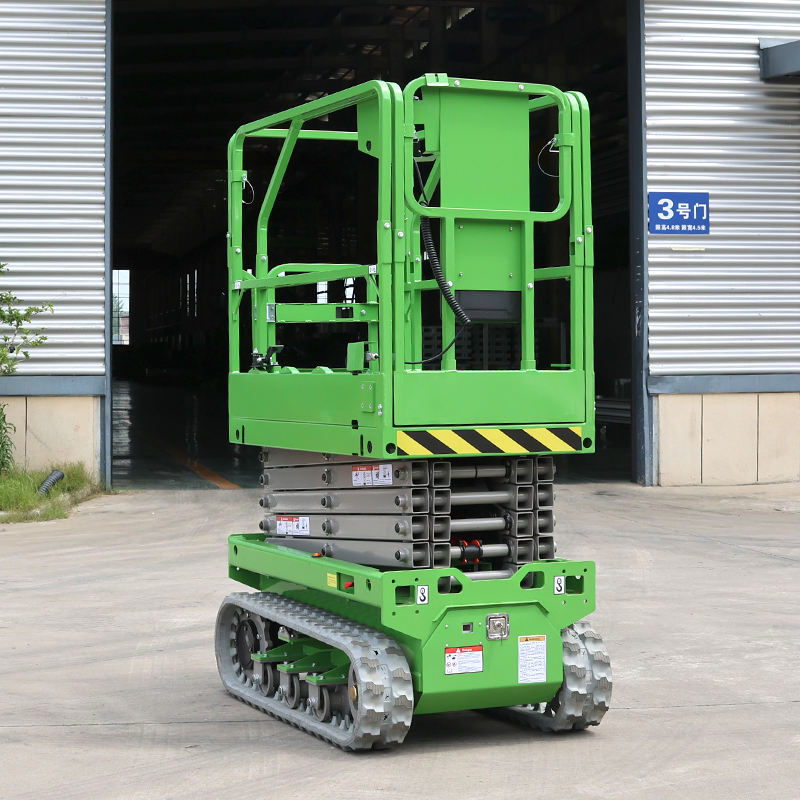

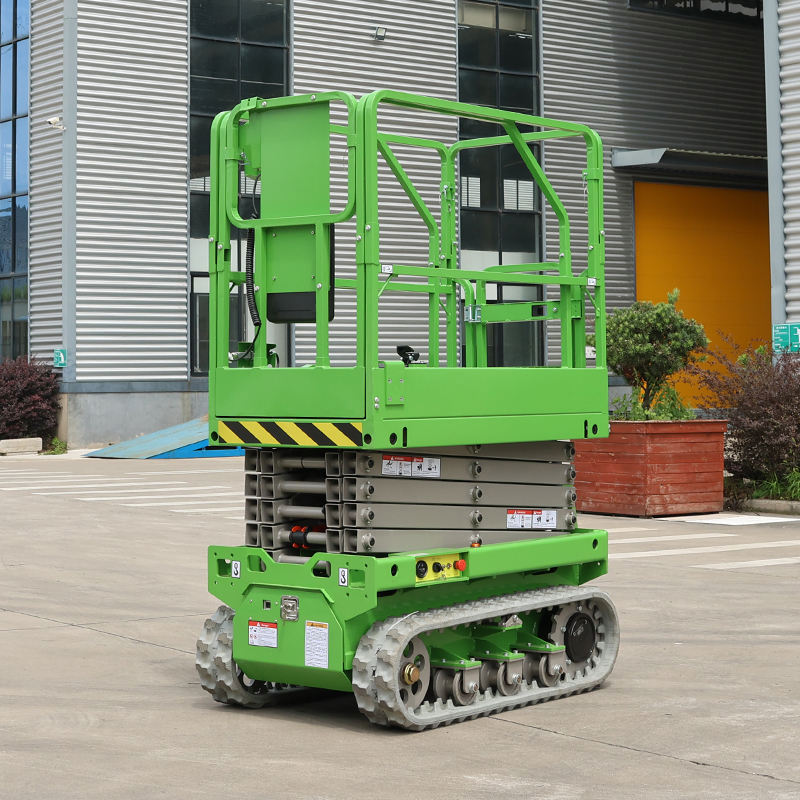

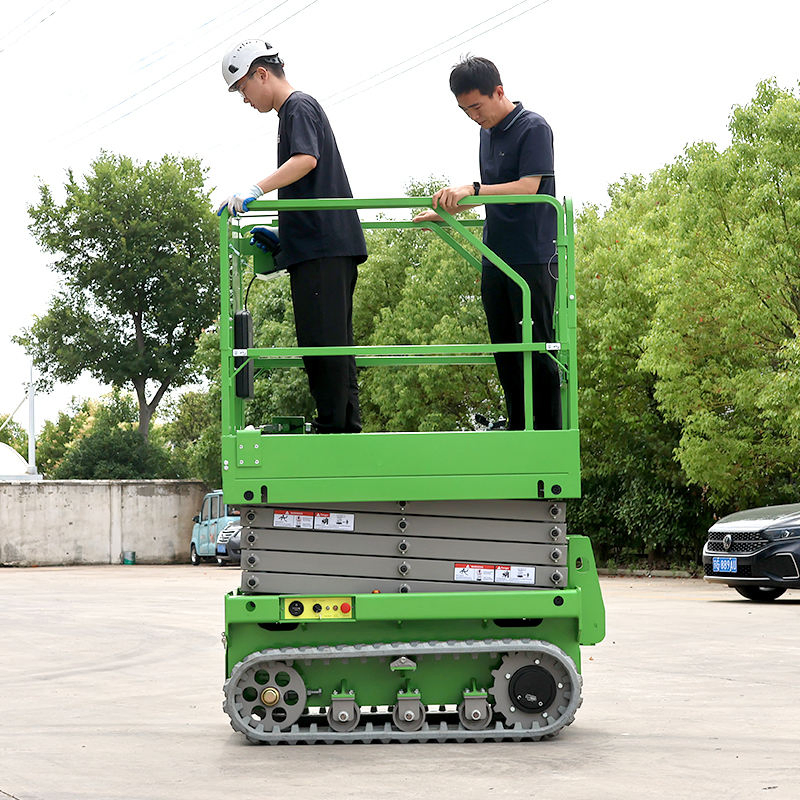

6m 8m 10m 12m 14m Aerial Platform Self Propelled Crawler Scissor Man Lift Electric Mobile Scissor Lift

1 / 5

6m 8m 10m 12m 14m Aerial Platform Self Propelled Crawler Scissor Man Lift Electric Mobile Scissor Lift

Customization:	Available
After-sales Service:	Online Support
Warranty:	1years

Send Inquiry

Product Description

📊 Basic Information

Model NO.BJ-0607T

ApplicationWorkshop, Warehouse, Building Crane

Lift MechanismScissor Lift

Carrying Capacity230kg

MovesSelf-propelled

Driven TypeHydraulic

Running ModeMoving

FeatureExplosion-Proof, Insulating

CertificationCE, ISO 9001

Dimensions1750*920*1520mm

Max Occupancy2 Persons

Motor24V/2×1kw

PackageWooden Packing

OriginChina

🏗️ Product Description

📋 Product Parameters

Model	BJS0507T	BJS0607T	BJS0610T	BJS0810T	BJS1012TL	BJS1212TL	BJS1416TL
Dimensions
Max operating height (m)	6.6	7.8	8.3	10.3	12	14	16
Max platform height (m)	4.6	5.8	6.3	8.3	10	12	14
Min platform height (mm)	950	1030	1070	1170	1600	1600	1740
Platform length (mm)	1400	1400	1800	1800	2270	2270	2670
Platform width (mm)	760	780	800	800	1120	1120	1120
Overall Height (mm)	1950	2140	2160	2260	2700	2700	2840
Performance
Rated load capacity (kg)	230	230	300	300	450	450	450
Max Occupancy	2	2	2	2	3	3	3
Driving speed (km/h)	2.5	2.5	2.5	2.5	2.5	2.5	2.5
Gradeability (%)	30	30	30	30	30	30	30
Power
Battery (Lead acid)	2×12V 120Ah	2×12V 120Ah	4×12V 83Ah	4×12V 83Ah	8×12V 150Ah	8×12V 150Ah	8×12V 150Ah
Charger	24V 18A	24V 20A	24V 30A	24V 30A	48V 30A	48V 30A	48V 30A
Weight
Weight (kg)	816	1055	1640	1745	3460	3760	4760

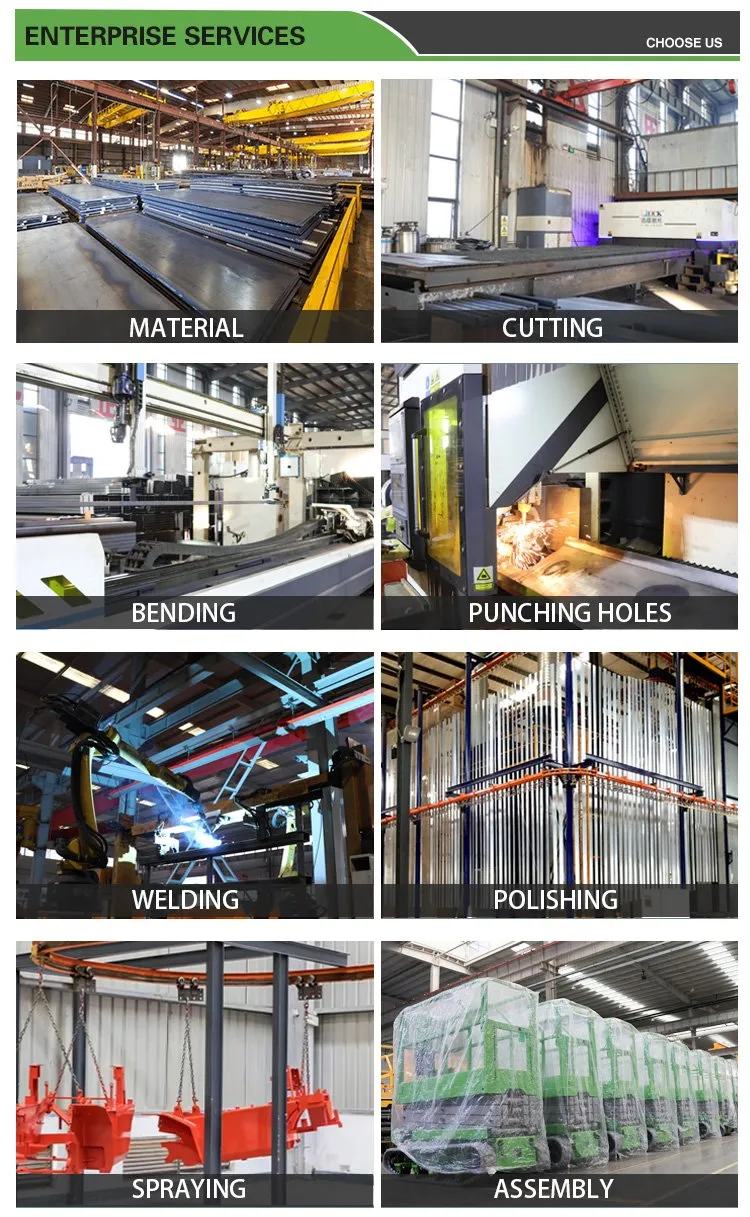

🏢 Production & Quality

❓ Frequently Asked Questions

What is the maximum working height of these scissor lifts?

The range of models offers maximum operating heights from 6.6 meters up to 16 meters, depending on the specific model selected.

What is the carrying capacity for the platform?

The rated load capacity varies by model, ranging from 230kg for compact units up to 450kg for heavy-duty models.

Is the lift suitable for indoor workshop use?

Yes, these lifts are designed for workshop, warehouse, and building applications. They feature non-marking tracks to protect indoor flooring.

What power source does the scissor lift use?

The units are powered by high-capacity, maintenance-free lead-acid batteries (24V or 48V systems) and are fully electric and self-propelled.

What safety certifications do these products hold?

Our scissor lifts are certified according to CE and ISO 9001 standards, ensuring high quality and safety for aerial operations.

Can the platform be extended for more reach?

Yes, most models include a platform extension part ranging from 600mm to 1100mm to provide additional horizontal reach.
