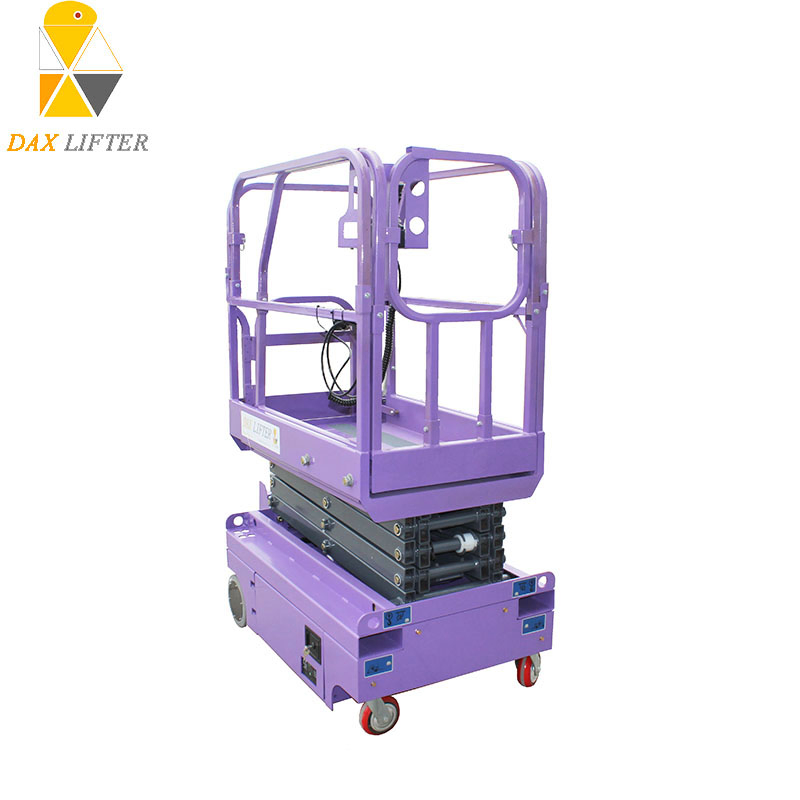

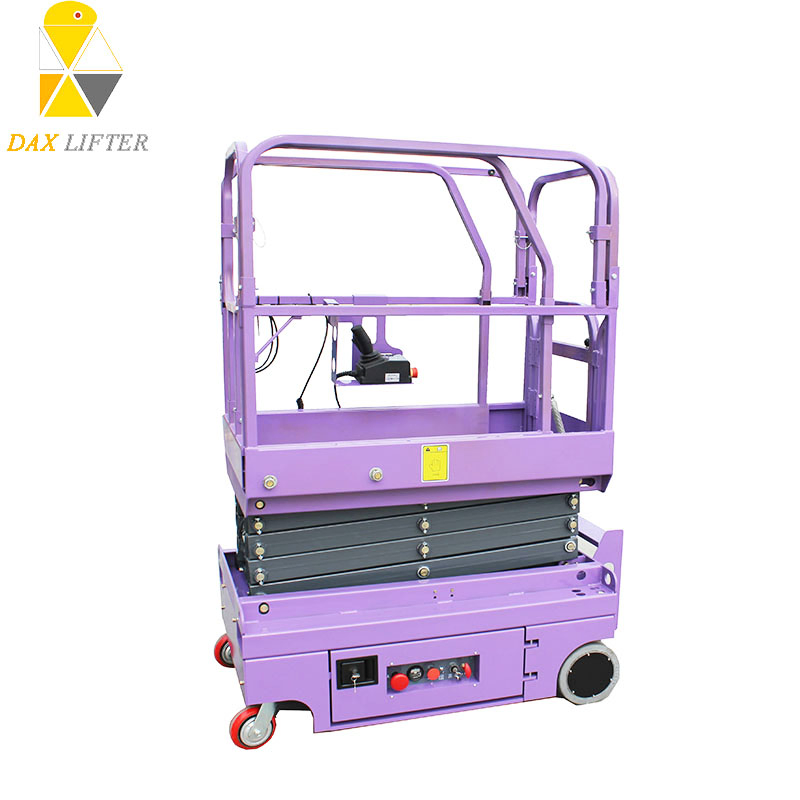

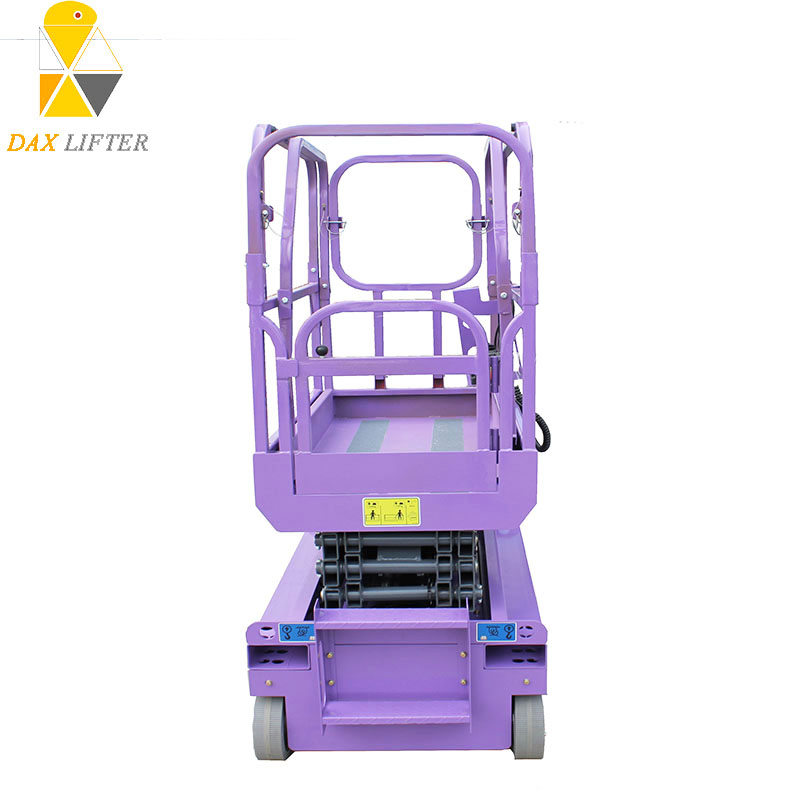

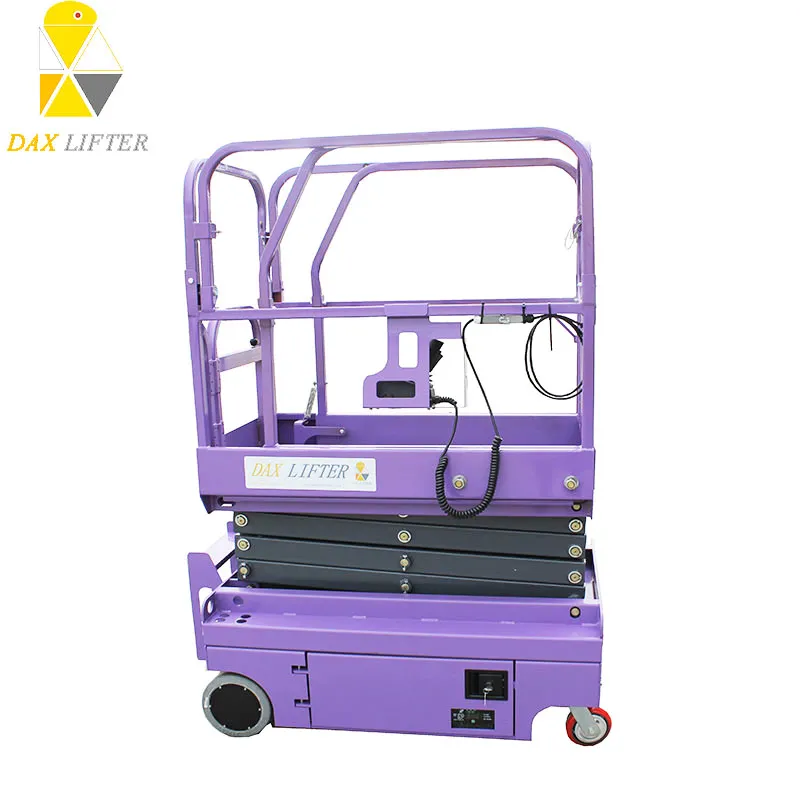

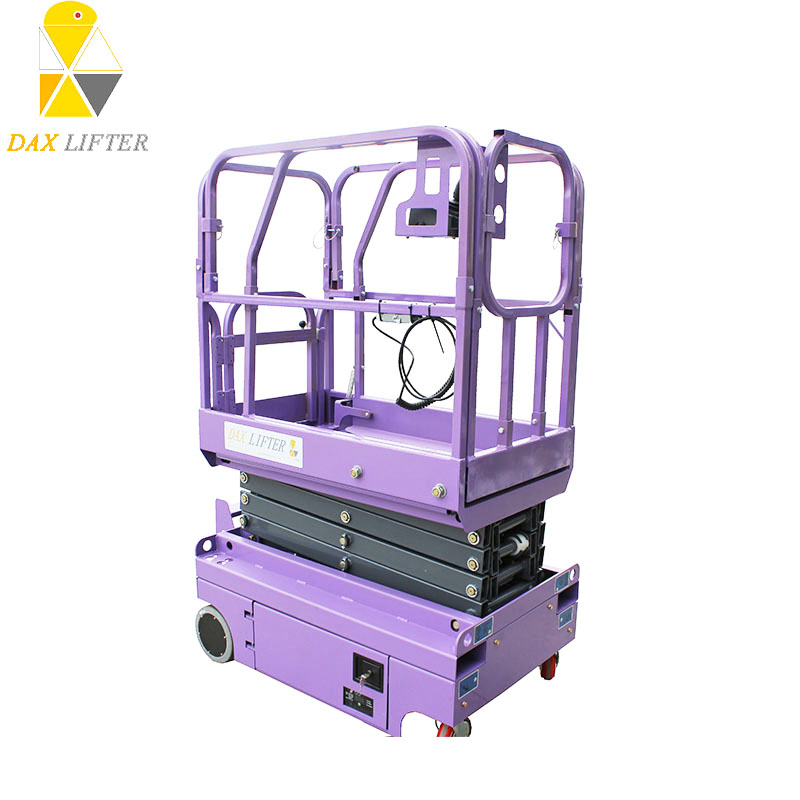

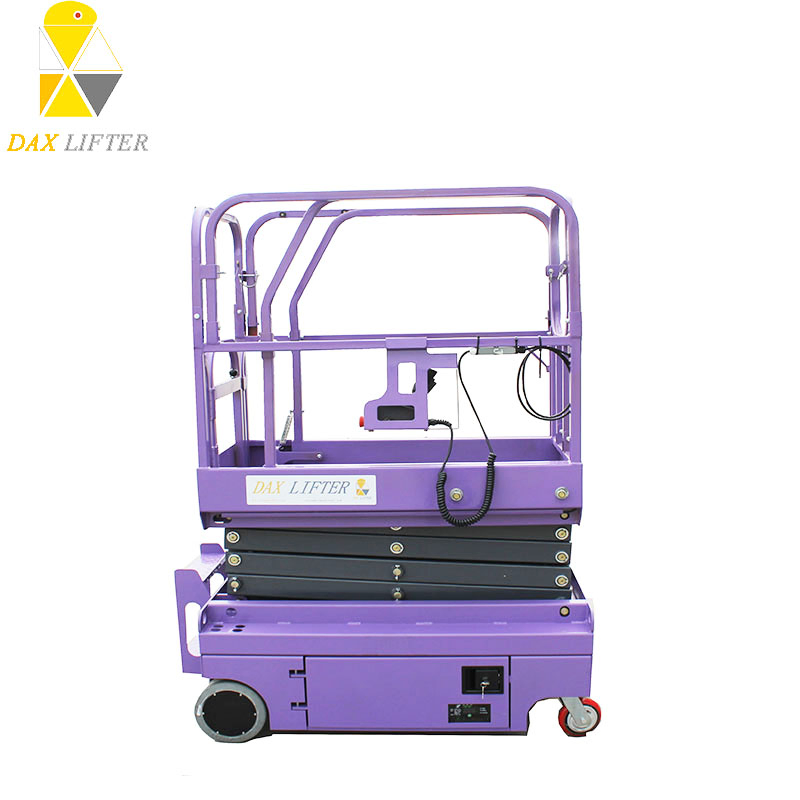

Designed for low-level access on sensitive flooring and space-restricted applications, this mini scissor lift series delivers quality and durability while improving total cost of ownership and productivity. Increase your productivity and enhance safety on the work when you choose this electric man lift.
| Model | SPM 3.0 | SPM 4.0 |
|---|---|---|
| Loading Capacity | 240kg | 240kg |
| Max. Platform Height | 3m | 4m |
| Max. Working Height | 5m | 6m |
| Platform Dimension | 1.15 × 0.6m | 1.15 × 0.6m |
| Platform Extension | 0.55m | 0.55m |
| Extension Load | 100kg | 100kg |
| Battery | 2×12v/80Ah | 2×12v/80Ah |
| Charger | 24V/12A | 24V/12A |
| Overall Size | 1.32×0.76×1.83m | 1.32×0.76×1.92m |
| Weight | 630kg | 660kg |

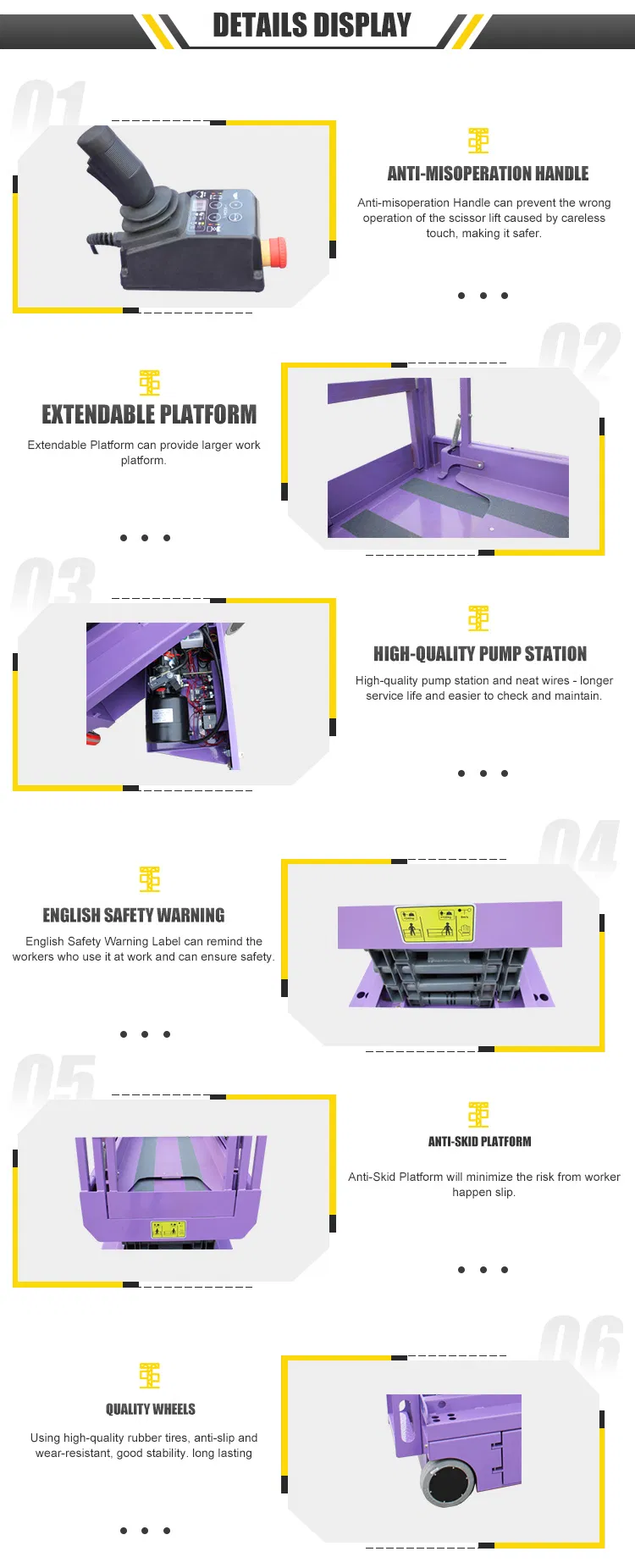

Broadens the working range for operators, allowing access to hard-to-reach areas.
Equipped with an emergency lowering valve for power failures and an anti-slip platform surface.
High-strength hydraulic cylinders ensure smooth lifting and minimal maintenance requirements.
Equipped with high-capacity DC batteries, eliminating the need for constant AC power connection.
The control panel can be removed to prevent theft or protection against environmental damage.
The classic scissor design provides maximum stability and firmness during high-altitude operations.
