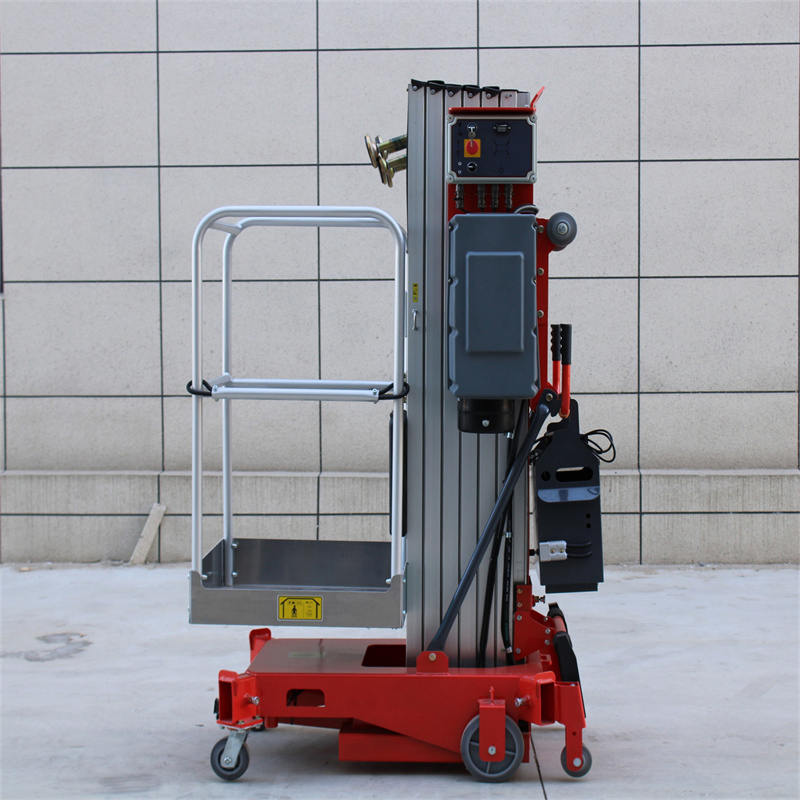

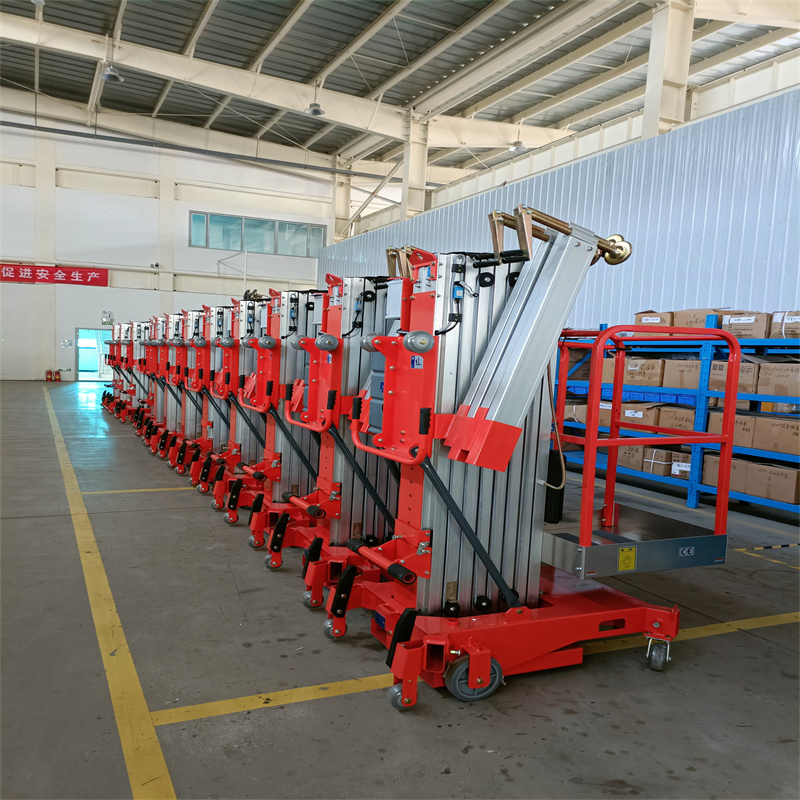

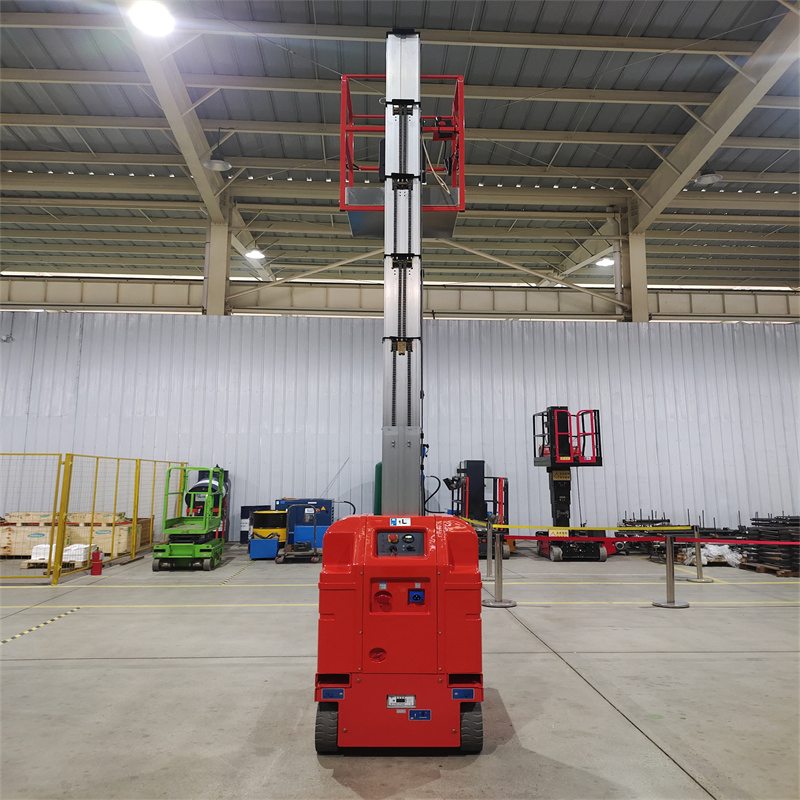

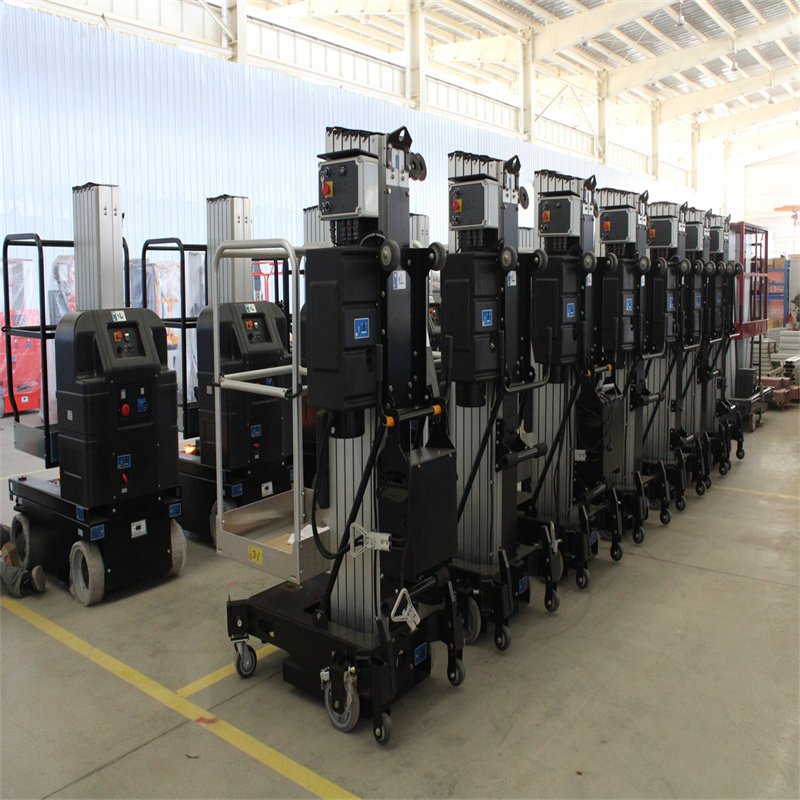

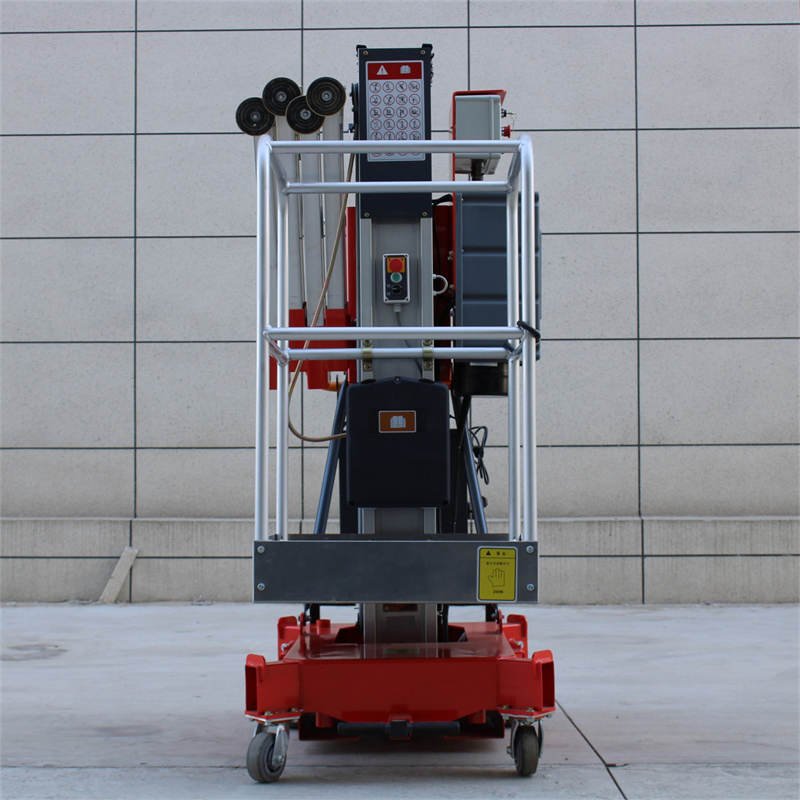

The Aluminum Alloy Self-Propelled Vertical Lift is an efficient, safe and lightweight aerial work equipment, which is widely used in shopping malls, airports, exhibition centers, factories and warehouses. The products include single-column mobile aluminum alloy platform, double-column mobile aluminum alloy platform, self-propelled single-column aluminum alloy platform and self-propelled double-column aluminum alloy platform, which can be flexibly selected according to different working heights and space requirements.
| Model | GTWY1-5 | GTWY1-8 | GTWY1-12 | GTWY2-8 | GTWY2-12 | GTWY2-16 |
|---|---|---|---|---|---|---|
| Max. Working Height | 6.7m | 9.8m | 14m | 10m | 14m | 18m |
| Max. Platform Height | 4.7m | 7.8m | 12m | 8m | 12m | 16m |
| Loading Capacity | 150kg | 150kg | 120kg | 250kg | 200kg | 150kg |
| Occupants | 1 | 1 | 1 | 2 | 2 | 1 |
| Model | AMWP6-1100 | AMWP7.5-1100 | AMWP7.5-2100 | AMWP9-2100 |
|---|---|---|---|---|
| Max. Working Height | 8.00m | 9.50m | 9.50m | 11.00m |
| Max. Platform Height | 6.00m | 7.50m | 7.50m | 9.00m |
| Loading Capacity | 150kg | 125kg | 200kg | 150kg |
| Drive Motors | 2×24VDC/0.5kW | 2×24VDC/0.5kW | 2×24VDC/0.5kW | 2×24VDC/0.5kW |
These platforms are made of high-strength high-quality aluminum alloy, with a solid structure, light weight, and excellent load-bearing capacity and stability. The equipment is compact and flexible, and can easily pass through ordinary hallways and elevators, making it suitable for efficient operations in small spaces. The chassis is made of thickened Q235 steel, which is high in strength and resistant to knocks. Features include:

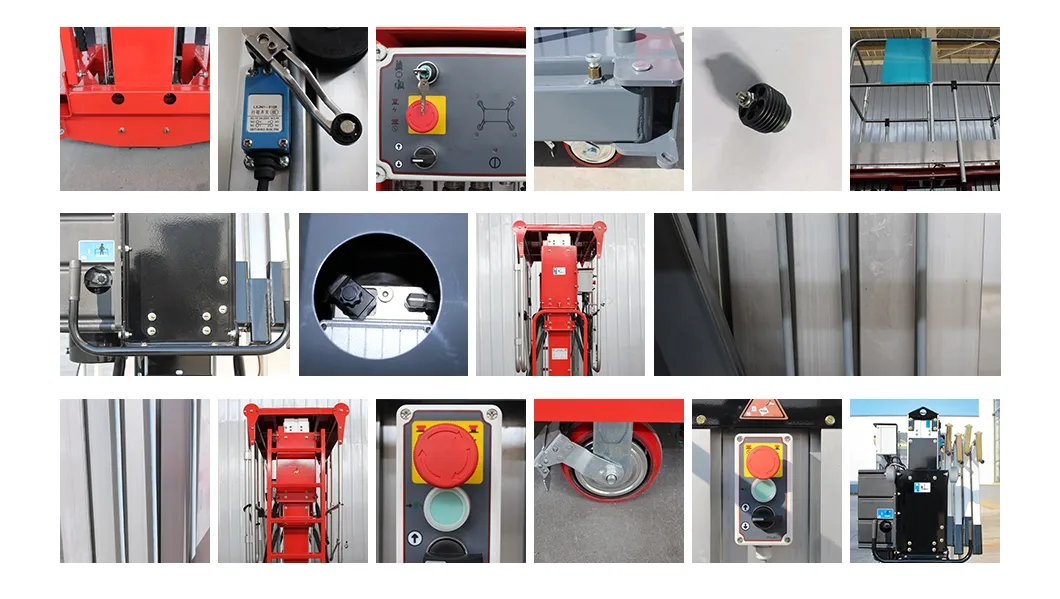

Professional safety configurations include: hydraulic steering system, platform self-locking door, one-way extension platform, non-marking tires, emergency descent system, emergency stop button, and oil pipe explosion-proof system. Additionally equipped with action buzzer, anti-pinch protection, horn, automatic brake system, and horizontal sensor system to ensure environmental adaptability and accidental protection.

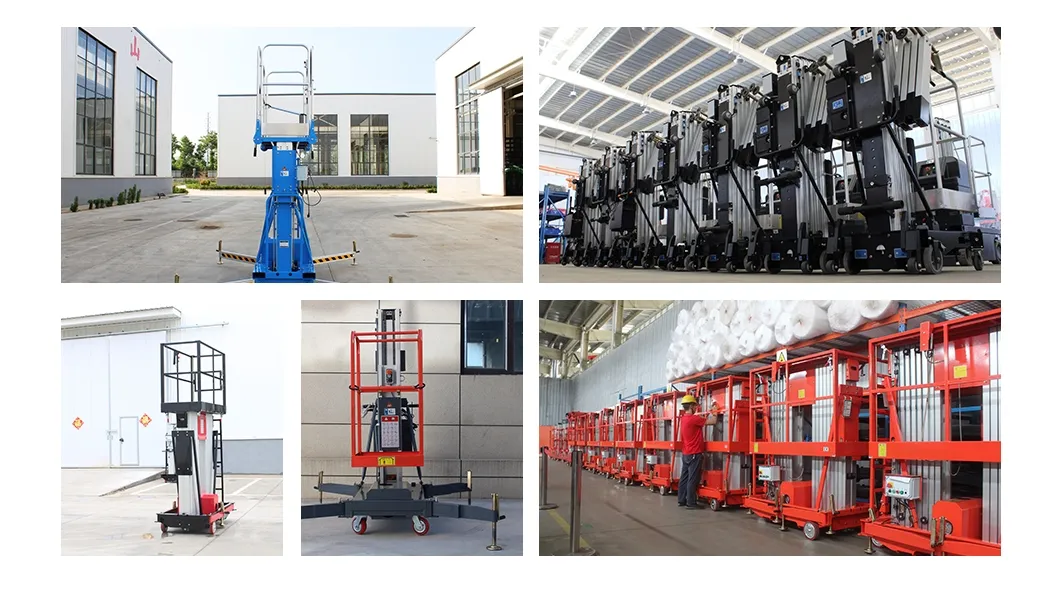

Widely used in factories, hotels, restaurants, stations, airports, theaters, exhibition halls and large supermarkets. It is particularly suitable for environments with limited space and frequent high-altitude operations, passing easily through hallways and elevator shafts for installation, maintenance, and cleaning.
