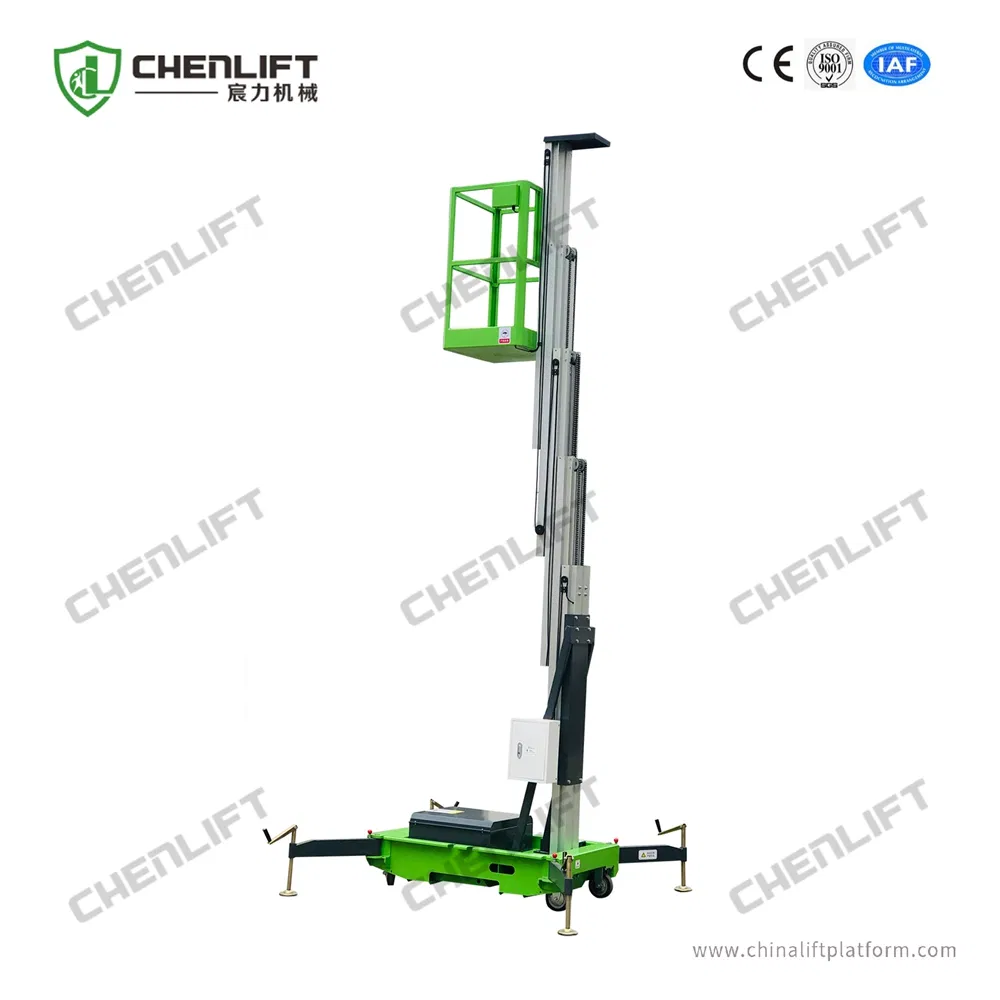

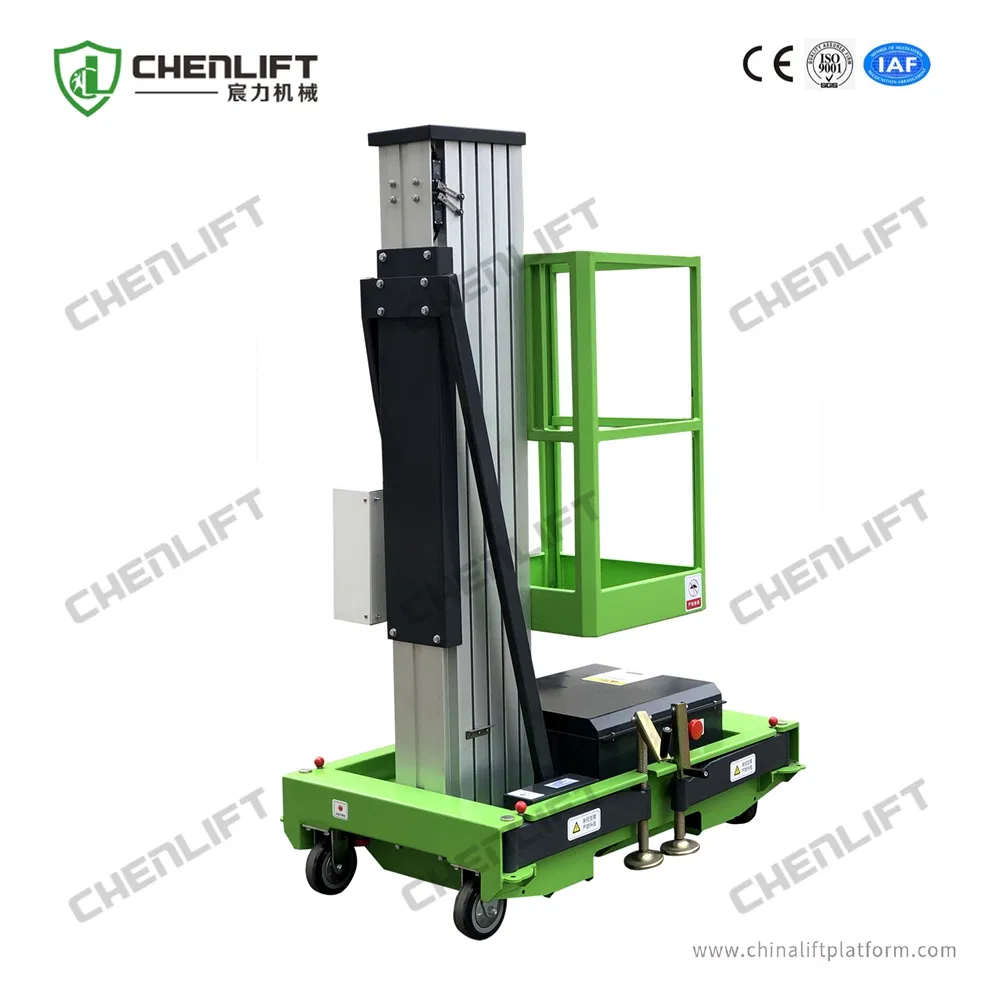

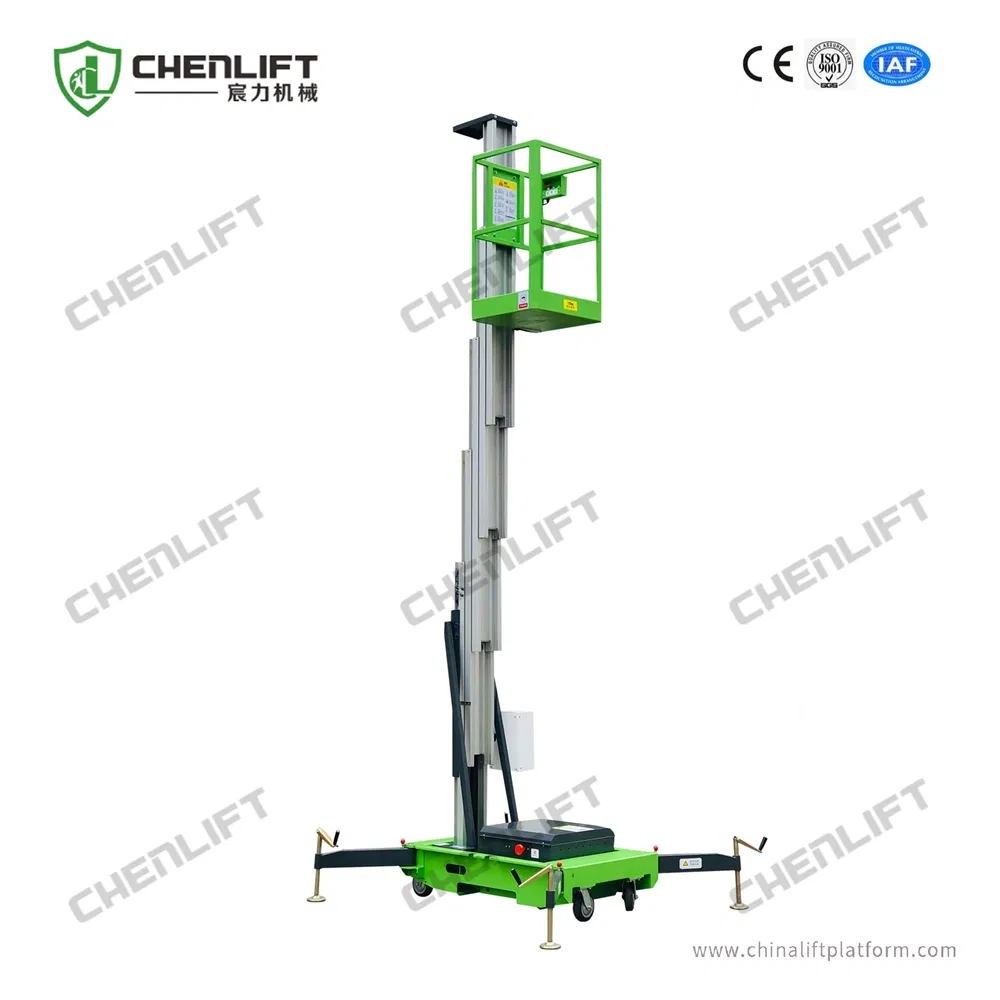

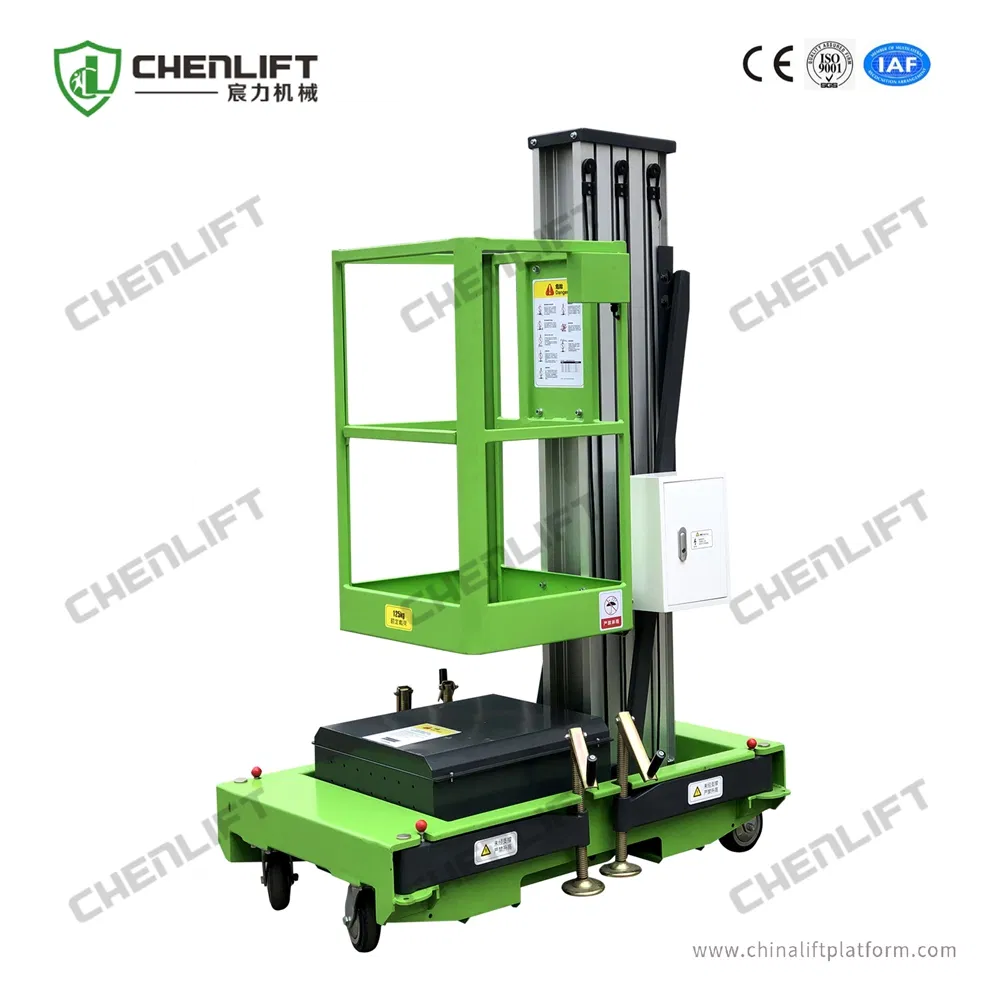

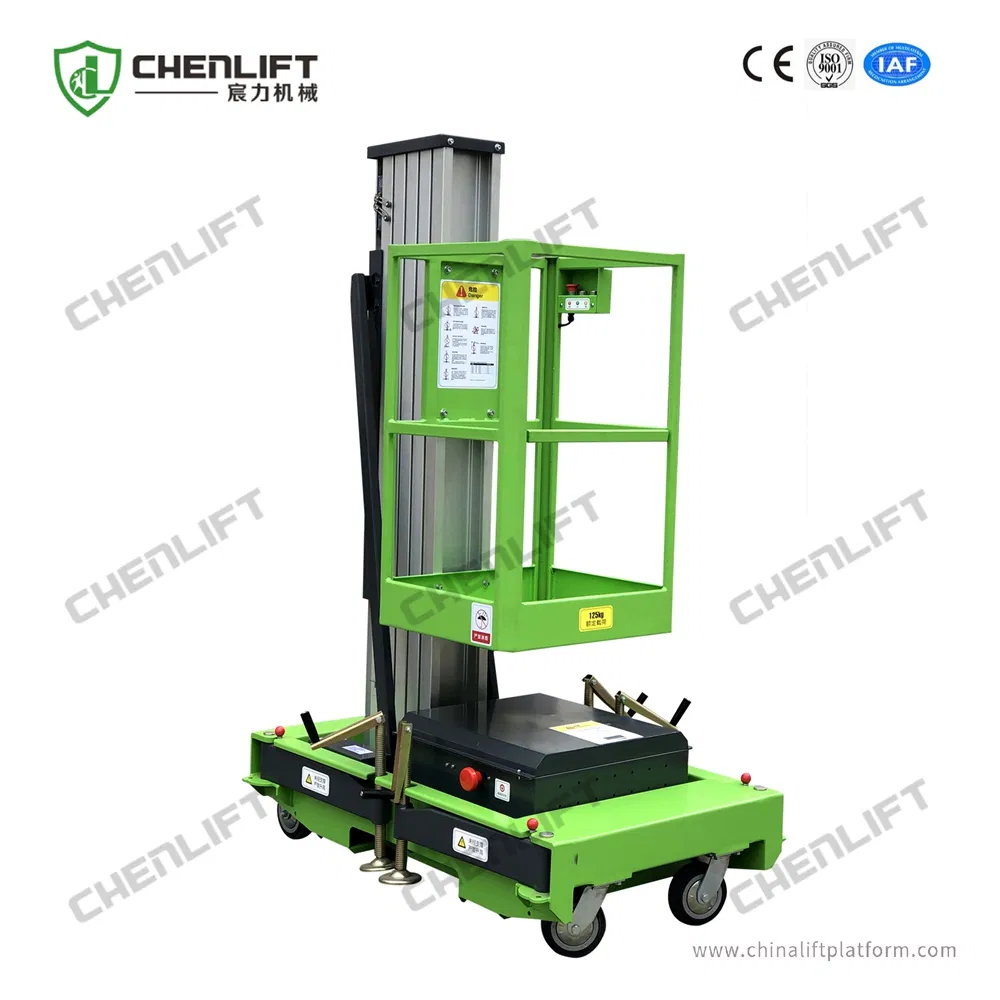

10m Elevating Work Platform Single Mast Manual Pushing Vertical Lift

1 / 5

10m Elevating Work Platform Single Mast Manual Pushing Vertical Lift

Customization:	Available
Application:	Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism:	Lift Chain

Send Inquiry

Product Description

Basic Info.

Model NO.ME1000-1(GTWY100-10)

Carrying CapacityLight Level

Driven TypeAC

FeatureExplosion-Proof

CertificationCE, ISO 9001

Loading Capacity130kg

Working Height12m

Platform Height10m

Platform Size0.60*0.55m

Outrigger Footprint1.93*1.77m

Lifting Motor1.1kw

Weight420kg

Specification1.45*0.85*2.00m

OriginChina

HS Code8428909090

💡

Man Pushing around Aluminum Aerial Work Platform

Easily pushed around to the designated sites, beautiful structure, compact main body, light weighted, safe and reliable.

Product Features

Our range includes single mast, double mast, triple mast, quadruple mast, and six masts (four plus two) configurations. These platforms feature non-marking tires and an anodized aluminum mast for durability and surface protection. Operated by a strong telescopic cylinder, control panels are conveniently located both on the platform and at ground level.

Power Supply Options:

Standard AC version (110V or 220V)
DC chargeable battery version (12V or 24V)
Dual AC & DC version (Optional)
DC versions include built-in automatic chargers and discharge indicators.

Application

Perfect for installation and maintenance in narrow spaces such as:

Star hotels, lobbies, and restaurants
Modern workshops and business halls
Railway stations and exhibition halls
Shopping malls and equipment maintenance sites

Designed to easily pass through regular doors and elevators with low energy consumption and no pollution.

Main Configurations

Safety Features

Toe protection boards on the platform
Anti-skid deck on the platform
Auxiliary Lowering system
Dual limit switch for safety
Operation voltage at 24V

Safety belt holding point
Anti-burst valve on the cylinder
Emergency stop button (Platform & Ground)
Short Circuit and leakage protection (AC)
Fuse protection for DC versions

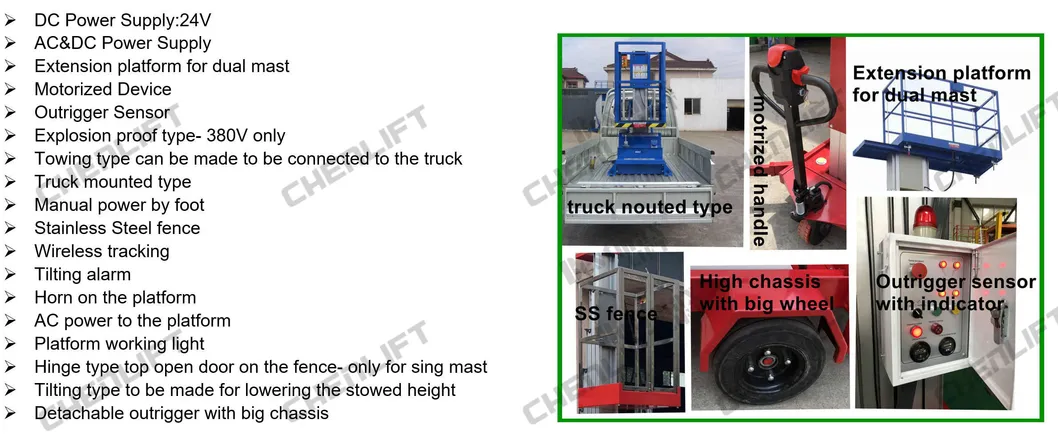

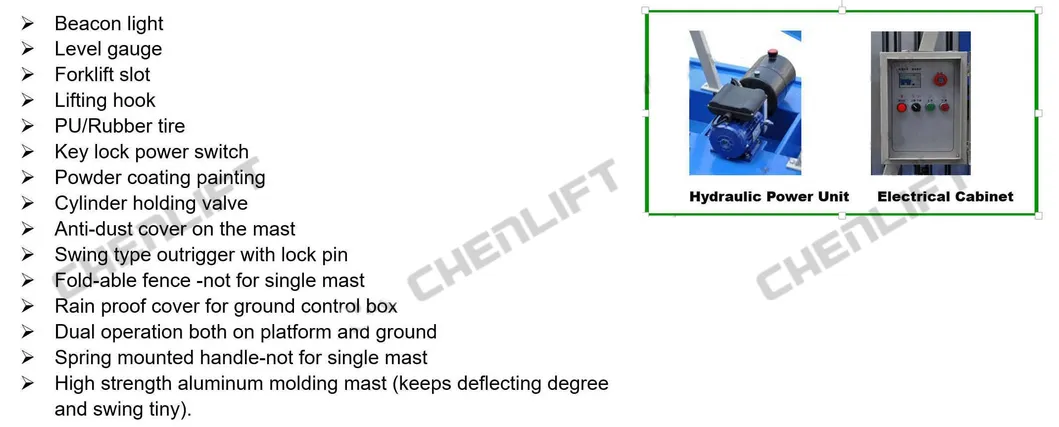

Optional Configuration

Technical Parameters

Single Mast Series

Model NO.	Working Height(m)	Loading Capacity(Kg)	Platform Size(m)	Lifting Power(Kw)	Weight(Kg)	Dimension(m)
GTWY6-100	8	130	0.60x0.55	0.75	260	1.38x0.80x1.65
GTWY8-100	10	130	0.60x0.55	0.75	300	1.38x0.80x1.98
GTWY9-100	11	130	0.60x0.55	0.75	326	1.44x0.85x1.98
GTWY10-100	12	130	0.60x0.55	0.75	400	1.44x0.85x1.98

Double Mast Series

Model NO.	Working Height(m)	Loading Capacity(Kg)	Platform Size(m)	Lifting Power(Kw)	Weight(Kg)	Dimension(m)
GTWY6-200	8	200	1.18x0.62	1.1	380	1.38x0.85x2.00
GTWY8-200	10	200	1.18x0.62	1.1	480	1.38x0.95x2.00
GTWY10-200	12	200	1.38x0.62	1.1	610	1.68x0.95x2.00
GTWY14-200	16	150	1.48x0.62	1.1	650	1.68x0.95x2.00

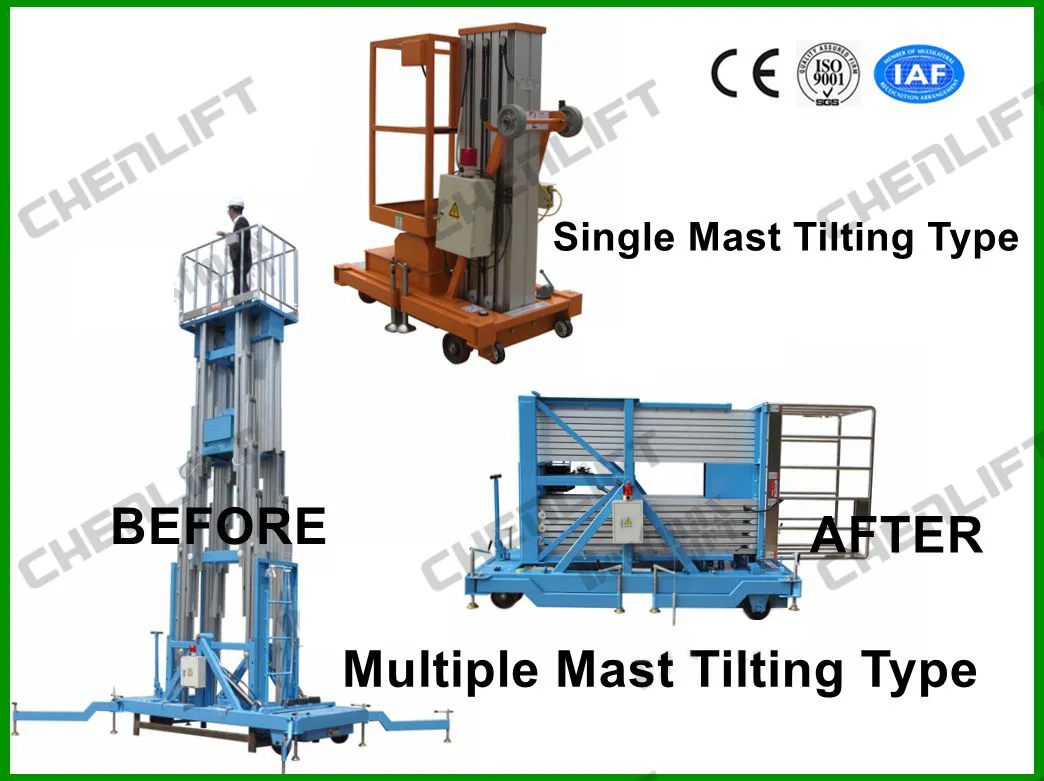

Special Designs

Tilting type can be made for height limitation place

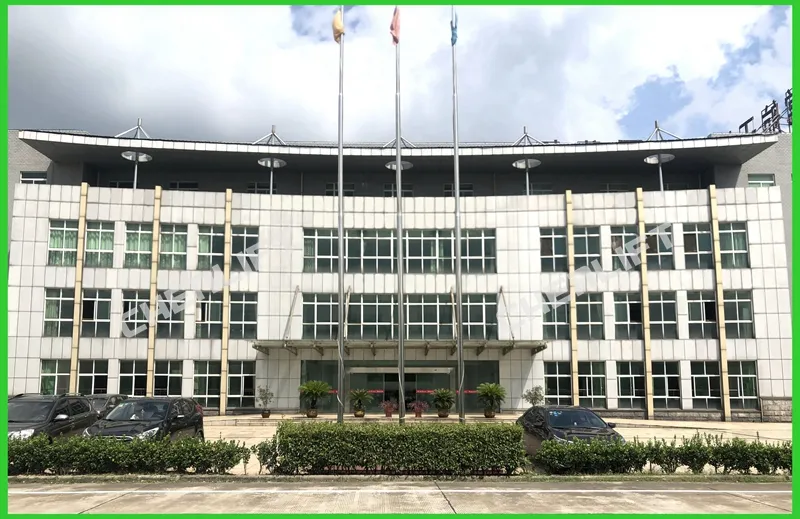

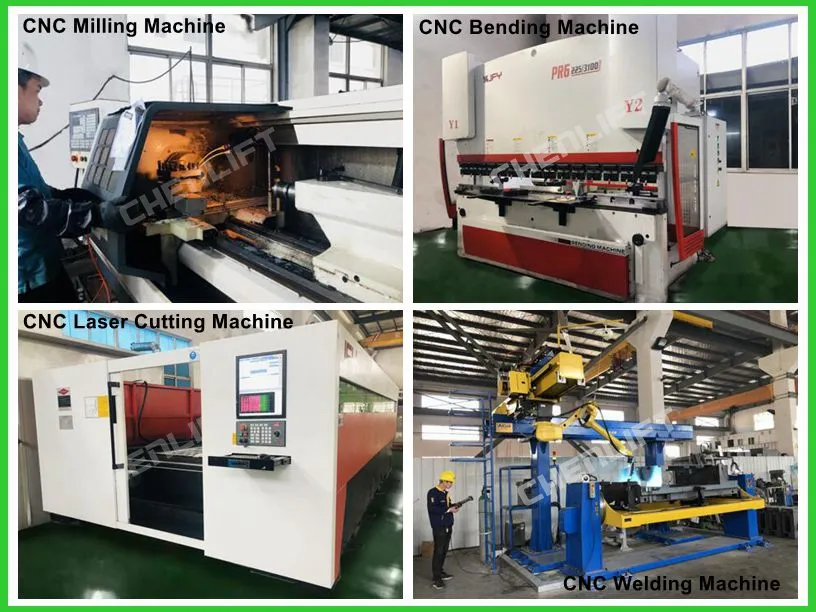

Factory & Quality Display

Frequently Asked Questions

Q1: What is the maximum working height of these platforms?

The maximum working height ranges from 8m for single mast models up to 24m for six-mast aluminum aerial work platforms.

Q2: What are the power supply options available?

The standard power supply is AC (110V or 220V). We also offer DC chargeable battery versions (12V or 24V) and dual AC & DC versions as optional configurations.

Q3: Can these platforms fit through standard doorways?

Yes, the compact design and light weight allow most models to easily pass through regular doors and be transported in standard elevators.

Q4: What safety features are included as standard?

Standard safety features include emergency stop buttons on both platform and ground, anti-burst valves on cylinders, toe protection boards, and dual limit switches.

Q5: What is the loading capacity for different models?

Loading capacity varies by model, ranging from 130kg for single mast lifts to 300kg for triple and quadruple mast platforms.

Q6: Are the tires suitable for indoor use?

Yes, the platforms are equipped with non-marking tires, making them ideal for indoor use in hotels, malls, and exhibition halls without damaging the floors.
