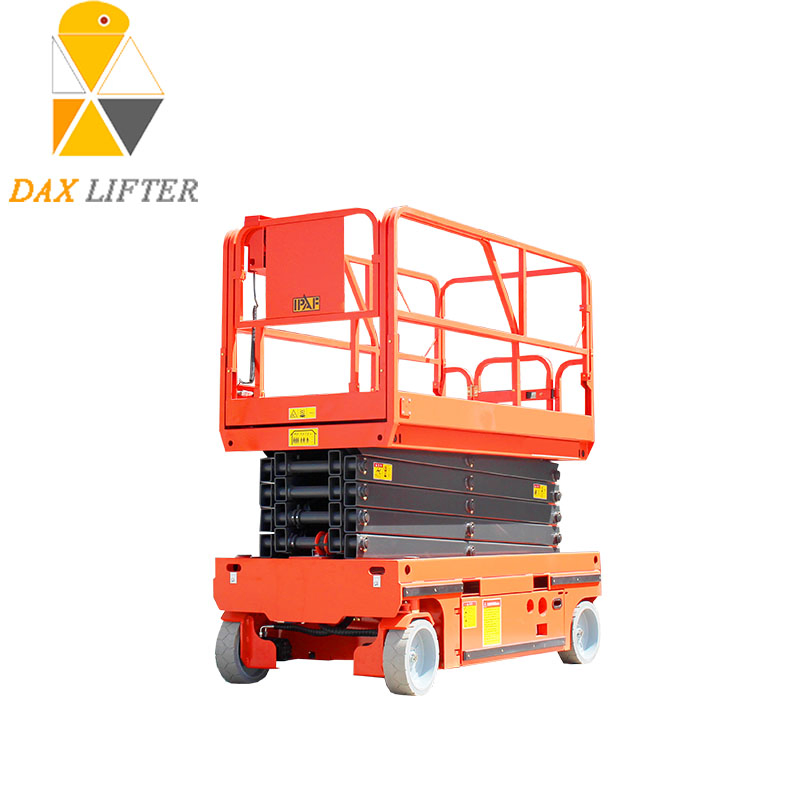

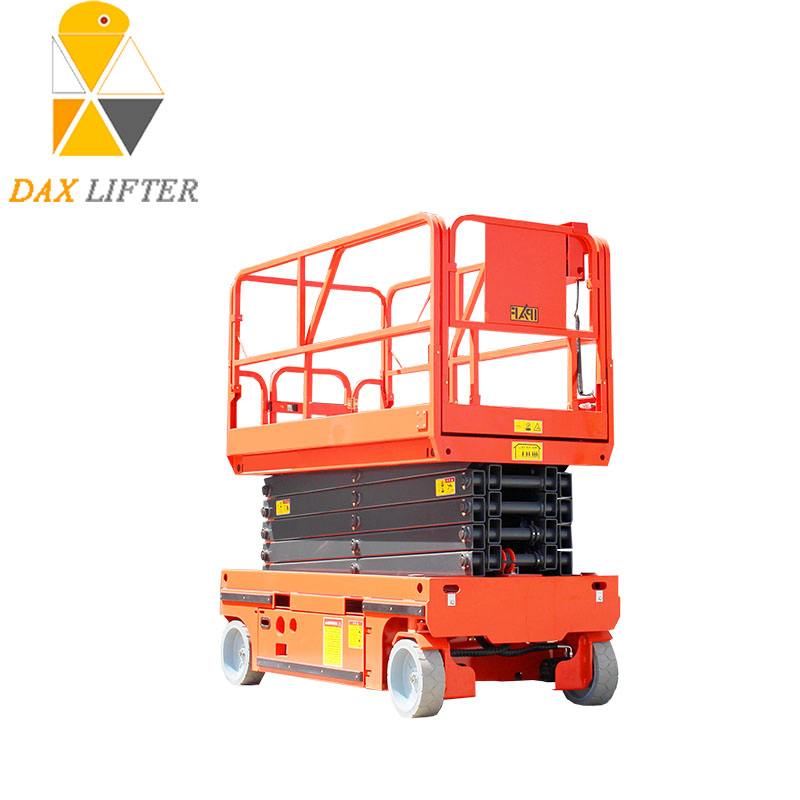

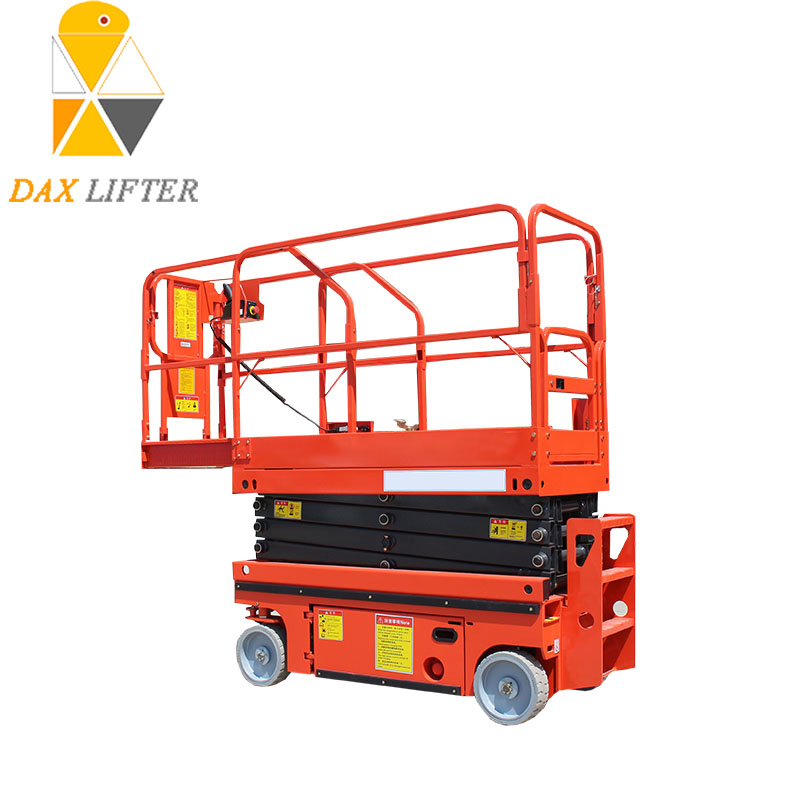

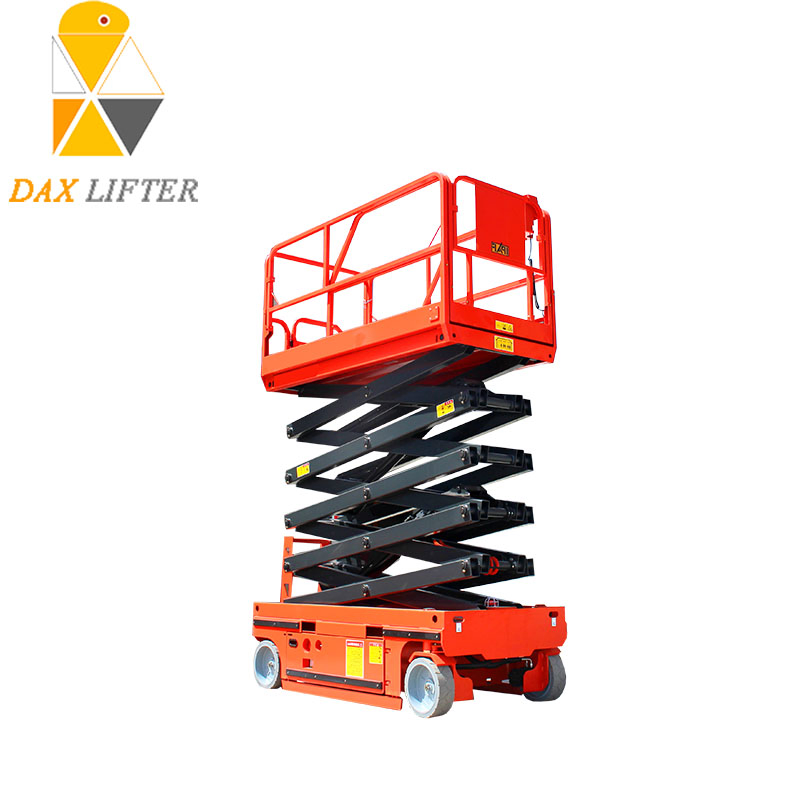

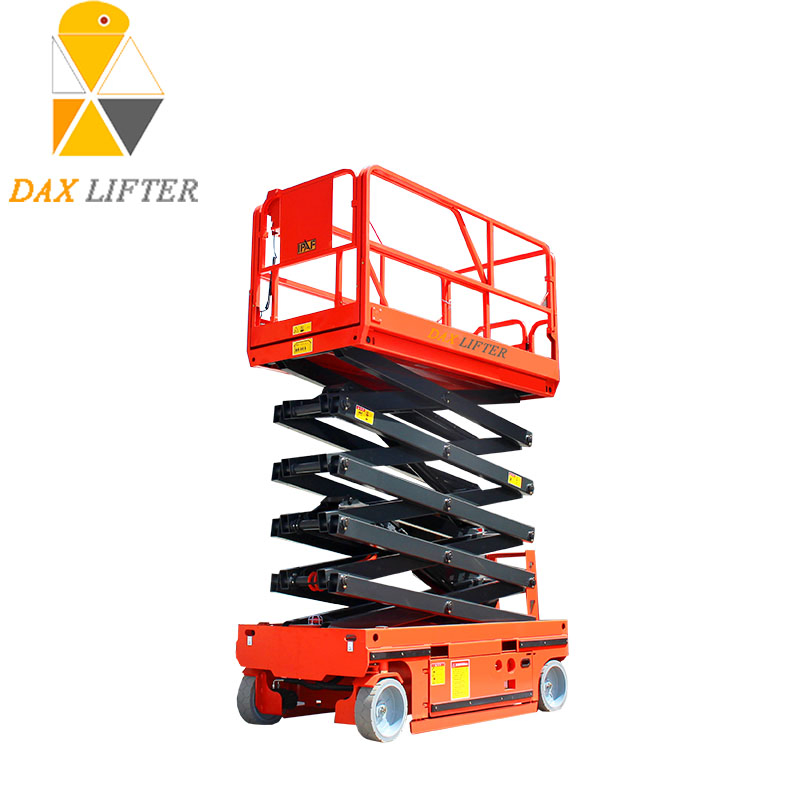

Self Propelled Mini One Two Man Lift Battery Hydraulic Electric Aerial Mobile Scissor Lift
Self Propelled Mini One Two Man Lift Battery Hydraulic Electric Aerial Mobile Scissor Lift
Self Propelled Mini One Two Man Lift Battery Hydraulic Electric Aerial Mobile Scissor Lift
Self Propelled Mini One Two Man Lift Battery Hydraulic Electric Aerial Mobile Scissor Lift
Self Propelled Mini One Two Man Lift Battery Hydraulic Electric Aerial Mobile Scissor Lift
1 / 5
Self Propelled Mini One Two Man Lift Battery Hydraulic Electric Aerial Mobile Scissor Lift
Self Propelled Mini One Two Man Lift Battery Hydraulic Electric Aerial Mobile Scissor Lift
Self Propelled Mini One Two Man Lift Battery Hydraulic Electric Aerial Mobile Scissor Lift
Self Propelled Mini One Two Man Lift Battery Hydraulic Electric Aerial Mobile Scissor Lift
Self Propelled Mini One Two Man Lift Battery Hydraulic Electric Aerial Mobile Scissor Lift

Self Propelled Mini One Two Man Lift Battery Hydraulic Electric Aerial Mobile Scissor Lift

Customization: Available
After-sales Service: Free Spare Parts&Online Technical Support
Warranty: 13 Months
Send Inquiry

Product Description

Basic Information

Model NO.
DX
Application
Workshop, Shipboard, Warehouse, Building
Lift Mechanism
Scissor Lift
Moves
Self-propelled
Driven Type
DC
Certification
CE, ISO 9001
Height Range
6-12m
Capacity
300kg
HS Code
8428909090
Origin
China

Product Description

China self-propelled hydraulic drive scissor lift is widely used in the aerial work platform industry. These lifts are typically utilized in factory operations, high-altitude installations, aviation industry, and high-altitude cleaning or maintenance work. The primary advantage of the self-propelled scissor lift compared to manual models is that operators can control movement directly from the platform, significantly increasing convenience and efficiency.

Technical Data

Model DX06 DX08 DX10 DX12 DX14
Max Platform Height6m8m10m12m14m
Max Working Height8m10m12m14m16m
Lifting Capacity320kg320kg320kg320kg230kg
Platform Extend900mm
Overall Size2470*1150*2220mm2470*1150*2320mm2470*1150*2430mm2470*1150*2550mm2855*1320*2580mm
Weight2210kg2310kg2510kg2650kg3300kg
Scissor Lift Showcase 1

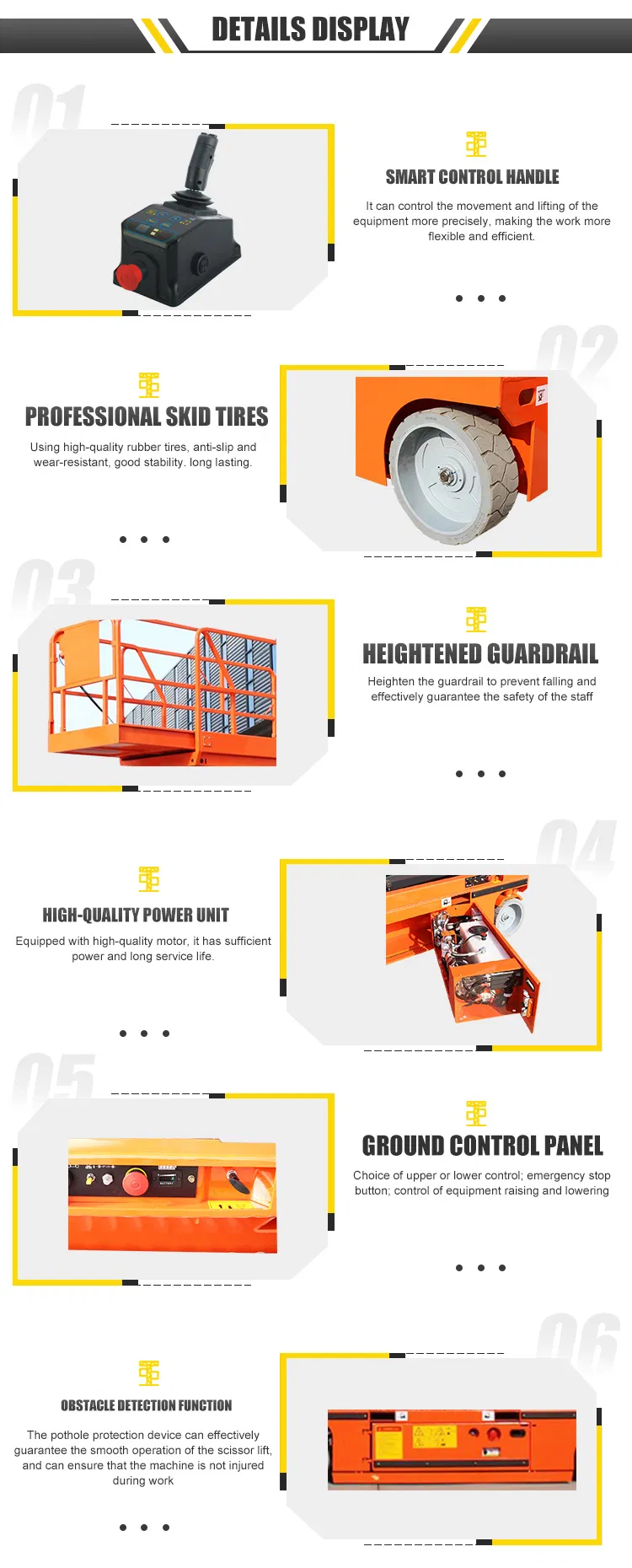

Scissor Lift Showcase 2

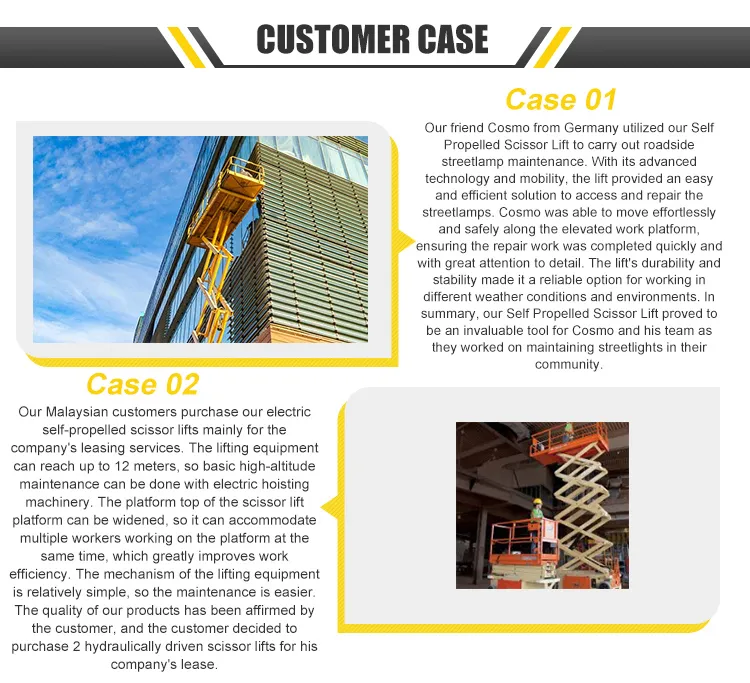

Scissor Lift Showcase 3
Scissor Lift Showcase 4
Scissor Lift Showcase 5
Scissor Lift Details 1
Scissor Lift Details 2
Scissor Lift Details 3

Why Choose Our Scissor Lifts

Extendable Platform
The working platform can be extended to widen the working site, allowing multiple workers to operate together efficiently.
High-Quality Hydraulics
Reasonably designed hydraulic system ensures the cylinder remains free of impurities, making maintenance simple and rare.
Self-Propelled Function
Moves flexibly without manual traction. Operators can drive the unit while elevated, saving time between tasks.
Safety First
Equipped with emergency lowering valves, removable control panels, and a sturdy integrated ladder for safe access.

Frequently Asked Questions

What is the maximum working height available?
Our series ranges from a platform height of 6m (8m working height) up to 14m (16m working height).
Can the lift be used on outdoor job sites?
Yes, the hydraulic self-propelled scissor lift is designed for both indoor and outdoor aerial work.
What is the power source for the movement and lifting?
The equipment uses a DC power supply (batteries), providing quiet, emission-free operation and easy manual control.
How much weight can the extended platform hold?
While the main platform holds up to 320kg (model dependent), the extended portion has a capacity of 113kg.
Does the machine require assembly upon delivery?
No, the product is shipped as a complete piece of equipment from the warehouse and is ready for use immediately.
What happens if there is a power failure while elevated?
The lift is equipped with an emergency lowering valve that allows the platform to be lowered safely to the ground.
