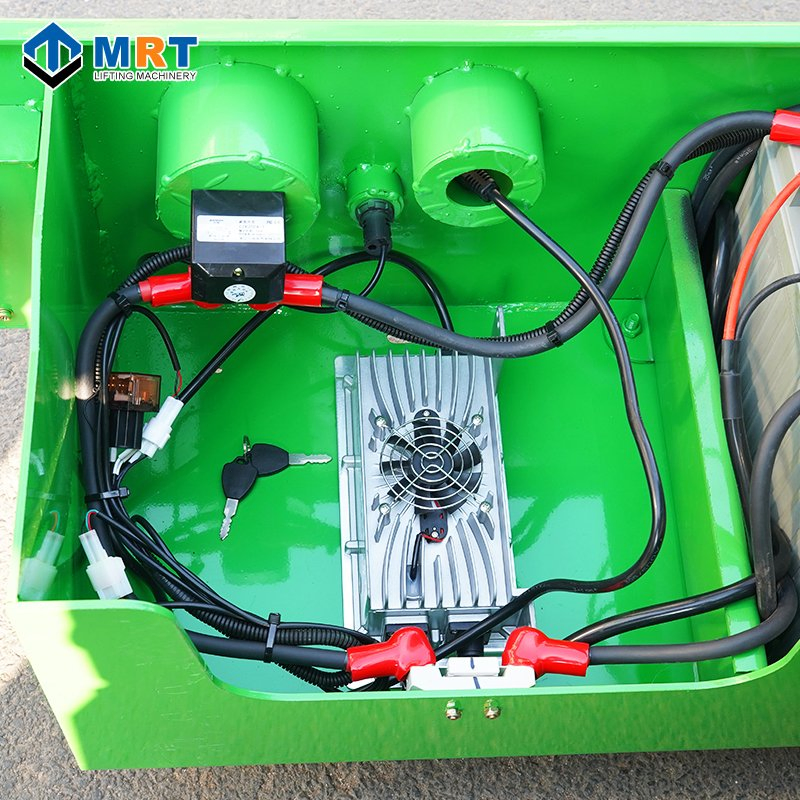

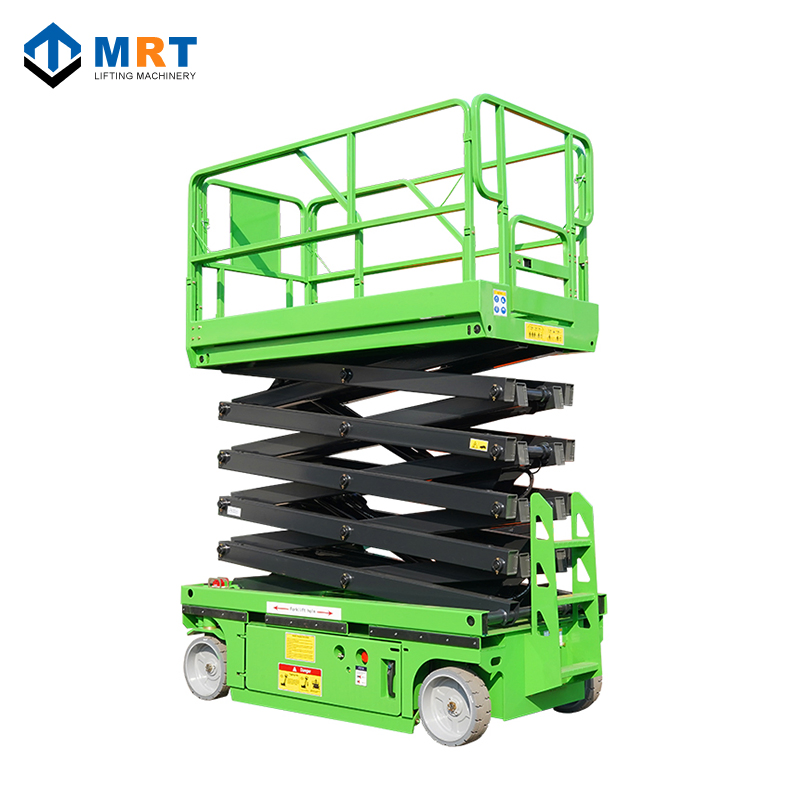

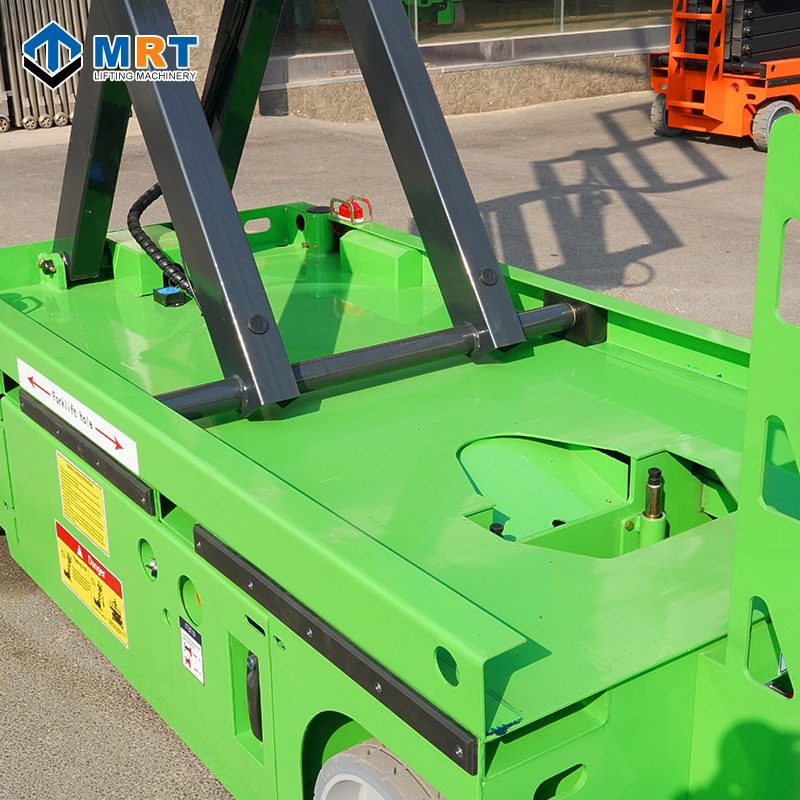

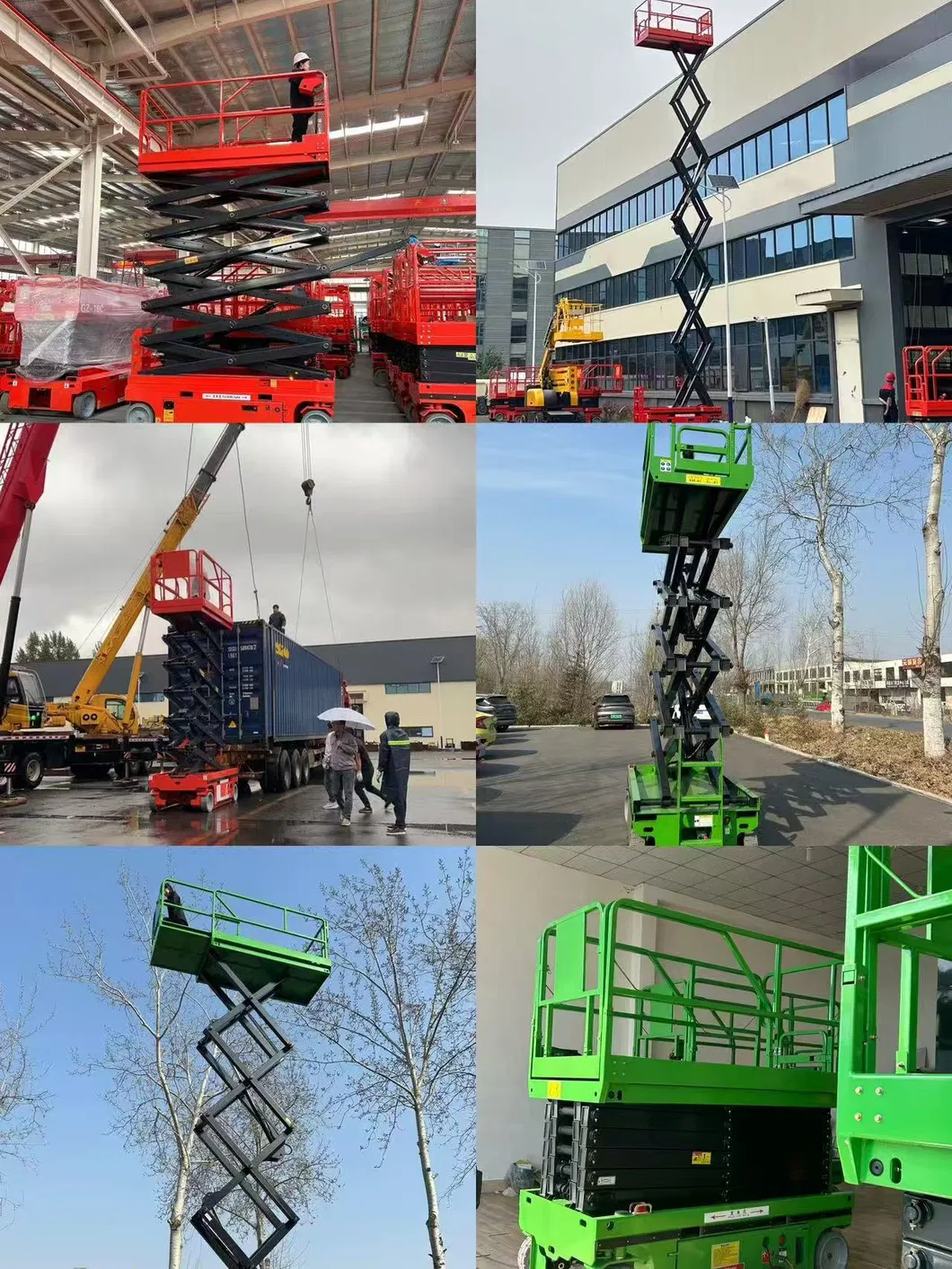

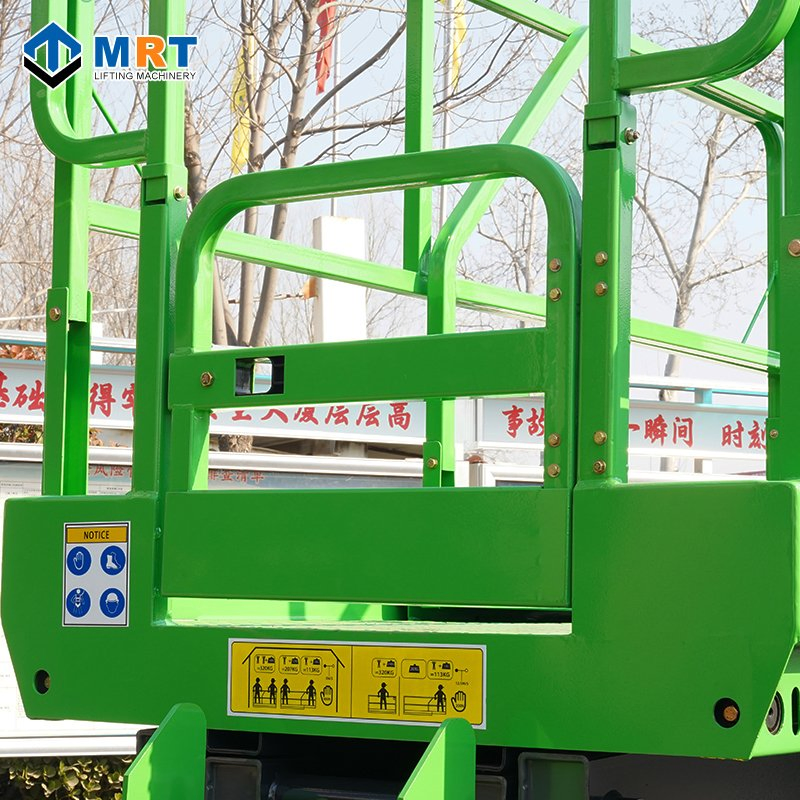

Mrt 6m-16m Self-Propelled Electric Hydraulic Scissor Lift Platform (CE ISO)
| Item | MRT-SS6 | MRT-SS8 | MRT-SS10 | MRT-SS12 | MRT-SS14 |
|---|---|---|---|---|---|
| Safe working load | 320Kg | 320Kg | 320Kg | 320Kg | 230Kg |
| Extension platform load | 113Kg | 113Kg | 113Kg | 113Kg | 113Kg |
| Max working height | 8m | 10m | 12m | 14m | 16m |
| Max platform height | 5.8m | 7.8m | 9.8m | 11.8m | 13.8m |
| Overall length | 2470mm | 2470mm | 2470mm | 2470mm | 2855mm |
| Overall width | 1150mm | 1150mm | 1150mm | 1150mm | 1320mm |
| Height (unfolded) | 2220mm | 2320mm | 2430mm | 2550mm | 2580mm |
| Height (folded) | 1680mm | 1780mm | 1910mm | 2030mm | 2040mm |
| Platform size | 2270x1110mm | 2270x1110mm | 2270x1110mm | 2270x1110mm | 2640x1100mm |
| Lifting motor | 24V/3.3KW | 24V/4.5KW | 24V/4.5KW | 24V/4.5KW | 24V/4.5KW |
| Battery | 4x6V/203 | 4x6V/203 | 4x6V/203 | 4x6V/203 | 4*12V |
| Weight | 2000Kg | 2350Kg | 2600Kg | 2760Kg | 3370Kg |
• CE Compliance: Meets international safety standards for global markets.
• ISO9001:2008: Strict quality management system control.
• IQNET Certification: Advanced management and quality assurance.
• Professional Recognition: Industry-leading quality and service commitment.
