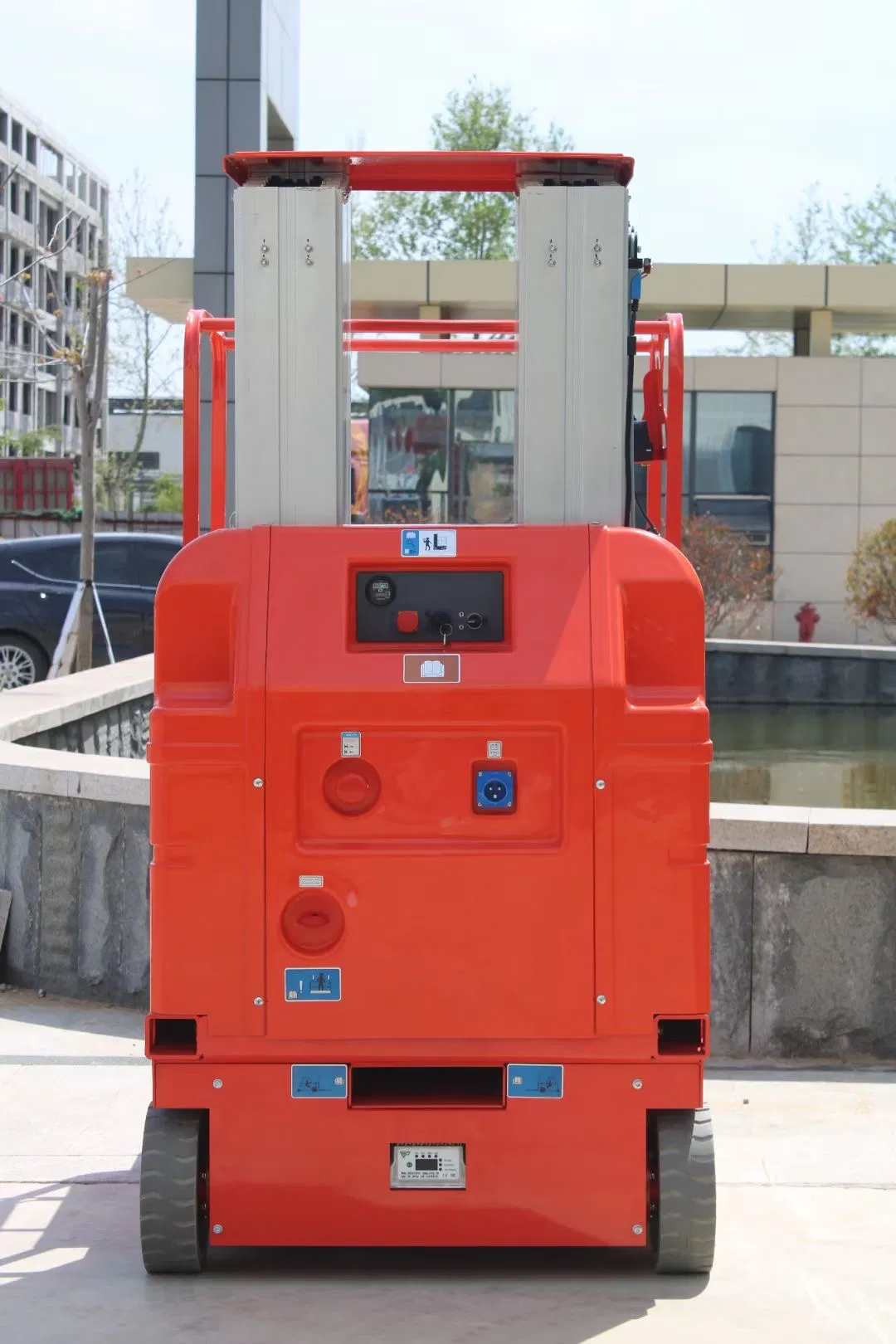

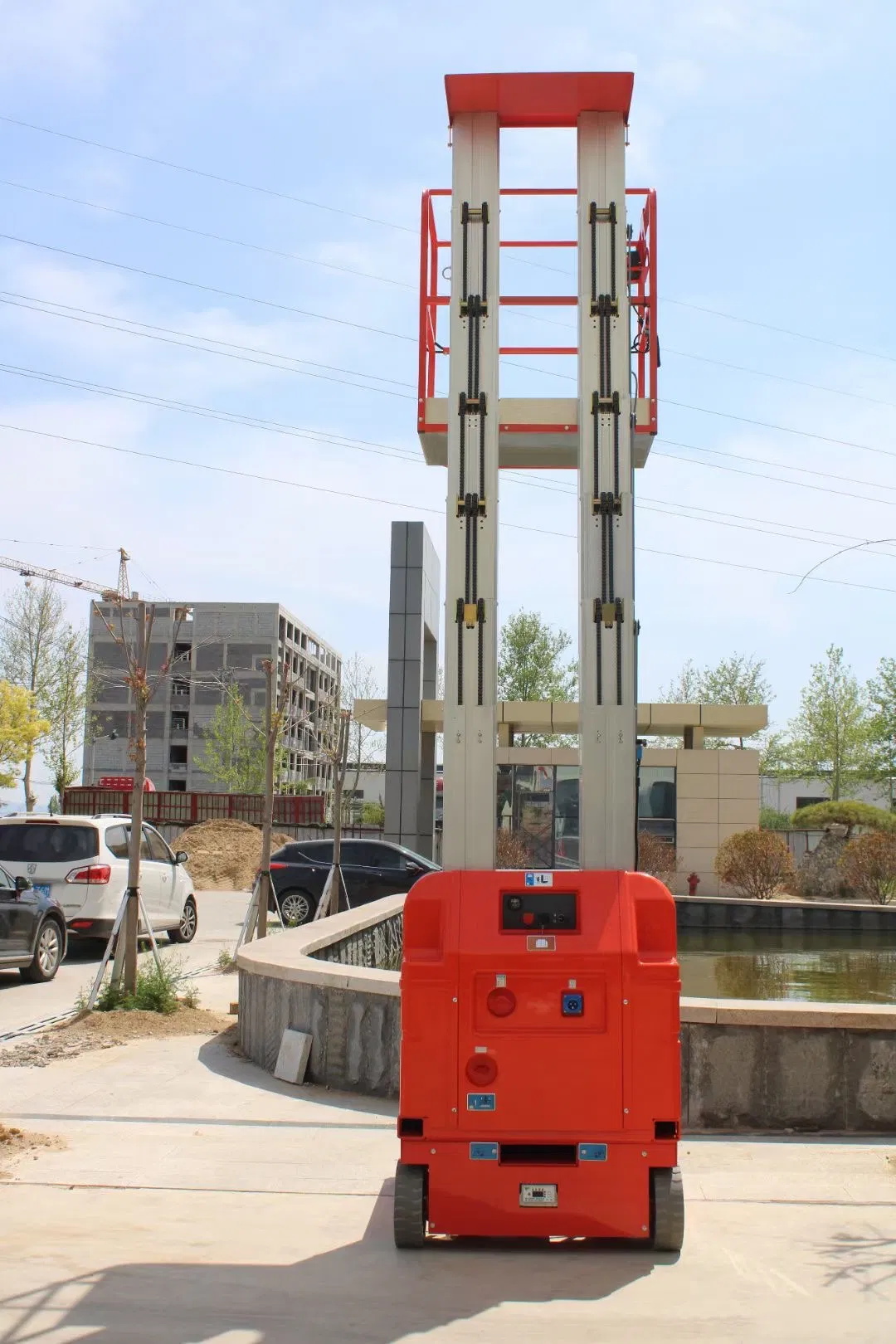

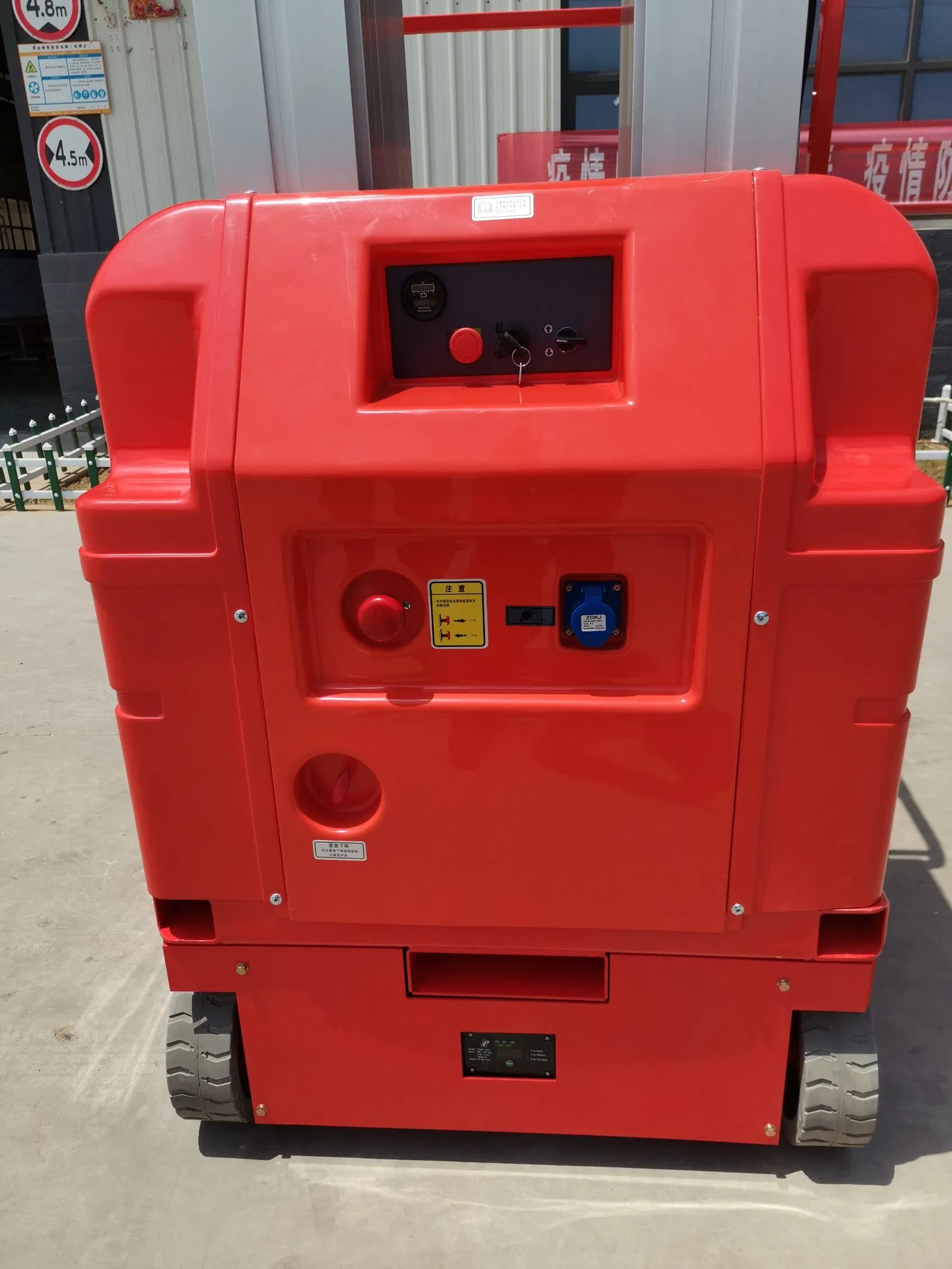

Portable Vertical Hydraulic Ladder Mast Electric Man Aluminum Alloy Lift Platform

Customization: Available
After-sales Service: 24 Hours Online After-Sales Service
Warranty: 12 Months Apart From Man-Made Faults

Product Description

📊Basic Information
Model NO.
AMWP9-2100
Application
Workshop, Warehouse, Building
Lift Mechanism
Lift Chain
Carrying Capacity
Light Level
Moves
Self-propelled
Driven Type
DC
Certification
CE, ISO 9001
Platform Size
1.00m*0.65m
Overall Height
1.99m
Production Capacity
200 Units Per Month
💡Product Description

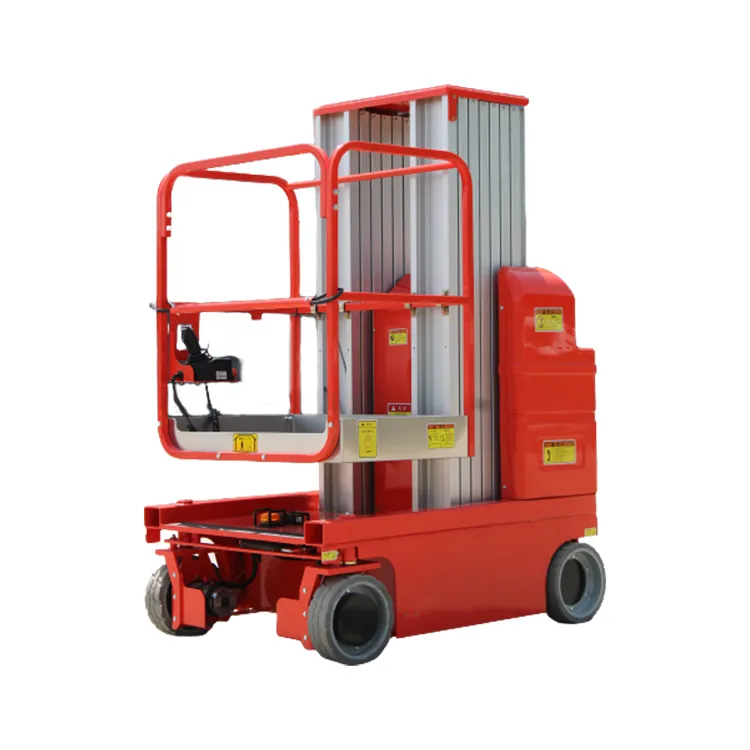

Vertical Aerial Work Platform

Self-propelled Vertical Aerial Work Platform is a type of equipment commonly used in construction, maintenance, and repair work involving heights. It is designed to provide a safe and efficient means of access to elevated areas, allowing workers to perform tasks such as painting, cleaning, and installing or repairing fixtures.

⚙️Product Parameters
Model AMWP7.5-2100 AMWP9-2100
Max. Working Height9.50m11.00m
Max. Platform Height7.50m9.00m
Loading Capacity200kg150kg
Occupants11
Overall Length1.46m1.46m
Overall Width1.01m1.01m
Overall Height1.98m1.98m
Platform Dimension1m×0.65m1m×0.65m
Travel Speed (Raised)1.1km/h1.1km/h
Gradeability25%25%
Lifting Motor24VDC/1.3kW24VDC/1.3kW
Battery2×12V/100Ah2×12V/100Ah
Weight1270kg1345kg
📸Detailed Photos

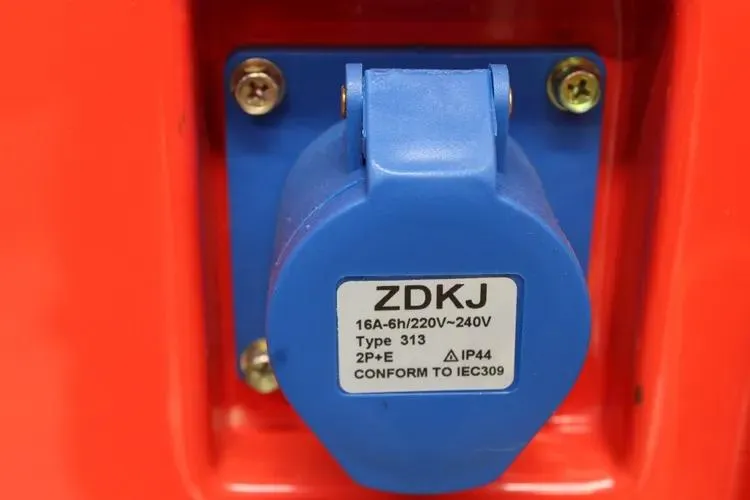

Detailed Photo 1

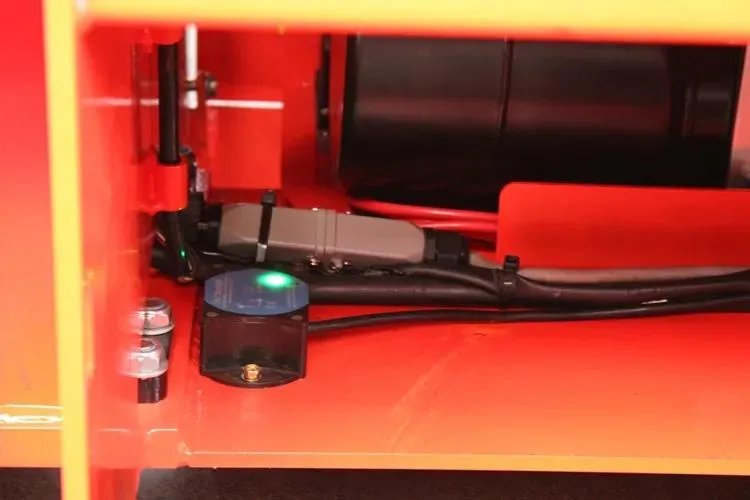

Detailed Photo 2

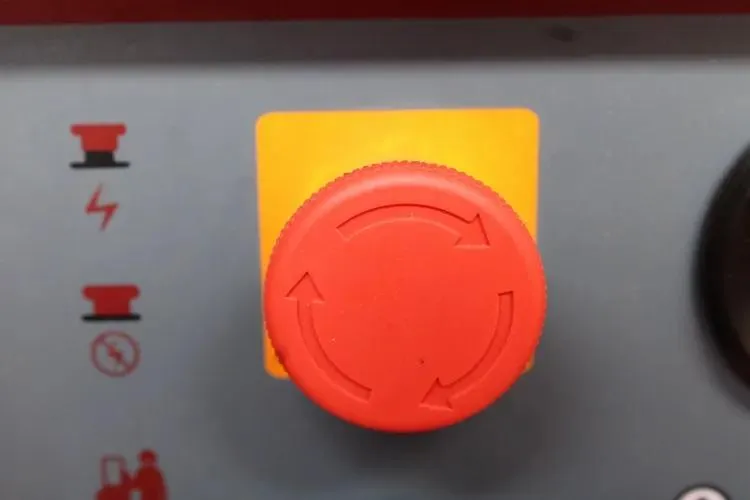

Detailed Photo 3

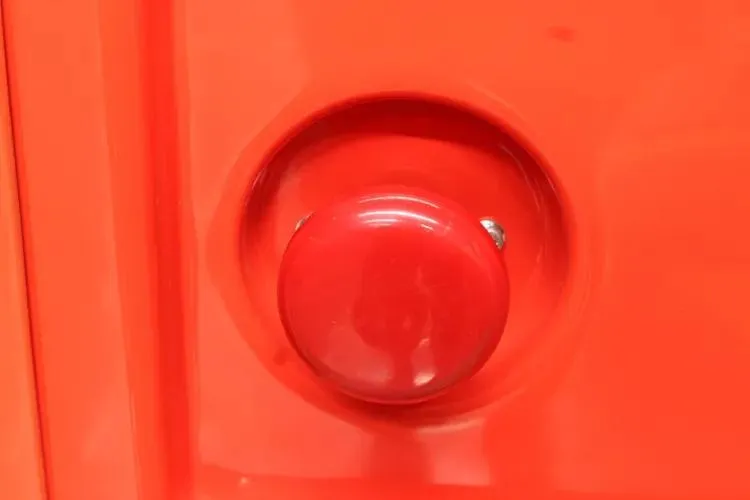

Detailed Photo 4

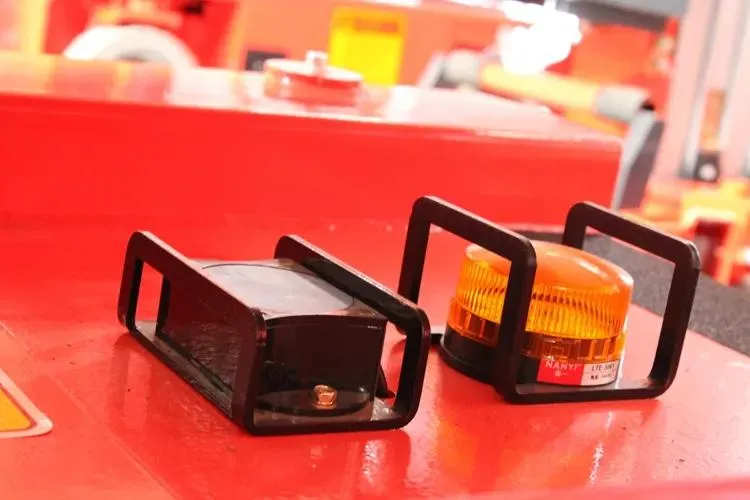

Detailed Photo 5

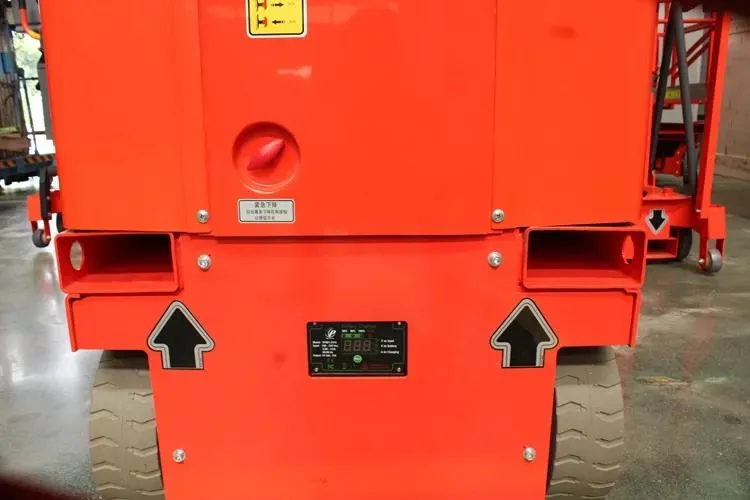

Detailed Photo 6

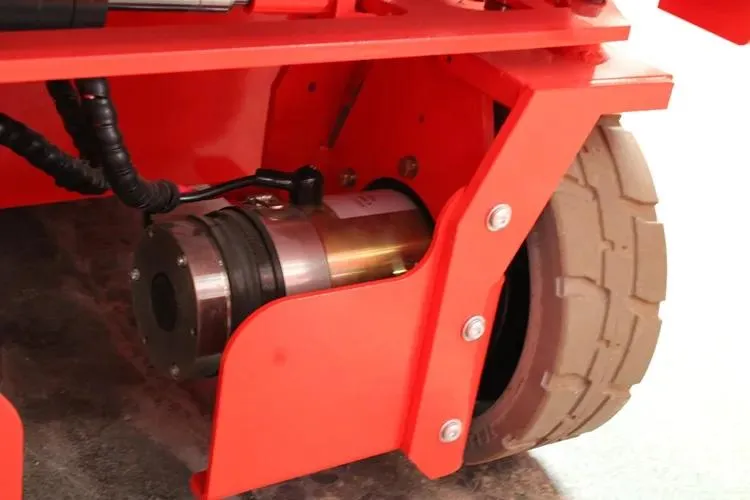

Detailed Photo 7

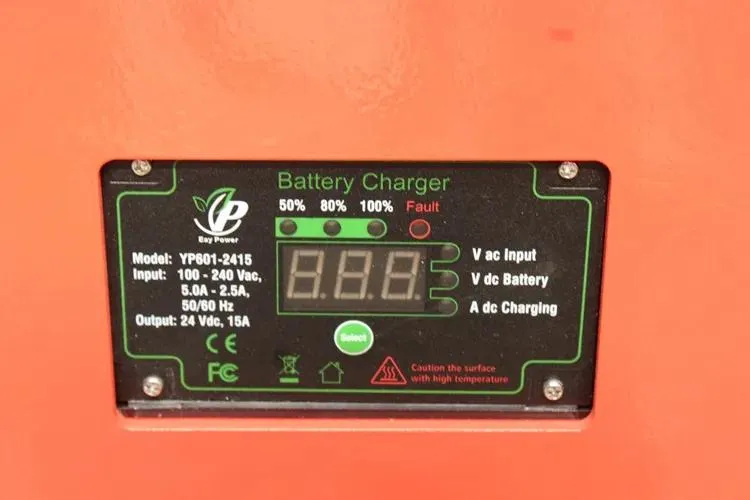

Detailed Photo 8

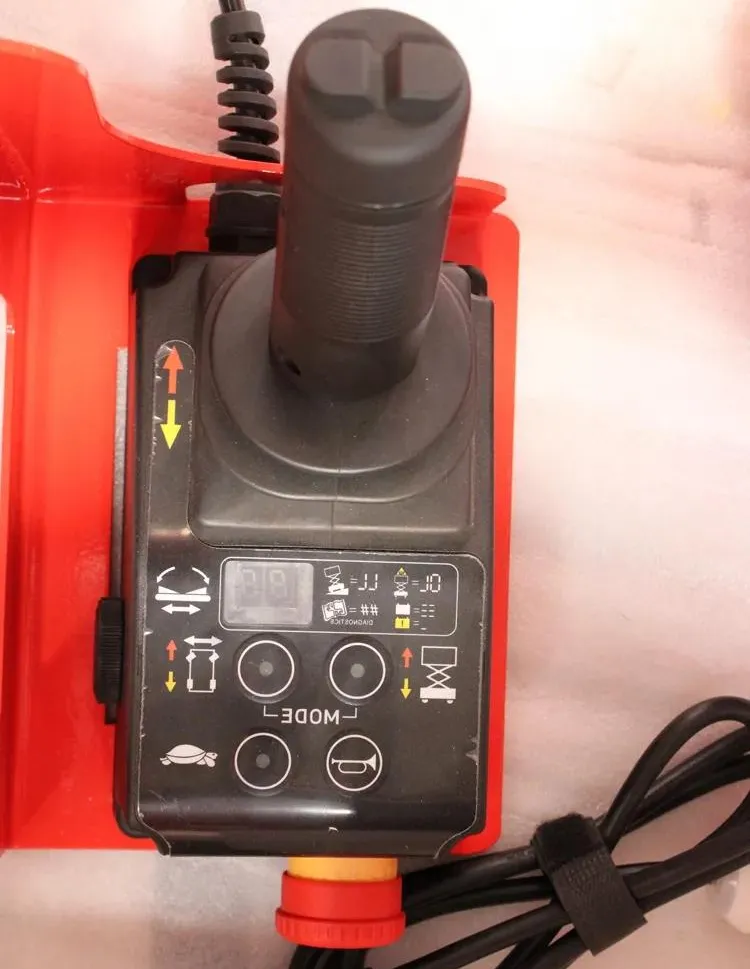

Detailed Photo 9
🛠️Key Configuration & Features
  • Battery power, no need for external power supply.
  • Single handle operation with proportional control.
  • Non-marking rubber tires to protect floors.
  • Compact structure for small space access.
  • Automatic braking function on driving wheels.
  • Unique mast guide wheel holding technology.
  • Dual control: platform and ground operation.
  • Standard forklift holes for safe loading.
  • DC 24V control voltage for operator safety.
  • Double contactors in electrical control system.
  • Emergency stop buttons on both control panels.
  • Intelligent charger with overcharge protection.
  • Emergency lowering valve for power failures.
  • Pipeline explosion-proof system.
  • Safety belt hooks on the platform.
  • Tilt protection and fault diagnosis functions.
  • Equipped with buzzer, horn, and strobe light.
  • Electrostatic spray paint finish after shot blasting.
🏢Production & Manufacturing

As a modern manufacturing enterprise specialized in aerial work platforms, we provide a full package service covering design, production, sales, and after-sales support. Our experienced team ensures every process adheres to strict quality control standards.

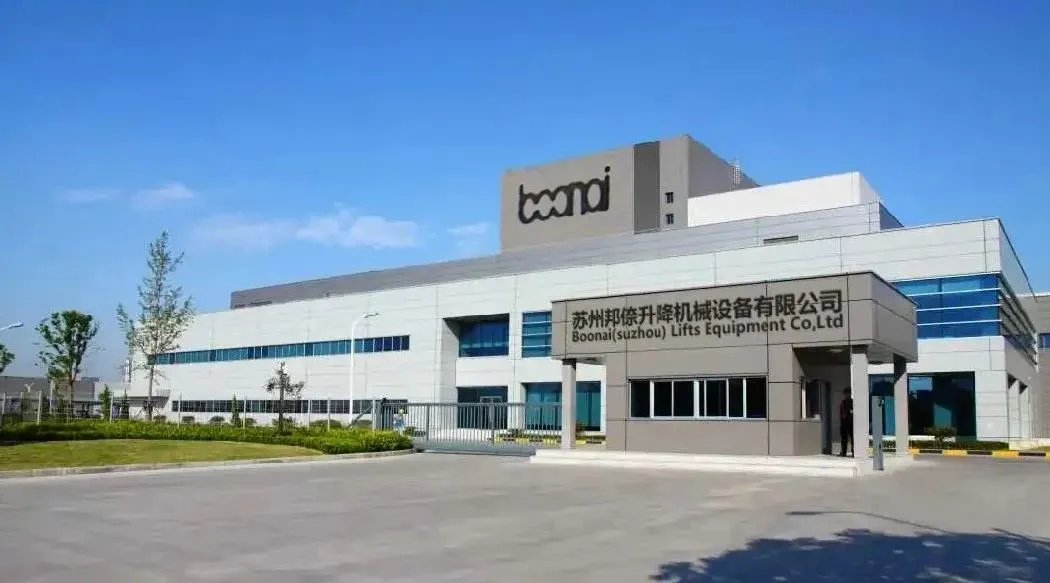

Production Facility

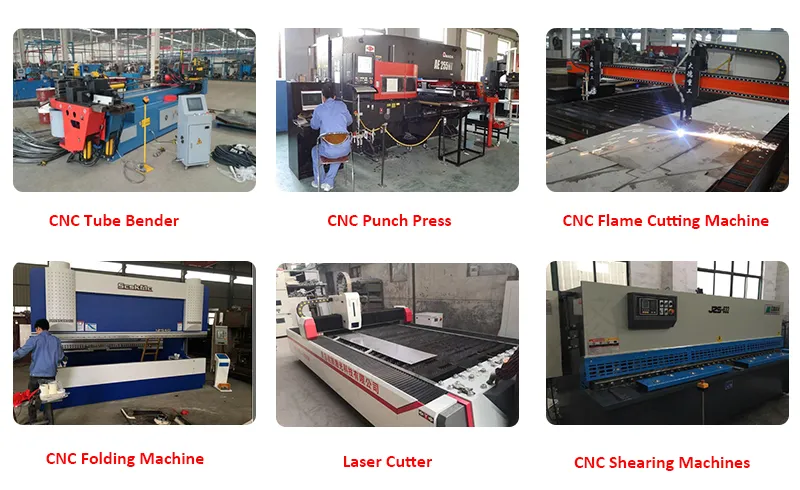

Factory Overview

Main product lines include mast aerial work platforms, scissor lifts, fixed lift tables, and material pickers, widely applied in machinery, aviation, and logistics sectors.

📦Packaging & Support
Packaging and Shipping
Service Commitments:
  • User-friendly English manual for operation and maintenance.
  • One year warranty for the entire machine (non-human fault).
  • Free parts replacement during warranty for non-human factors.
  • 24-hour technical support via email or online communication.
  • Fast response within 2 hours for any inquiries.
Frequently Asked Questions
What is the maximum working height of these platforms?
Depending on the model, the maximum working height ranges from 9.5 meters (AMWP7.5) to 11.0 meters (AMWP9).
Can the machine be operated on delicate flooring?
Yes, the machine is equipped with non-marking rubber tires specifically designed to protect indoor flooring from damage.
What power source is required for operation?
These units are self-propelled and powered by a DC 24V battery system, eliminating the need for external power cables during use.
What safety mechanisms are in place for emergencies?
Safety features include emergency stop buttons on both the platform and ground, an emergency lowering valve for power failure, and a tilt protection system.
How is the equipment transported?
The chassis includes standard forklift holes, making it easy and safe to load, unload, and transport the equipment to different sites.
What kind of maintenance is required?
Regular battery charging and simple inspections of the hydraulic system are required. A user-friendly English manual is provided to guide all maintenance tasks.
