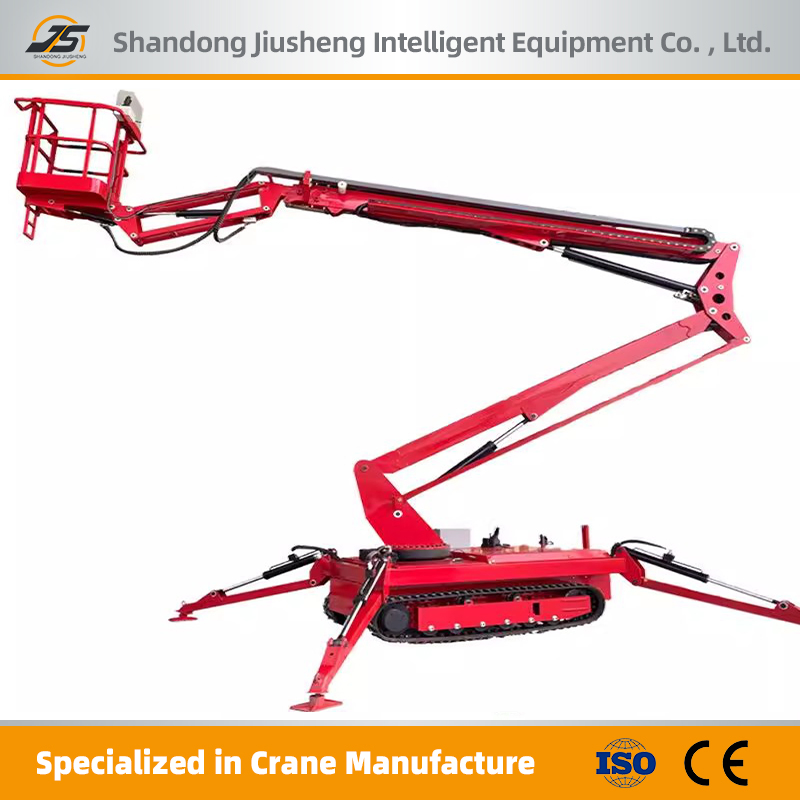

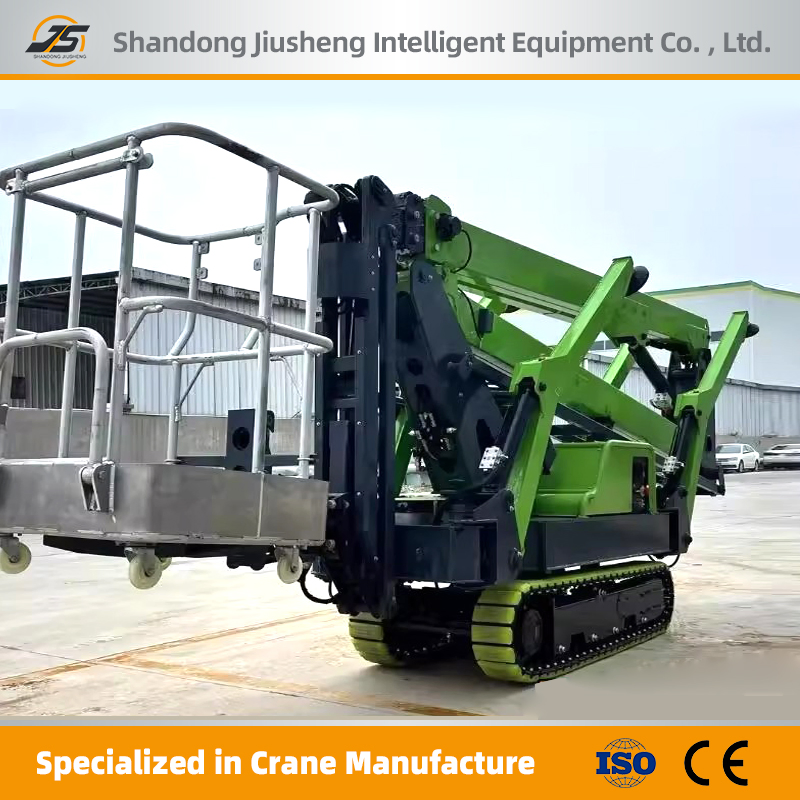

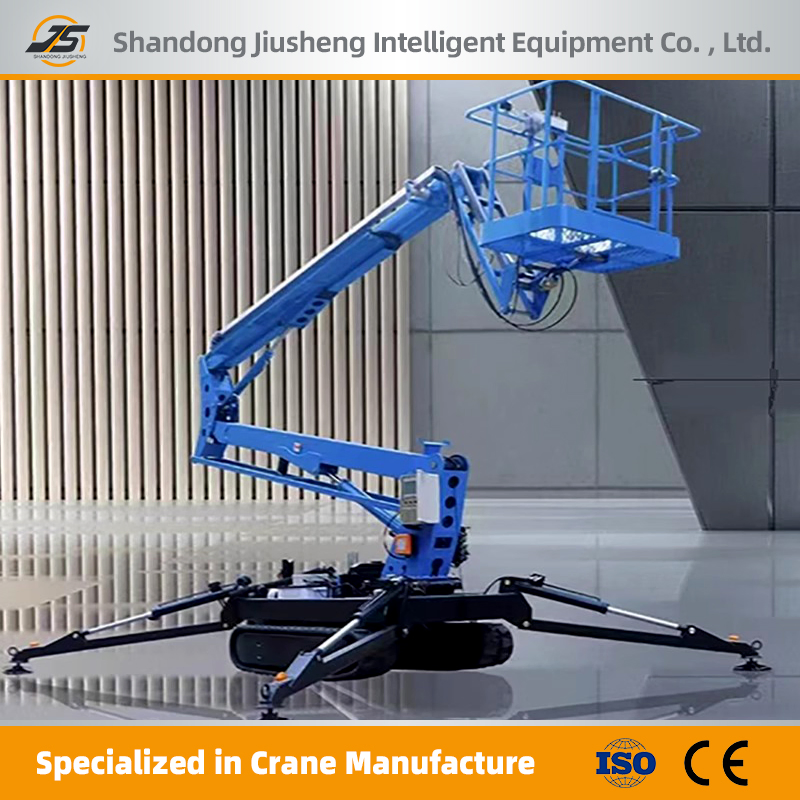

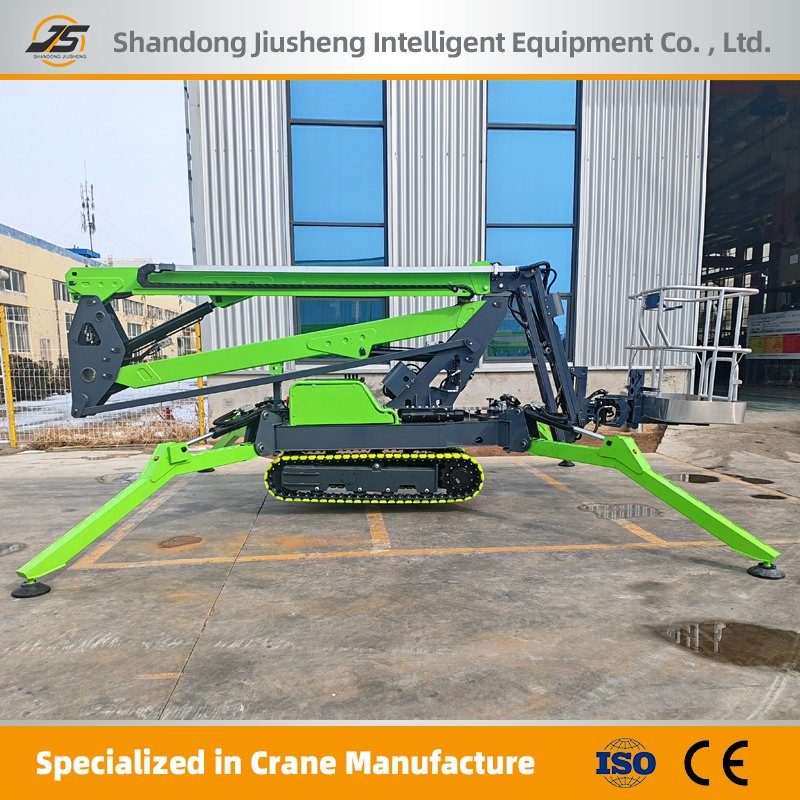

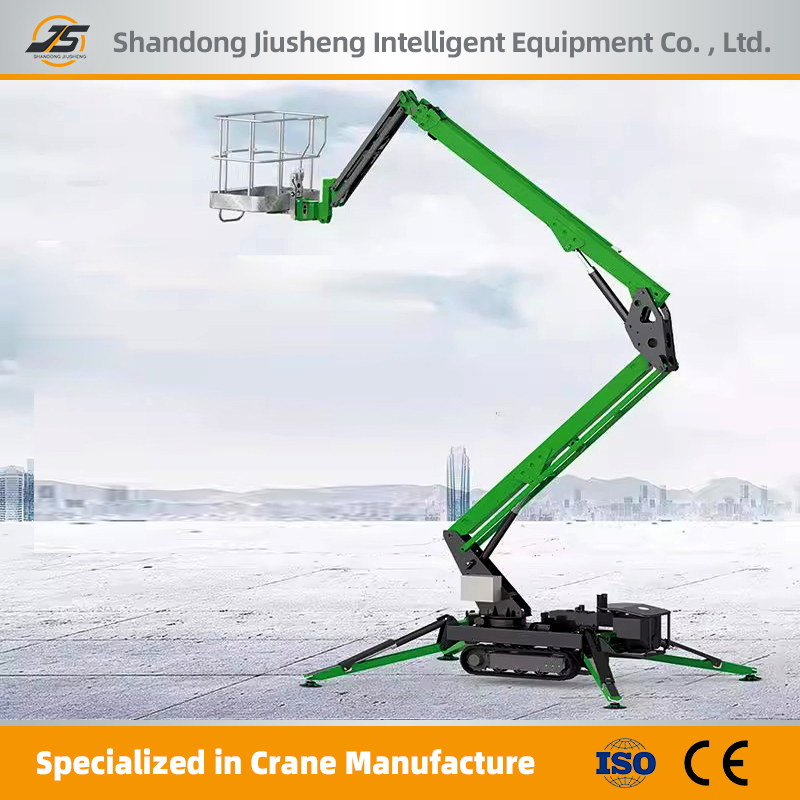

Crawler Telescopic Boom Spider Lifting Platform Electric Aerial Work Engineering Diesel Lift

1 / 5

Crawler Telescopic Boom Spider Lifting Platform Electric Aerial Work Engineering Diesel Lift

Customization:	Available
After-sales Service:	24-Hour Online Support
Warranty:	2year

Send Inquiry

Product Description

Basic Specifications

Model NO.

JS16.0

Application

Workshop, Warehouse, Building Crane

Lift Mechanism

Articulated Lift

Working Height

22m

Platform Height

14m

Load Capacity

230kg

Driven Type

AC / Battery Powered

Battery

48V/450ah

Travel Speed

5km/H

Climbing Ability

30°

Weight

6650kg

Certification

CE, ISO 9001

Product Description

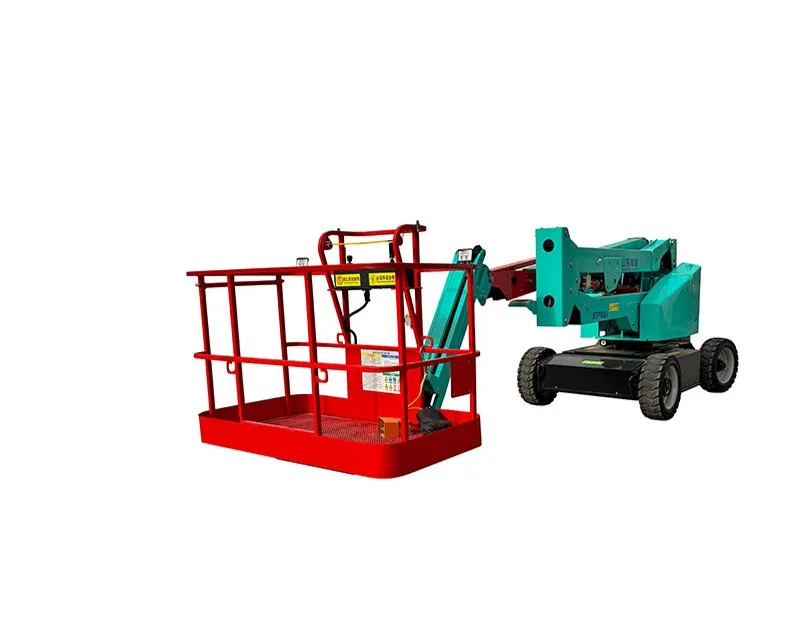

Articulating Boom Lift Overview

The articulated boom aerial work platform is advanced lifting equipment designed for complex aerial tasks. Its multiple retractable and folding arm structure supports both vertical lifting and horizontal extension, allowing it to cross obstacles such as buildings and trees with ease.

Key Applications

✦

Construction: Glass curtain wall installation, exterior wall spraying, and aerial welding.

✦

Roadwork: Maintenance of street lights and installation of traffic signs.

✦

Interior Decoration: Efficient replacement of ceilings and light fixtures in large facilities.

✦

Fire Rescue: Emergency evacuation and access to high-rise buildings.

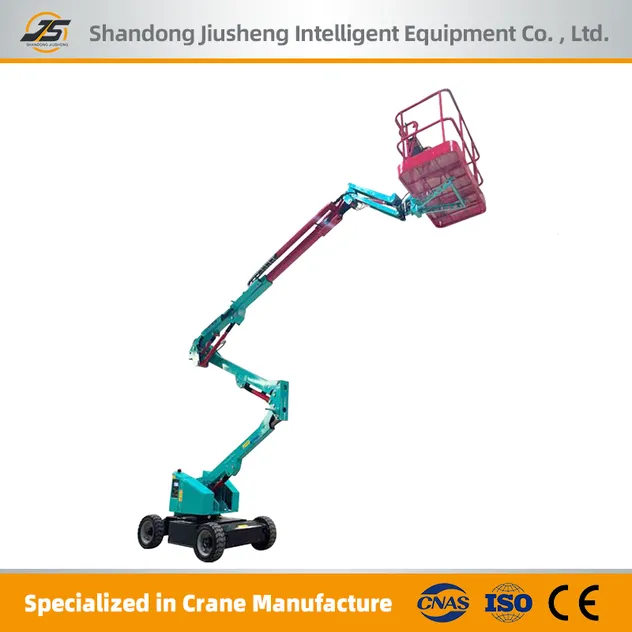

Right Elevation

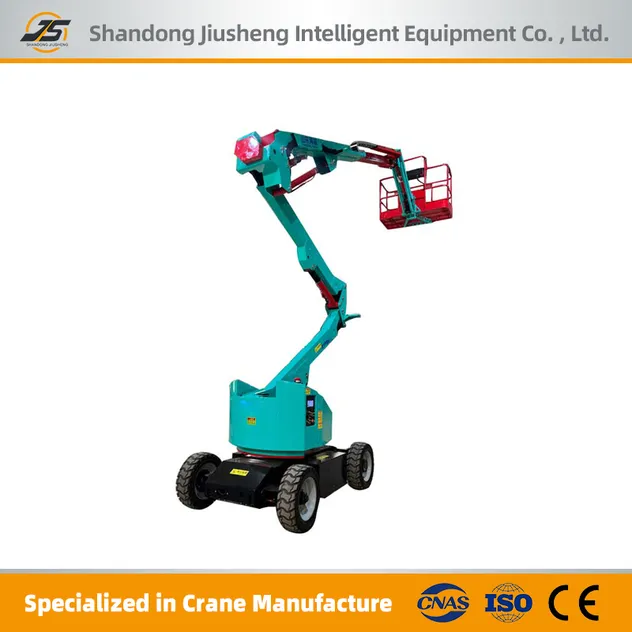

Left Elevation

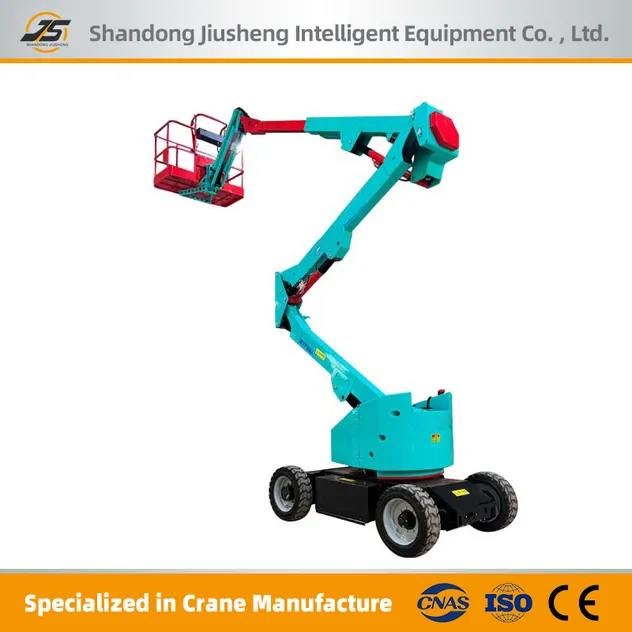

Front Elevation

Technical Specifications

Self-propelled Electric Articulated Arm Platform
Working Height	22m	Stretch Horizontally	7.4m
Platform Height	14m	Platform Length	0.92m
Package Size	2 * 6.6 * 1.75m	Wheelbase	2m
Bearing Load	230kg	Platform Rotation	±90°
Travel Speed	5km/h	Tyre Size	240/55D17.5
Drive System	2WD	Voltage	12V

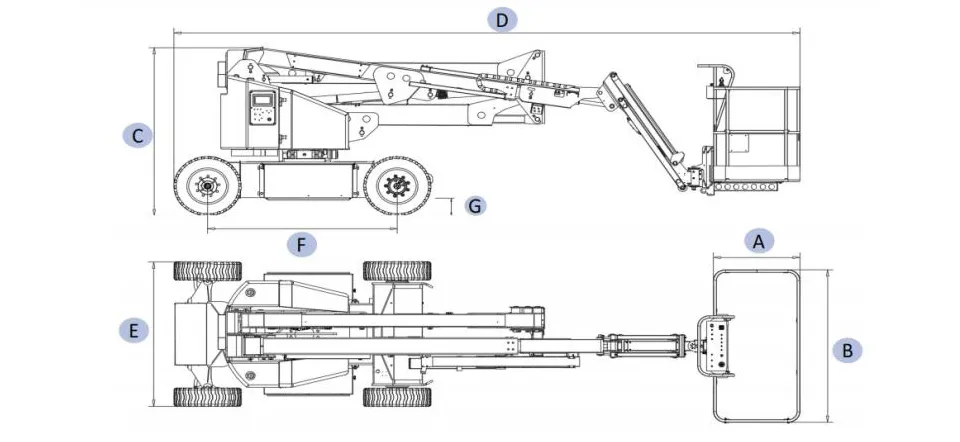

Drawings & Dimensions

Frequently Asked Questions

Q1: What is the maximum working height and load capacity of this model?

A: The JS16.0 model offers a maximum working height of 22 meters and a platform load capacity of 230kg, suitable for most aerial engineering tasks.

Q2: Is this articulating boom lift suitable for indoor use?

A: Yes. It features an electric drive with a large capacity lithium battery, ensuring low noise and zero emissions, making it ideal for indoor warehouses and decoration projects.

Q3: Can the platform rotate to reach difficult angles?

A: Absolutely. The platform can rotate ±90°, and the turntable offers 355° rotation, providing excellent flexibility to navigate around obstacles.

Q4: What are the main advantages of the articulated structure?

A: The articulated design allows the boom to "up and over" obstacles, providing a combination of vertical height and horizontal reach that straight telescopic booms cannot achieve.

Q5: Do you support customized configurations for specific projects?

A: Yes, as a professional manufacturer, we support customized processing and can tailor dimensions or configurations to meet your specific site requirements.

Q6: What kind of maintenance does the electric drive system require?

A: The electric drive system is designed for low maintenance. Regular battery charging and basic inspections of the hydraulic joints and control system are usually sufficient.
