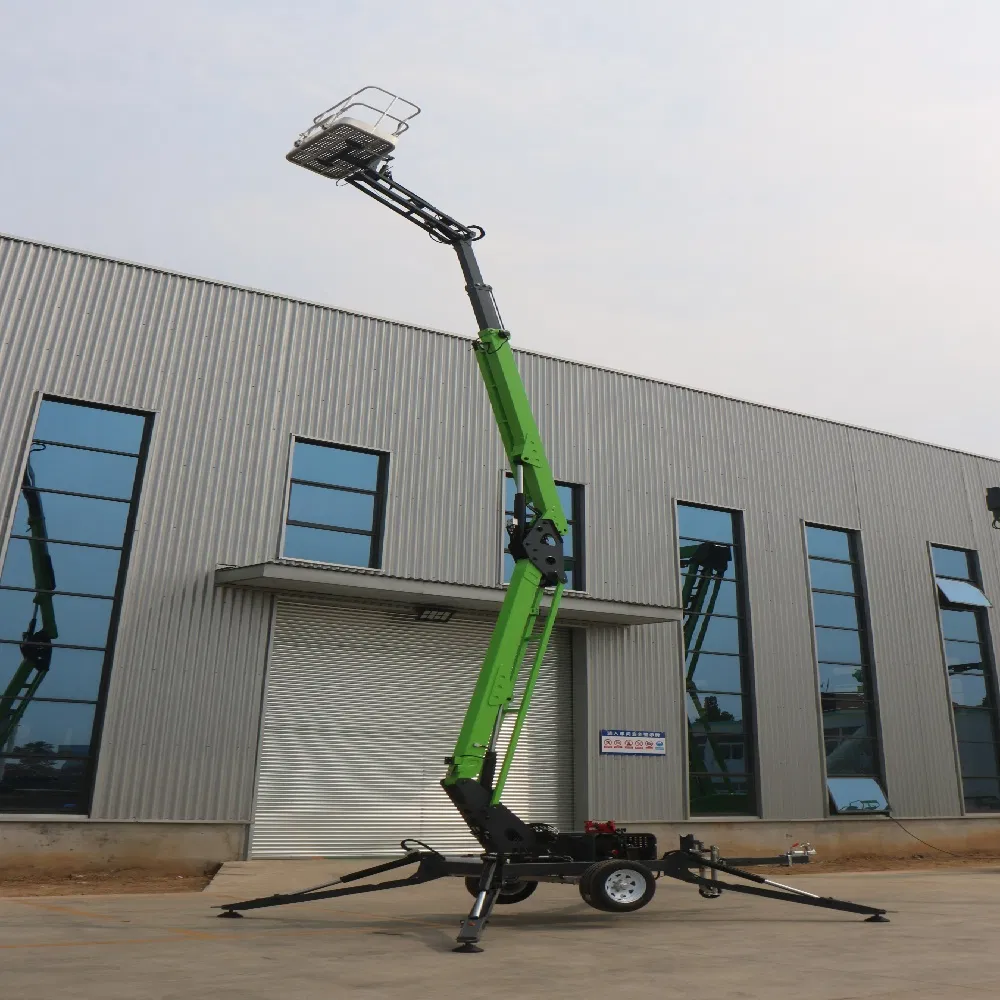

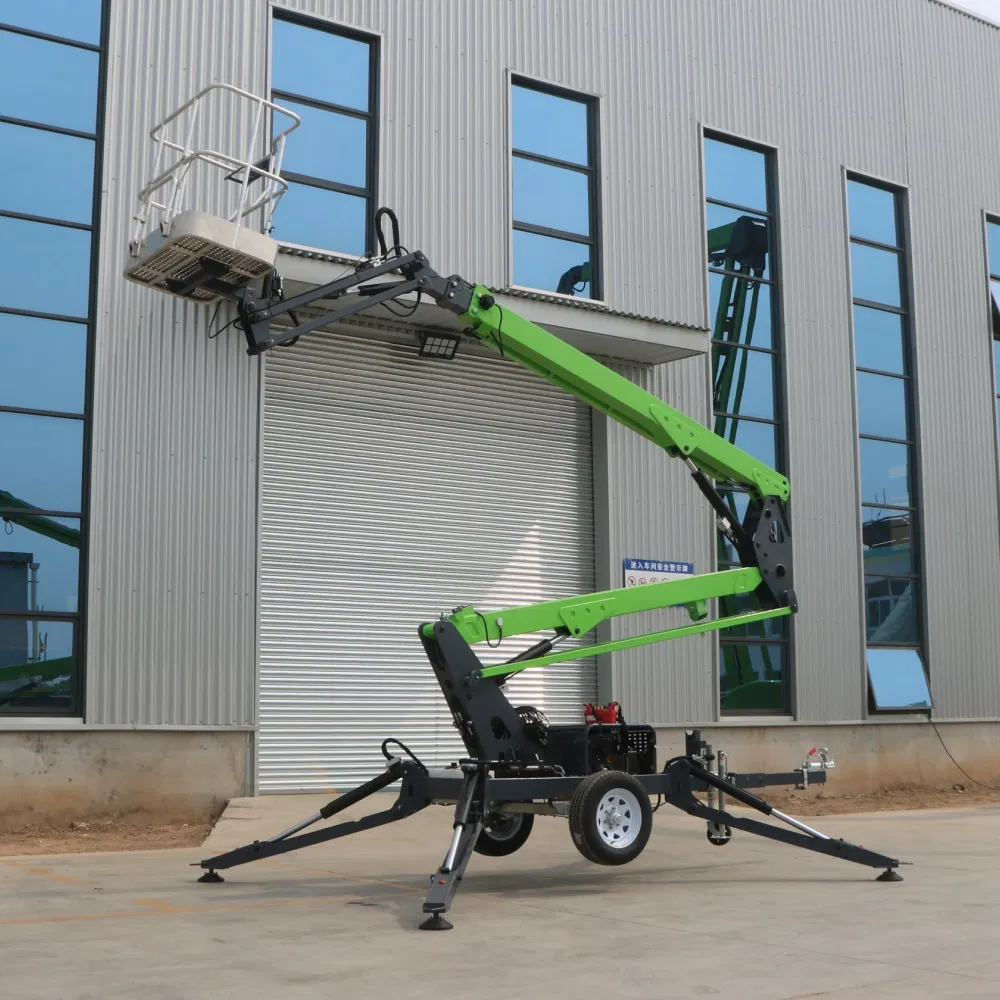

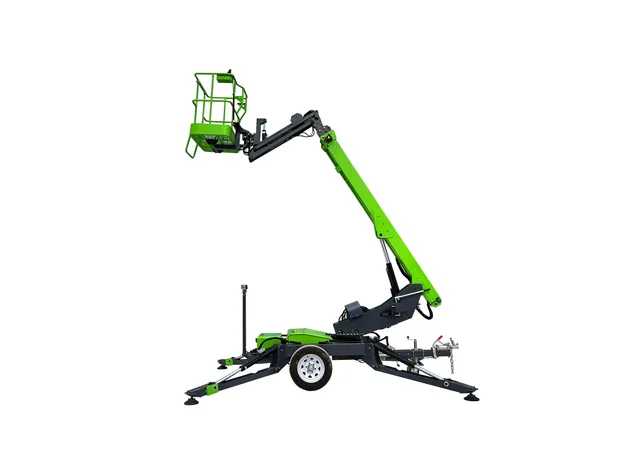

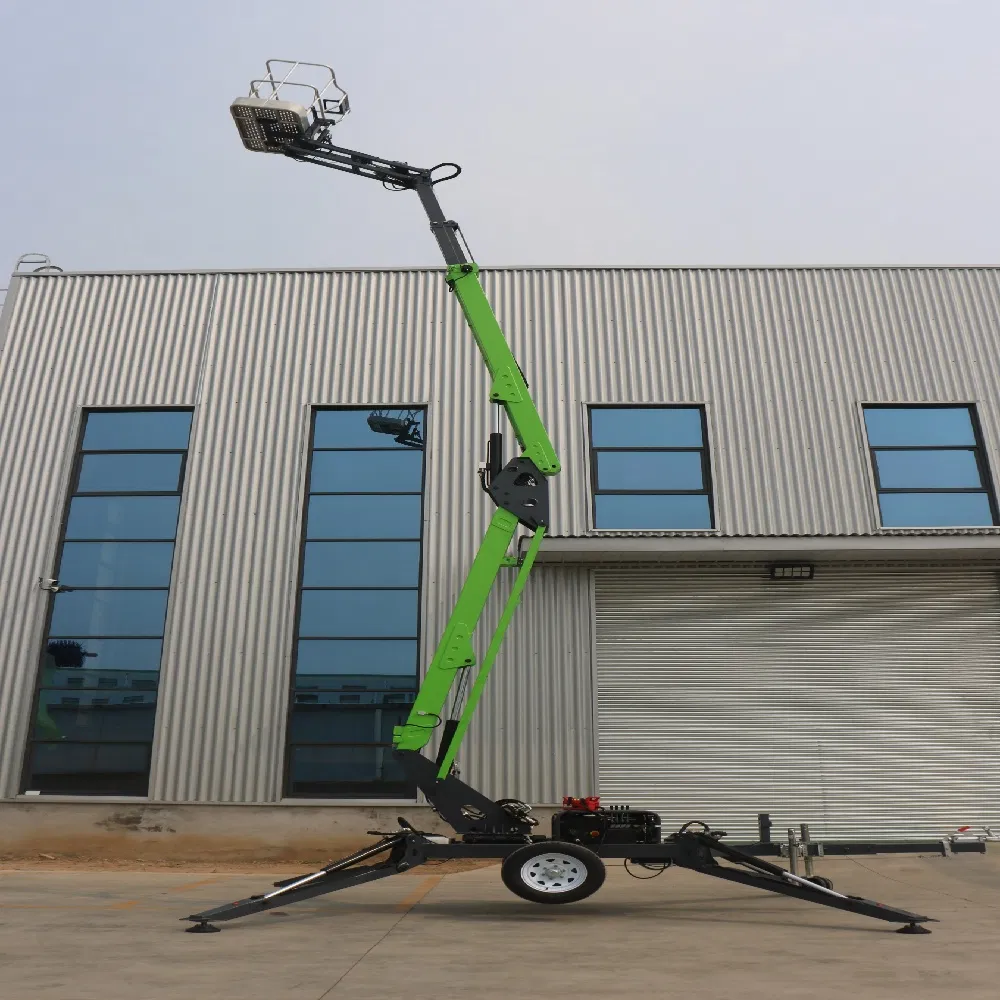

CE & ISO 18m Quick-Deployment Trailer-Mounted 8-18m Telescopic Spider Boom Lift Mewp

Customization:	Available
After-sales Service:	Online and 24-Hour Telephone Support
Warranty:	24 Months

Product Overview

8-18M Electric Towable Articulated Spider Boom Lift Aerial Man Lift

Model NO.T18

ApplicationHigh-Altitude Aerial Work

Lift MechanismTelescoping Lift

Driven TypeDC Power

Working Height15.8m

Working Radius6.6m

Rated Load200kg

CertificationCE, ISO 9001

Battery24V/192ah

Turntable Rotation355°

Product Description

Electric 14M Platform Height Towable Boom Lift

The Electric 18M Platform Height Towable Boom Lift, also known as a Trailer Mounted or Tow-Behind Telescopic Boom Lift, offers an exceptional fusion of mobility and performance. Its towable design facilitates easy transport, while the electric system ensures quiet, zero-emission operation. The telescopic boom provides outstanding reach and precise positioning, making it a superbly efficient solution for diverse outdoor aerial tasks.

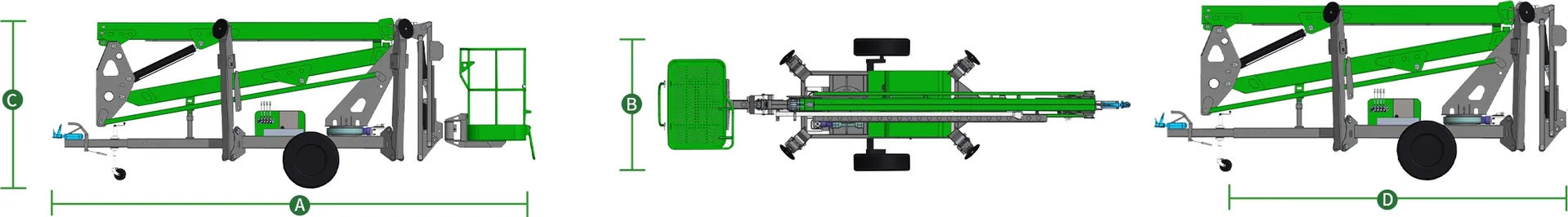

Technical Specifications

Model	T08	T10	T12	T14	T16
Max. Working Height	10m	12m	14m	15.8m	17.85m
Max. Platform Height	8m	10m	12m	13.8m	15.85m
Max. Working Radius	5m	5.5m	5.9m	6.5m	7.0m
Platform Size	0.9x0.7m	0.9x0.7m	0.9x0.7m	1.1x0.7m	1.1x0.7m
Stowed Length	4.7m	5m	5.3m	5.2m	5.7m
Stowed Width	1.5m	1.5m	1.5m	1.6m	1.6m
Weight	1490kg	1550kg	1640kg	1900kg	1980kg
Max. Lift Capacity	200kg	200kg	200kg	200kg	200kg

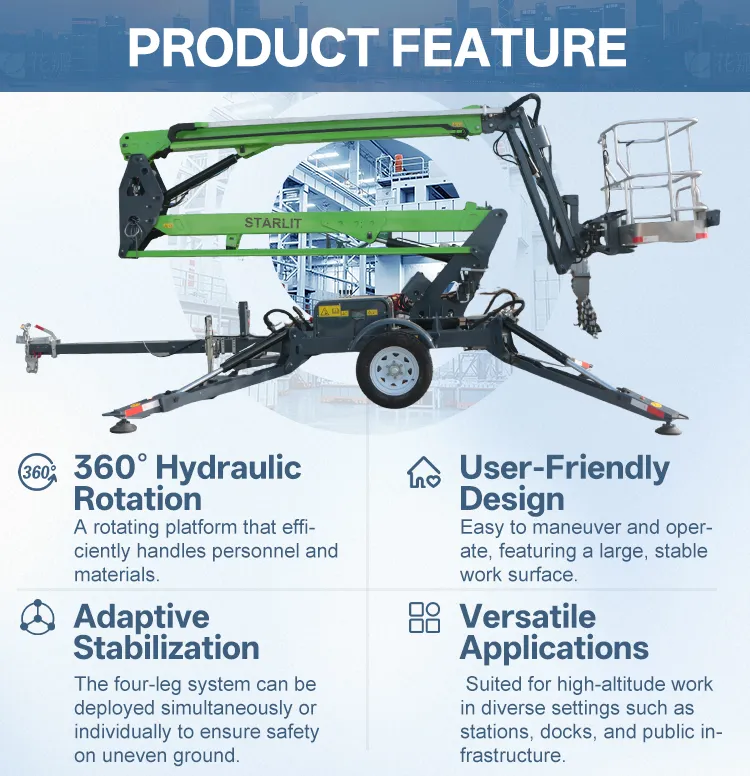

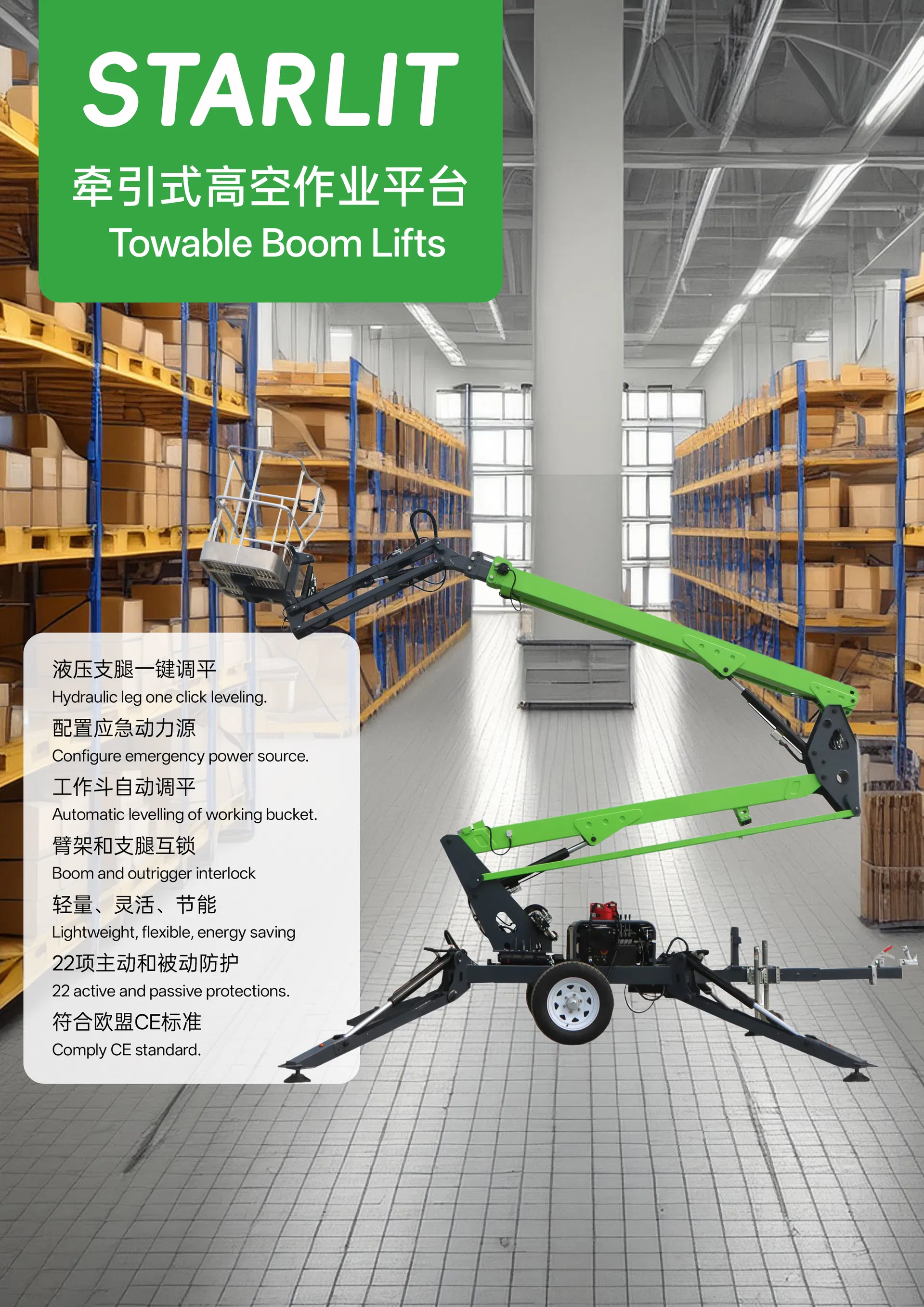

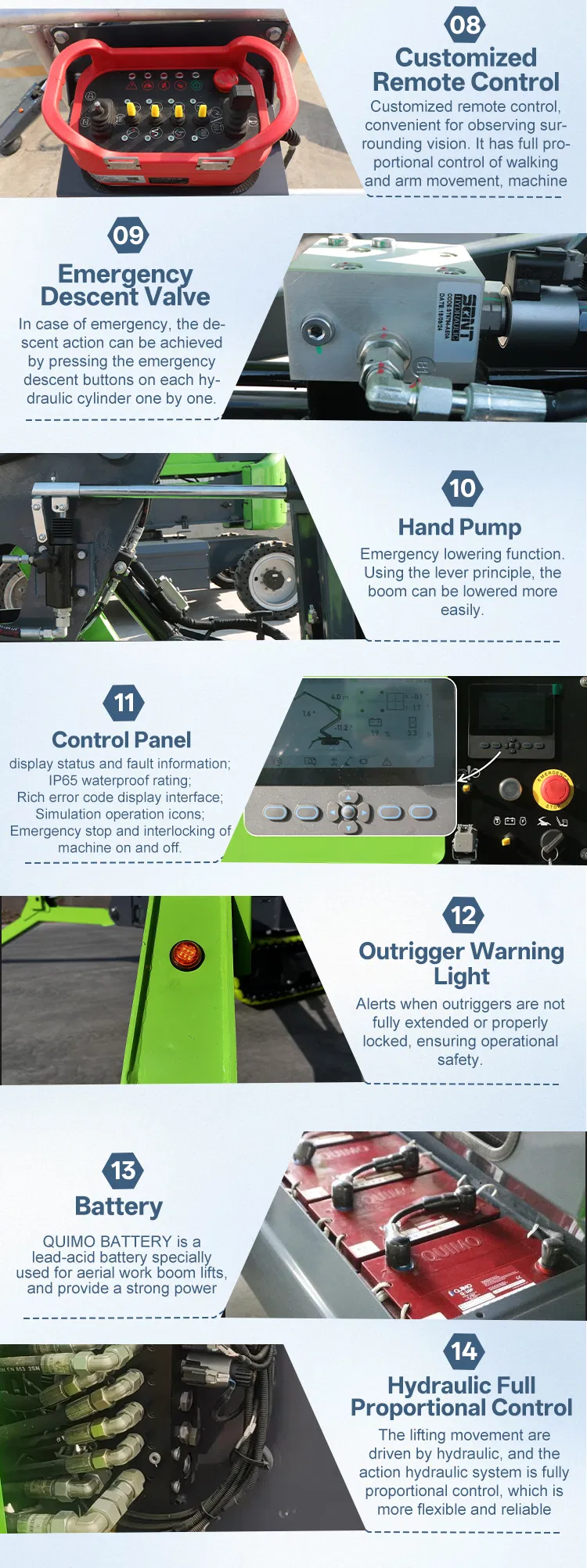

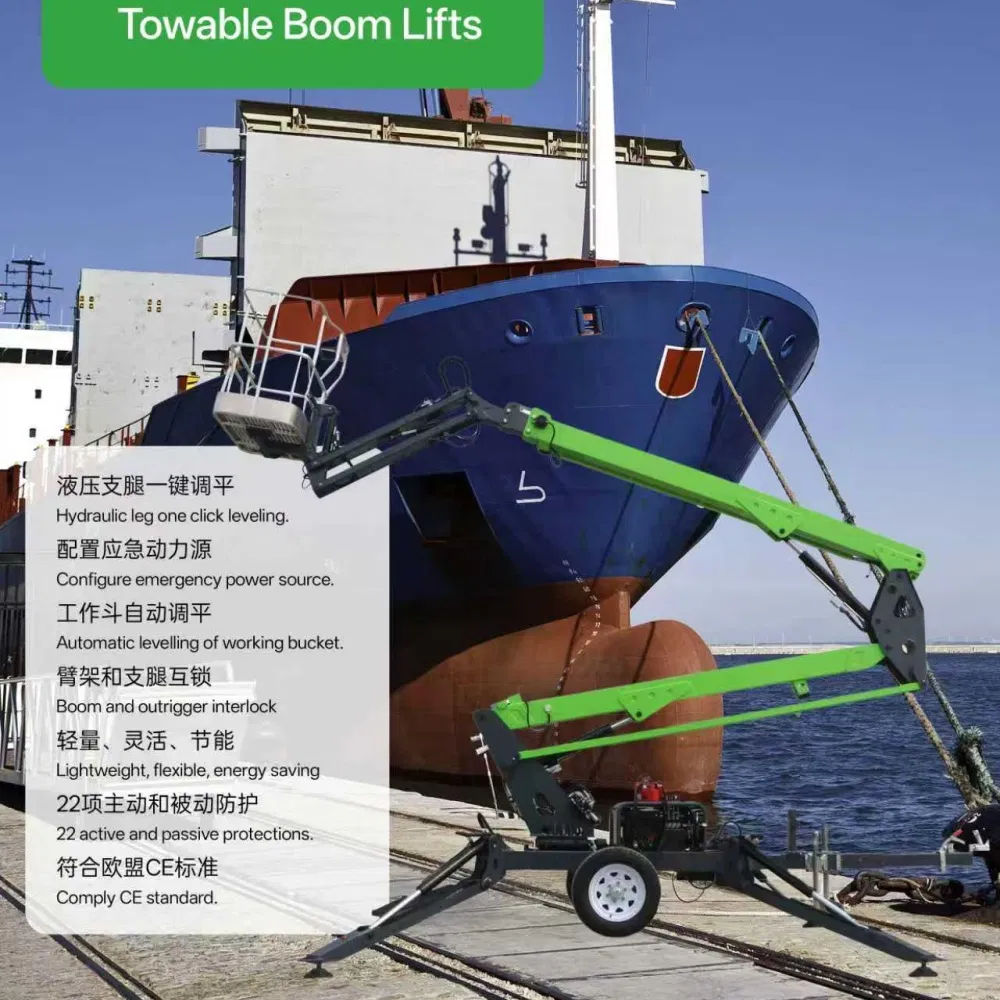

Key Features & Protection

Comply with CE standards
Hydraulic leg one-click leveling
Emergency power source configuration
Automatic levelling of working bucket
Boom and outrigger interlock safety
Lightweight, flexible & energy saving
22 Active and passive protections

Packing & Delivery

Package Size470cm * 160cm * 215cm

Package Gross Weight1900.00kg

Transport PackageIndustrial Protective Felt

Frequently Asked Questions

Q1: What is the maximum working height of this towable boom lift?

The maximum working height depends on the specific model, ranging from 10 meters (T08) up to 17.85 meters (T16).

Q2: Can the boom lift be operated on uneven ground?

Yes, the machine is equipped with hydraulic outriggers and a one-click automatic leveling system to ensure stability on slightly uneven surfaces.

Q3: What kind of power source does it use?

The standard configuration uses a DC battery system (24V/192Ah). Optional power sources like Diesel, Gasoline, or AC power are also available.

Q4: Is it easy to transport between job sites?

Absolutely. The towable design allows it to be hitched to standard vehicles for easy road transport, with a stowed drive speed capability of up to 70km/h.

Q5: What safety features are included?

It includes 22 active and passive protections, including a boom and outrigger interlock system, emergency power source, and automatic bucket leveling.

Q6: What is the lift capacity of the platform?

The rated load capacity for the platform is 200kg, which typically accommodates two people plus essential tools.
