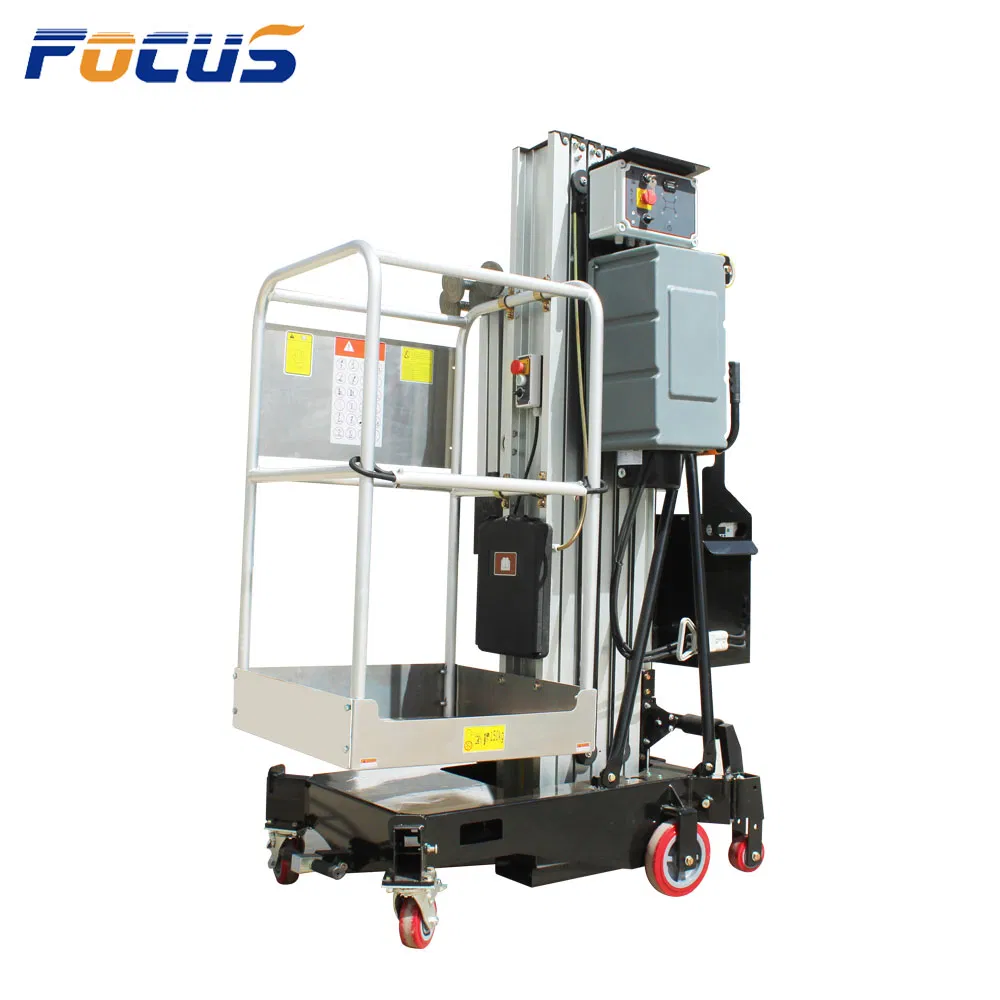

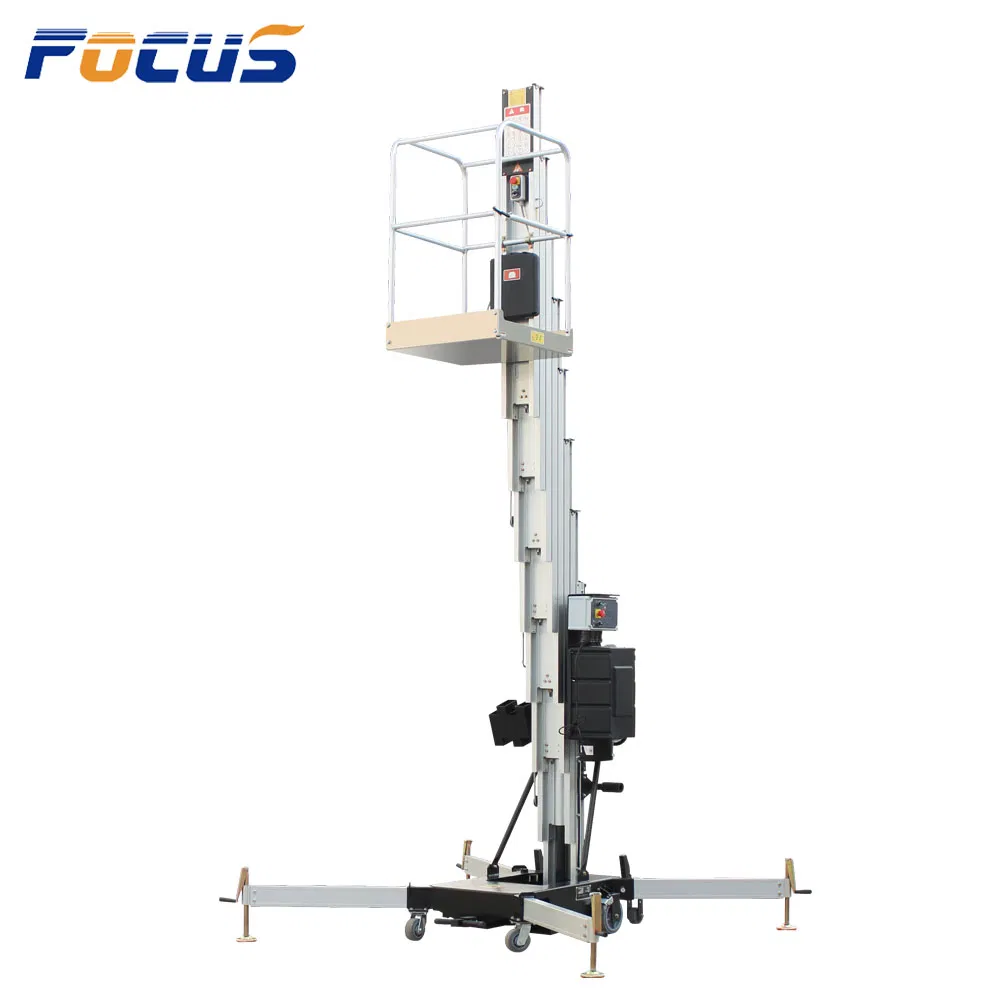

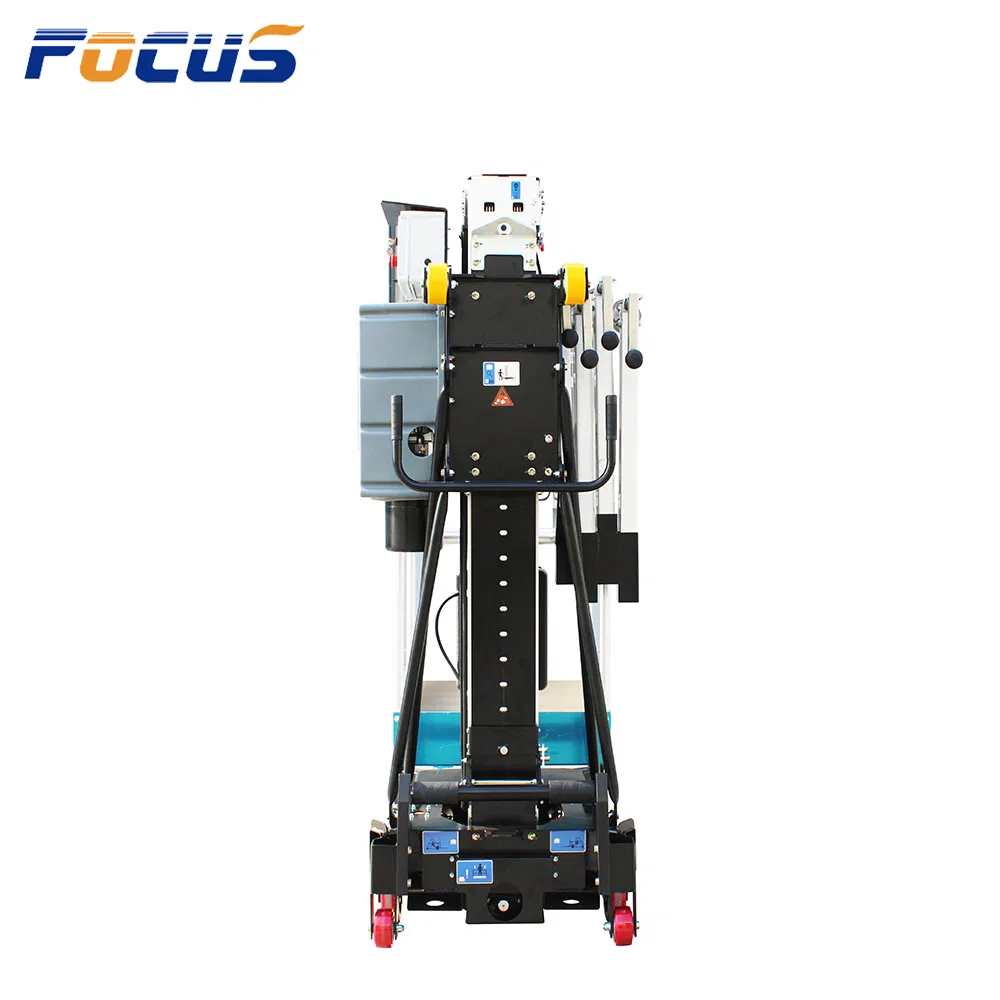

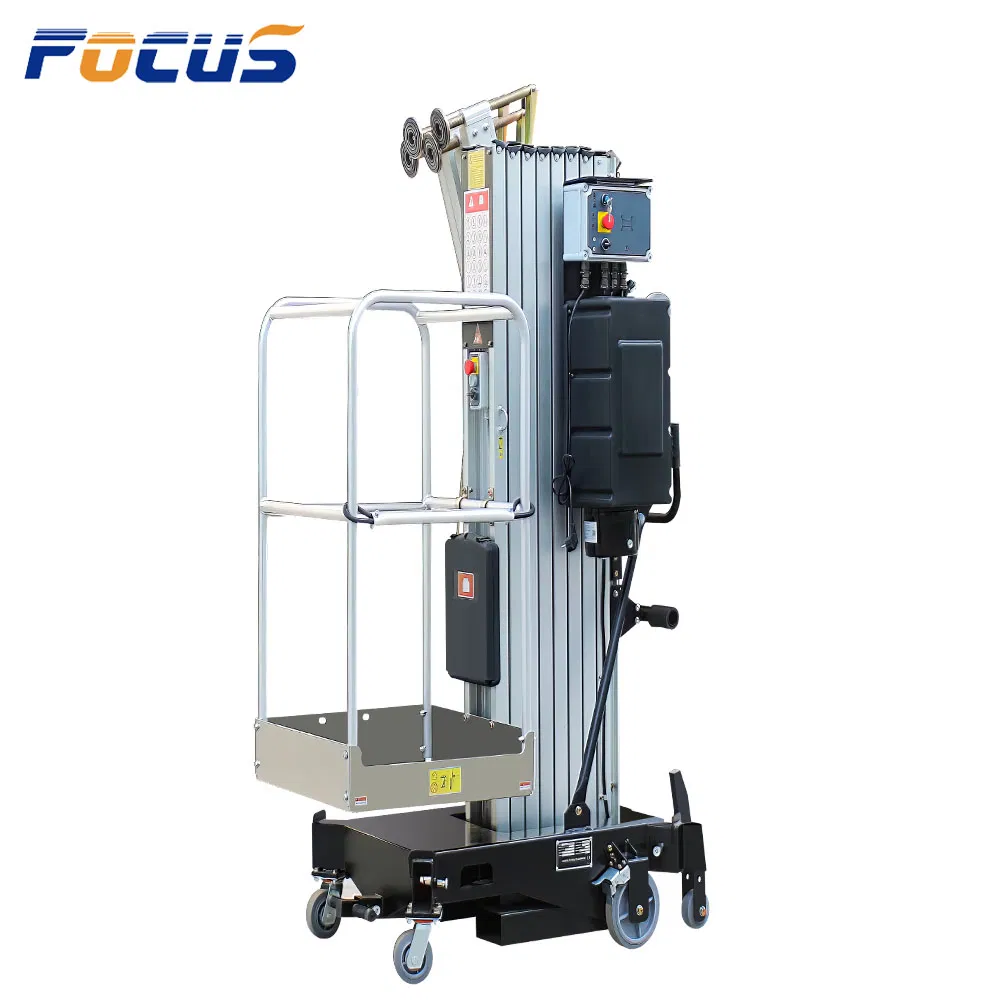

Aerial Working Lift Single Mast Vertical Telescopic Aluminium Alloy Lifting Platform

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Basic Information

Model NO.

GTWY1

Application

Building

Lift Mechanism

Lift Chain

Capacity

150kg

Moves

Self-propelled

Driven Type

Electric

Feature

Insulating

Certification

GS, CE, RoHS, ISO 9001

Total Mass

400kg

Max Height

4.7m

Origin

China

HS Code

84271090

Product Introduction

This aerial working lift is designed for all indoor aerial work projects. The compact size allows it to enter a variety of confined spaces, easily pass through doors, and adapt to elevators. Featuring extremely lightweight construction, non-marking tires, and stabilizers with rubber padding, it can safely operate on fragile grounds.

The lift can be easily loaded, moved, and set up by one person. It is also compatible with trailers or vans for transport, requiring only minimal maintenance for long-term reliable use.

Technical Advantages

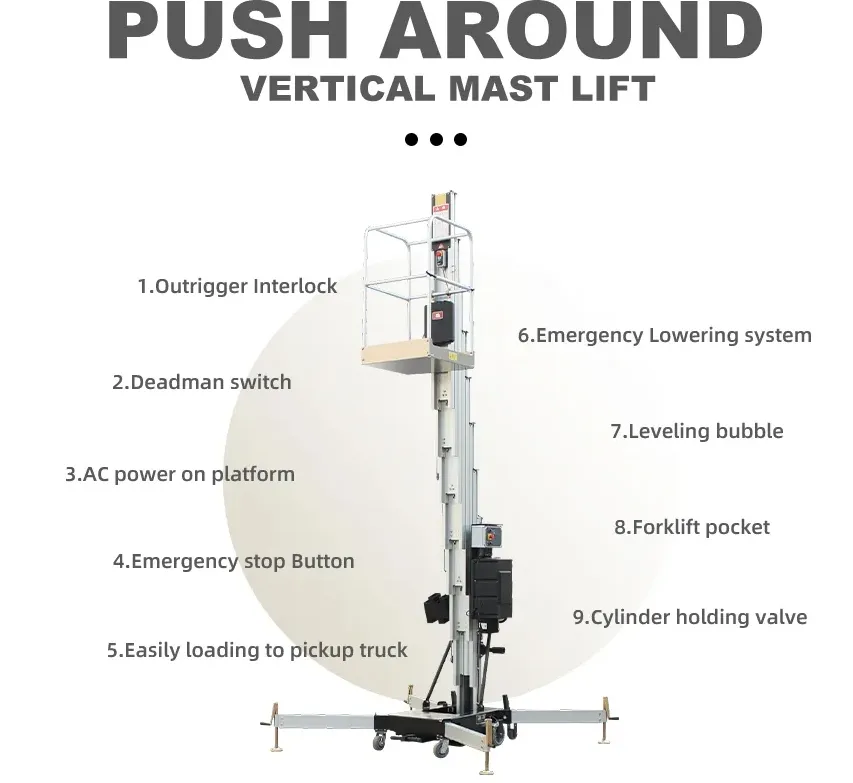

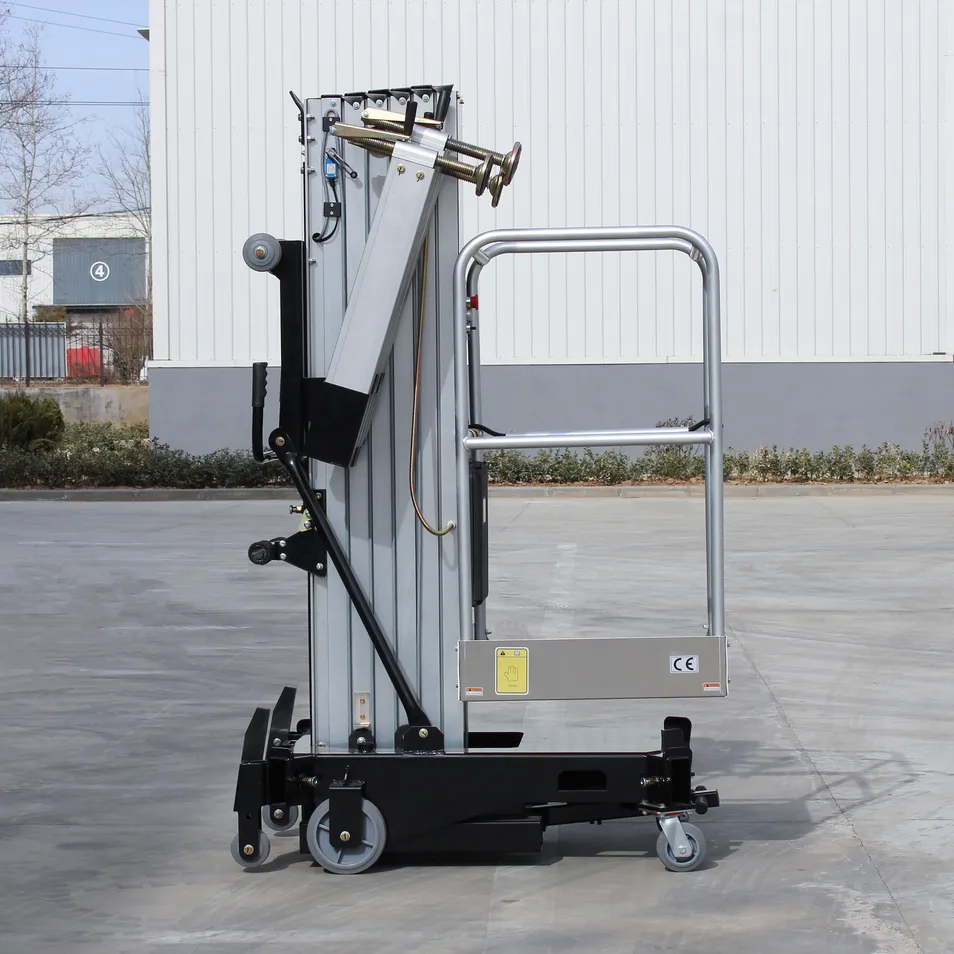

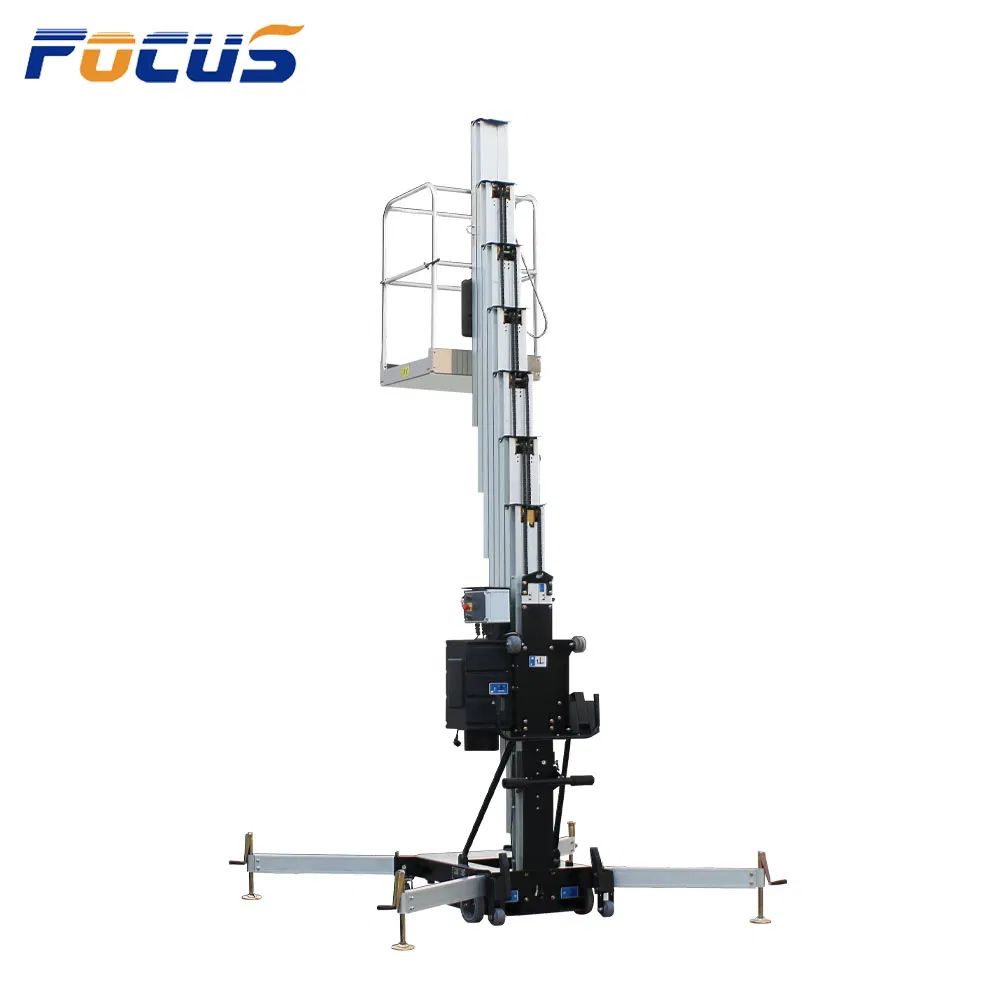

Outrigger Interlocking & Ground Control

To ensure operational safety, the lift is only powered once all four outriggers are fully deployed, evenly stressed, and their respective indicator lights turn green. A prominent red emergency stop button enhances safety by immediately halting all functions in case of emergency.

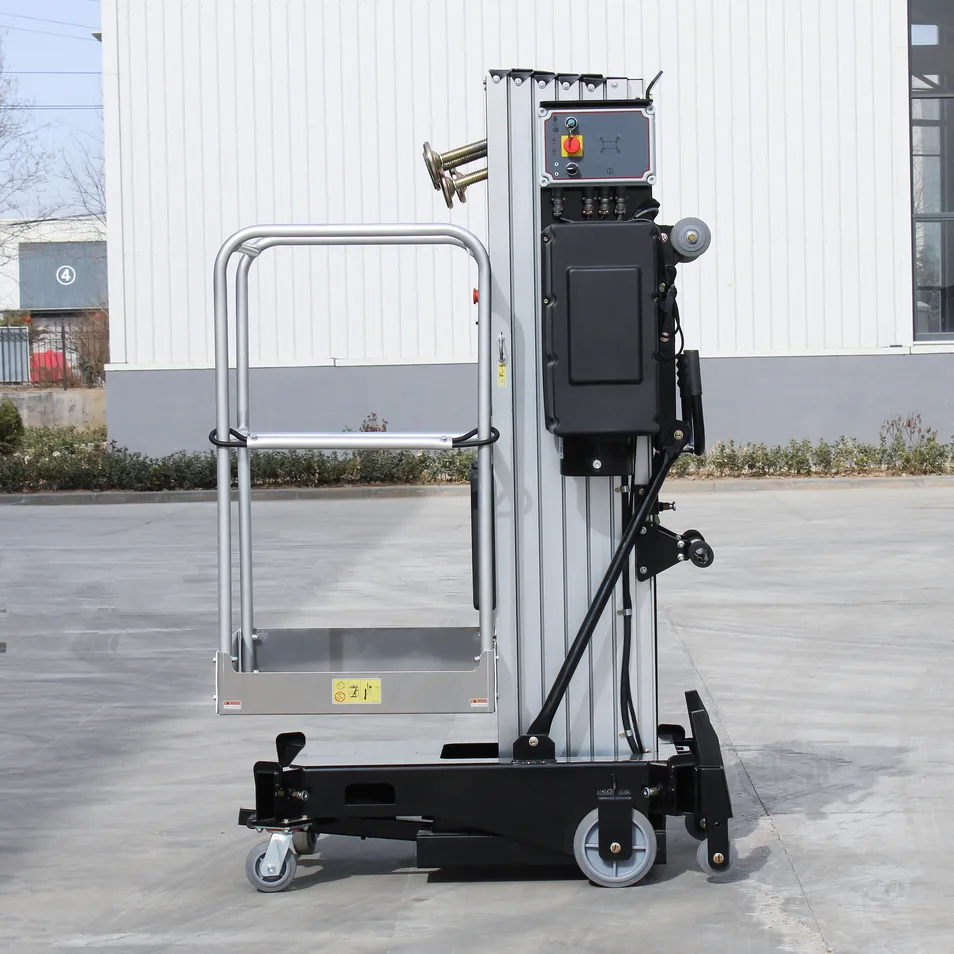

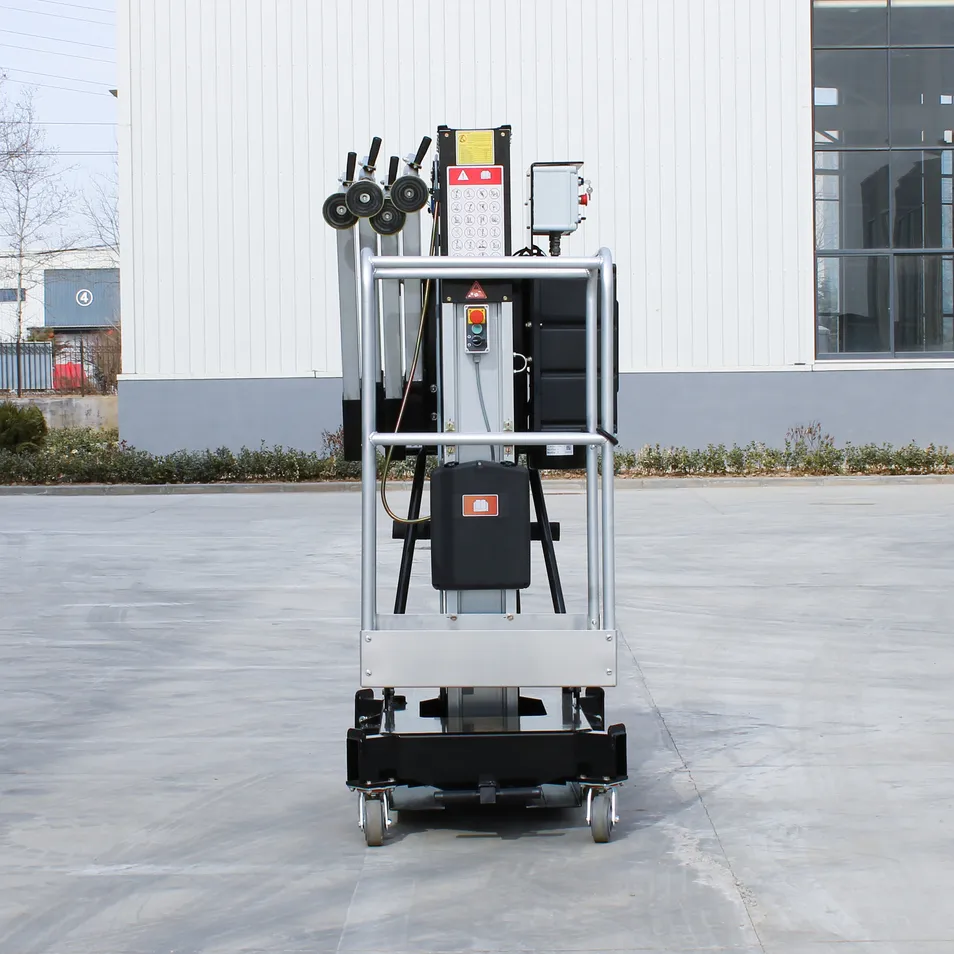

Wear-Resistant Cable System

Equipped with aviation-grade connectors for fast maintenance. Paired with ultra-durable drag cables boasting a flex life of over 5 million cycles, ensuring resistance to oil, water, UV rays, and heavy mechanical stress.

Technical Specifications

MODEL	GTWY1-5	GTWY1-6	GTWY1-8	GTWY1-9	GTWY1-10	GTWY1-12
Max. Working Height	8.1m	6.7m	9.6m	11m	12.4m	14m
Max. Platform Height	4.7m	6.1m	7.6m	9m	10.4m	12m
Loading Capacity	150kg	150kg	150kg	150kg	136kg	120kg
Occupants	1	1	1	1	1	1
Overall Height	1.99m	1.99m	1.99m	1.99m	1.99m	2.78m

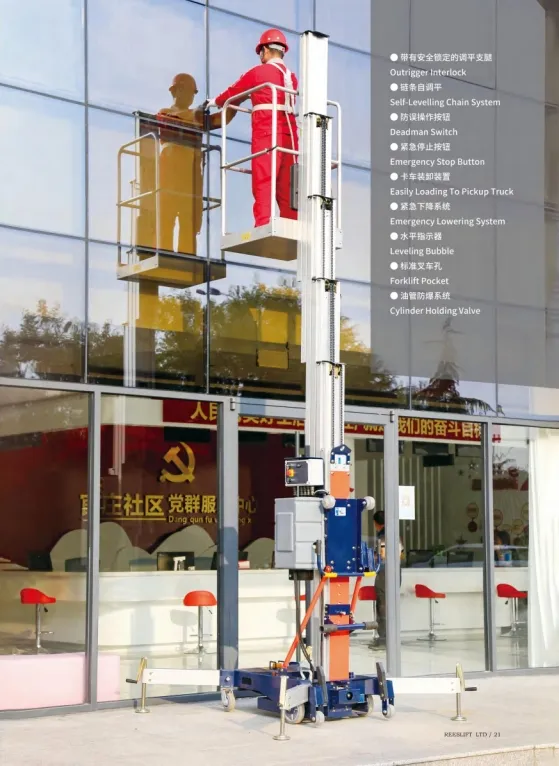

Primary Applications

Commercial & Retail

Perfect for warehouse shelf access and high-altitude storage management in supermarkets.

Industrial

Used for production line maintenance, cleaning, and equipment repairs.

Public Facilities

Ideal for libraries and archives. Aluminum alloy prevents rust and protects valuable materials.

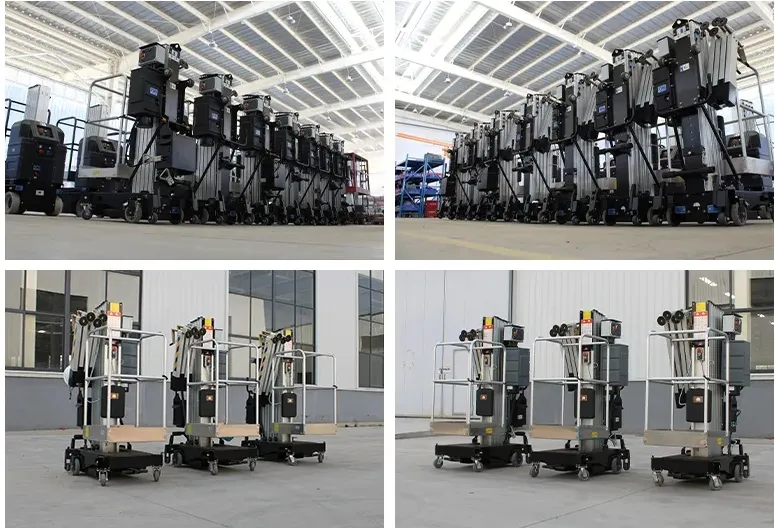

Shipping & After-Sales Service

We ensure professional packaging and reliable shipping for all our aerial equipment. Our team provides 24-hour after-sales support to address any technical questions or maintenance needs.

Frequently Asked Questions

Q: What is the standard lead time for orders? A: Standard models typically ship within 15–30 days. Custom configurations may require 30–45 days depending on the specifications.

Q: Can the lift be used on sensitive or fragile flooring? A: Yes. The lift is equipped with non-marking tires and rubber-padded stabilizers specifically designed to protect delicate indoor surfaces.

Q: What safety features are included in the interlocking system? A: The lift will not power up unless all four outriggers are properly deployed and stressed. It also includes an emergency stop button and a dual-action safety switch to prevent accidental operation.

Q: Is it possible to transport the lift through standard doorways? A: Absolutely. The compact design and narrow overall width (approx. 0.76m) allow it to pass through standard doors and fit into most passenger elevators.

Q: What documents are provided for international shipping? A: We provide a full export package including the Commercial Invoice, Packing List, Bill of Lading, and Certificate of Conformity (COC).

Q: Does the lift require specialized maintenance? A: No, it is designed for minimal maintenance. The aviation-grade connectors and high-cycle cables ensure long-term reliability with basic periodic inspections.
