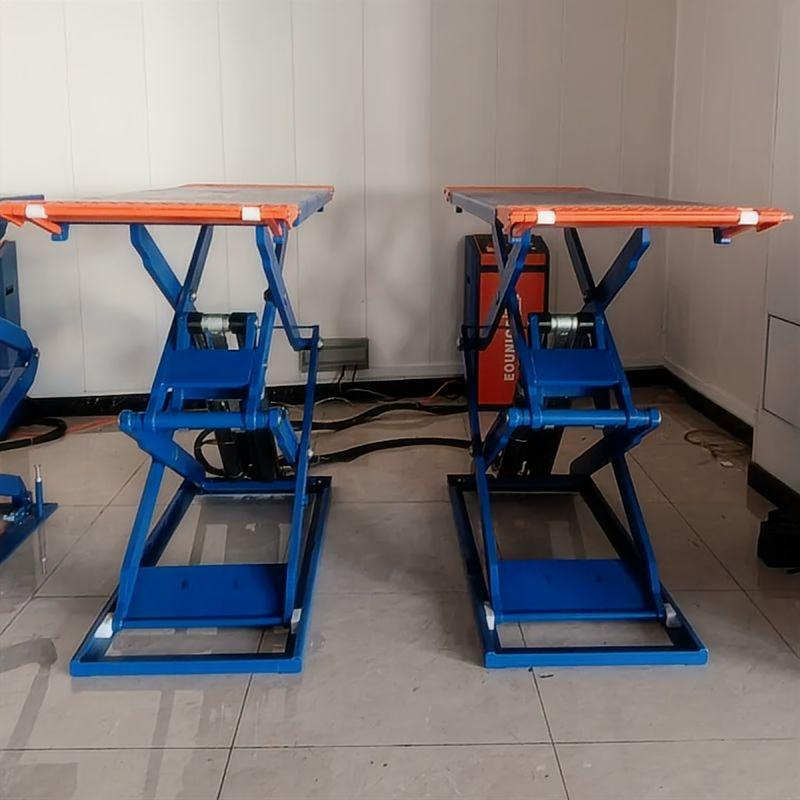

Scissor Car Lift with CE Workshop Vehicle Inspection Service Professional Vehicle Lift Platform

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information
Model NO.
ON-7801-40
Type
One Cylinder Hydraulic Lift
Lifting Capacity
4T
Driving Type
Hydraulic
Certification
CE, ISO
Lifting Height
1850mm (72 7/8")
Minimum Height
110mm (4 5/16")
Runway Length
1465mm (57 11/16")
Motor Power
2.2kw (3HP)
Gross Weight
913kgs (2,013lbs)
Packaging & Delivery
Package Size
213.00cm * 74.00cm * 34.00cm
Package Gross Weight
888.000kg
Product Introduction
  • CE approval, ensuring European standards of safety and quality.
  • Robust 3,500Kg (8,000LBS.) lifting capacity.
  • Equipped with 2-Dual synchronous cylinders for perfect lifting balance.

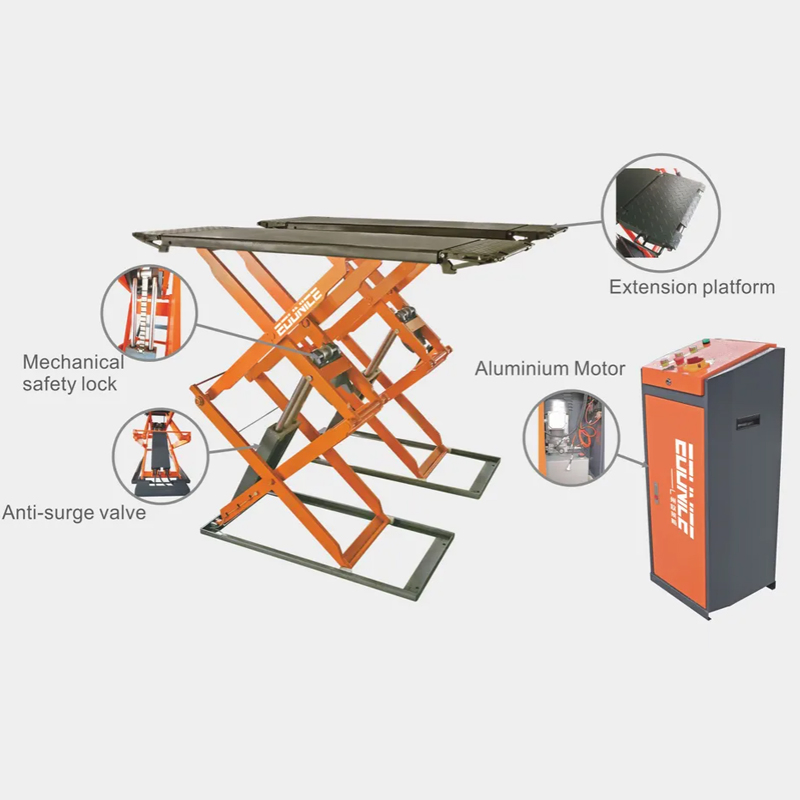

  • Durable cylinders enhanced with anti-surge valves for reliability.
  • Available pneumatic or electrical safety lock release systems.
  • Safe 24V low voltage electrical control system.
  • Self-lubricated bushings and bearings for smooth operation.
  • Low profile design with a minimal height of only 110mm (4 5/16").
  • Standard height limit switch to prevent over-elevation.
  • Efficient aluminum motor power unit for energy consumption.
Key Features
1
Low profile design ideal for low-chassis vehicles.
2
Scissor arm cut from high-quality alloy steel plate for maximum rigidity.
3

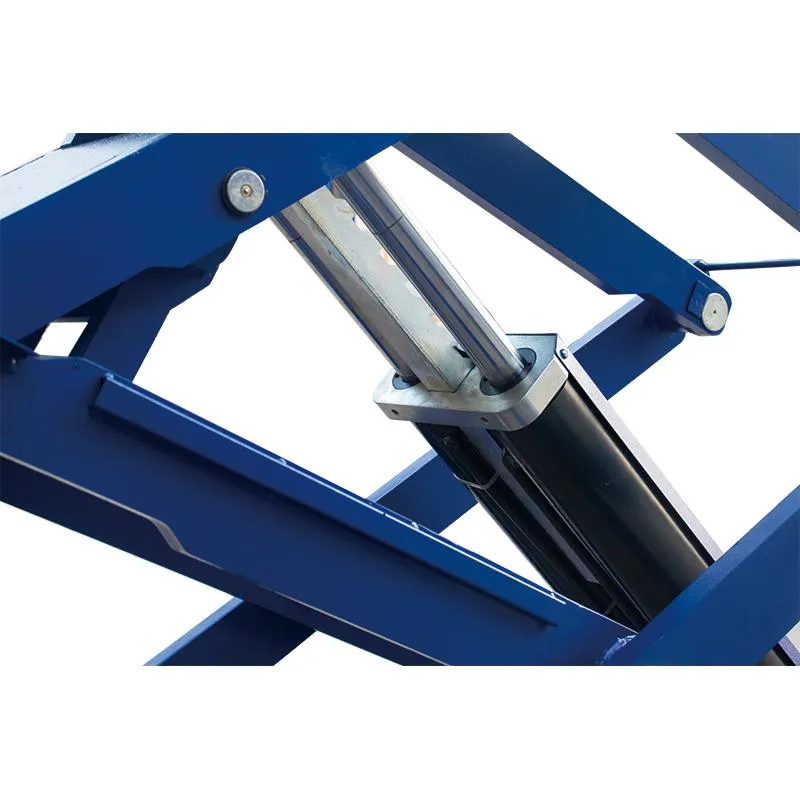

Large diameter 2-Dual synchronous cylinders improve hydraulic longevity.
4
Robot-welded structural components for consistency and strength.
5
High-temperature cured powder coating for vibrant colors and robust adhesion.

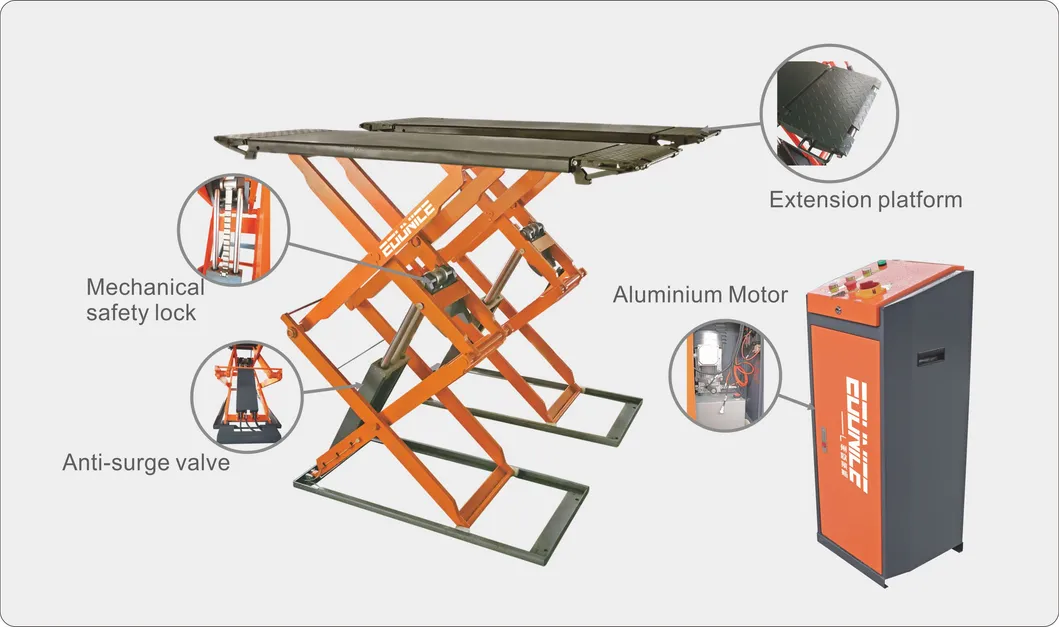

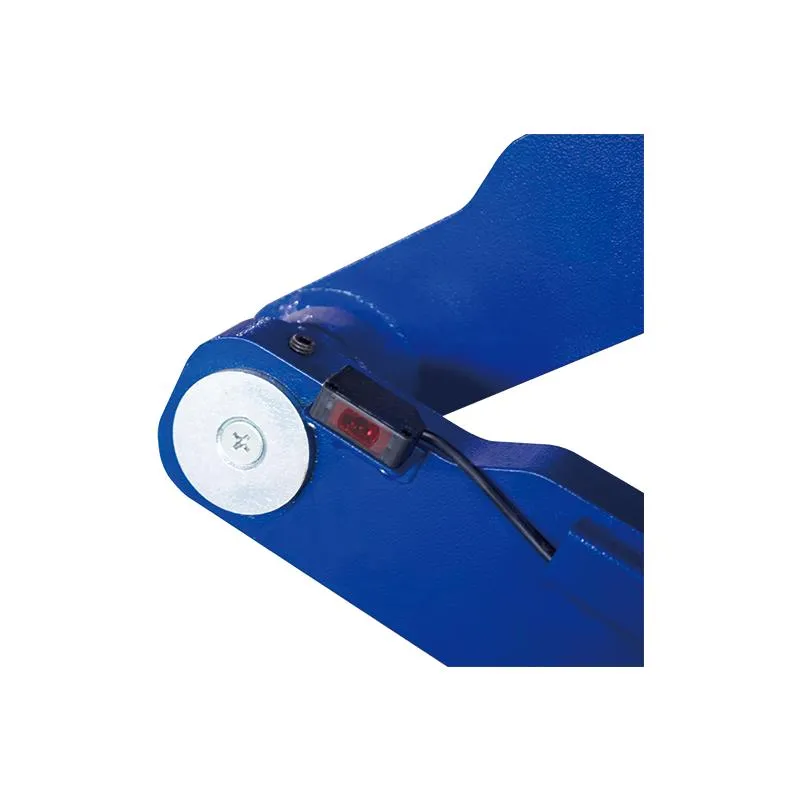

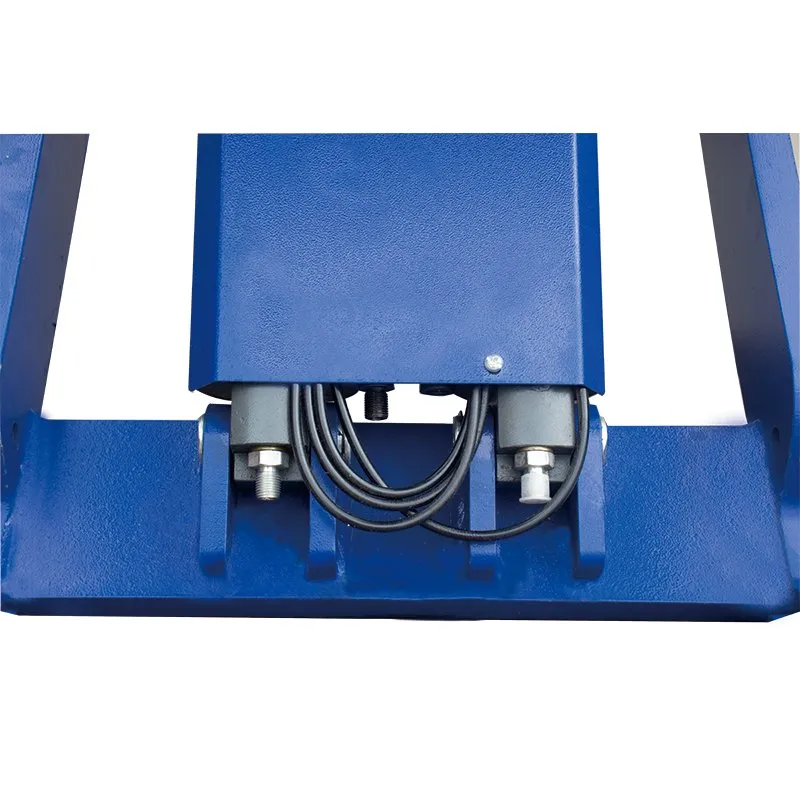

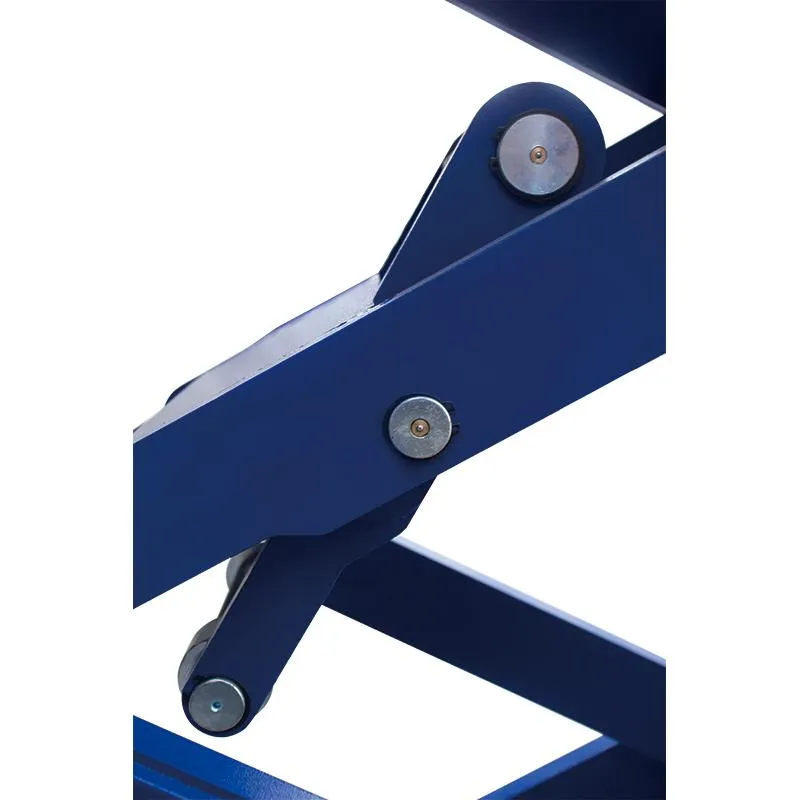

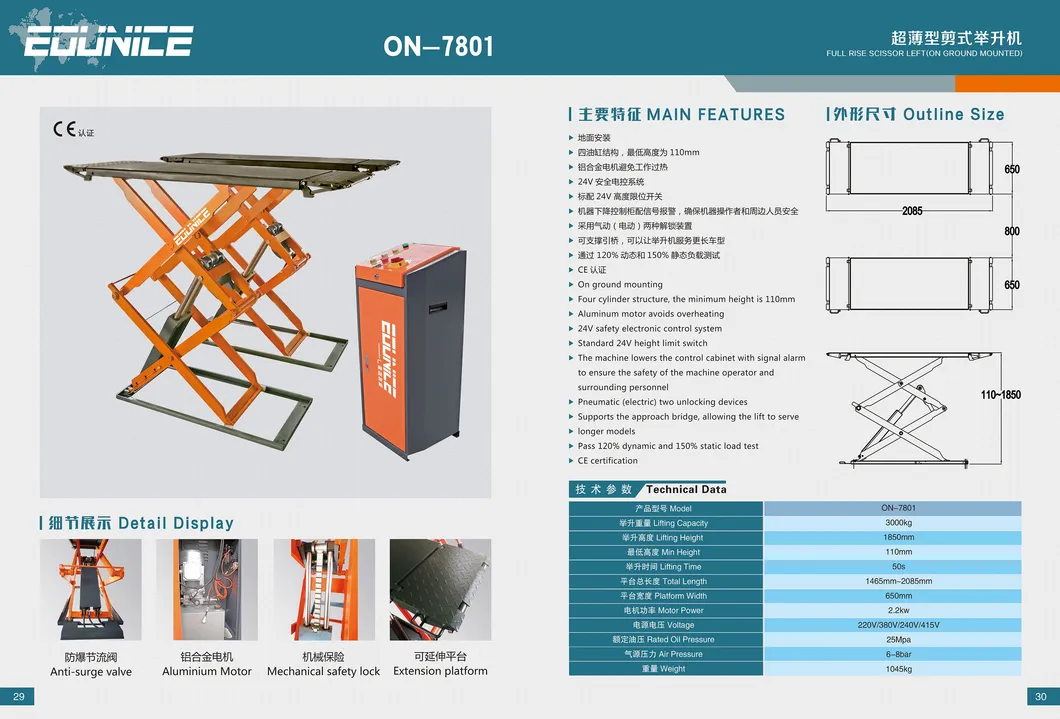

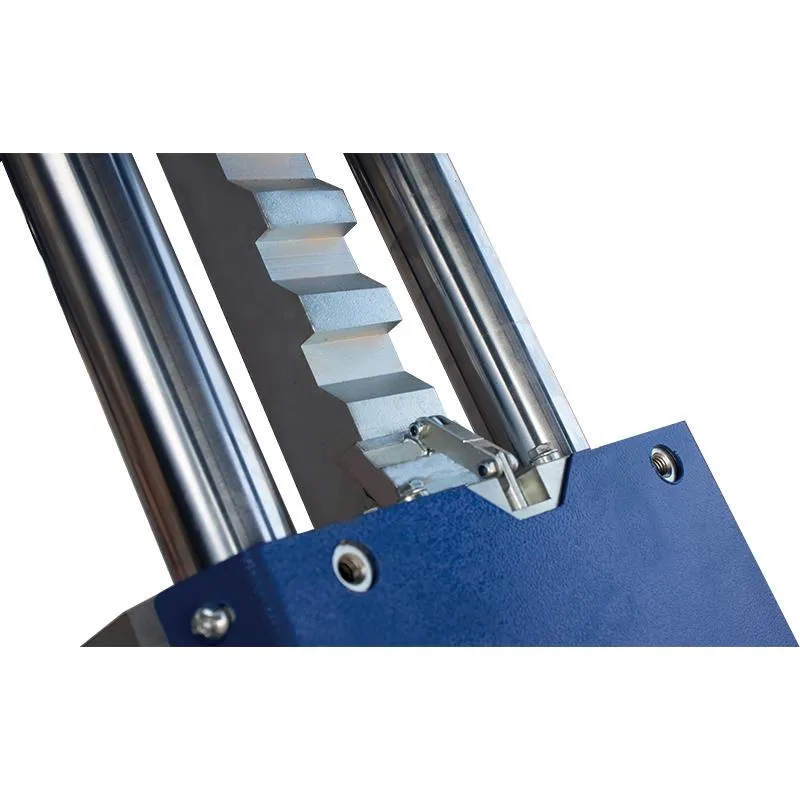

Detailed Photos

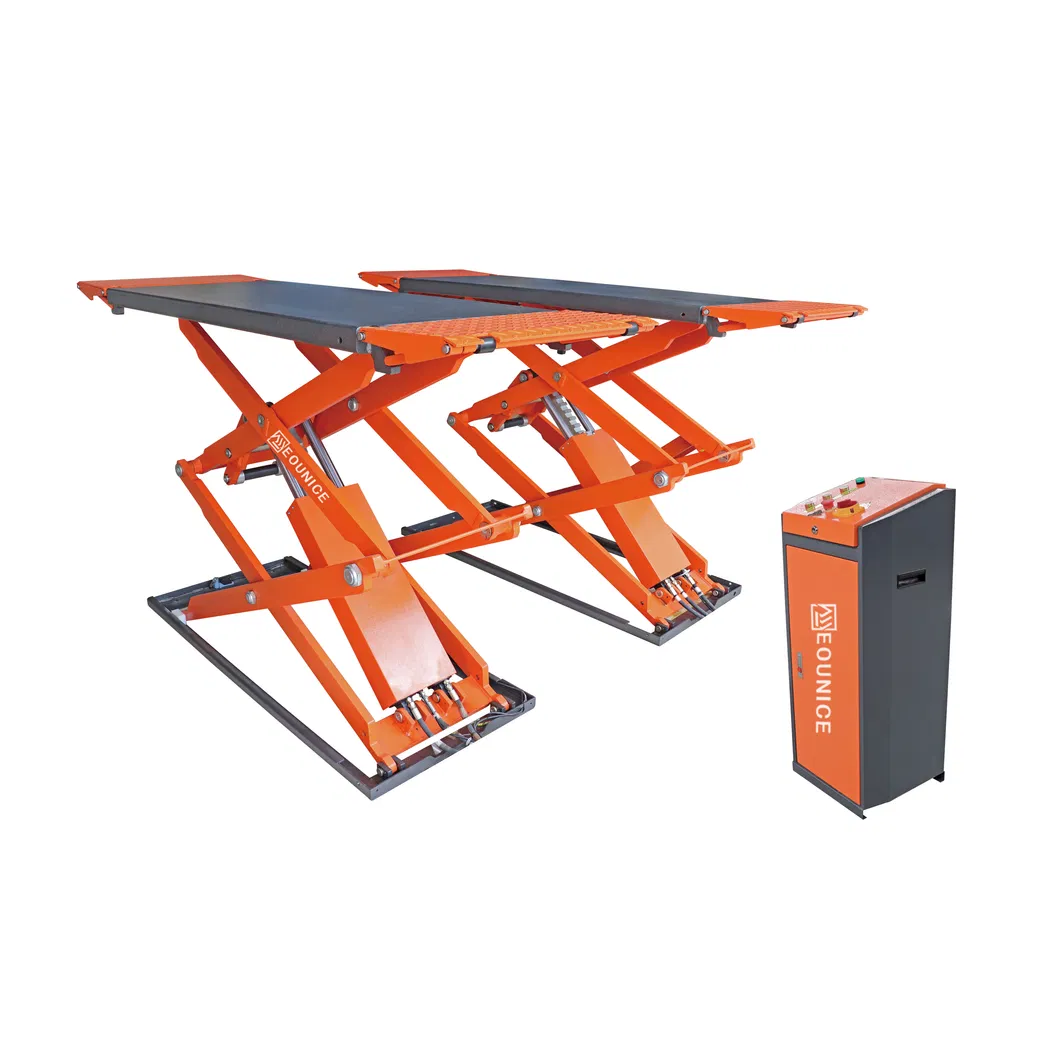

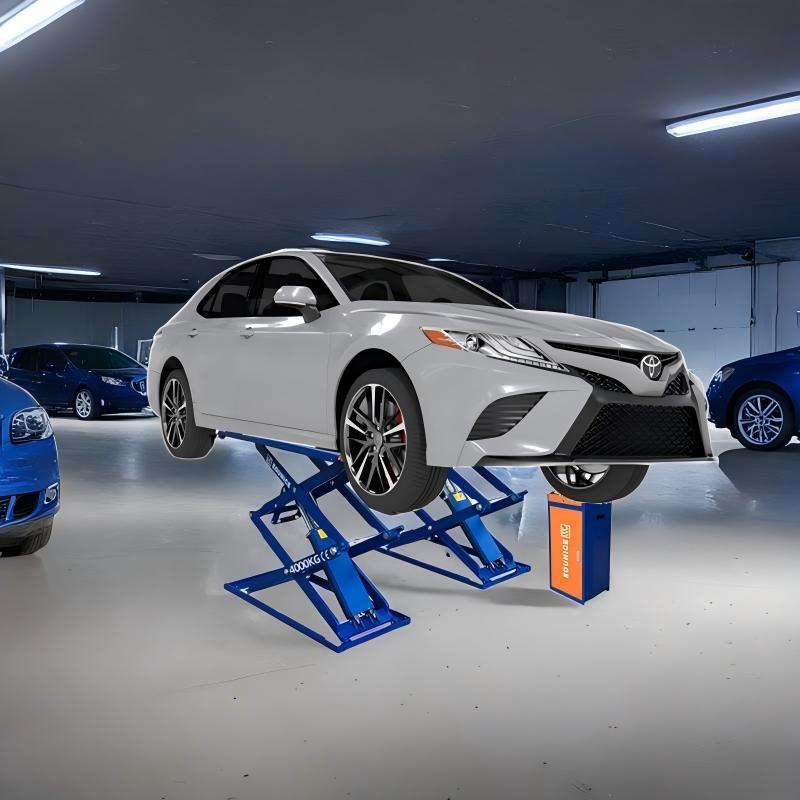

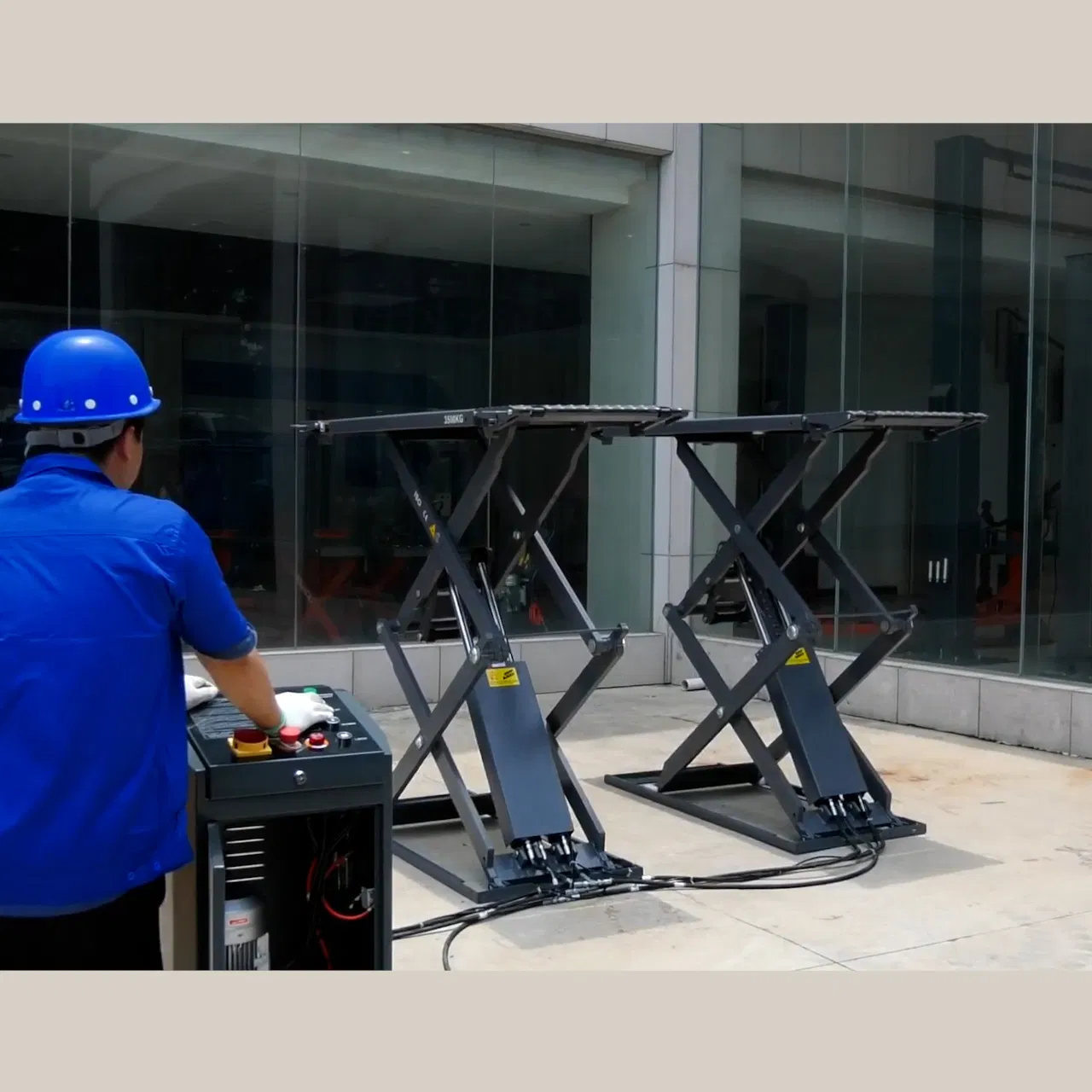

Professional Vehicle Lift Platform

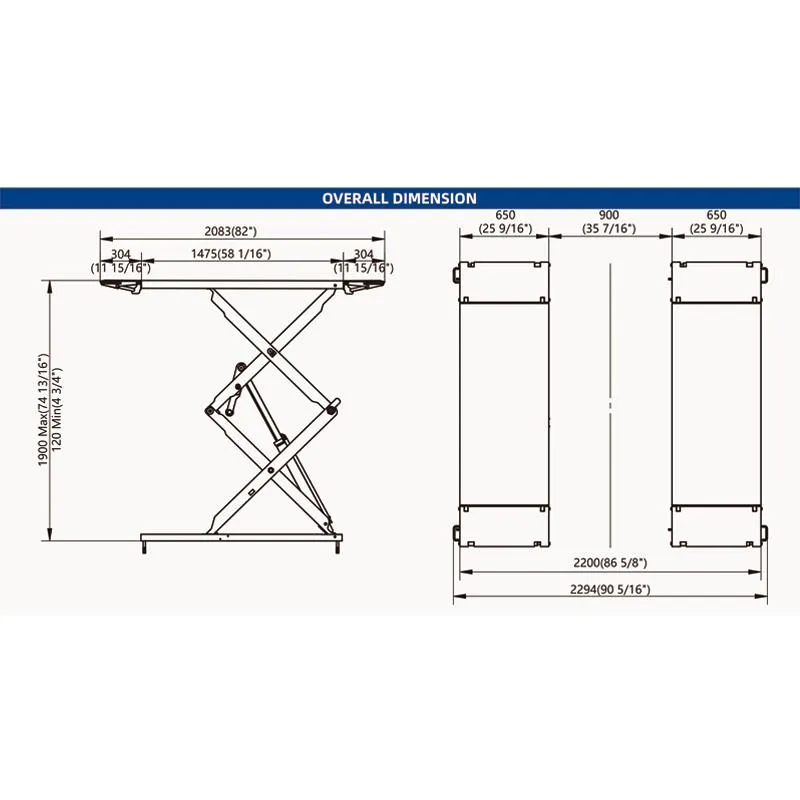

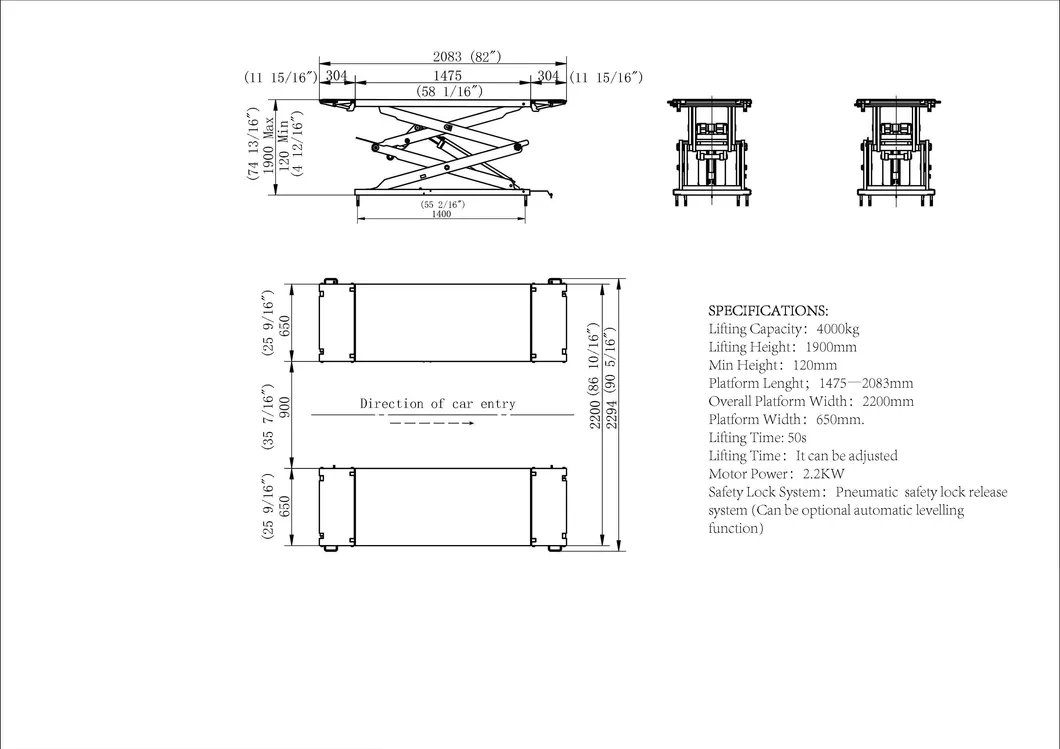

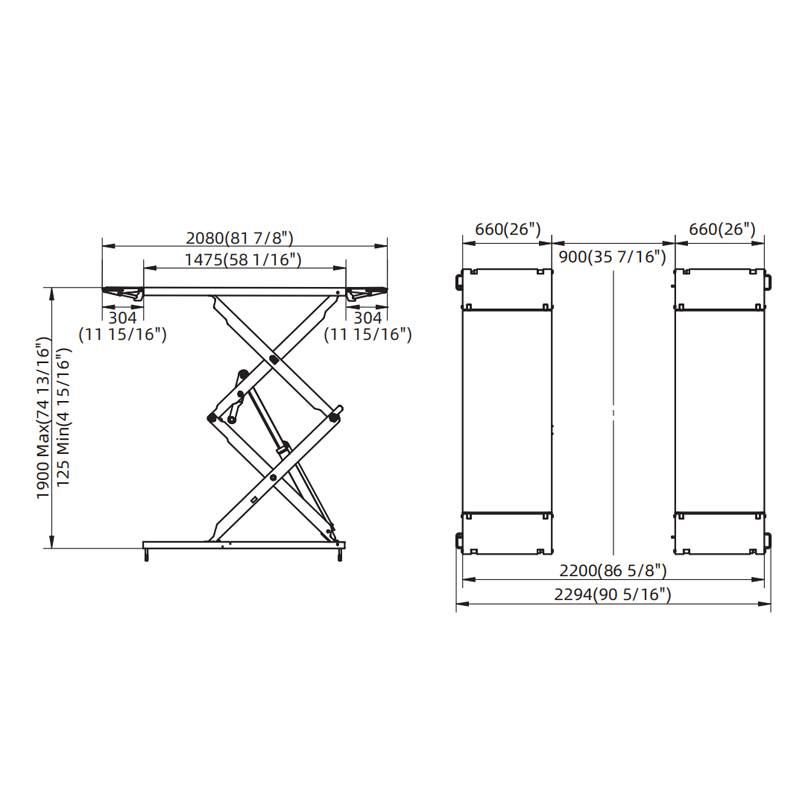

Technical Data
Model Lifting Capacity Lifting Time Lifting Height Min Height Runway Length Overall Length Runway Width Gross Weight Motor Power
ON-7801-40 4000kgs (9,000LBS) ≤65S 1900mm (74 13/16") 125mm (4 15/16") 1475mm (58 15/16") 2080mm (81 1/16") 650mm (25 5/8") 986kgs (2,174LBS) 2.2KW (3HP)

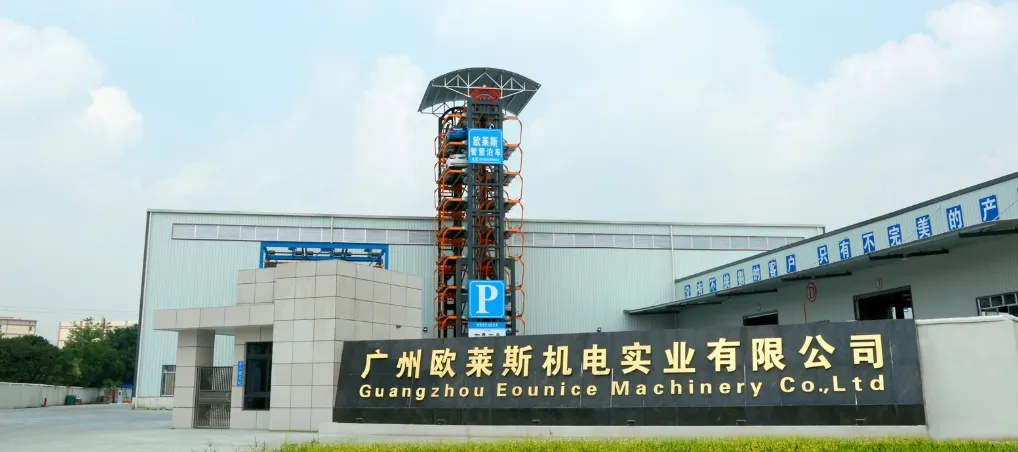

About Our Factory

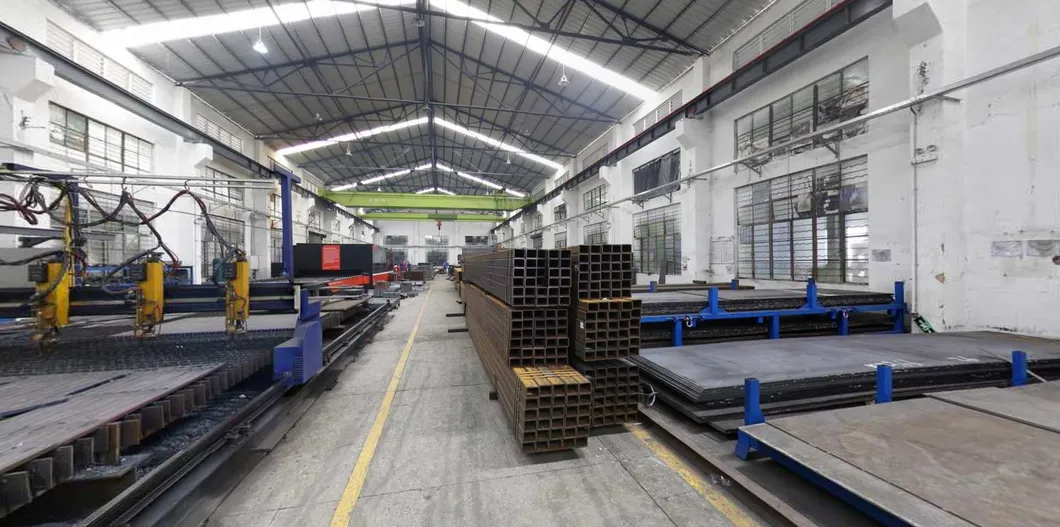

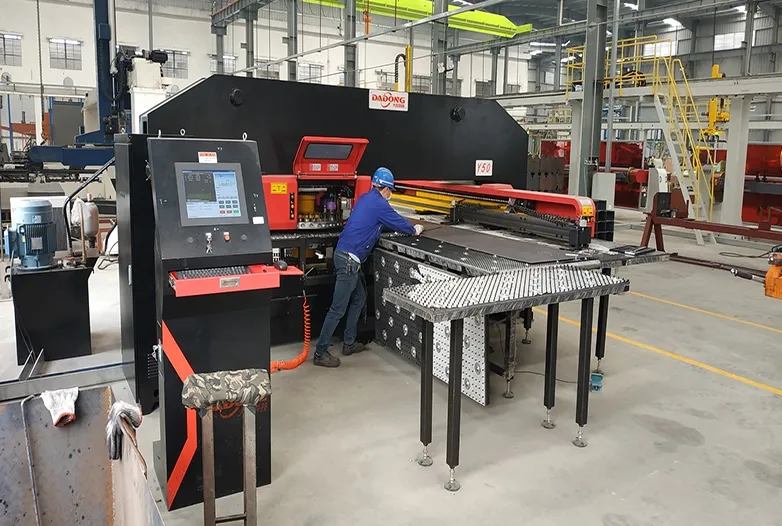

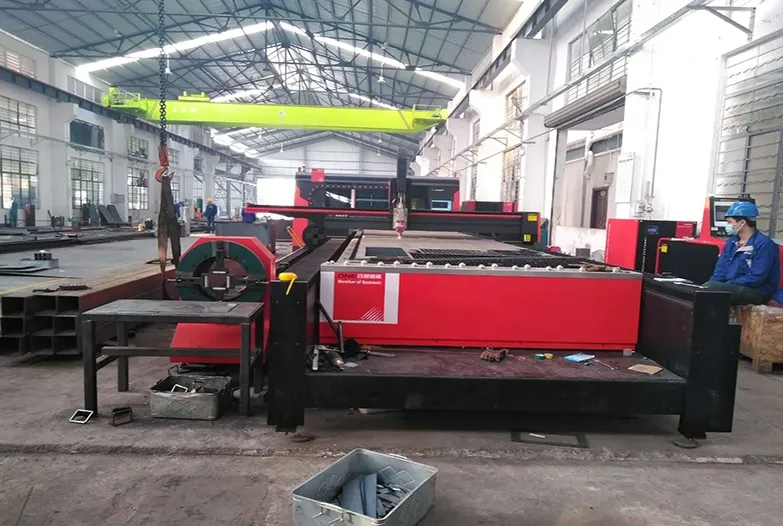

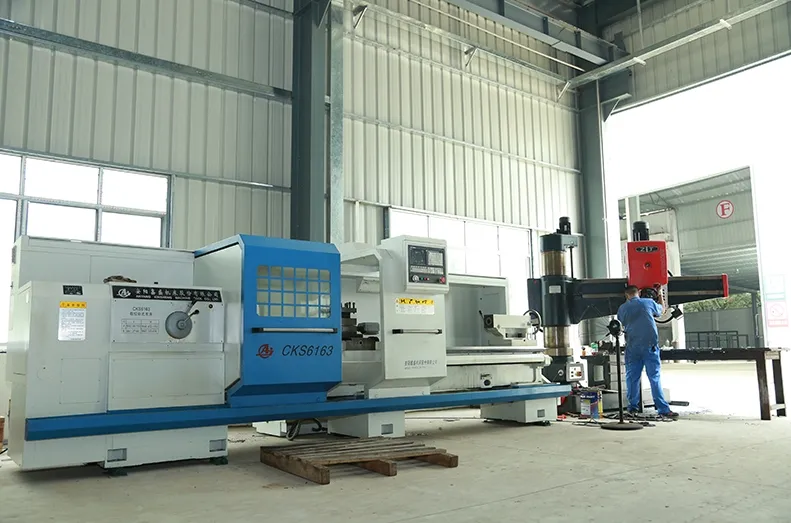

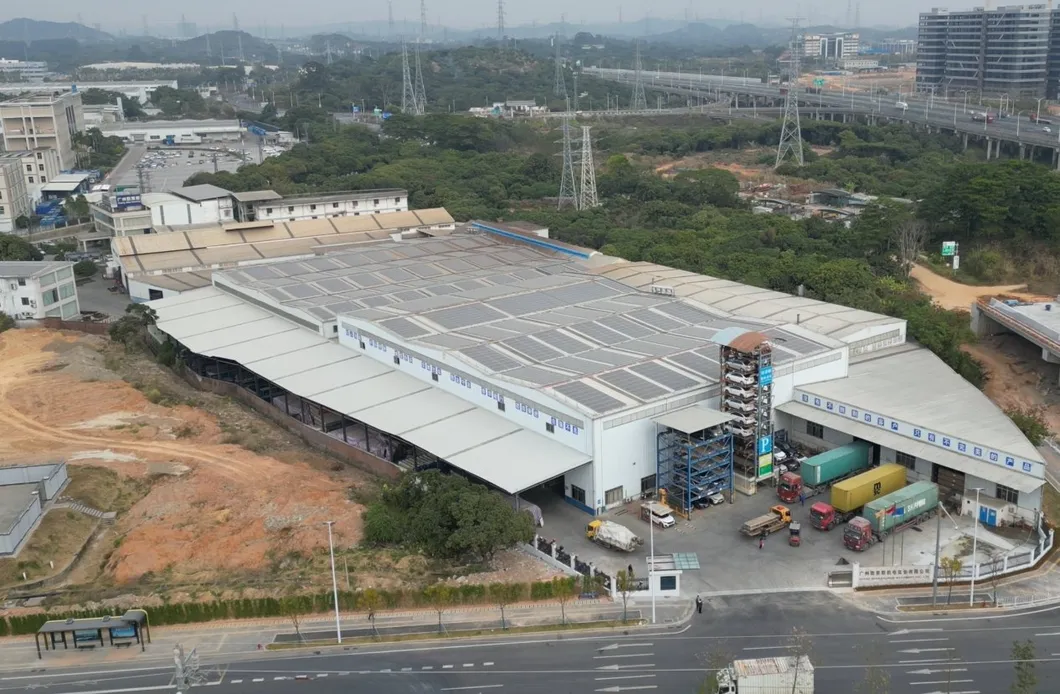

Our manufacturing facility was established in 2017, employing over 200 dedicated professionals. The factory area spans 35,000 m², equipped with state-of-the-art laser cutting, digital control bending, CNC equipment, and powder coating static electricity spray lines for modern manufacturing excellence.

We are a professional manufacturer and exporter of commercial-grade vehicle service lifts and stereo parking equipment. We are committed to continuous technological innovation, strict quality control, and convenient automotive maintenance solutions.

Certifications

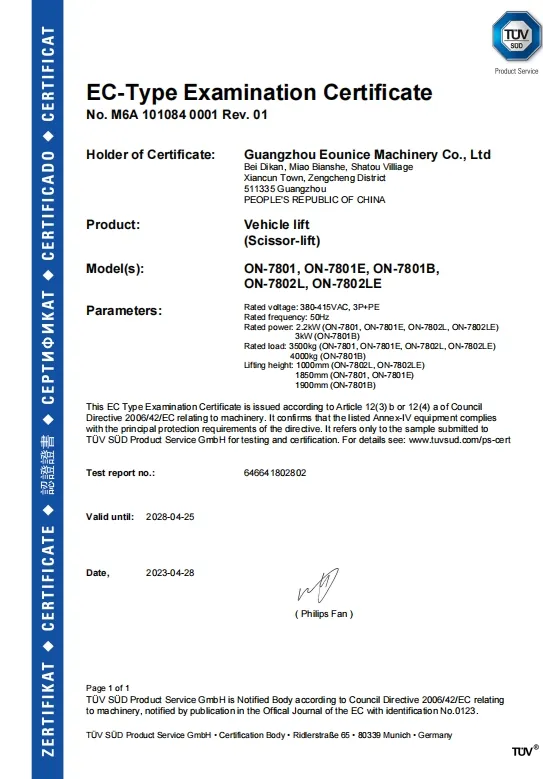

Certification Documents
After Sales Service

Warranty Term: One-year warranty on structural components, motors, gear boxes, power units, hydraulic cylinders, and assembly components under normal use.

  • OEM and ODM services tailored to your needs.
  • Customized service for specific requirements and preferences.
  • One Year Quality warranty with free spare parts (shipping costs apply).
  • Professional team committed to lifelong service and support.
Frequently Asked Questions
Q: Are you a trade company or a factory? A: We are a professional manufacturer with our own export capabilities, ensuring direct quality control and reliable support.
Q: What is the typical production delivery timeline? A: Generally, delivery occurs within 15 days after receiving the deposit, depending on the order volume and current production schedule.
Q: What standard colors are available? Can I request a custom color? A: Our standard colors are Blue, Red, and Yellow. We can accommodate special color requests to match your branding.
Q: Can the lift dimensions be customized? A: Yes, we provide customization options to meet specific size requirements for different workshop layouts.
Q: Is the equipment certified for safety? A: Absolutely. Our vehicle lifts are CE certified and manufactured under ISO 9001 quality management systems.
Q: Do you offer technical support after the warranty period? A: Yes, we provide lifelong technical support and professional solutions for all our customers globally.
