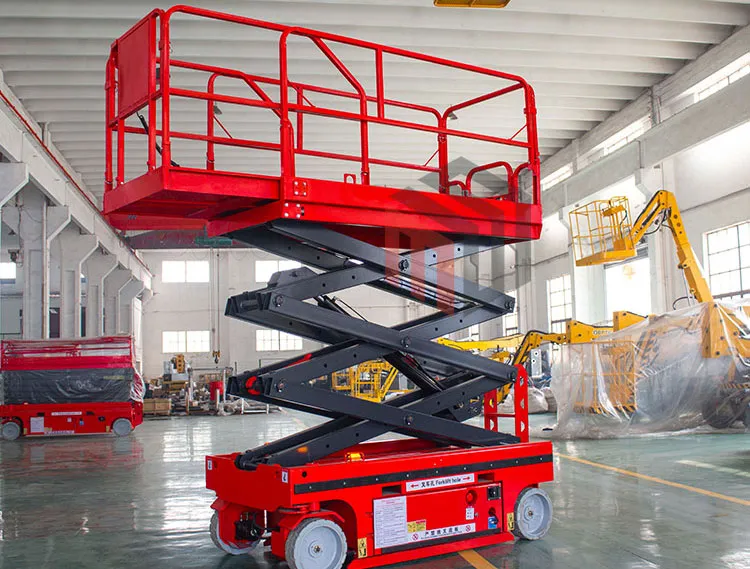

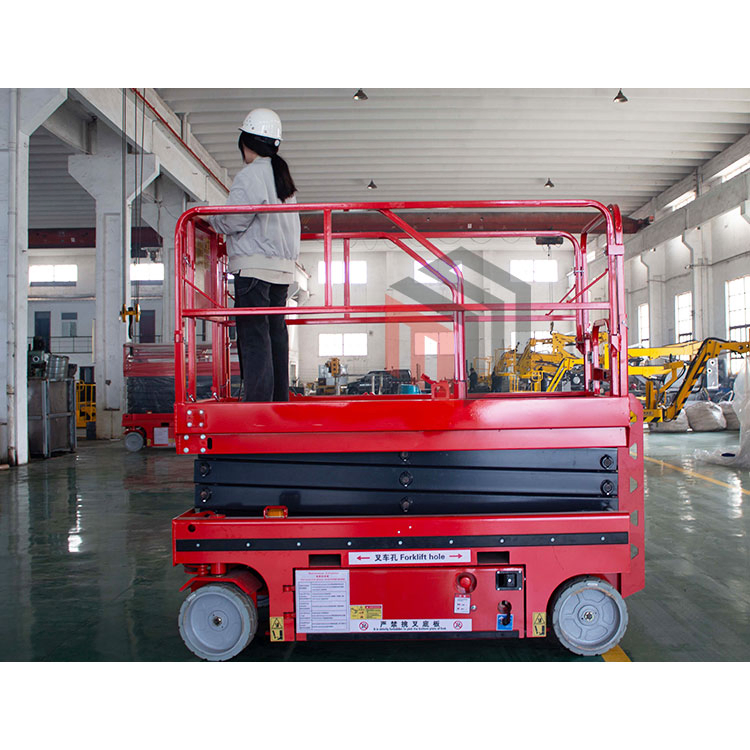

Scissor lift is an essential aerial work platform designed for efficiency and safety. These units easily pass through standard single or double doors, making them ideal for indoor and outdoor environments.
Featuring front-wheel drive and a zero inside turning radius, these lifts provide excellent manoeuvrability in tight spaces such as congested construction sites, elevators, and narrow aisles.
| Model | Lifting Capacity | Lifting Height | Dimensions | Weight | Platform Extension | Gradeability |
|---|---|---|---|---|---|---|
| SM06 | 500KG | 6m | 2430*1220*2285mm | 2060kg | 0.9m | 25% |
| SM08 | 450KG | 8m | 2430*1220*2420mm | 2200kg | 0.9m | 25% |
| SM10 | 320KG | 10m | 2430*1220*2550mm | 2450kg | 0.9m | 25% |
| SM12 | 320KG | 12m | 2430*1230*2670mm | 2850kg | 0.9m | 25% |
| SM14 | 230KG | 14m | 2800*1390*2670mm | 3350kg | 0.9m | 25% |

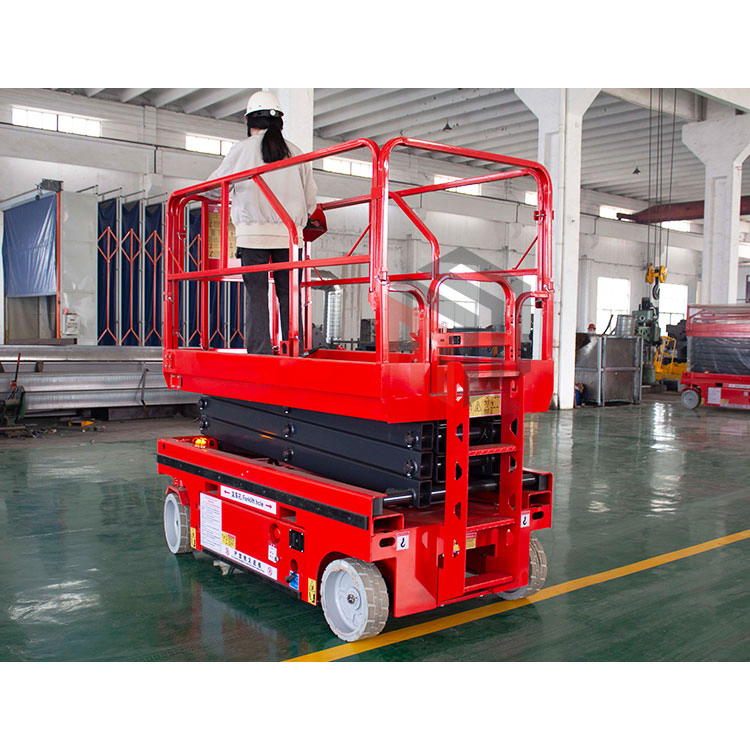

➤ Standard Electric Scissor Lift: Equipped with solid non-marking tyres. A quieter option suitable for indoor and outdoor use on even ground.

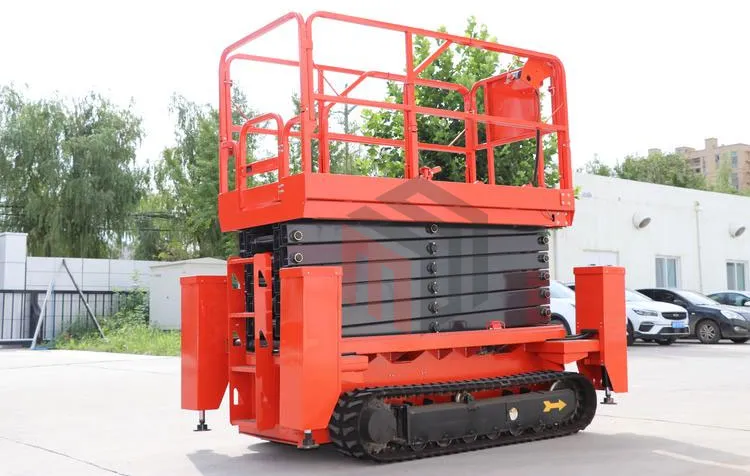

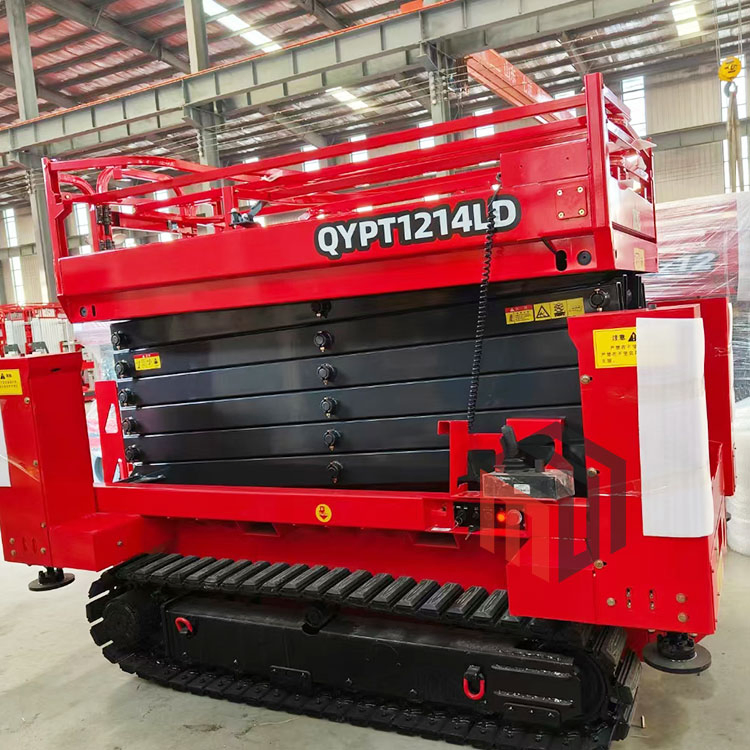

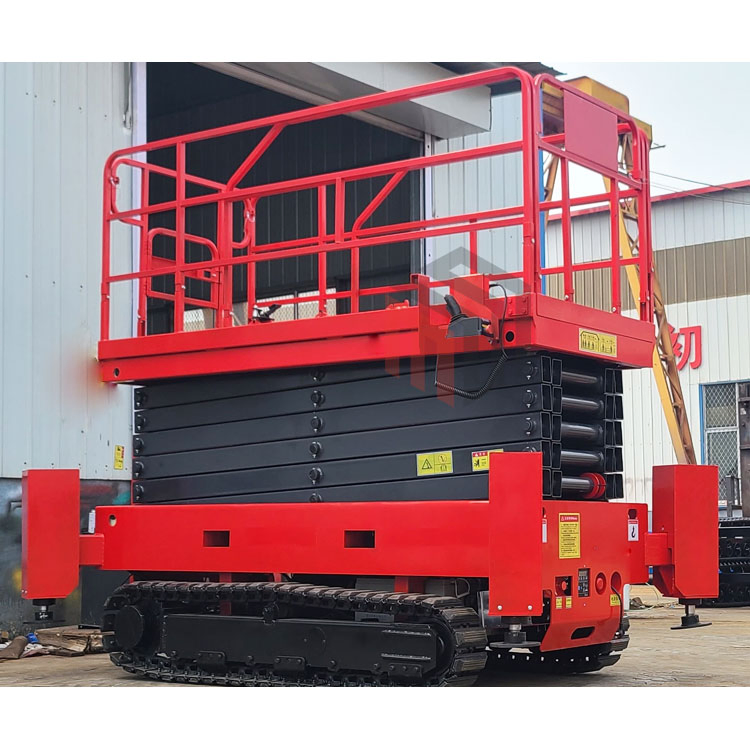

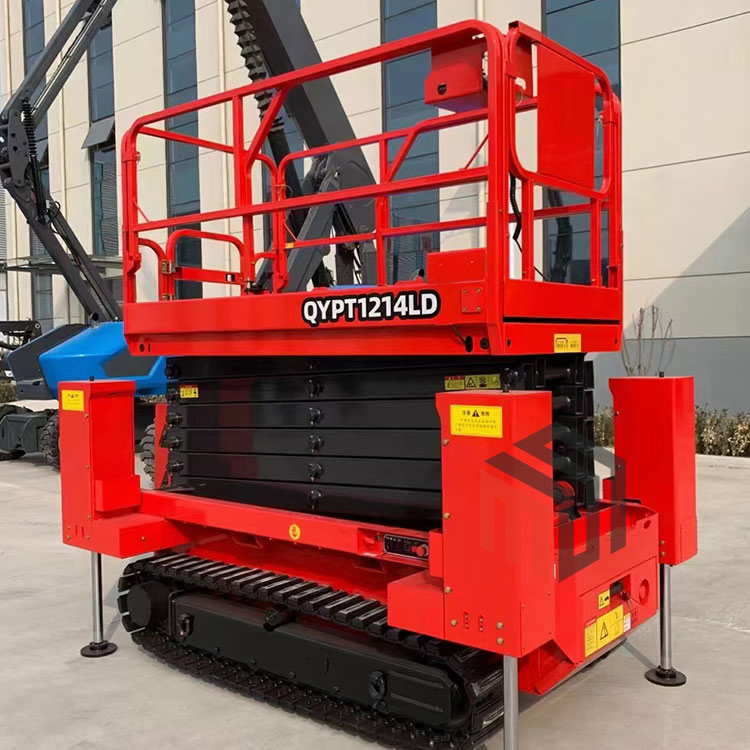

➤ Crawler Type Scissor Lift: Designed with active pothole protection for increased ground clearance and stability on uneven surfaces.

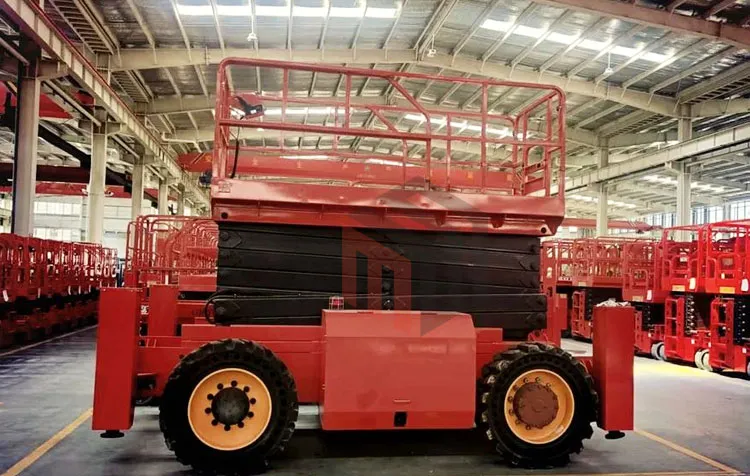

➤ Rough Terrain Scissor Lift: These lifts traverse challenging terrain while lifting multiple tools and operators. They can be driven at full height to maximize productivity.

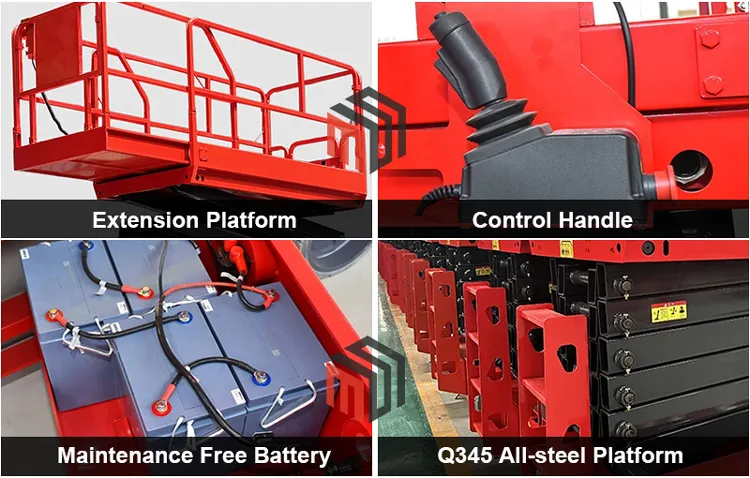

Ideal for maintenance and construction tasks, these lifts feature an extendable platform with a 1m safety fence, allowing up to 2 persons to work simultaneously. Low-emission operation makes them perfect for sound-sensitive environments like offices, malls, hotels, and schools.
