Kathy lift
1 / 5

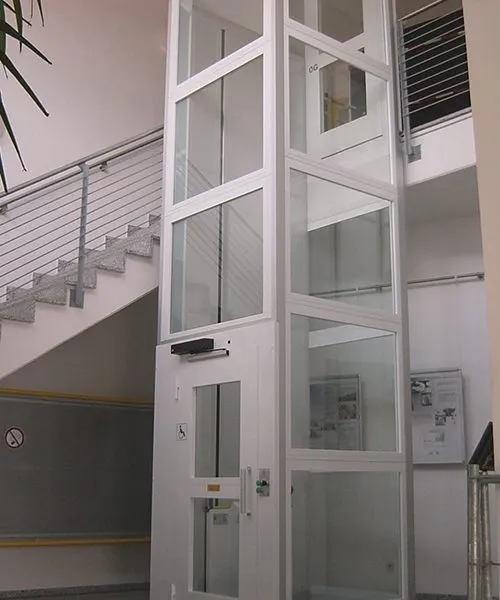

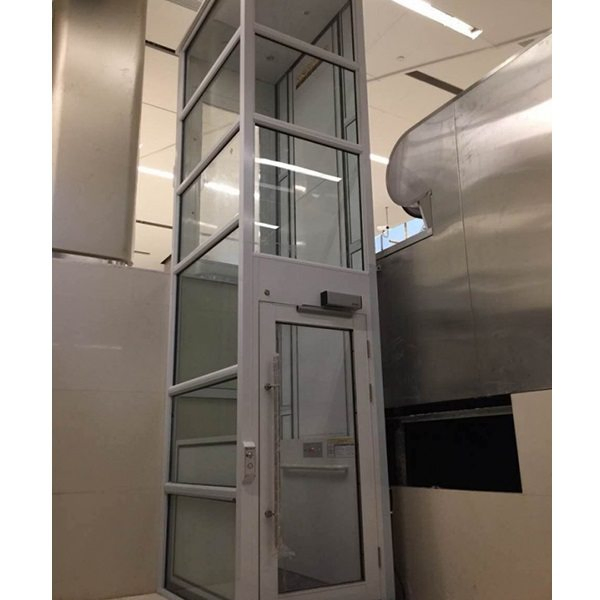

The hoistway lift platform has the characteristics of stable running speed, high safety, easy installation, small footprint, no need for machine pits, etc. Compared with home elevators, the cost is lower, and it is very popular among customers. The platform space can accommodate wheelchairs and escorts at the same time, helping disabled individuals solve the trouble of going up and down stairs. This equipment can also replace home elevators for lifting people and goods below 3 floors.

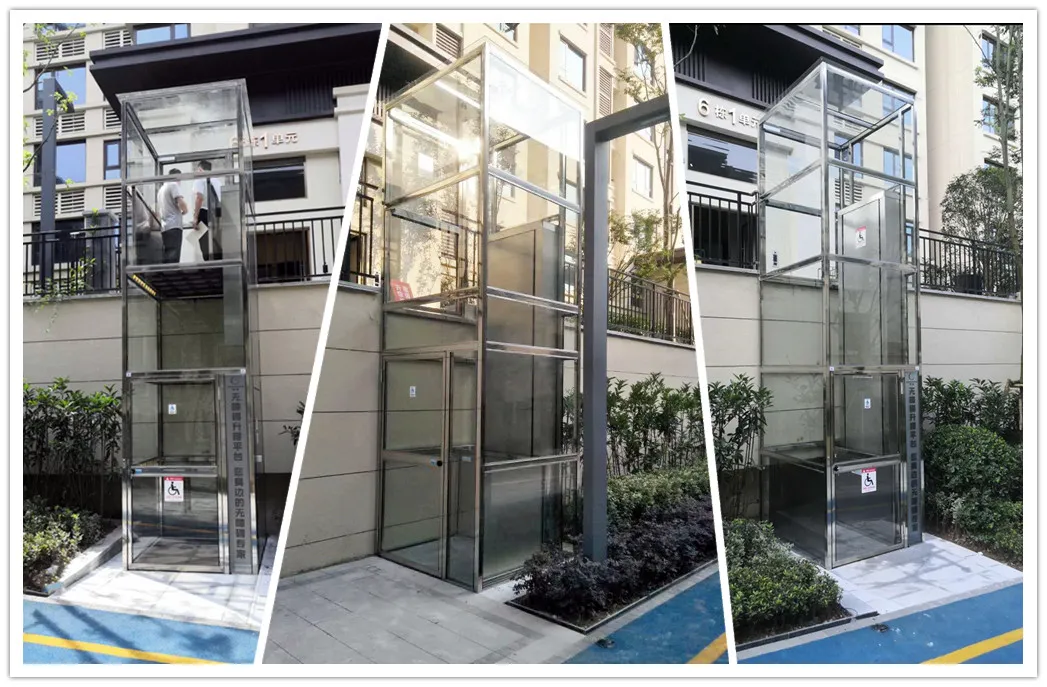

Application Range: Residential quarters, villas, hotels, administrative office buildings, subways, banks, gymnasiums, hospitals, and pension centers.
| Y-160 Hoistway Vertical Platform Lifts | |
|---|---|
| Voltage | 220V/50HZ or Customized |

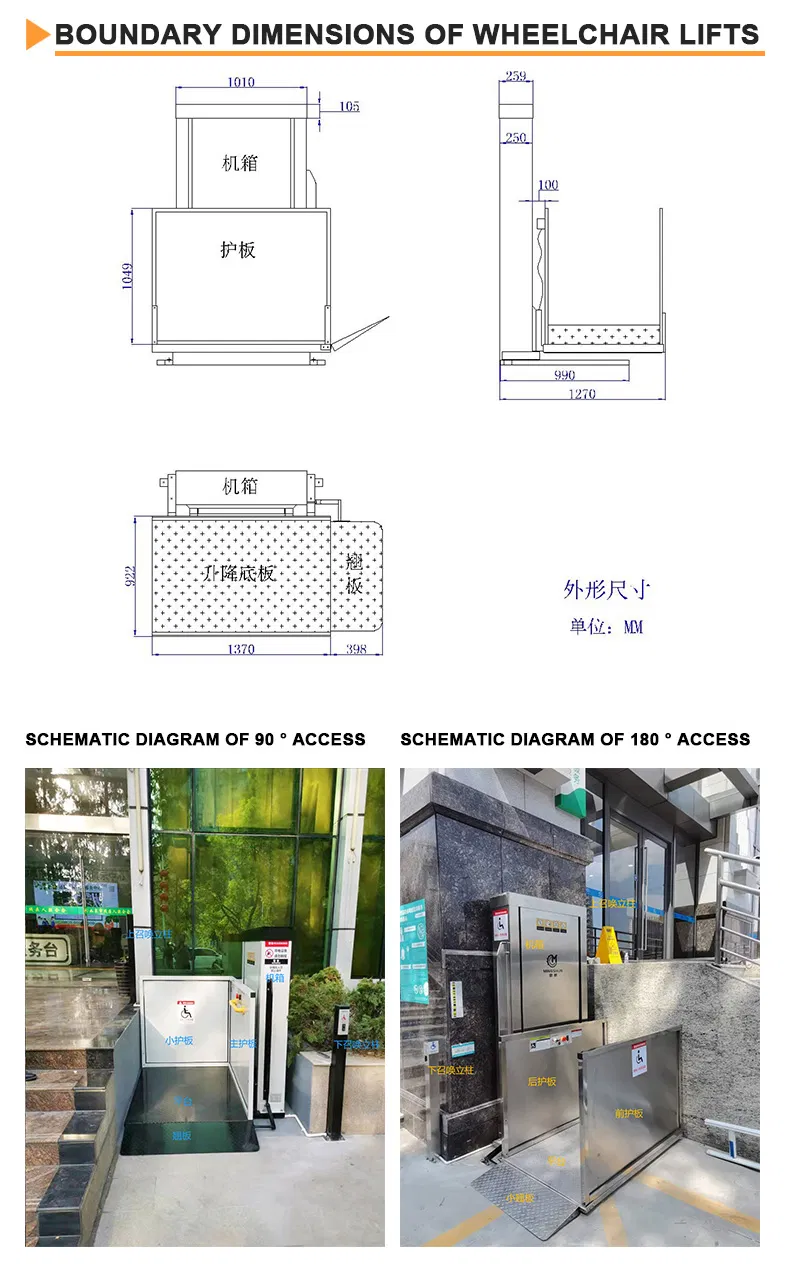

| Overall Dimensions | 1590mm × 1380mm × (Lifting Height + 2200mm) |
| Equipment Dimensions | 1370mm × 1270mm × (Lifting Height + 2200mm) |
| Lifting Base Plate Size | 1370mm × 920mm |
| Min. Base Plate Height | 80mm (from the ground) |
| Installation Way | No foundation pit, directly fixed on concrete floor/wall |
| Lifting Speed | 90mm/s (Inverter control, soft start/brake) |
| Max. Loading | 240kg |
| Drive Way | Hydraulic double-valve silent motor-driven |
| Motor Power | 2.2kw 220V/AC |
| Operating Temp. | -20°C to 60°C |
| Safety Features | Overload protection, Emergency stop, Emergency descent, Sensor light curtains |
