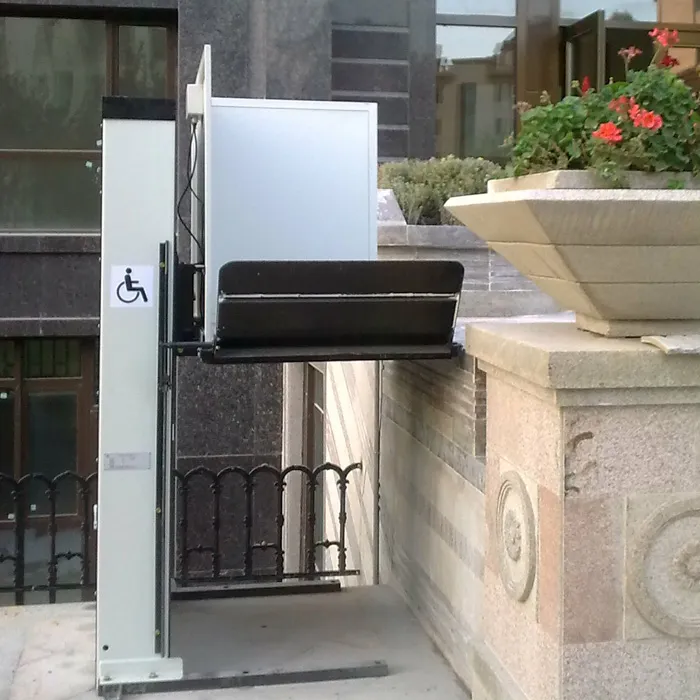

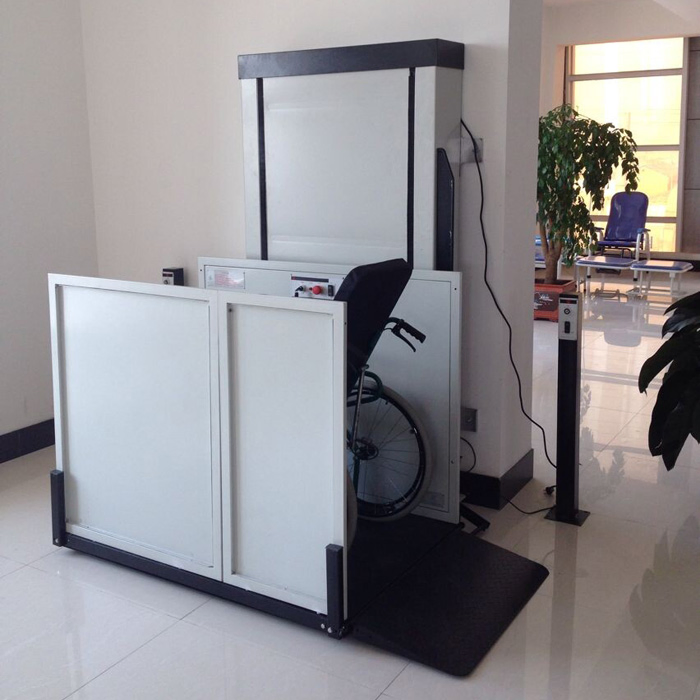

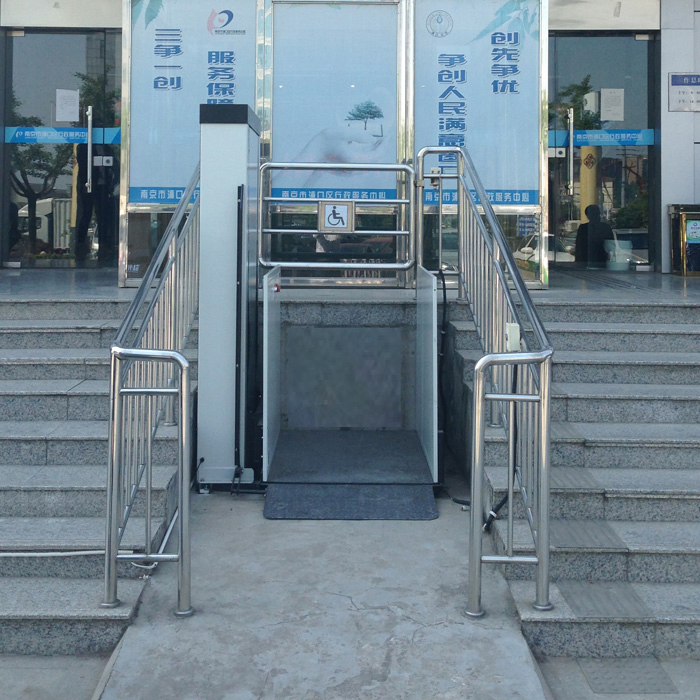

Wheelchair platform lift for home is customized products for lifting cargo or wheelchair for disabled people. It is suitable for solving disabled passengers with large height differences between floors. Platform space can accommodate both wheelchairs and escorts.
This platform lift features smooth running speed, high safety, easy installation, small space requirement, and no pits required.
| Technic Parameters and Functions | |
|---|---|
| Voltage | 220V/50HZ or Customized |

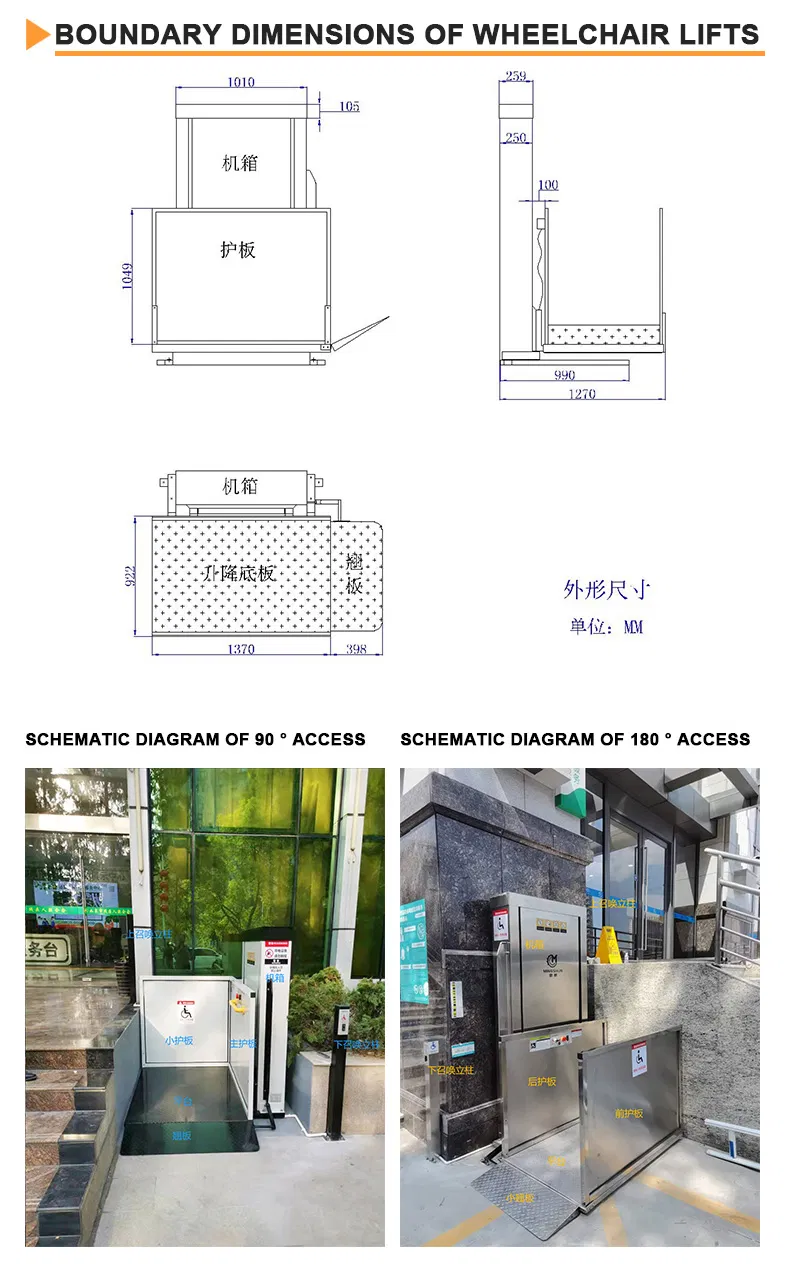

| Overall Dimensions | 1670mm(L)×1270mm(W)×(lifting height+550)mm(H) |
| Lifting Height | 2000mm (Customizable) |
| Min Base Plate Height | 60mm from the ground |
| Installation | No Foundation/Pit Required |
| Lifting Speed | 60mm/s Inverter control (Soft Start/Stop) |
| Max Loading | 240kg |
| Drive System | Screw Drive |
| Power | 2.2kw 220V/AC |

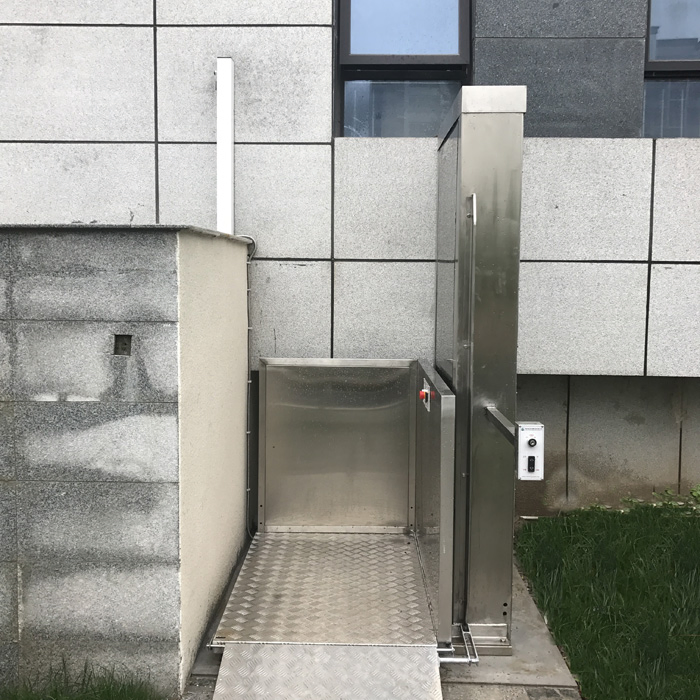

| Environment | Indoor & Outdoor (-20°C to 60°C) |
| Safety Rocker | Automatic tilt up to prevent wheelchair sliding |
| Emergency Features | Emergency Stop Button & Electric Emergency Descent |

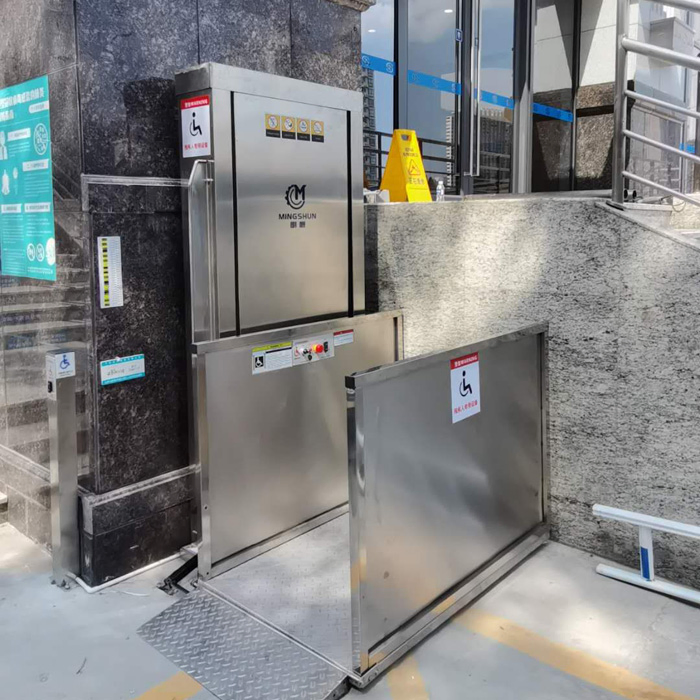

Safe performance and pit-free installation design bring you the convenience of barrier-free access construction and elevator-like enjoyment. Widely used in residential quarters, hotels, restaurants, administrative office buildings, subways, banks, gymnasiums, hospitals, and other public places. In line with ASME A18-1 and CSA-B613 standards.
