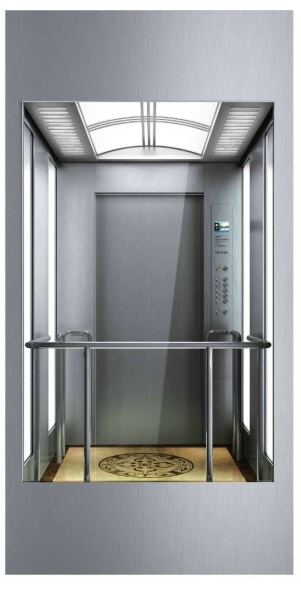

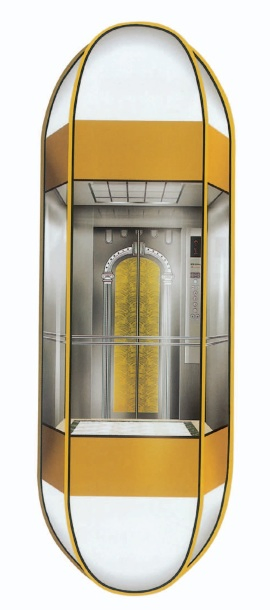

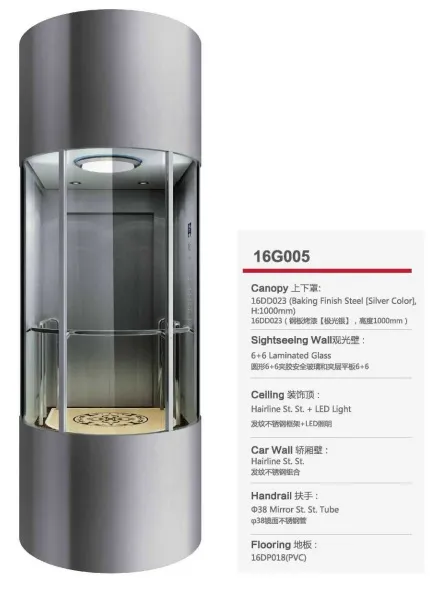

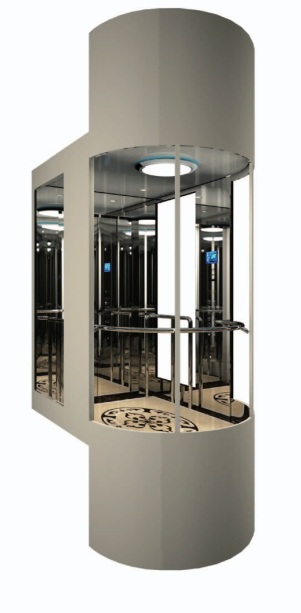

Gearless Sightseeing Passenger Goods Freight Residential Observation Capsule Home Villa Panoramic Glass Elevator Lift

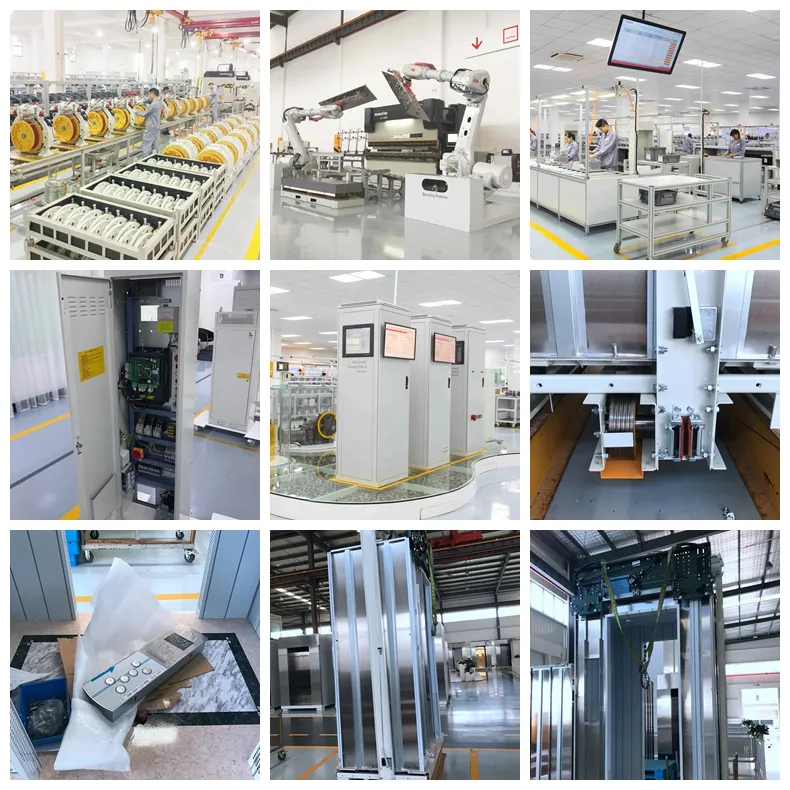

Our commitment is dedicated to manufacturing high quality and superior performance elevators and escalators in accordance with international and professional standards. We utilize advanced automatic production lines including electronic, traction machine, and door system workshops, ensuring an annual capacity of over 30,000 sets.

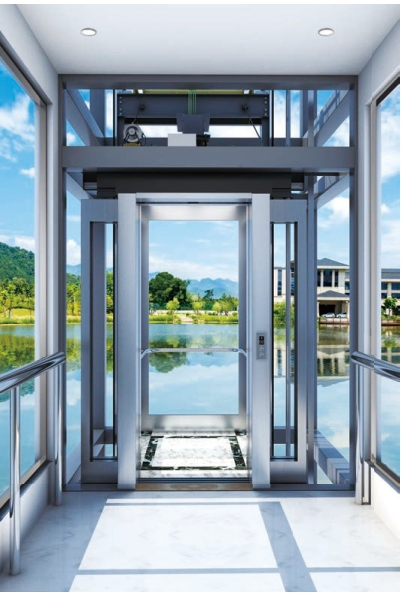

Combined with modern technology and fashion art, our sightseeing lift satisfies all needs of hotels, office buildings, and shopping malls, providing a safe and comfortable riding experience.
Glass Elevator Specifications (With Machine Room)
| Capacity (kg) | Speed (m/s) | Cabin Size (WxD) | Shaft Size (WxD) | Pit Depth (mm) | OH (mm) | Max Travel (m) |
|---|---|---|---|---|---|---|

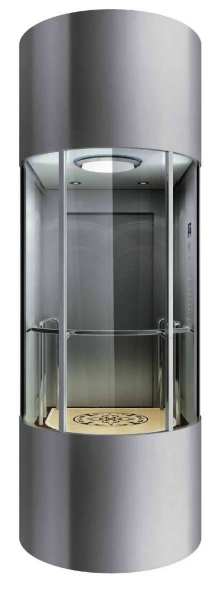

| 630 (Round) | 1.0 - 1.75 | 1150x1500 | 2250x2050 | 2000-2200 | 4900-5100 | 50-90 |
| 800 | 1.0 - 1.75 | 1150x1800 | 2300x2350 | 2000-2200 | 4900-5100 | 50-90 |
| 1000 | 1.0 - 1.75 | 1300x1900 | 2450x2450 | 2000-2200 | 4900-5100 | 50-90 |
| 1150 | 1.0 - 1.75 | 1400x2000 | 2400x2550 | 2000-2200 | 4900-5100 | 50-90 |
| 1350 | 1.0 - 1.75 | 1500x2100 | 2650x2650 | 2000-2200 | 4900-5100 | 50-90 |
| 1600 | 1.0 - 1.75 | 1500x2500 | 2700x3100 | 2000-2200 | 4900-5100 | 50-90 |
Note: Standard specifications are for reference. Custom designs are available based on site parameters.

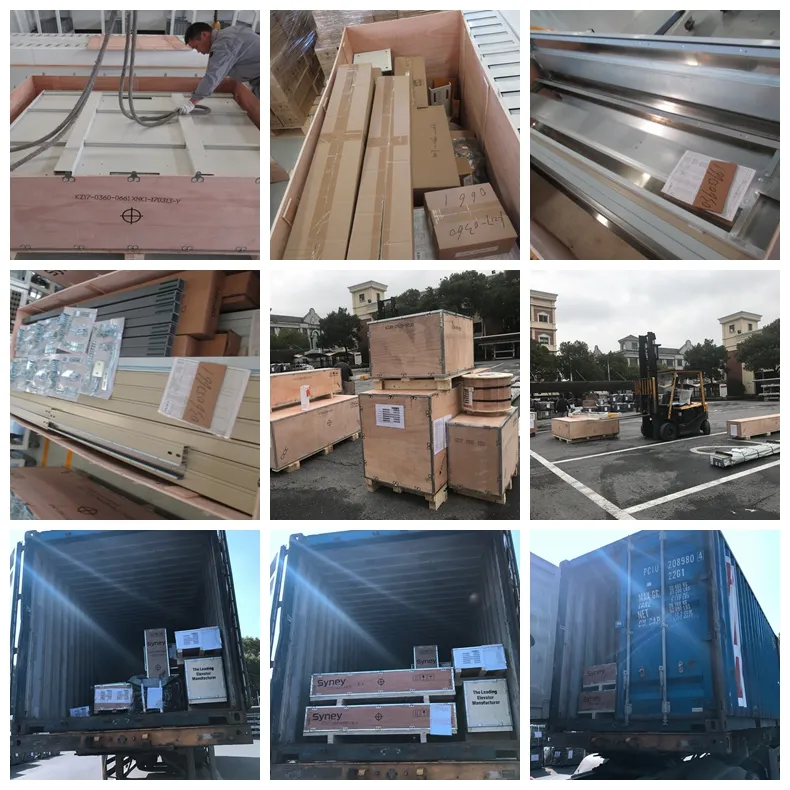

Packing Details: All parts are packed in solid, fumigation-free plywood boxes suitable for long-term sea shipping. Sensitive components like control cabinets and motors are protected with waterproof film and desiccant.

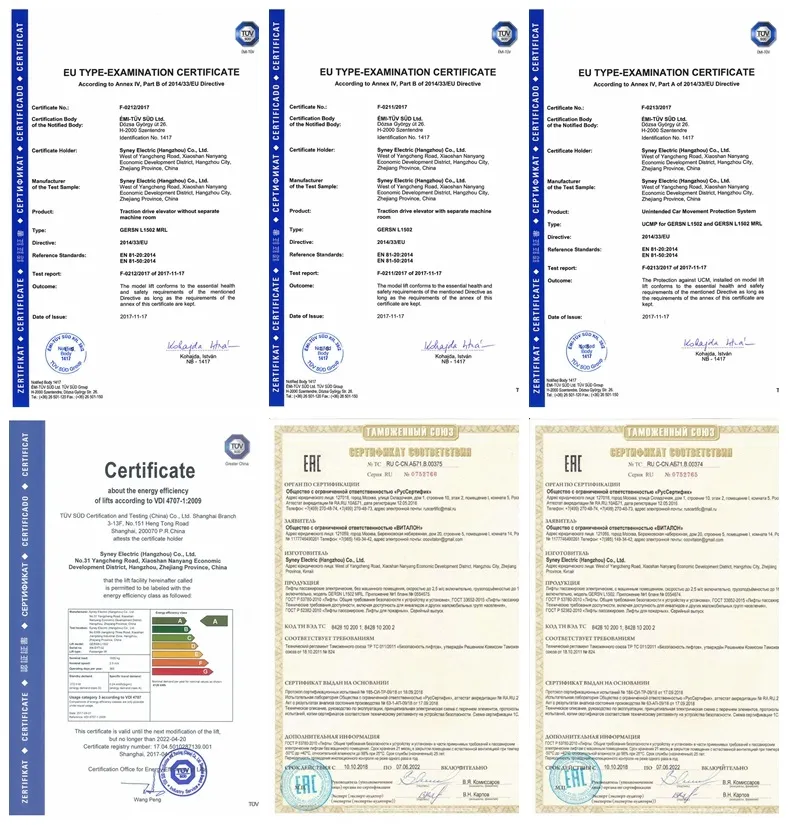

Our products hold the Germany TÜV SÜD mark, one of the strictest certifications worldwide. This indicates our quality certification system meets the highest international body requirements.
Our network expands to over 50 countries across Europe, Asia, Africa, and America, supporting diverse architectural requirements.
