CE Certified 1500mm Lift Height Mobile Electric Vehicle Battery Pack Professional Service Table

Basic Information Overview

Model NO.

ON-7808E-12

Type

One Cylinder Hydraulic Lift

Lifting Capacity

1.2t

Driving Type

Hydraulic

Certification

CE, ISO

Design

Scissor

Lifting Time

60s

Lifting Height

1820mm (71 5/8")

Platform Width

800mm (31 1/2")

Gross Weight

748kgs

Packaging & Delivery

Package Size

210.00cm * 90.00cm * 80.00cm

Package Gross Weight

748.000kg

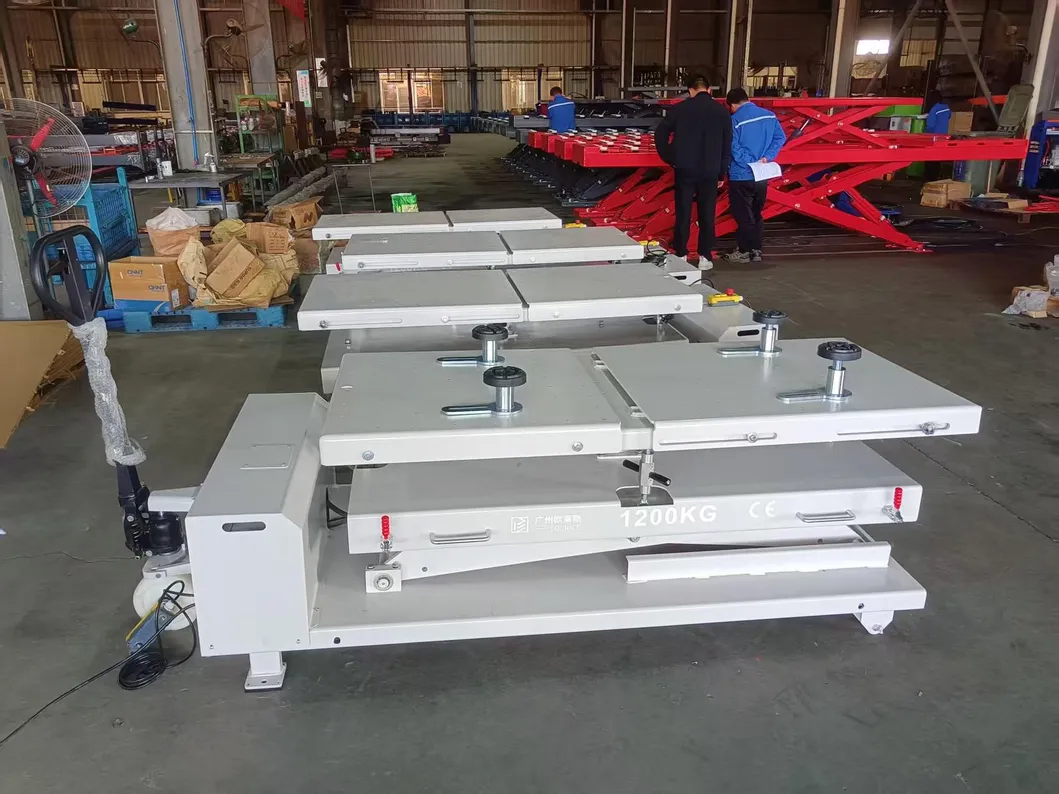

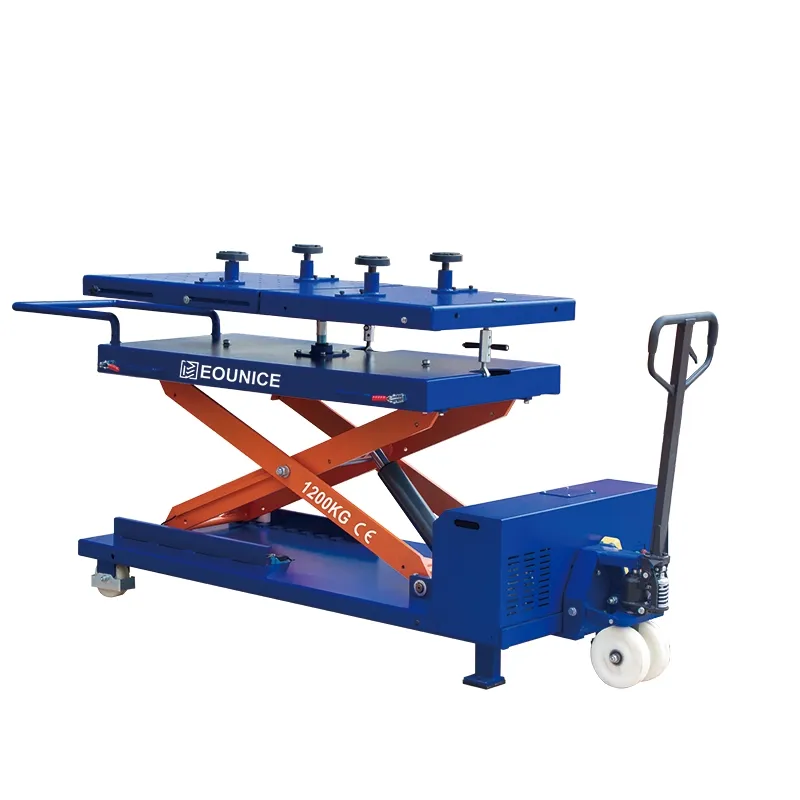

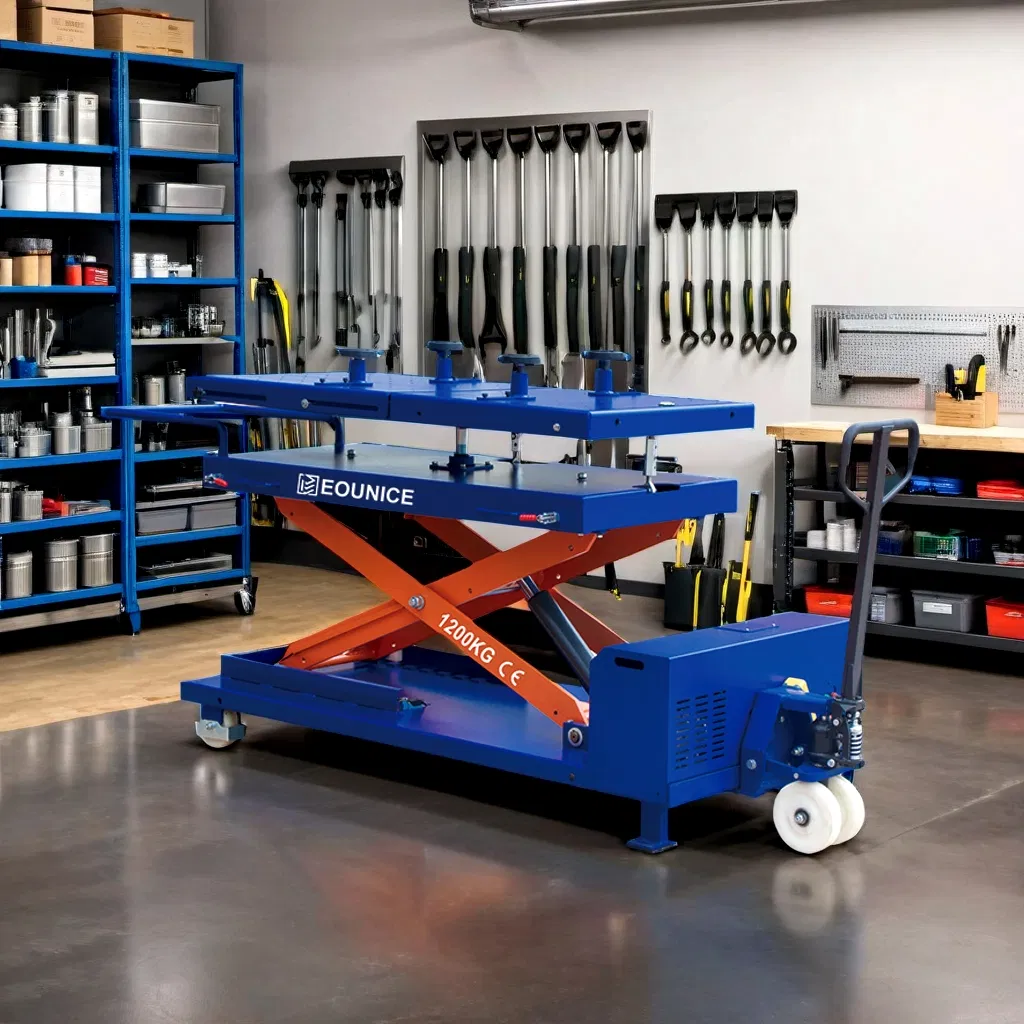

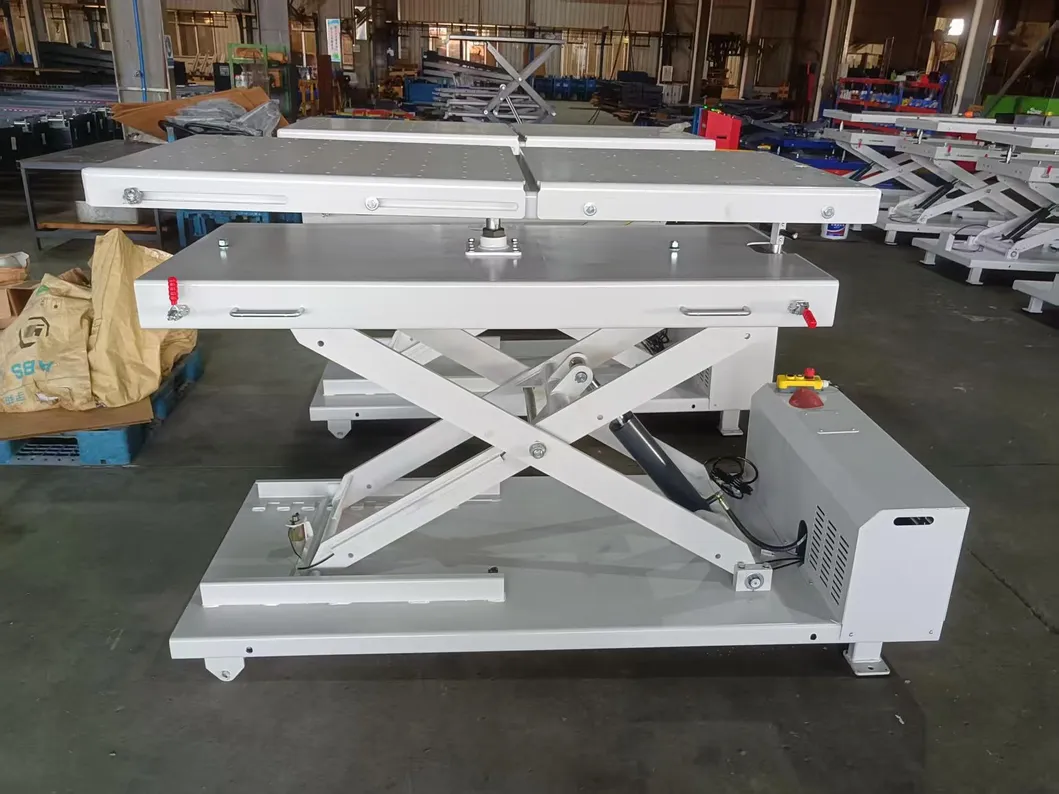

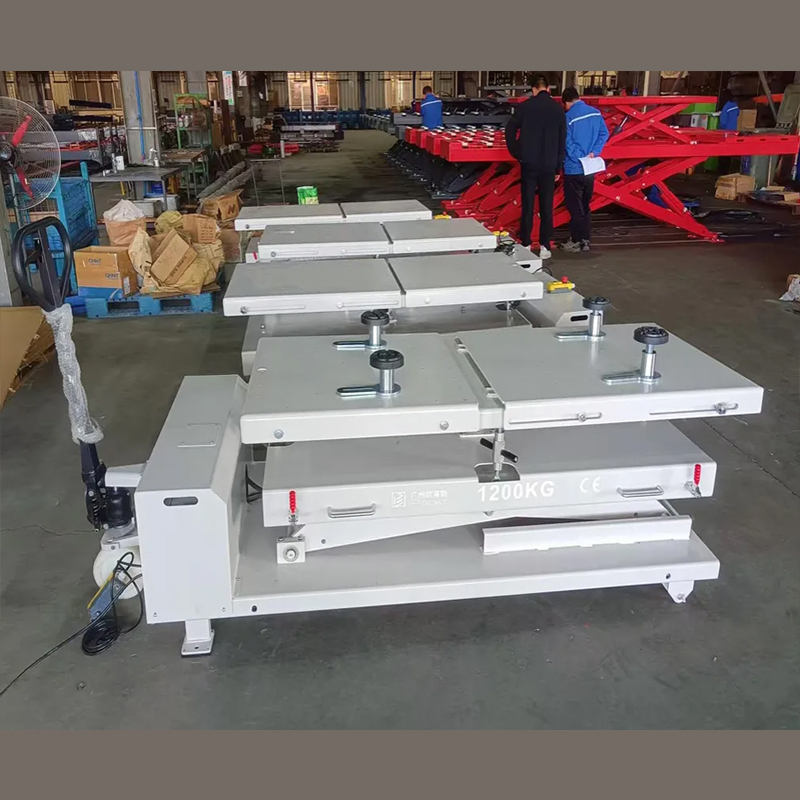

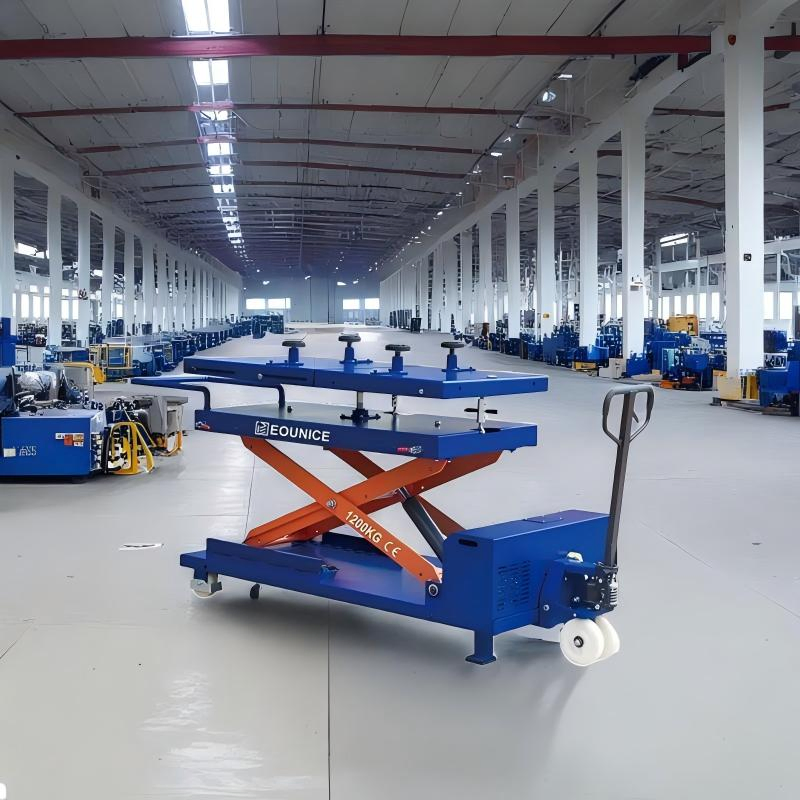

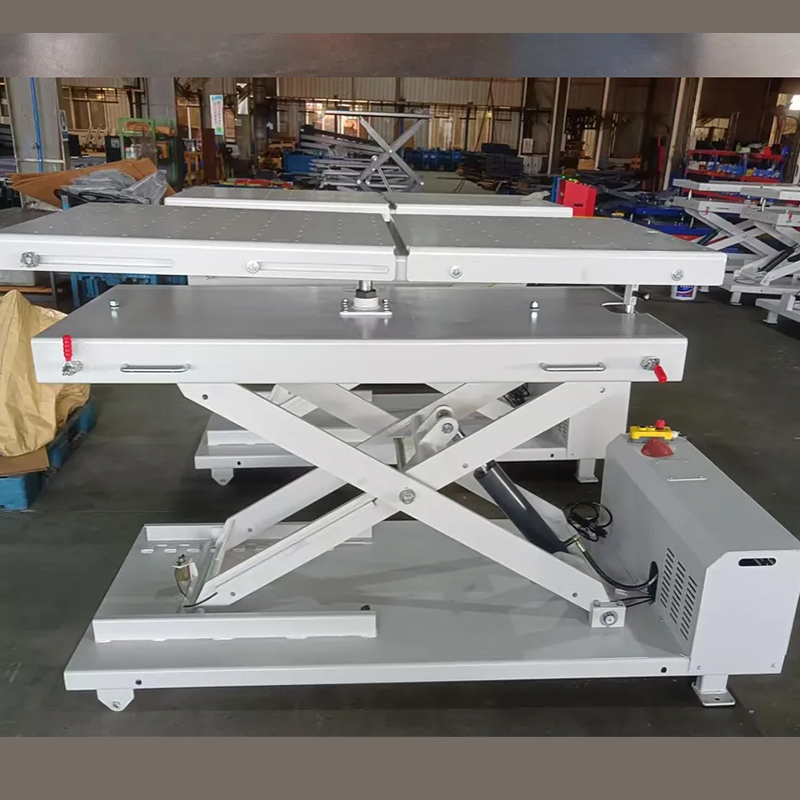

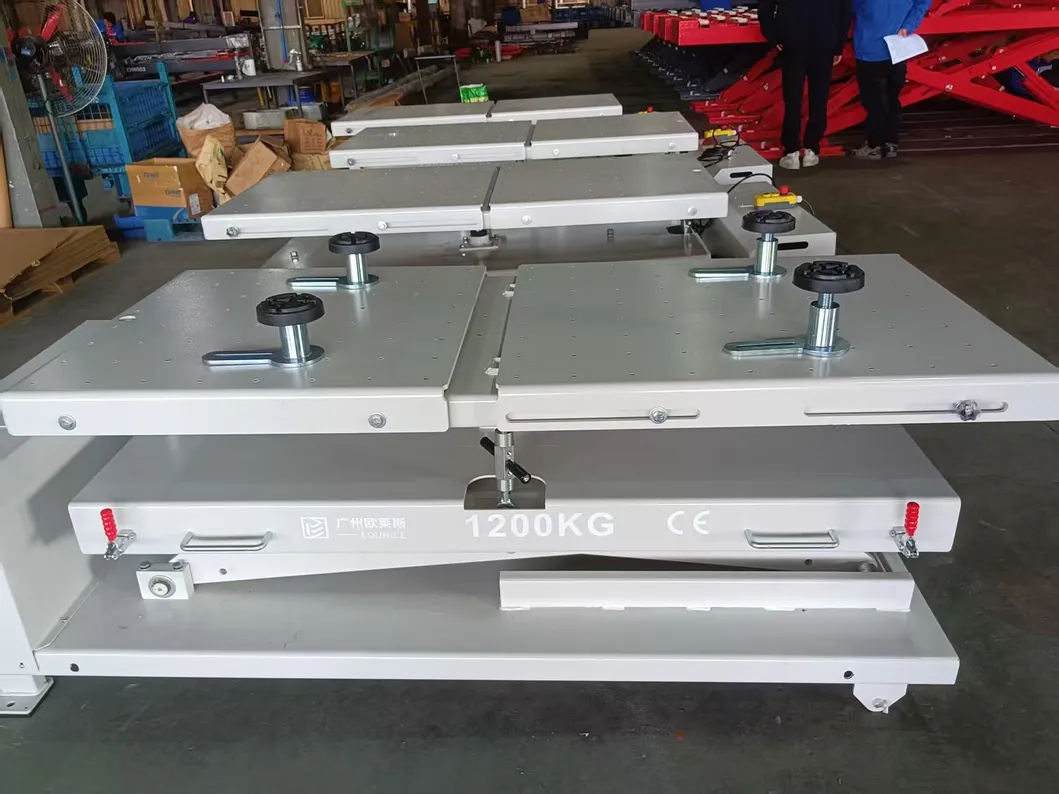

Detailed Product Photos

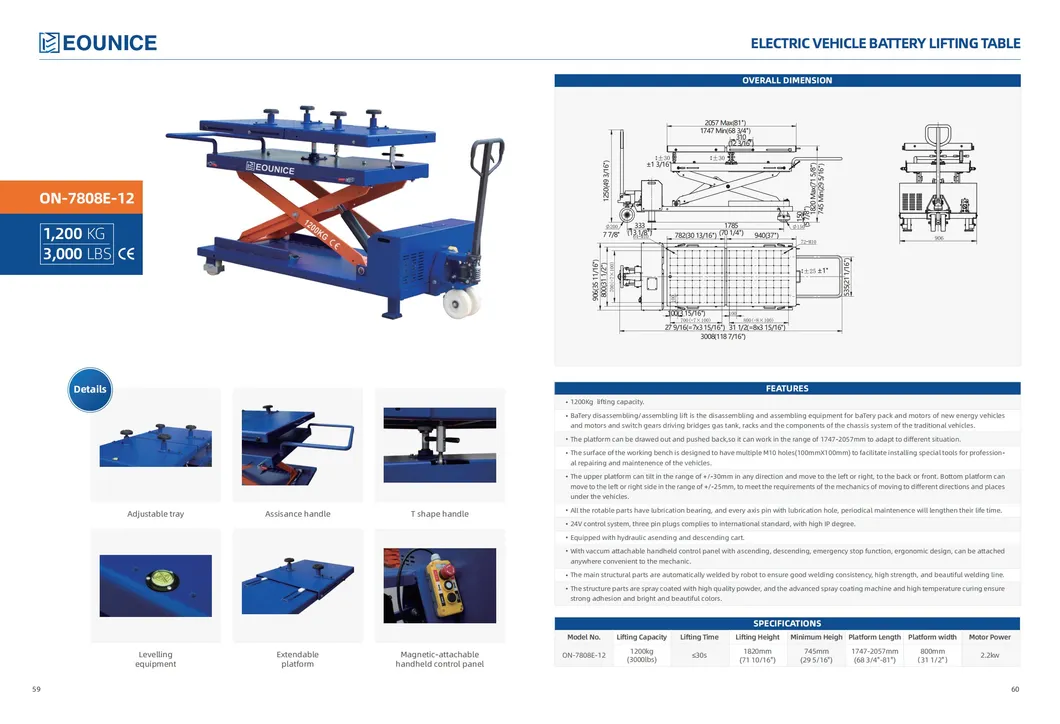

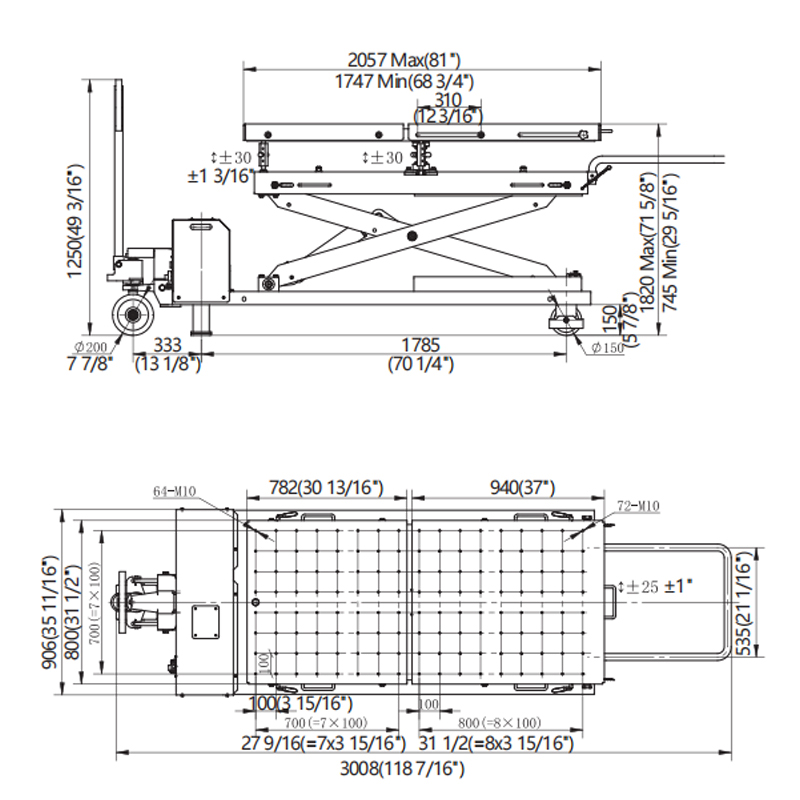

Technical Data Parameters

Model	Lifting Capacity	Lifting Time	Lifting Height	Overall Length	Platform Width	Power/Air Supply	Min Height
ON-7808E-10	1,000kgs (2,200LBS)	≤60S	1820mm (71 5/8")	1305mm - 1480mm	550mm	6-8kg/cm²	570mm
ON-7808E-12	1,200kgs (3,000LBS)	≤60S	1820mm (71 5/8")	1747mm - 2057mm	800mm	2.2KW	745mm

Product Highlights

1,200Kg (2,200LBS.) lifting capacity suitable for professional use.
Reliable mechanical self-lock safety locking system for maximum protection.
Max height limit switch ensures cylinders operate safely within the stroke.
Skid proof diamond plate and low-profile platforms for secure handling.
Dual safety device: Automatic locking in case of primary system failure.

Main Features & Performance

Minimum ground height of 570mm effectively avoids chassis hanging for low-profile vehicles.
Designed specifically for battery disassembling/assembling of new energy vehicles and traditional chassis components.
Extendable platform (1305-1480mm) to adapt to various vehicle configurations.
Workbench features multiple M10 holes (100mmX100mm) for installing professional specialized tools.
Four-way tilting function (Left/Right/Forward/Backward) with a range of +/-25mm via T-shape handles.
Lateral sliding capability of +/-25mm for precise alignment.
Pneumatic driving hydraulic system with pedal control for easy operation.
Heavy-duty caster kit with direction locks for free movement and quick switching.
Robot-welded structural parts ensure high strength and beautiful, consistent seams.

Packaging & Shipping

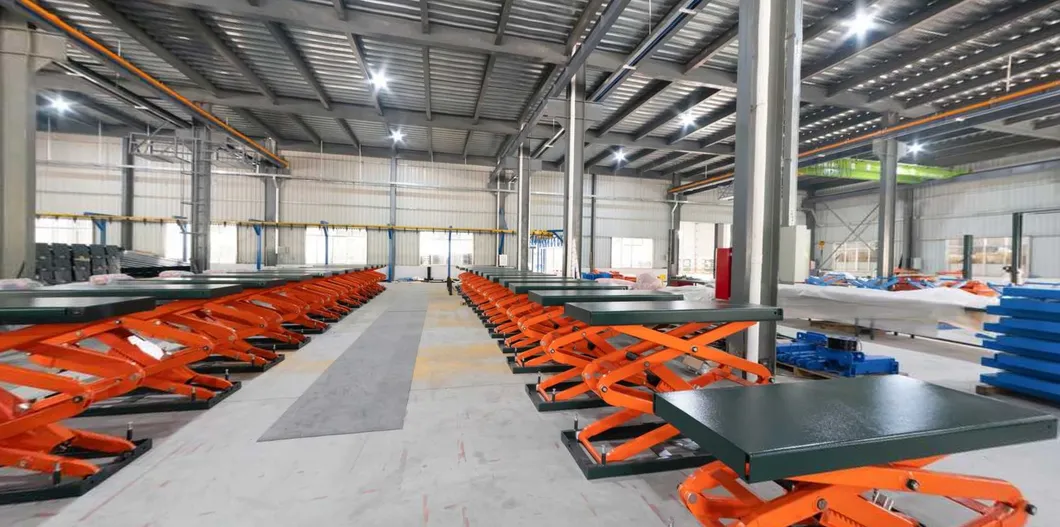

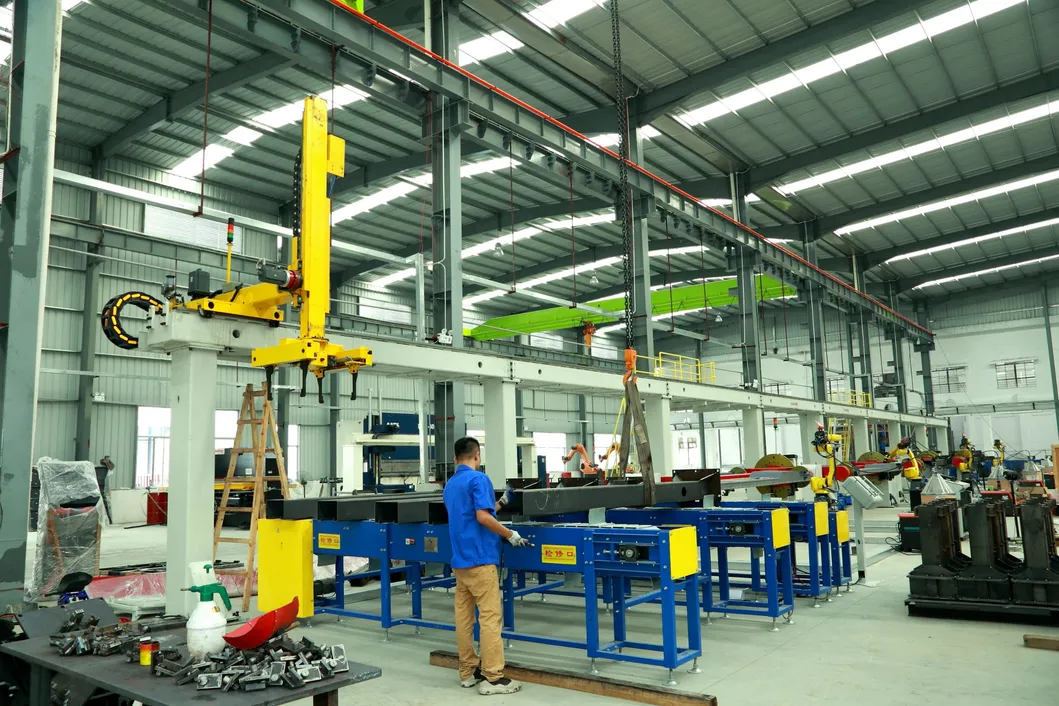

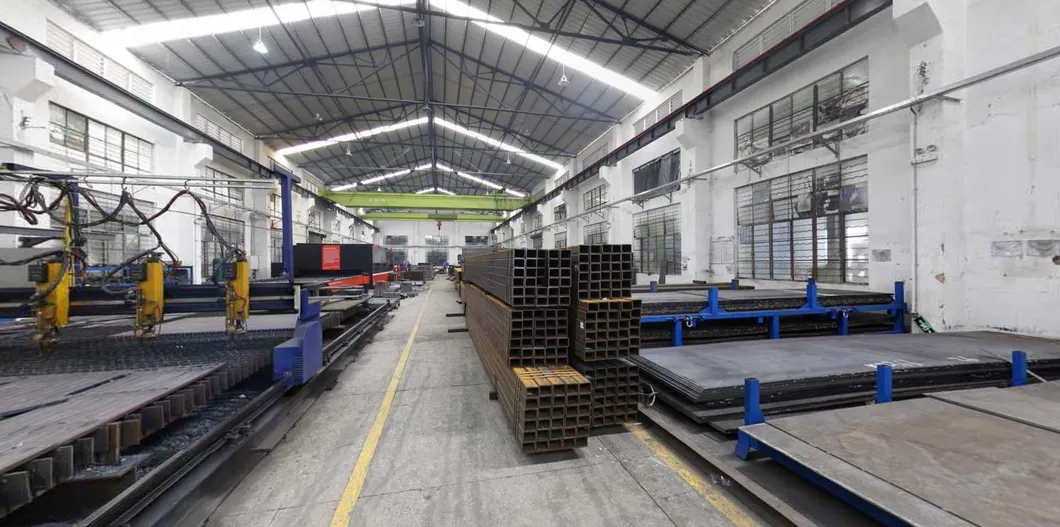

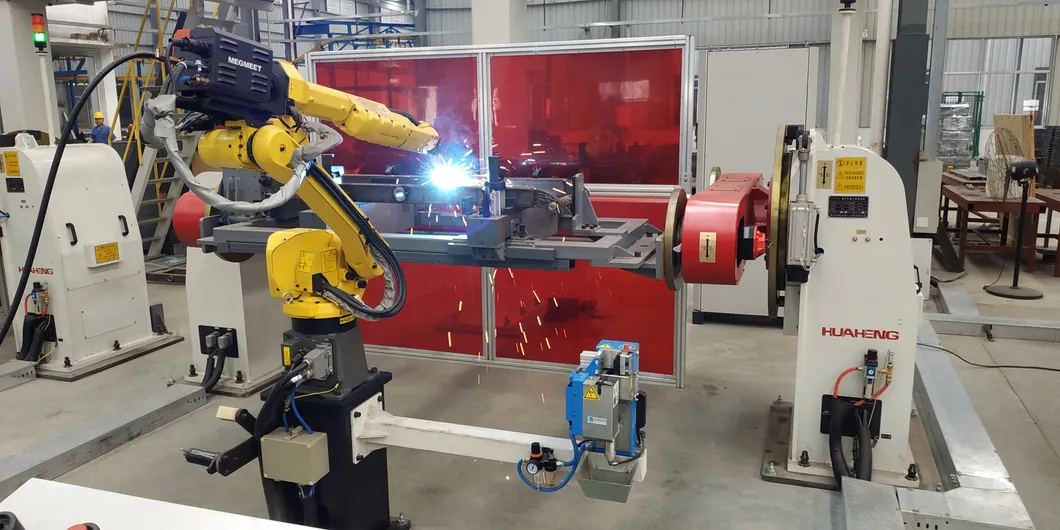

Production Facility

Product Certifications

After Sales Service & Warranty

Warranty Term: One year on equipment structure, free of defects in material and workmanship.

Component Coverage: Motors, gear box, power units, hydraulic cylinders, cables, and switches are warranted for one year under normal use.

OEM & ODM service available.
Customized design services.
One-year quality warranty with free spare parts (shipping excluded).
Professional technical support for the product's lifespan.

Frequently Asked Questions

Are you a manufacturer or a trading company?

We are a professional manufacturer and we operate our own export trade company to ensure seamless service.

What is the estimated production lead time?

Commonly the lead time is within 15 days after receiving the deposit or L/C, based on standard container quantities (20FT or 40HQ).

Can I request a customized color for the equipment?

Yes. While our regular colors are Blue, Red, and Yellow, we can produce machines with special colors according to your specific request.

Is it possible to order the equipment in a special size?

Yes, sizes can be customized as long as they remain suitable for the inner dimensions of standard shipping containers.

What kind of warranty do you provide?

We provide a one-year warranty on the structure and all major components like motors and hydraulic systems under normal operating conditions.

Do you offer OEM/ODM services?

Yes, we provide both OEM and ODM services to meet the specific branding and design requirements of our international clients.
